Summary of Contents for Schwinn IC2i

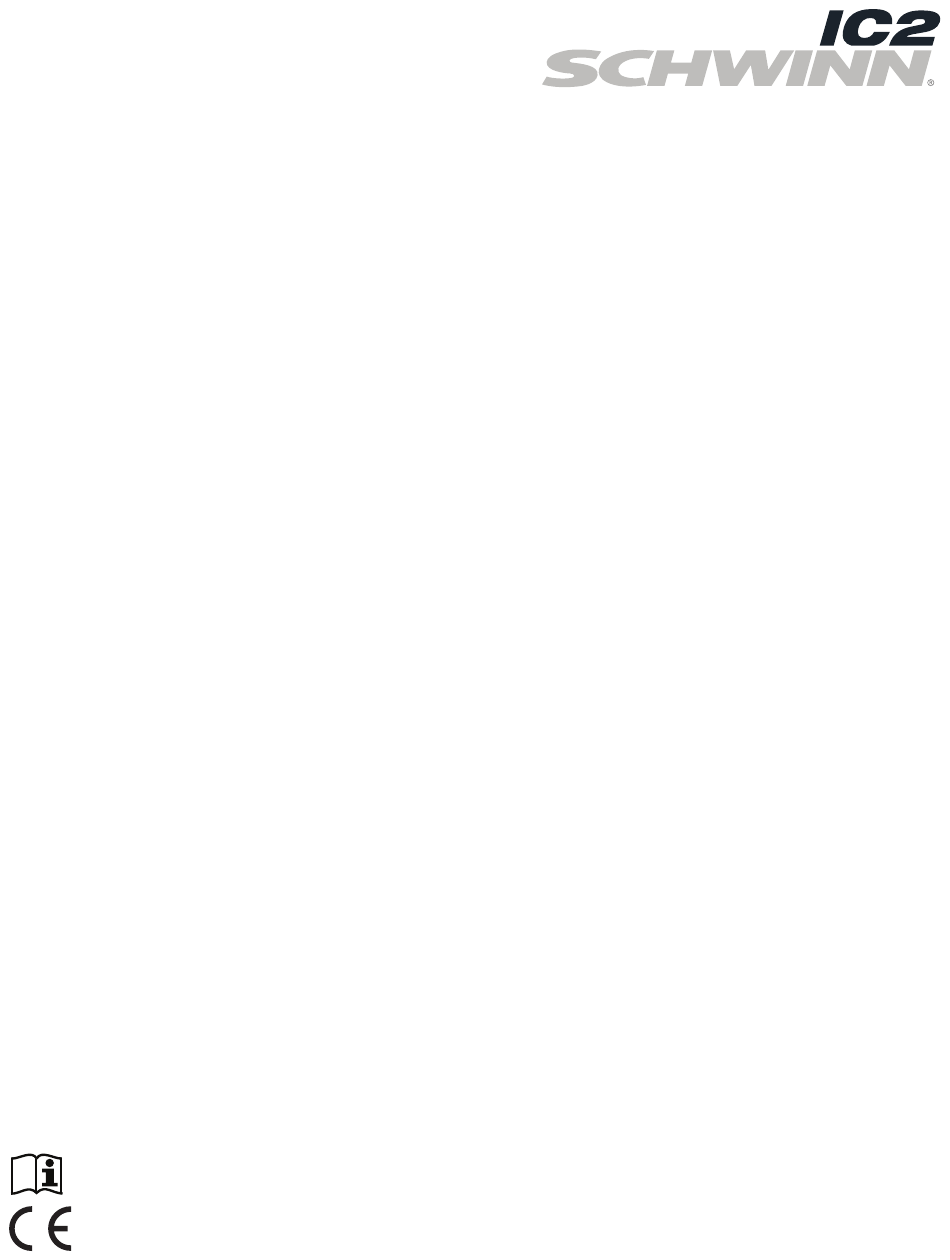

  • Page 1 This product is compliant with the applicable CE requirements. ASSEMBLY MANUAL / OWNER’S MANUAL...
  • Page 2: Table Of Contents

    Date of Purchase ____________________ To register your product warranty, contact your local distributor. If you have questions or problems with your product, please contact your local Schwinn distributor. To find your local distributor, go to: www.nautilusinternational.com Nautilus, Inc., www.nautilusInternational.com | Nautilus, Inc., 18225 NE Riverside Parkway, Portland, OR 97230 USA | Printed in China | © 2014 Nautilus, Inc.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Obey the following warnings: Read and understand all warnings on this machine. Carefully read and understand the Assembly instructions. •...
  • Page 4 Before using this equipment, obey the following warnings: Read and understand the complete Manual. Keep the Manual for future reference. Read and understand all warnings on this machine. If at any time the Warning stickers become loose, unreadable or dislodged, contact your local distributor for replacement stickers. •...
  • Page 5: Safety Warning Labels / Serial Number

    SAFETY WARNING LABELS AND SERIAL NUMBER Keep hands away. Serial number Product specifications...
  • Page 6: Specifications

    SPECIFICATIONS Maximum User Weight: 113 kg (250 lbs.) Total Surface Area (footprint) of equipment: 6373 cm 123cm Machine Weight: 38 kg (83 lbs.) (48.4”) Power Requirements: 2 AA batteries (LR6) Operational Voltage: 1.0 - 3.3VDC Complies with the following: 113cm (44.5”) 56.4cm (22.2”) DO NOT dispose of this product as refuse. This product is to be recycled. For proper disposal of this product, please follow the prescribed methods at an approved waste center.
  • Page 7: Parts

    PARTS Item Description Item Description Main Frame Seat Post Front Stabilizer Handlebar Post Rear Stabilizer Handlebar Pedal, Right Water Bottle Holder Pedal, Left Console Seat...
  • Page 8: Hardware

    HARDWARE / TOOLS Item Description Button Head Hex Screw M8 x 56 Button Head Hex Screw M8 x 20 Flat Washer M8 Lock Nut M8 Pan Head Phillips Screw M6 x 50 Flat Washer M6 Tools Included 6 mm...
  • Page 9: Assembly

    ASSEMBLY 1. Attach Stabilizers to Frame Assembly...
  • Page 10 2. Attach Seat to Seat Post and Frame NOTICE: S lide the Seat (6) onto the Seat Post (7) and install the Seat Post in the Frame. Make sure the adjustment knob (7a) engages the holes in the Seat Post. Be sure the Seat is straight. Tighten the bolt (6b) and nut (6c) on the Seat bracket (6a) to hold the Seat in posi- tion.
  • Page 11 3. Attach Handlebars to Handlebar Post 4. Install Handlebar Assembly on Frame NOTICE: M ake sure the adjustment knob (8a) engages the holes in the Handlebar Post.
  • Page 12 5. Attach Pedals to Frame Assembly Note: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation is based from a seated position on the bike. The Left Pedal has an “L”, the Right Pedal an “R”.
  • Page 13 6. Attach Water Bottle Holder to Handlebar 7. Install Batteries in Console Note: T he console uses AA size batteries (LR6). Make sure that the batteries point in the direction of the +/– indica- tors in the battery bay. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc) batteries.
  • Page 14 8. Connect and Attach the Console NOTICE: Do not crimp Console Cable.
  • Page 15: Leveling The Bike

    9. Final Inspection Inspect your machine to ensure that all hardware is tight and components are properly assembled. Be sure to record the serial number in the field provided at the front of this manual. Refer to the Safety Warning Labels and Serial Number section of this manual.
  • Page 16: Features

    FEATURES Console Handlebar Assembly Adjustment Knob Brake/Resistance Knob Seat Seat Slider Stabilizers Levelers Pedals Flywheel Brake Assembly Chain Guard Transport Wheels Battery Bay Water Bottle Holder Emergency Stop To stop the pedals immediately, push down hard on the Brake/Resistance Knob. Console Features The Console provides information about your workout on the display screen.
  • Page 17 START/RESET Push to start, or to stop an active workout and reset the Time to 0:00. LCD Display Data Pedal revolutions Calories Time Numeric display Distance Speed The console display shows each workout measurement in sequence for 5 seconds: The RPM display field shows the machine revolutions per minute (RPM). The maximum display is 200. The CAL display field shows the estimated calories that you have burned during the exercise. The maximum display is 9999. If the calorie count is more, the display flashes 9999.
  • Page 18: Operations

    OPERATIONS What to Wear Wear rubber-soled athletic shoes or appropriate cycling shoes. You will need the appropriate clothes for exercise that al- low you to move freely. How Often Should You Exercise Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values calculated or measured by the machine’s computer for reference purposes only.
  • Page 19: Workout Mode

    Pausing or Stopping the Workout 1. The Console pauses if the pedaling is less than 5 RPM for 3 seconds. During Pause state, the console display shows Time, Calories, Total Distance, Average Speed and Average RPM. Start to pedal at 5 RPM or more to continue your workout. After 5 minutes in Pause Mode, the workout stops and the Console goes into Sleep Mode.
  • Page 20: Service Mode

    SERVICE MODE Service Mode lets you set the units of measure to either English or Metric, see machine statistics and firmware version (for technician use only). When the Console is in Workout Mode or Pause Mode, push and hold down the button for 5 seconds to go into Ser- vice Mode. Note: T ap the button to move through the Service Mode Menu options. When the Console display shows “dOnE”, push and hold the button for 3 seconds to reset the workout data and go back to Workout Mode. The Console display shows the Units prompt.
  • Page 21: Maintenance

    MAINTENANCE Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is necessary to do the necessary tasks. Equipment must be regularly examined for damage and repairs. The owner is responsible to make sure that regular maintenance is done.
  • Page 22 Maintenance Parts A Console Pedals O Speed Sensor Magnet B Handlebars Seat RPM Sensor C Brake/Resistance Knob Seat Post Q Sprocket drive D Brake Assembly Adjustment Knob Data Cable E Chain Guard Chain Guard Door Flywheel F Chain Guard Inside M Levelers Brake Cover G Crank Arms...
  • Page 23: Troubleshooting

    TROUBLESHOOTING Condition/Problem Things to Check Solution Console will not power up/turn Batteries Make sure batteries are installed correctly. If batteries on/start are correctly installed, replace with a set of new batteries. Speed displayed is not Display set to wrong unit of Change display units.
  • Page 24 Nautilus Bowflex Schwinn Fitness Universal ® ® ® ® 8014163.060117.B...
