Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Hikvision IDS-7204HQHI-M1/S o cerca il tuo prodotto tra le migliori offerte di Videosorveglianza Digital Video Recorder User Manual...
Page 2 INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Page 3 Network Video Recorder User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
Page 4 Network Video Recorder User Manual Applicable Models This manual is applicable to the models listed in the following table. Series Model DS-7200HGHI-K1 DS-7216HGHI-K1 DS-7216HGHI-K2 DS-7200HGHI-K2 DS-7224HGHI-K2 DS-7232HGHI-K2 DS-7104HQHI-K1 DS-7100HQHI-K1 DS-7108HQHI-K1 DS-7116HQHI-K1 DS-7204HQHI-K1 DS-7200HQHI-K1 DS-7208HQHI-K1 DS-7216HQHI-K1 DS-7204HQHI-K1/ECO DS-7200HQHI-K1/ECO DS-7208HQHI-K1/ECO DS-7216HQHI-K1/ECO DS-7208HQHI-K2 DS-7216HQHI-K2 DS-7200HQHI-K2 DS-7224HQHI-K2...
Page 5 Network Video Recorder User Manual DS-8124HQHI-K8 DS-8100HQHI-K8 DS-8132HQHI-K8 DS-7104HUHI-K1 DS-7100HUHI-K1 DS-7108HUHI-K1 DS-7204HUHI-K1 DS-7200HUHI-K1 DS-7208HUHI-K1 DS-7204HUHI-K1/ECO DS-7200HUHI-K1/ECO DS-7208HUHI-K1/ECO DS-7204HUHI-K2 DS-7200HUHI-K2 DS-7208HUHI-K2 DS-7216HUHI-K2 DS-7204HUHI-K1/P DS-7200HUHI-K/P DS-7208HUHI-K2/P DS-7216HUHI-K2/P DS-7304HUHI-K4 DS-7308HUHI-K4 DS-7300HUHI-K4 DS-7316HUHI-K4 DS-7324HUHI-K4 DS-7332HUHI-K4 DS-8108HUHI-K8 DS-8116HUHI-K8 DS-8100HUHI-K8 DS-8124HUHI-K8 DS-8132HUHI-K8 DS-9008HUHI-K8 DS-9016HUHI-K8 DS-9000HUHI-K8 DS-9024HUHI-K8 DS-9032HUHI-K8 DS-7200HTHI-K1 DS-7204HTHI-K1...
Page 6 Network Video Recorder User Manual DS-7204HTHI-K2 DS-7200HTHI-K2 DS-7208HTHI-K2 DS-7300HTHI-K4 DS-7316HTHI-K4 DS-8100HTHI-K8 DS-8116HTHI-K8 DS-9000HTHI-K8 DS-9016HTHI-K8 iDS-7200HQHI-K1/2S iDS-7204HQHI-K1/2S iDS-7208HQHI-K1/4S iDS-7216HQHI-K1/4S iDS-7200HQHI-K/4S iDS-7208HQHI-K2/4S iDS-7216HQHI-K2/4S iDS-7204HQHI-K1/2S(B) iDS-7200HQHI-K1/S(B) iDS-7208HQHI-K1/4S(B) iDS-7216HQHI-K1/4S(B) iDS-7208HQHI-K2/4S(B) iDS-7200HQHI-K2/4S(B) iDS-7216HQHI-K2/4S(B) iDS-7204HUHI-K1/4S iDS-7208HUHI-K1/4S iDS-7200HUHI-K/4S iDS-7204HUHI-K2/4S iDS-7208HUHI-K2/4S iDS-7204HUHI-K1/4S(B) iDS-7208HUHI-K1/4S(B) iDS-7200HUHI-K/4S(B) iDS-7204HUHI-K2/4S(B) iDS-7208HUHI-K2/4S(B) iDS-7300HUHI-K4/16S iDS-7316HUHI-K4/16S iDS-9000HUHI-K8/16S iDS-9016HUHI-K8/16S iDS-7204HQHI-M1/S...
Page 7 Network Video Recorder User Manual iDS-7208HQHI-M2/S iDS-7200HQHI-M2/S iDS-7216HQHI-M2/S iDS-7204HUHI-M1/S iDS-7200HUHI-M1/S iDS-7208HUHI-M1/S iDS-7204HUHI-M2/S iDS-7200HUHI-M2/S iDS-7208HUHI-M2/S...
Page 8 Network Video Recorder User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.
Page 9 Network Video Recorder User Manual Safety Instructions  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.  In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.
Page 10: Product Key Features
Network Video Recorder User Manual Product Key Features General  Connectable to Turbo HD and analog cameras;  Supports UTC (Coaxitron) protocol for connecting camera over coax;  Connectable to AHD cameras;  Connectable to HDCVI cameras;  Connectable to IP cameras; ...
Page 11 Network Video Recorder User Manual Local Monitoring  For DS-7300/8100/9000HUHI-K, DS-7324/7332/8124/8132HQHI-K, DS-7300/8100/9000HTHI- K, iDS-7316HUHI-K4/16S and iDS-9016HUHI-K8/16S series, there are two HDMI interfaces of which the HDMI 1 and VGA interfaces share simultaneous output. For HDMI1/VGA output, up to 1920 × 1080 resolution is supported. For HDMI 2 output, up to 4K (3840 × 2160) resolution is supported;...
Page 12  Privacy mask;  Zooming in/out by clicking the mouse and PTZ tracing by dragging mouse;  When Hikvision CVBS camera is connected, you can control PTZ via Coaxitron and call the OSD of the camera. HDD Management  Each disk with a maximum of 10 TB storage capacity for HTHI, HUHI, HGHI, DS- 7200/7300/8100HQHI, iDS-7316HUHI-K4/16S and iDS-9016HUHI-K8/16S series DVR.
Page 13 Network Video Recorder User Manual  The device will note that the exported AVI video may have problems if the frame rates of the continuous and event recording are different;  Supports POS triggered recording for DS-7300/8100HQHI, DS-7300/8100/9000HUHI-K, DS- 7300/8100/9000HTHI-K, iDS-7316HUHI-K4/16S and iDS-9016HUHI-K8/16S series DVR; ...
Page 14 Network Video Recorder User Manual  One-key disarms the linkage actions of the alarm input;  PTZ linking for the VCA alarm;  VCA detection alarm is supported except DS-7100 series;  Support 1-ch facial detection and capture (HD analog camera) for iDS-7200HQHI-K/S(B), iDS- 7200HQHI-M/S, iDS-7200HUHI-K/4S(B) and iDS-7200HUHI-M/S series;...
Page 15 Network Video Recorder User Manual  Auto/Manual port mapping by UPnP  Remote search, playback, download, locking and unlocking the record files, and downloading files broken transfer resume;  Remote parameters setup; remote import/export of device parameters;  Remote viewing of the device status, system logs and alarm status; ...
Page 16: Table Of Contents
Network Video Recorder User Manual TABLE OF CONTENTS Product Key Features ........................9 Chapter 1 Introduction ........................23 Front Panel ........................23 DS-7100HQHI-K1 ..................... 23 DS-7300HQHI-K4, DS-7300HUHI-K4, iDS-7316HUHI-K4/16S and DS-7300HTHI-K4 ............................23 DS-8100HQHI/HUHI/HTHI-K8, DS-9000HUHI/HTHI-K8 and iDS-9016HUHI-K8/16S ............................27 Other Models ......................31 IR Remote Control Operations ..................
Page 17 Network Video Recorder User Manual Log in via Unlock Pattern..................59 Log in via Password ....................60 Enter Wizard to Configure Quick Basic Settings ............... 60 Enter Main Menu ......................64 System Operation ......................65 Log out........................65 Shut Down the Device ..................... 65 Reboot the Device ....................
Page 18 Network Video Recorder User Manual Configure PTZ Parameters ....................83 Set PTZ Presets, Patrols & Patterns .................. 84 Set a Preset ......................84 Call a Preset ......................85 Set a Patrol ......................86 Call a Patrol ......................87 Set a Pattern ......................88 Call a Pattern ......................
Page 19 Network Video Recorder User Manual Chapter 8 Disk Array ........................109 Create Disk Array ......................109 Enable RAID ......................109 One-Touch Creation ....................110 Manual Creation ....................110 Rebuild Array ........................112 Configure Hot Spare Disk ..................112 Automatically Rebuild Array.................. 112 Manually Rebuild Array ..................
Page 20 Network Video Recorder User Manual Playback Operations ..................... 128 Set Play Strategy in Smart/Custom Mode ............128 Edit Video Clips....................129 Switch between Main Stream and Sub-Stream ..........129 Thumbnails View ....................129 Fast View ......................130 Digital Zoom ......................130 Chapter 11 Event and Alarm Settings ..................
Page 21 Network Video Recorder User Manual Intrusion Detection ...................... 156 Region Entrance Detection ..................157 Region Exiting Detection ....................158 Unattended Baggage Detection ................... 160 Object Removal Detection ................... 161 Audio Exception Detection ..................162 Sudden Scene Change Detection ................163 Defocus Detection ......................
Page 22 Network Video Recorder User Manual S.M.A.R.T Detection .................... 187 Bad Sector Detection ..................188 HDD Health Detection ..................189 Search & Export Log Files ..................... 190 Search the Log Files ..................... 190 Export the Log Files ..................... 191 Import/Export IP Camera Configuration Files .............. 192 Import/Export Device Configuration Files ..............
Page 23 Network Video Recorder User Manual Reset Password by Security Questions ............... 214 Reset Password by Reserved Email ..............215 Chapter 19 Appendix ........................217 List of Applicable Power Adapter .................. 217...
Page 24: Chapter 1 Introduction
Network Video Recorder User Manual Chapter 1 Introduction Front Panel DS-7100HQHI-K1 Front Panel Table 1-1 Front Panel Description No. Icon Description Turns red when DVR is powered up. Turns red when data is being read from or written to HDD. Flickers blue when network connection is functioning properly.
Page 25 Network Video Recorder User Manual Table 1-2 Front Panel Description No. Name Function Description Turns green when DVR is powered up. POWER Turns green, indicating that the DVR is functioning READY properly. Turns green when device is controlled by an IR remote.
Page 26 Network Video Recorder User Manual No. Name Function Description Switches between main and spot video output in live view or playback mode. Enters numeral “3”; Enters letters “DEF”; 3/DEF/F2 Uses the F2 button is used to change the tab pages; Zooms in the image in PTZ control mode.
Page 27 Network Video Recorder User Manual No. Name Function Description Enters numeral “8”; 8/TUV/PTZ Enters letters “TUV”; Accesses PTZ control interface. Enters numeral “9”; 9/WXYZ/PREV Enters letters “WXYZ”; Multi-channel display in live view. Enters numeral “0”; Shifts the input methods in the editing text field. (Upper and lowercase, alphabet, symbols or numeric input).
Page 28: Ds-8100Hqhi/Huhi/Hthi-K8, Ds-9000Huhi/Hthi-K8 And Ids-9016Huhi-K8/16S
Network Video Recorder User Manual No. Name Function Description Stops/starts auto switch in Auto-switch mode. POWER Power on/off switch. Moves the active selection up and down in a menu. Cycles through different channels in live view mode. Jumps 30s forward/backward in video files in the JOG SHUTTLE Control playback mode.
Page 29 Network Video Recorder User Manual Front Panel of DS-9000HUHI/HTHI-K8 and iDS-9016HUHI-K8/16S Table 1-3 Front Panel Description No. Name Function Description Turns red when a sensor alarm is detected. ALARM Turns blue, indicating that the DVR is functioning properly. READY Turns blue when device is controlled by an IR remote. STATUS Turns red when controlled by a keyboard and purple when IR remote and keyboard is used at the same time.
Page 30 Network Video Recorder User Manual Inputs numbers and characters in edit mode. Switches between different channels in playback mode. Turns blue when the corresponding channel is recording; turns red when the channel is in network transmission status; turns pink when the channel is recording and transmitting. Universal Serial Bus (USB) ports for additional devices such as USB USB Interfaces mouse and USB Hard Disk Drive (HDD).
Page 31 Network Video Recorder User Manual Switches between main and spot output. MAIN/SPOT/ZOOM- Zooms out the image in PTZ control mode. Selects all items on the list when used in a list field. F1/ LIGHT Turns on/off PTZ light (if applicable) in PTZ control mode. Switches between play and reverse play in playback mode.
Page 32: Other Models
Network Video Recorder User Manual Confirms selection in any of the menu modes. Checks the checkbox. Plays or pauses the playing of video files in Playback mode. ENTER Advances the video by a single frame in single-frame Playback mode. Stops/starts auto switch in Auto-switch mode. Moves the active selection up and down in a menu.
Page 33: Ir Remote Control Operations
Network Video Recorder User Manual Table 1-4 Front Panel Description No. Icon Description Turns white when DVR is powered up. Turns red when data is being read from or written to HDD. Flashes white when the network is well-connected. Receiver for IR remote control. Universal Serial Bus (USB) ports for additional devices USB Interface such as USB mouse and USB Hard Disk Drive (HDD).
Page 34: Unpair (Disable) An Ir Remote From A Device
Network Video Recorder User Manual Remote Control Unpair (Disable) an IR Remote from a Device To unpair an IR Remote from a device so that the unit cannot control any device functions, proceed as follows: Press the DEV key on the IR Remote. Any existing Device ID# will be erased from the unit’s memory and it will no longer function with the device.
Page 35 Network Video Recorder User Manual No. Name Function Description •To Turn Power On: -If User Has Not Changed the Default device ID# (255): 1.Press Power On/Off button (1). -If User Has Changed the device ID#: 1.Press DEV button. 2.Press Number buttons to enter user-defined Device ID#. 3.Press Enter button.
Page 36 Network Video Recorder User Manual Enable IR Remote: Press DEV button, enter device ID# with number keys, press Enter to pair unit with the device Disable IR Remote: Press DEV button to clear Device ID#; unit will no longer be paired with the device Switch to the corresponding channel in Live View or PTZ Control mode Numerals...
Page 37: Troubleshooting
Network Video Recorder User Manual Checks checkbox Play or pause video in Playback mode Advance video a single frame in single-frame Playback mode Stop/start auto switch in auto-switch mode Enter PTZ Control mode Go back to previous screen RESERVED Reserved Select all items on a list Switch between play and reverse play in Playback mode PTZ Control Adjust PTZ camera iris, focus, and zoom...
Page 38: Usb Mouse Operation
Network Video Recorder User Manual  Batteries are fresh and not out of charge.  IR receiver is not obstructed.  No fluorescent lamp is used nearby If the remote still can’t function properly, please change a remote and try again, or contact the device provider.
Page 39: Rear Panel
Network Video Recorder User Manual Rear Panel The rear panel varies according to different models. Please refer to the actual product. The following figures are for reference only. DS-7100HQHI-K1, DS-7200HUHI-K (/P), iDS- 7200HUHI-K/4S, DS-7200HTHI-K, DS-7200HQHI-K(/P), and iDS-7200HQHI-K/S Rear Panel of DS-7100HQHI-K1 Rear Panel of DS-7200HUHI-K and iDS-7200HUHI-K/4S Rear Panel of DS-7200HUHI-K/P...
Page 40 Network Video Recorder User Manual Rear Panel of DS-7200HTHI-K1 Rear Panel of DS-7200HTHI-K2 Rear Panel of DS-7200HQHI-K (with 16 Video Inputs) and iDS-7200HQHI-K/S Rear panels of these series DVR with 4 or 8 video inputs are similar to the figure above. Rear Panel of DS-7200HQHI-K (with 32 Video Inputs) Rear Panel of DS-7200HQHI-K/P...
Page 41: Ids-7200Hqhi-K/S(B) And Ids-7200Hqhi-M/S
Network Video Recorder User Manual Rear Panel Description No. Item Description VIDEO IN BNC interface for Turbo HD and analog video input. AUDIO IN RCA connector AUDIO OUT RCA connector. DB15 connector for VGA output. Display local video output and menu. HDMI HDMI video output connector.
Page 42 Network Video Recorder User Manual Rear Panel of iDS-7200HQHI-K2/S(B) and iDS-7200HQHI-M2/S (with 16 Video Inputs) Rear Panel Description No. Item Description VIDEO IN BNC interface for Turbo HD and analog video input. Universal Serial Bus (USB) port for additional USB Interface devices.
Page 43: Ds-7100Huhi-K1
Network Video Recorder User Manual DS-7100HUHI-K1 Rear Panel of DS-7100HUHI-K1 No. Item Description VIDEO IN BNC interface for Turbo HD and analog video input. DB15 connector for VGA output. Display local video output and menu. HDMI HDMI video output connector. AUDIO IN RCA connector AUDIO OUT...
Page 44: Ids-7200Huhi-K/4S(B) And Ids-7200Huhi-M2/S
Network Video Recorder User Manual iDS-7200HUHI-K/4S(B) and iDS-7200HUHI-M2/S Rear Panel of iDS-7200HUHI-K1/4S(B) Rear Panel of iDS-7200HUHI-K2/4S(B) Rear Panel of iDS-7200HUHI-M1/S Rear Panel of iDS-7200HUHI-M2/S...
Page 45: Ds-7200Hqhi-K1/Eco And Ds-7200Huhi-K1/Eco
Network Video Recorder User Manual Rear Panel Description No. Item Description VIDEO IN BNC interface for Turbo HD and analog video input. Universal Serial Bus (USB) port for additional USB Interface devices. VIDEO OUT BNC connector for video output. HDMI HDMI video output connector.
Page 46: Ds-7300Hqhi-K
Network Video Recorder User Manual Rear Panel of DS-7200HUHI-K1/ECO No. Item Description VIDEO IN BNC interface for Turbo HD and analog video input. HDMI HDMI video output connector. DB15 connector for VGA output. Display local video output and menu. AUDIO OUT RCA connector.
Page 47 Network Video Recorder User Manual Rear Panel Description No. Item Description VIDEO IN BNC interface for Turbo HD and analog video input. VIDEO OUT BNC connector for video output. AUDIO IN RCA connector USB Port Universal Serial Bus (USB) port for additional devices.
Page 48: Ds-7300Huhi/Hthi-K4, Ids-7316Huhi-K4/16S And Ds-9000Huhi-K8
Network Video Recorder User Manual No. Item Description RS-232 Interface Connector for RS-232 devices. DS-7300HUHI/HTHI-K4, iDS-7316HUHI-K4/16S and DS-9000HUHI-K8 Rear Panel of DS-7300HUHI/HTHI-K4 and iDS-7316HUHI-K4/16S Rear Panel of DS-9000HUHI-K8 (with 8 Video Inputs) Rear Panel Description No. Item Description VIDEO IN BNC interface for Turbo HD and analog video input.
Page 49 Network Video Recorder User Manual No. Item Description AUDIO OUT RCA connector. Network Interface Connector for network Connector for RS-485 devices. T+ and T- pins connect to R+ and R- pins of PTZ receiver respectively. D+, D- pin connects to Ta, Tb pin of controller. For cascading devices, the first DVR’s D+, D- pin should be connected with the D+, D- pin of RS-485 and Alarm the next DVR.
Page 50: Ds-7300Hqhi/Huhi-K4, Ds-8100Hqhi/Huhi-K8, Ds-9000Huhi-K8, And Ids-9016Huhi-K8/16S
Network Video Recorder User Manual DS-7300HQHI/HUHI-K4, DS-8100HQHI/HUHI-K8, DS-9000HUHI-K8, and iDS-9016HUHI-K8/16S Rear Panel of DS-7300HQHI-K4 (with 32-ch Video Inputs) Rear Panel of DS-7300HUHI-K4 (with 32-ch Video Inputs) Rear Panel of DS-8100HQHI/HUHI-K8 (with 32-ch Video Inputs) Rear Panel of DS-9000HUHI-K8 (with 32-ch Video Inputs)
Page 51 Network Video Recorder User Manual Rear Panel of iDS-9016HUHI-K8/16S Rear Panel Description No. Item Description VIDEO IN BNC interface for Turbo HD and analog video input. AUDIO IN RCA connector. LINE IN BNC connector for audio input. AUDIO OUT RCA connector. VIDEO OUT BNC connector for video output.

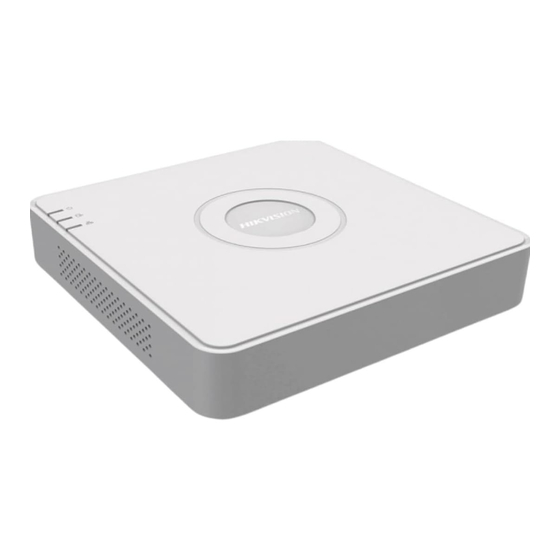

Page 52: Ds-7200Hghi-K1
Network Video Recorder User Manual No. Item Description HDMI2 Interface HDMI2 video output connector. Network Connector for network. Interface USB Interface Universal Serial Bus (USB) port for additional devices. Ground Power Supply 100 to 240 VAC power supply. Power Switch Switch for turning on/off the device.
Page 53: Ds-7200Hghi-K2
Network Video Recorder User Manual No. Item Description USB Interface Universal Serial Bus (USB) port for additional devices. Power Supply 12 VDC power supply. Ground DS-7200HGHI-K2 Rear Panel of DS-7200HGHI-K2 Rear Panel Description No. Item Description VIDEO IN BNC interface for Turbo HD and analog video input. USB Interface Universal Serial Bus (USB) port for additional devices.
Page 54: Ds-8100Hthi-K8
Network Video Recorder User Manual No. Item Description Power Supply 12 VDC power supply. Power Switch Switch for turning on/off the device. Ground DS-8100HTHI-K8 Rear Panel of DS-8100HTHI-K8 Rear Panel Description No. Item Description AUDIO IN RCA connector. VIDEO IN BNC interface for Turbo HD and analog video input.
Page 55: Ds-9000Hthi-K8
Network Video Recorder User Manual No. Item Description Network Connector for network. Interface Connector for RS-485 devices. T+ and T- pins connect to R+ and R- pins of PTZ receiver respectively. D+, D- pin connects to Ta, Tb pin of controller. For cascading devices, the first DVR’s D+, D- pin should be connected with the D+, D- pin of RS-485 and the next DVR.
Page 56 Network Video Recorder User Manual No. Item Description VIDEO OUT BNC connector for video output. LOOP OUT RCA connector USB Interface Universal Serial Bus (USB) port for additional devices. HDMI1 HDMI1 and VGA video output interface. Interface HDMI2 Interface HDMI2 video output interface. AUDIO OUT RCA connector.
Page 57: Chapter 2 Getting Started
Network Video Recorder User Manual Chapter 2 Getting Started Start up the Device Purpose: Proper startup and shutdown procedures are crucial to expanding the life of the device. Before you start: Check that the voltage of the extra power supply is the same with the device’s requirement, and the ground connection is working properly.
Page 58 Network Video Recorder User Manual We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
Page 59: Configure Unlock Pattern For Login
Network Video Recorder User Manual Set the Reserved Email  After the device is activated, you should properly keep the password.  You can duplicate the password to the IP cameras that are connected with default protocol. Configure Unlock Pattern for Login Purpose: For the admin user, you can configure the unlock pattern for device login.
Page 60: Login To The Device
Network Video Recorder User Manual  Connect at least 4 dots to draw the pattern.  Each dot can be connected for once only. Draw the same pattern again to confirm it. When the two patterns match, the pattern is configured successfully. Login to the Device Log in via Unlock Pattern ...
Page 61: Log In Via Password
Network Video Recorder User Manual  If you have forgotten your pattern, you can select the Forgot My Pattern or Switch User option to enter the normal login dialog box.  When the pattern you draw is different from the pattern you have configured, you should try again.
Page 62 Network Video Recorder User Manual Configure the date and time on the Date and Time Setup interface. Date and Time Settings After the time settings, click Next to enter the Network Setup Wizard window, as shown in the following figure. Network Settings Click Next after you configured the network parameters, which takes you to the HDD Management window.
Page 63 Network Video Recorder User Manual HDD Management To initialize the HDD, click the Init button. Initialization removes all the data saved in the HDD. Click Next. You enter the Camera Setup interface to add the IP cameras. 1) Click Search to search the online IP Camera. Before adding the camera, make sure the IP camera to be added is in active status.
Page 64 Network Video Recorder User Manual Hik-Connect Access Click Next to enter the Change Password interface to create the new admin password if required. Change Password You can enter click the to show the characters input. 1) Check the checkbox of New Admin Password. 2) Enter the original password in the text field of Admin Password 3) Input the same password in the text field of New Password and Confirm.
Page 65: Enter Main Menu
Network Video Recorder User Manual We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
Page 66: System Operation
Network Video Recorder User Manual System Management System Maintenance: System Operation Log out Purpose: After logging out, the monitor turns to the live view mode and if you want to perform any operations, you need to enter user name and password to log in again. Click on the menu bar.
Page 67 Network Video Recorder User Manual Click Reboot to reboot the device.
Page 68: Chapter 3 Camera Management
Network Video Recorder User Manual Chapter 3 Camera Management Add the IP Cameras Add the IP Camera Manually Purpose: Before you can get live video or record the video files, you should add the network cameras to the connection list of the device. Before you start: Ensure the network connection is valid and correct, and the IP camera to add has already been activated.
Page 69: Add The Automatically Searched Online Ip Cameras
Network Video Recorder User Manual Click Add to finish the adding of the IP camera. (Optional) Click Continue to Add to continue to add other IP cameras. Add the Automatically Searched Online IP Cameras On the IP Camera interface, click the Number of Unadded Online Device to expand the panel.
Page 70: Configure Signal Input Channel
 The maximum connectable AT/AF camera number varies with different models. Please turn off the PoC function if the camera does not support PoC, or the camera is not produced by Hikvision. Otherwise, it may result in permanent damage to the camera or DVR. Configure Signal Input Channel Purpose You can configure the analog and IP signal input types.
Page 71: Configuring 5 Mp Long Distance Transmission
Network Video Recorder User Manual Click on the main menu bar. Click Camera > Analog Signal Input Status Check the checkbox to select different signal input types: HD/CVBS and IP. If you select HD/CVBS, four types of analog signal inputs including Turbo HD, AHD, HDCVI, and CVBS can be connected randomly for the selected channel.
Page 72: Enable The H.265 Stream Access
Network Video Recorder User Manual Click to enter the 5 MP Long Distance Transmission Settings interface. 5 MP Long Distance Transmission Settings Select channel(s) to enable 5 MP Long Distance Transmission. Click OK. Click Apply to save the settings. Enable the H.265 Stream Access Purpose: The device can automatically switch to the H.265 stream of IP camera (which supports H.265 video format) for the initial access.
Page 73 Network Video Recorder User Manual Click on the main menu bar. On the camera management interface, select a camera. Click Camera > IP Camera > More Settings > Upgrade at the top taskbar. Select the firmware upgrade file from the U-flash drive. Click Upgrade.
Page 74: Chapter 4 Camera Settings
Network Video Recorder User Manual Chapter 4 Camera Settings Configure OSD Settings Purpose: You can configure the OSD (On-screen Display) settings for the camera, including date/time, camera name, etc. Click on the main menu bar. Click Display. Select the camera from the drop-down list. Edit the name in the Camera Name text field.
Page 75: Configure Privacy Mask
Network Video Recorder User Manual Click the Apply button to apply the settings. Configure Privacy Mask Purpose: The privacy mask can be used to protect personal privacy by concealing parts of the image from view or recording with a masked area. Click on the main menu bar.
Page 76: Configure The Video Parameters
Network Video Recorder User Manual The configured privacy mask zones on the window can be cleared by clicking the corresponding Clear Zone1-4 icons on the right side of the window, or click Clear All to clear all zones. Click Apply to save the settings. Configure the Video Parameters Purpose: You can customize the image parameters including the brightness, contrast, saturation for the live...
Page 77: Configure Other Camera Parameters
Network Video Recorder User Manual Click the Apply to save the settings. Configure Other Camera Parameters Purpose: For the connected camera, you can configure the camera parameters including the exposure mode, backlight and image enhancement. Click on the main menu bar. Click Display.
Page 78: Chapter 5 Live View
Network Video Recorder User Manual Chapter 5 Live View Live view shows you the video image getting from each camera in real time. Start Live View Click on the main menu bar to enter the live view.  You can select a window and double click a camera from the list to play the video from the camera in the selected window.
Page 79: Live View Strategy
Network Video Recorder User Manual Live View Strategy In the live view mode, click to enter the digital zoom operation interface in full screen mode. Select the live view strategy to Real-time, Balanced or Fluency. Target Detection Purpose: In live view mode, the target detection function can be used to detect the human motion/face/vehicle/human body during the last 5 seconds and the following 10 seconds.
Page 80: Configure Live View Settings
Network Video Recorder User Manual Configure Live View Settings Purpose: Live View settings can be customized according to different needs. You can configure the output interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.
Page 81 Network Video Recorder User Manual Live View Select the video output interface, e.g., HDMI/ VGA or channel-zero. Select a window division mode from the toolbar. Select a division window, and double-click on the camera from the list to set the camera to the window.
Page 82: Configure Auto-Switch Of Cameras
Network Video Recorder User Manual Configure Auto-Switch of Cameras Purpose: You can set the auto-switch of cameras to play in different display modes. Go to System > Live View > General. Set the video output interface, live view mode and dwell time. ...
Page 83: Using An Auxiliary Monitor
Network Video Recorder User Manual Click Apply. Result: You can view all of the channels in one screen using the CMS or web browser. Using an Auxiliary Monitor Certain features of the Live View are also available while in an Aux monitor. These features include: ...
Page 84: Chapter 6 Ptz Control
Network Video Recorder User Manual Chapter 6 PTZ Control PTZ Control Wizard Before you start Please make sure the connected IP camera supports the PTZ function and is properly connected. Purpose Follow the PTZ control wizard to guide you through the basic PTZ operation. Click on the quick settings toolbar in the live view interface.
Page 85: Set Ptz Presets, Patrols & Patterns
Network Video Recorder User Manual Click PTZ Parameters Settings to set the PTZ parameters. PTZ Parameters Settings Edit the parameters of the PTZ camera. All the parameters should be exactly the same as the PTZ camera parameters. Click OK to save the settings. Set PTZ Presets, Patrols &...
Page 86: Call A Preset
Network Video Recorder User Manual Click in the lower right corner of live view to set the preset. Set Preset Select the preset No. (1~255) from the drop-down list. Enter the preset name in the text field. Click Apply to save the preset. Repeat steps 2-6 to save more presets.
Page 87: Set A Patrol
Network Video Recorder User Manual Set a Patrol Purpose: Patrols can be set to move the PTZ to different key points and have it stay there for a set duration before moving on to the next key point. The key points are corresponding to the presets. Click on the quick settings toolbar in the live view interface..
Page 88: Call A Patrol
Network Video Recorder User Manual Key Point Configuration 1) Configure key point parameters. Preset: It determines the order at which the PTZ will follow while cycling through the patrol. Speed: It defines the speed at which the PTZ will move from one key point to the next. Duration: It refers to the time span to stay at the corresponding key point.
Page 89: Set A Pattern
Network Video Recorder User Manual Click on the quick settings toolbar in the live view interface.. The PTZ control panel displays on the right of the interface. Click Patrol on the PTZ control panel. Patrol Configuration Select a patrol in the text field. Click Call to call it.
Page 90: Call A Pattern
Network Video Recorder User Manual Call a Pattern Purpose: Follow the procedure to move the PTZ camera according to the predefined patterns. Click on the quick settings toolbar in the live view interface. The PTZ control panel displays on the right of the interface. Click Pattern to configure pattern.
Page 91: Call Linear Scan
180º. Call Linear Scan Before operating this function, make sure the connected camera supports the linear scan and is in HIKVISION protocol. Purpose: Follow the procedure to call the linear scan in the predefined scan range.
Page 92: Auxiliary Functions
Network Video Recorder User Manual The park time can only be set via the speed dome configuration interface. The value is 5s by default. Click Stop Park (Quick Patrol), Stop Park (Patrol 1) or Stop Park (Preset 1) to inactivate it. Auxiliary Functions Before you start Please make sure the connected IP camera supports the PTZ function, and is properly connected.
Page 93: Chapter 7 Storage
Network Video Recorder User Manual Chapter 7 Storage Storage Device Management Install the HDD Before startup of the device, install and connect the HDD to the device. Refer to the Quick Start Guide for the installation instructions. Add the Network Disk You can add the allocated NAS or disk of IP SAN to device, and use it as network HDD.
Page 94 Network Video Recorder User Manual Select the NAS disk from the list, or you can manually enter the directory in the text field of NetHDD Directory. Click OK to complete the adding of the NAS disk. Result: After having successfully added the NAS disk, return to the HDD Information menu. The added NetHDD will be displayed in the list.
Page 95: Configure Esata For Data Storage
Network Video Recorder User Manual Add IP SAN Disk Result: After having successfully added the IP SAN disk, return to the HDD Information menu. The added NetHDD will be displayed in the list. If the installed HDD or NetHDD is uninitialized, please select it and click Init for initialization. Configure eSATA for Data Storage Purpose: When there is an external eSATA device connected to device, you can configure eSATA for the data...
Page 96: Storage Mode
Network Video Recorder User Manual Set eSATA Mode When Usage type is selected to Record/Capture, enter the storage device interface. Edit the property of the selected eSATA, or initialize it is required. Storage Mode Configure HDD Group Purpose: Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD group through HDD settings.
Page 97 Network Video Recorder User Manual Local HDD Settings Select the Group number for the current HDD. Click OK. Regroup the cameras for HDD if the HDD group number is changed. Go to Storage> Storage Mode. Select Mode to Group. Select the group No. from Record on HDD Group. Select the IP camera(s) to record/capture on the HDD group.
Page 98: Configure Hdd Quota
Network Video Recorder User Manual Storage Mode-HDD Group Click Apply. Reboot the device to activate the new storage mode settings. Configure HDD Quota Purpose: Each camera can be configured with allocated quota for the storage of recorded files or captured pictures.
Page 99: Recording Parameters
Network Video Recorder User Manual Storage Mode-HDD Quota (Optional) You can click Copy to if you want to copy the quota settings of the current camera to other cameras. Click Apply to apply the settings. Reboot the device to activate the new storage mode settings.
Page 100: Sub-Stream
Network Video Recorder User Manual Frame Rate (FPS - Frames Per Second): refers to how many frames are captured each second. A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout. Resolution: Image resolution is a measure of how much detail a digital image can hold: the greater the resolution, the greater the level of detail.
Page 101: Configure Advanced Recording Settings
Network Video Recorder User Manual Configure Advanced Recording Settings Go to Storage > Record Schedule. Check Enable Schedule to enable scheduled recording. Click Advanced to set the recording parameters. Advanced Record Settings  Record Audio: Check the checkbox to enable or disable audio recording. ...
Page 102: Configure Recording Schedule
Network Video Recorder User Manual Configure Recording Schedule Purpose: Set the record schedule, and then the camera automatically starts/stops recording according to the configured schedule. Before you start Make sure you have installed the HDDs to the device or added the network disks before you storing the video files, pictures and log files.
Page 103: Configure Continuous Recording
Network Video Recorder User Manual Continuous: scheduled recording. Event: recording triggered by all event triggered alarm. Motion: recording triggered by motion detection. Alarm: recording triggered by alarm. M/A: recording triggered by either motion detection or alarm. M&A: recording triggered by motion detection and alarm. Select a day and click-and-drag the mouse on the time bar to set the record schedule.
Page 104: Configure Event Triggered Recording
Network Video Recorder User Manual Go to Camera > Video Parameters. Set the event main stream/sub-stream recording parameters for the camera. Go to Storage > Schedule > Record. Select the recording type to Motion. Drag the mouse on the time bar to set the motion detection recording schedule. Refer to Chapter 7.4 Configure Recording Schedule for details.
Page 105: Configure Picture Capture
Network Video Recorder User Manual Select the recording type to Alarm Drag the mouse on the time bar to set the alarm recording schedule. Refer to Chapter 7.4 Configure Recording Schedule for details. Configure Picture Capture Purpose: The picture refers to the live picture capture in continuous or event recording type. Go to Storage >...
Page 106: Configure Holiday Recording And Capture
Network Video Recorder User Manual Set the picture capture schedule. Refer to Chapter 7.4 Configure Recording Schedule for details. Configure Holiday Recording and Capture Purpose: Follow the steps to configure the record or capture schedule on holiday for that year. You may want to have different plan for recording and capture on holiday.
Page 107: Configure Redundant Recording And Capture
Network Video Recorder User Manual Configure Redundant Recording and Capture Purpose: Enabling redundant recording and capture, which means saving the record files and captured pictures not only in the R/W HDD but also in the redundant HDD, will effectively enhance the data safety and reliability.
Page 108: Configure 1080P Lite
Network Video Recorder User Manual Record Parameters Check the checkbox of Redundant Record/Capture. Click OK to save settings. Configure 1080p Lite Purpose When the 1080P Lite Mode is enabled, the encoding resolution at 1080P Lite (real-time) is supported. If not, up to 1080P (non-real-time) is supported. This chapter is applicable to HQHI series DVR.
Page 109: Disable The 1080P Lite Mode
Network Video Recorder User Manual Advanced Interface Step 2 Check the checkbox of 1080P Lite Mode and click Apply to pop up the attention box. After enabling 1080p lite mode, the 3 MP signal is not accessible to analog channel. Step 3 Click Yes in popup message box to reboot the device to have new settings taken effect.
Page 110: Chapter 8 Disk Array
Network Video Recorder User Manual Chapter 8 Disk Array This chapter is applicable for DS-7300/8100/9000HUHI-K and DS-7300/8100/9000HTHI-K series DVR. Purpose: Disk array is a data storage virtualization technology that combines multiple physical disk drive components into a single logical unit. An array stores data over multiple HDDs to provide enough redundancy so that data can be recovered if one disk fails.
Page 111: One-Touch Creation
Network Video Recorder User Manual Check Enable RAID. Click Apply. Reboot device to take effect the settings. One-Touch Creation Purpose: One-touch configuration helps you to quickly create the disk array. By default, the array type created by one-touch configuration is RAID 5. Before you start: ...
Page 112 Network Video Recorder User Manual Create Array Enter the array name. Select RAID Level as RAID 0, RAID 1, RAID 5, RAID 6, or RAID 10 as required. Select the physical disks to constitute array. Required Number of HDD RAID Level Required Number of HDD RAID 0 At least 2 HDDs.
Page 113: Rebuild Array
Network Video Recorder User Manual Rebuild Array Purpose: The status of array includes Functional, Degraded and Offline. To ensure the high security and reliability of the data stored in array, you should take immediate and proper maintenance at arrays according their status. ...
Page 114: Manually Rebuild Array
Network Video Recorder User Manual Manually Rebuild Array Purpose: If no hot spare disks are configured, rebuild the degraded array manually. Before you start: At least one available physical disk should exist for rebuilding the array. Go to Storage > RAID Setup > Array. Array List Click of degraded array.
Page 115: Delete Array
Network Video Recorder User Manual Delete Array Deleting array will delete all the data saved in it. Go to Storage > RAID Setup > Array. Array List Click of array to delete. Attention Click Yes on the popup message box.
Page 116: Check And Edit Firmware
Network Video Recorder User Manual Check and Edit Firmware Purpose: You can view the information of the firmware and set the background task speed on the Firmware interface. Go to Storage > RAID Setup > Firmware. Firmware Optionally, set the Background Task Speed. Click Apply.
Page 117: Chapter 9 File Management
Network Video Recorder User Manual Chapter 9 File Management Search and Export All Files Search Files Purpose Specify detailed conditions to search videos and pictures. Go to File Management > All Files. Specify detailed conditions, including time, camera, event type, etc. Search All Files Click Search to display results.
Page 118: Search And Export Human Files
Network Video Recorder User Manual Click to select files and click Export. Select the file to export as Video and Log and click OK. Click OK to export files to backup device. Search and Export Human Files Search Human Files Purpose Specify detailed conditions to search human pictures and videos.
Page 119: Search And Export Vehicle Files
Network Video Recorder User Manual Select the file to export as Video and Log and click OK. Click OK to export files to backup device. Search and Export Vehicle Files Search Vehicle Files Purpose Specify detailed conditions to search vehicle pictures and videos. Before you start Configure vehicle detection function for the cameras you want to search and export vehicle pictures and videos.
Page 120: Search History Operation
Network Video Recorder User Manual Click OK to export files to backup device. Search History Operation Save Search Condition Purpose You can save the search conditions for future reference and quick search. Go to File Management > All Files/People Appearance File/Vehicle File. Set the search conditions.
Page 121: Chapter 10 Playback
Network Video Recorder User Manual Chapter 10 Playback Play Video Files Instant Playback Purpose: Instant Playback enables the device to play the recorded video files in last five minutes. If no video is found, it means there is no recording during the last five minutes. On the live view window of the selected camera, move the cursor to the window bottom to access the toolbar.
Page 122: Play Smart Searched Video
Network Video Recorder User Manual Select a date in the calendar.  Use the toolbar in the bottom part of playback interface to control the playing and realize a series of operations. Refer to Chapter 10.2 Playback Operations. Playback Interface Toolbar of Playback ...
Page 123: Play Custom Searched Files
Network Video Recorder User Manual Start playing the video of camera. Click Smart. From the toolbar at the bottom of the playing window, click the motion/line crossing/ intrusion icon for search. Playback by Smart Search Set the rules and areas for smart search of line crossing detection, intrusion detection or motion detection event triggered recording.
Page 124: Play Tag Files
Network Video Recorder User Manual Go to Playback. Select a camera or cameras from the list. Click Custom Search on the left bottom to enter the Search Condition interface. Enter the search conditions for the files, e.g., time, file status, event type, etc. Custom Search Click Search.
Page 125 Network Video Recorder User Manual Before playing back by tag: Add Tag Files Go to Playback. Search and play back the video file(s). Click to add the tag. Edit the tag information. Click OK. Max. 64 tags can be added to a single video file. Edit Tag Files Go to Playback.
Page 126: Play Event Files
Network Video Recorder User Manual Tag Search Click Search. Searched Tag Files On the search results interface, select a tag file and click to start playing the video. Play Event Files Purpose Play back video files on one or several channels searched by event type (e.g., alarm input, motion detection, line crossing detection, face detection, vehicle detection, etc.).
Page 127: Play By Sub-Periods
Network Video Recorder User Manual Click Search. On the search results interface, select an event video file/picture file and double click to start playing the video. Event Files You can click button to play 30s backward or forward.  Refer to Chapter 11 Event and Alarm Settings and Chapter 13 VCA Event Alarm for details for event and alarm settings.
Page 128: Play Log Files
Network Video Recorder User Manual Set the start time and end time for searching video. Select the different multi-period at the right bottom corner, e.g., 4-Period. According to the defined number of split-screens, the video files on the selected date can be divided into average segments for playback.
Page 129: Playback Operations
Network Video Recorder User Manual You can play files from the external storage devices. Before You Start: Connect the storage device with the video files to your device. Go to Playback. Click the icon at the left bottom corner. Select and click the button or double click to play the file.
Page 130: Edit Video Clips
Network Video Recorder User Manual Edit Video Clips You can take video clips during the playback and export the clips. In the video playback mode, click to start video clipping operation.  : Set the start time and end time of the video clipping. ...
Page 131: Fast View
Network Video Recorder User Manual HGHI, HQHI, DS-7200HUHI-K, DS-7200HTHI-K, iDS-7200HQHI-K/S, iDS-7200HQHI-K/S(B) DS- 7200HQHI-M/S, iDS-7200HUHI-K/S, iDS-7200HUHI-K/S(B) and iDS-7200HUHI-M/S series do not support this function. Fast View You can hold the mouse to drag on the time bar to get the fast view of the video files. In the video playback mode, use the mouse to hold and drag through the playing time bar to fast view the video files.
Page 132: Chapter 11 Event And Alarm Settings
Network Video Recorder User Manual Chapter 11 Event and Alarm Settings Configure Arming Schedule Select the Arming Schedule tab. Choose one day of a week and set the time segment. Up to eight time periods can be set within each day. Time periods shall not be repeated or overlapped.
Page 133: Configure Audio Warning
Network Video Recorder User Manual When an alarm is triggered, the local monitor displays in full screen the video image from the alarming channel configured for full screen monitoring. And when the alarm is triggered simultaneously in several channels, you must configure the auto-switch dwell time. Go to System >...
Page 134: Configure Email Linkage
Network Video Recorder User Manual Select the Notify Surveillance Center. Configure Email Linkage Purpose: The system can send an email with alarm information to a user or users when an alarm is detected. Please refer to Chapter 16.7 Configure Email for details of Email configuration. Go to System>Network>Advanced.
Page 135: Configure Motion Detection Alarm
Network Video Recorder User Manual Go to the Linkage Action interface of the alarm input or VCA detection (e.g., face detection, line crossing detection, intrusion detection, etc.). Select the PTZ Linkage. Select the camera to perform the PTZ actions. Select the preset/patrol/pattern No. to call when the alarm events occur. PTZ Linkage You can set one PTZ type only for the linkage action each time.
Page 136 Network Video Recorder User Manual Set Motion Detection Select the camera to configure the motion detection. Check Enable. Set the motion detection area.  Full screen: click to set the full-screen motion detection for the image.  Customized area: use the mouse to click and drag on the preview screen to draw the customized motion detection area (s).
Page 137: Configure Video Loss Alarm
Network Video Recorder User Manual Configure Video Loss Alarm Purpose: The video loss detection enables to detect video loss of a channel and take alarm response action(s). Go to System > Event > Normal Event > Video Loss Set Video Loss Detection Select the camera to configure the video loss detection.
Page 138: Configure Video Tampering Alarm
Network Video Recorder User Manual Configure Video Tampering Alarm Purpose: The video tampering detection enables to trigger alarm when the camera lens is covered and take alarm response action(s). Go to System> Event>Normal Event>Video Tampering. Select the camera to configure the video tampering detection. Set Video Tampering Setting Check Enable.
Page 139: Configure Sensor Alarms
Network Video Recorder User Manual Configure Sensor Alarms Purpose: Set the handling action of an external sensor alarm. Configure Alarm Input Go to System> Event>Normal Event>Alarm Input Select an alarm input item from the list and click Alarm Input Select the alarm input type to N.C or N.O. Edit Alarm Name.
Page 140: Configure One-Key Disarming
Network Video Recorder User Manual Configure One-Key Disarming Purpose: The one-key disarming enables the device to disarm the alarm input 1 by one-key operation. Go to System> Event>Normal Event>Alarm Input Select the alarm input1 item from the list and click Select the alarm input type to N.C or N.O.
Page 141: Configure Alarm Output
Network Video Recorder User Manual Configure Alarm Output Purpose: Trigger an alarm output when an alarm is triggered. Go to System> Event>Normal Event>Alarm Output. Select an alarm output item from the list and click Edit Alarm Name. Select Dwell Time (the alarm duration) from 5s to 600s, or Manually Clear. Manually Clear: You should manually clear the alarm when the alarm occurs.
Page 142: Configure Exceptions Alarm
Network Video Recorder User Manual Configure Exceptions Alarm Purpose: The exception events can be configured to take the event hint in the live view window, trigger alarm output and linkage actions. Go to System > Event > Normal Event > Exception. (Optional) Enable the event hint if you want to display the event hint in the live view window.
Page 143: Trigger Or Clear Alarm Output Manually
Network Video Recorder User Manual Exceptions Handling Set the normal linkage and alarm output triggering. Refer to 11.2 Configure Alarm Linkage Actions. Trigger or Clear Alarm Output Manually Purpose: Sensor alarm can be triggered or cleared manually. When Manually Clear is selected for the dwell time of an alarm output, the alarm can be cleared only by clicking Clear.
Page 144 Network Video Recorder User Manual Alarm Output...
Page 145: Chapter 12 Pos Configuration
Network Video Recorder User Manual Chapter 12 POS Configuration The device can be connected with the POS machine/server, and receive the transaction message for overlay on the image during the live view or playback, as well as trigger the POS event alarm. This chapter is only applicable to DS-7300/8100HQHI-K, DS-7300/8100/9000HUHI-K, DS- 7300/8100/9000HTHI-K, iDS-7316HUHI-K4/16S and iDS-9016HUHI-K8/16S series DVR.
Page 146 Network Video Recorder User Manual Universal Protocol Settings  EPSON The fixed start and end line tag are used for EPSON protocol.  AVE The fixed start and end line tag are used for AVE protocol. And the serial port and virtual serial port connection types are supported.
Page 147 Network Video Recorder User Manual  NUCLEUS 1) Click the Custom to configure the NUCLEUS settings. 2) Enter the employee No. shift No. and the terminal No. in the field. The matching message sent from the POS device will be used as the valid POS data. The NUCLEUS protocol must be used in the RS-232 connection communication.
Page 148 Network Video Recorder User Manual USB-to-RS-232 Settings  RS-232 Connection Connect the device and the POS machine via RS-232. The RS-232 settings can be configured in Menu>Configuration>RS-232. The Usage must be set to Transparent Channel.  Multicast Connection When connecting the device and the POS machine via Multicast protocol, set the multicast address and port.
Page 149: Configure Pos Text Overlay
Network Video Recorder User Manual Sniff Settings Configure POS Text Overlay Go to System > POS Settings. Click Channel Linkage and Display tab. Select the linked channel to overlay the POS characters. Set the characters overlay for the enabled POS. ...
Page 150: Configure Pos Alarm
Network Video Recorder User Manual Overlay Character Settings You can adjust the size and position of textbox on the preview screen of POS settings interface by dragging the frame. Click Apply to activate the settings. Configure POS Alarm Purpose: The POS event can trigger channels to start recording, or trigger full screen monitoring, audio warning, notifying the surveillance center, sending email and so on.
Page 151 Network Video Recorder User Manual Set Trigger Cameras of POS Click Apply to save the settings.
Page 152: Chapter 13 Vca Event Alarm
Network Video Recorder User Manual Chapter 13 VCA Event Alarm The device supports receiving the VCA detections sent by connected IP cameras. Enable and configure the VCA detection on the IP camera settings interface first.  VCA detections must be supported by the connected IP camera. ...
Page 153: Face Detection
Network Video Recorder User Manual Human Body Detection 4) Click Draw Area to draw a quadrilateral in the preview window and then click Stop Drawing. Related Operation: You can click Clear to clear the existing virtual line and re-draw it. Set the arming schedule.
Page 154: Vehicle Detection
Network Video Recorder User Manual Face Detection Select a camera to configure. Check Enable Face Detection. Optionally, check Save VCA Picture to save the captured pictures of face detection. Drag the Sensitivity slider to set the detection sensitivity. Sensitivity range: [1-5]. The higher the value is, the more easily the face can be detected.
Page 155: Line Crossing Detection
Network Video Recorder User Manual Vehicle Detection Select a camera to configure. Check Enable Vehicle Detection. Optionally, check Save VCA Picture to save the captured pictures of vehicle detection. Set the arming schedule. Refer to Chapter 11.1 Configure Arming Schedule. Set the linkage actions.
Page 156 Network Video Recorder User Manual Go to System > Event > Smart Event. Click Line Crossing. Line Crossing Detection Select a camera to configure. Check Enable Line Crossing Detection checkbox. Optionally, check Save VCA Picture to save the captured pictures of line crossing detection.
Page 157: Intrusion Detection
Network Video Recorder User Manual Set the linkage actions. Refer to Chapter 11.2 Configure Alarm Linkage Actions. Click Apply. For iDS-7200 series, you can select Target Detection as Human Body or Vehicle. Only the target of selected type will trigger the alarm. Intrusion Detection Purpose: Intrusion detection function detects people, vehicle or other objects which enter and loiter in a...
Page 158: Region Entrance Detection
Network Video Recorder User Manual 1) Select a Virtual Panel to configure. 2) Drag the sliders to set Time Threshold, Sensitivity, and Percentage. − Time Threshold: The threshold for the time of the object loitering in the region. When the duration of the object in the defined detection area is longer than the threshold, device will trigger an alarm.
Page 159: Region Exiting Detection
Network Video Recorder User Manual Region Entrance Detection Select a camera to configure. Check Enable Region Entrance Detection checkbox. Optionally, check Save VCA Picture checkbox to save the captured pictures of region entrance detection. Follow the steps to set the detection rules and detection areas. 1) Select an Arming Region to configure.
Page 160 Network Video Recorder User Manual Go to System > Event > Smart Event. Click Region Exiting. Region Exiting Detection Select a camera to configure. Check Enable Region Exiting Detection. Optionally, check Save VCA Picture to save the captured pictures of region exiting detection.
Page 161: Unattended Baggage Detection
Network Video Recorder User Manual Unattended Baggage Detection Purpose: Unattended baggage detection function detects the objects left over in the pre-defined region such as the baggage, purse, dangerous materials, etc., and a series of actions can be taken when the alarm is triggered. Go to System >...
Page 162: Object Removal Detection
Network Video Recorder User Manual 3) Click Draw Region and draw a quadrilateral in the preview window by specifying four vertexes of the detection region. Set the arming schedule. Refer to Chapter 11.1 Configure Arming Schedule. Set the linkage actions. Refer to Chapter 11.2 Configure Alarm Linkage Actions. Click Apply.
Page 163: Audio Exception Detection
Network Video Recorder User Manual 2) Drag the sliders to set Time Threshold and Sensitivity. Time Threshold: The time of the objects removed from the region. If the value is 10, alarm is triggered after the object disappeared from the region for 10s. Its range is [5s- 20s].
Page 164: Sudden Scene Change Detection
Network Video Recorder User Manual 2) Select Audio Loss Exception, Sudden Increase of Sound Intensity Detection, or Sudden Decrease of Sound Intensity Detection. Audio Loss Exception: Detects the sound steep rise in the surveillance scene. You can set the detection sensitivity and threshold for sound steep rise. You need to configure its Sensitivity and Sound Intensity Threshold.
Page 165: Defocus Detection
Network Video Recorder User Manual Sudden Scene Change Select a camera to configure. Check Enable Sudden Scene Change Detection. Optionally, check Save VCA Picture to save the captured pictures of sudden scene change detection. Drag the Sensitivity slider to set the detection sensitivity. Sensitivity range: [1-100]. The higher the value is, the more easily the change of scene can trigger the alarm.
Page 166: Pir Alarm
Network Video Recorder User Manual Defocus Detection Select a camera to configure. Check Enable Defocus Detection. Optionally, check Save VCA Picture to save the captured pictures of defocus detection. Drag the Sensitivity slider to set the detection sensitivity. Sensitivity range: [1-100]. The higher the value is, the more easily the defocus image can be detected.
Page 167 Network Video Recorder User Manual FIR Alarm Select a camera to configure. Check PIR Alarm. Optionally, check Save VCA Picture to save the captured pictures of PIR alarm. Set the arming schedule. Refer to Chapter 11.1 Configure Arming Schedule. Set the linkage actions. Refer to Chapter 11.2 Configure Alarm Linkage Actions. Click Apply.
Page 168: Chapter 14 Smart Analysis
Network Video Recorder User Manual Chapter 14 Smart Analysis With the configured VCA detection, the device supports the smart analysis for people counting and heat map. Engine Configuration The chapter is only available for certain models of iDS series. Purpose: Each engine processes a specified VCA event type as its working mode.
Page 169: Task Configuration
Network Video Recorder User Manual  If the engine has been bound with channel(s), switching engine working mode will unbind the engine and channel(s), and cancel the related smart event of the channel. Click Apply to save the settings. Task Configuration The chapter is only available for certain models of iDS series.
Page 170 Network Video Recorder User Manual Task Configuration Check cameras to enable corresponding analysis mode. Ensure engine is available for the selected analysis mode. Enable auto analysis. 1) Click Edit. 2) (Optional) Check Enable of Display Status and Notify Surveillance Center. 3) Set Start Time of video to analyze.
Page 171: Face Search
Network Video Recorder User Manual Auto Analysis Check cameras and click Enabled to start analyzing. Task status includes 3 conditions: Disabled, Waiting, and Enabled.  Disabled: No analysis task is enabled on the camera.  Waiting: The analysis task of the camera is enabled. Device is waiting to analyze data. ...
Page 172: Human Body Search
Network Video Recorder User Manual Go to Smart Analysis > Smart Search > Face Search. Select the IP camera for the face search. Face Search Specify the start time and end time for search the captured face pictures or video files. Click Start Search to start searching.
Page 173: Vehicle Search
Network Video Recorder User Manual Vehicle Search The chapter is only available for iDS series. Purpose: You can search and view the matched captured vehicle pictures. Go to Smart Analysis > Smart Search > Vehicle Search. Select the camera for the vehicle search. Set search conditions.
Page 174: Heat Map
Network Video Recorder User Manual People Counting Interface (Optional) Click Export to export the report in excel format. Heat Map Purpose: Heat map is a graphical representation of data. The heat map function is usually used to analyze how many people visited and stayed in a specified area. The heat map function must be supported by the connected camera, and the corresponding configuration must be set.
Page 175 Network Video Recorder User Manual As shown in the figure above, red color block (255, 0, 0) indicates the most welcome area, and blue color block (0, 0, 255) indicates the less-popular area. (Optional) Click Export to export the statistics report in excel format.
Page 176: Chapter 15 Human Body Detection
Network Video Recorder User Manual Chapter 15 Human Body Detection The chapter is only available for iDS-7316HUHI-K4/16S and iDS-9016HUHI-K8/16S. Enable Human Body Smart Analysis Purpose The human body detection can detect the human body appearing in the monitoring scene, and capture the human body pictures.
Page 177 Network Video Recorder User Manual Search by Appearance Specify search conditions. Click Start Search. Search by Human Body Appearance Automatically Obtained from Uploaded Sample Purpose Search human body pictures according to human body appearance automatically obtained from uploaded sample pictures. Before you start Import a human body picture in USB flash drive and connect it to device.
Page 178: Search By Picture
Network Video Recorder User Manual Search by Picture Purpose To increase search accuracy, upload several pictures of one person to compare with captured human body pictures. Before you start Import human body pictures in USB flash drive and connect it to device. ...
Page 179: Chapter 16 Network Settings
Network Video Recorder User Manual Chapter 16 Network Settings Configure TCP/IP Settings Purpose TCP/IP settings must be properly configured before operating the device over network. Go to System > Network > TCP/IP. TCP/IP Settings Select Net-Fault Tolerance or Multi-Address Mode under Working Mode. ...
Page 180: Configure Hik-Connect
Network Video Recorder User Manual  Check Enable DHCP to obtain IP settings automatically if a DHCP server is available in the network.  Valid range of MTU value is 500 to 1500. Click Apply. Configure Hik-Connect Purpose Hik-Connect provides mobile phone application and platform service to access and manage your connected devices, which enables you to get a convenient remote access to the surveillance system.
Page 181: Configure Ddns
Network Video Recorder User Manual Configure DDNS Purpose You can set Dynamic DNS service for network access. Different DDNS modes are available: DynDNS, PeanutHull, and NO-IP. Before You Start You must register DynDNS, PeanutHull and NO-IP services with your ISP before configuring DDNS settings.
Page 182: Configure Pppoe
Network Video Recorder User Manual Configure PPPoE If the device is connected to Internet through PPPoE, you need to configure user name and password accordingly under System > Network > TCP/IP > PPPoE. Contact your Internet service provider for details about PPPoE service. Configure NTP Purpose Connection to a network time protocol (NTP) server can be configured on your device to ensure...
Page 183: Configure Snmp
Network Video Recorder User Manual Configure SNMP Purpose You can configure SNMP settings to get device status and parameter information. Before You Start Download the SNMP software to receive device information via SNMP port. By setting the trap address and port, the device is allowed to send alarm event and exception message to the surveillance center.
Page 184: Configure Email
Network Video Recorder User Manual Configure Email Purpose The system can send an Email to designated users when a specified event occurs, such as an alarm or motion event is detected, or the administrator password is changed, etc. Before You Start The device must be connected to a local area network (LAN) that contains an SMTP mail server.
Page 185: Configure Ports
Network Video Recorder User Manual  Receiver: The name of the receiver.  Receiver's Address: The Email address of user to be notified.  Enable Attached Picture: Check to enable the function if you want to send email with attached alarm images.
Page 186 Network Video Recorder User Manual Port Settings...
Page 187: Chapter 17 System Maintenance
Network Video Recorder User Manual Chapter 17 System Maintenance Storage Device Maintenance Configure Disk Clone Purpose: Select the HDDs to clone to eSATA HDD. Before you start: Connect an eSATA disk to the device. Go to Maintenance > HDD Operation > HDD Clone. HDD Clone Check the HDD to clone.
Page 188: S.m.a.r.t Detection
Network Video Recorder User Manual Message Box S.M.A.R.T Detection Purpose: The device provides HDD detection function including S.M.A.R.T. and Bad Sector Detection technique. The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system for HDD to detect and report on various indicators of reliability in the hopes of anticipating failures.
Page 189: Bad Sector Detection
Network Video Recorder User Manual S.M.A.R.T Settings Interface If you want to use the HDD even when the S.M.A.R.T. checking is failed, you can check Continue to use the disk when self-evaluation is failed. Bad Sector Detection Go to Maintenance > HDD Operation > Bad Sector Detection. Select the HDD No.
Page 190: Hdd Health Detection
Network Video Recorder User Manual Bad Sector Detection  You can also pause/resume or cancel the detection.  After testing completed, click Error information to see the detailed damage information. HDD Health Detection Purpose: You can view the health status of Seagate HDD that generated after October 1th, 2017 and provides capacity ranges from 4 TB to 8 TB.
Page 191: Search & Export Log Files
Network Video Recorder User Manual Click a HDD to view details. Search & Export Log Files Purpose: The operation, alarm, exception and information of the device can be stored in log files, which can be viewed and exported at any time. Search the Log Files Go to Maintenance >...
Page 192: Export The Log Files
Network Video Recorder User Manual  Click to view the related video file. Export the Log Files Before You Start: Connect a storage device to your device. Search the log files. Refer to Chapter 17.2.1 Search the Log Files. Select the log files you want to export, and click Export. Or you can click Export ALL on the Log Search interface to export all the system logs to the storage device.
Page 193: Import/Export Ip Camera Configuration Files
Network Video Recorder User Manual Import/Export IP Camera Configuration Files Purpose: The information of added IP camera can be generated into an excel file and exported to the local device for backup, including the IP address, manage port, password of admin, etc. And the exported file can be edited on your PC, like adding or deleting the content, and copy the setting to other devices by importing the excel file to it.
Page 194: Import/Export Device Configuration Files
Network Video Recorder User Manual Import/Export Device Configuration Files Purpose: The configuration files of the device can be exported to local device for backup; and the configuration files of one device can be imported to multiple devices if they are to be configured with the same parameters.
Page 195: Upgrade System
Network Video Recorder User Manual Upgrade System Purpose: The firmware on your device can be upgraded by local backup device or remote FTP server. Upgrade by Local Backup Device Before You Start: Connect your device with a local storage device with update firmware file. Go to Maintenance >...
Page 196: Upgrade By Hik-Connect
Network Video Recorder User Manual FTP Upgrade Interface Enter IP address of FTP Server Address. Click Upgrade to start upgrading. After the upgrading is complete, reboot the device to activate the new firmware. Upgrade by Hik-Connect After logging the device into Hik-Connect, the device would periodically check for the latest firmware from Hik-Connect.
Page 197: Restore Default Settings
Network Video Recorder User Manual Step 1 Go to Maintenance > Upgrade > Camera Upgrade. Step 2 Check the analog camera(s) for upgrading. The analog camera must support Turbo HD or AHD signal. Step 3 Select the update file from the backup device. Step 4 Click Upgrade to start upgrading.
Page 198: System Service
Network Video Recorder User Manual System Service Network Security Settings Disable SADP Services Purpose You can disable SADP service to enhance the access security, e.g., when you are in the untrusted network environment. Go to System > System Service > System Service. Uncheck Enable SADP to disable the service.
Page 199: Managing Onvif User Accounts
Network Video Recorder User Manual Two authentication types are selectable: digest and digest/basic. For security reasons, it is recommended to select digest as the authentication type. Disable HTTP Purpose The admin user account can disable the HTTP service from the GUI or the web browser. After the HTTP is disabled, all its related services, including the ISAPI, Onvif and Gennetc, will terminate as well.
Page 200: Managing Ip Camera Activation
Network Video Recorder User Manual Check Enable ONVIF to enable the ONVIF access management. Click Add to enter the Add User interface. Add User Edit the user name, and enter the strong password. Select the user level to Media User, Operator and Admin. Click OK to save the settings.
Page 201 Network Video Recorder User Manual Enter the admin password of the device to obtain the permission. Change IP Camera Activation Password In the text filed of the IP Camera Activation Password, enter the new strong password for the cameras. Click Apply to have the following pop-up attention box. Attention Click Yes to duplicate the current password to the IP cameras which are connected with the default protocol.
Page 202: Chapter 18 General System Settings
Network Video Recorder User Manual Chapter 18 General System Settings Configure General Settings Purpose: You can configure the BNC output standard, VGA output resolution, mouse pointer speed through the System > General interface. Go to System > General. General Settings Interface Configure the following settings.
Page 203: Configure Date & Time
Network Video Recorder User Manual Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable. Enable Wizard: Enable/disable the Wizard when the device starts up. Enable Password: Enable/disable the use of the login password. Click Apply to save the settings. Configure Date &...
Page 204: Configure Dst Settings
Network Video Recorder User Manual Configure DST Settings Purpose: The DST (daylight saving time) refers to the period of the year when clocks are moved one period ahead. In some areas worldwide, this has the effect of creating more sunlit hours in the evening during months when the weather is the warmest.
Page 205: Add A User
Network Video Recorder User Manual The Administrator user name is admin and the password is set when you start the device for the first time. The Administrator has the permission to add and delete user and configure user parameters. Add a User Go to System >...
Page 206: Set Permission For A User
Network Video Recorder User Manual Strong Password recommended–We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.
Page 207 Network Video Recorder User Manual User Permission Settings Interface Set the operating permission of Local Configuration, Remote Configuration and Camera Configuration for the user.  Local Configuration Local Log Search: Searching and viewing logs and system information of device. Local Parameters Settings: Configuring parameters, restoring factory default parameters and importing/exporting configuration files.
Page 208: Set Local Live View Permission For Non-Admin Users
Network Video Recorder User Manual Remote Alarm Control: Remotely arming (notify alarm and exception message to the remote client) and controlling the alarm output. Remote Advanced Operation: Remotely operating HDD management (initializing HDD, setting HDD property), upgrading system firmware, clearing I/O alarm output. Remote Shutdown/Reboot: Remotely shutting down or rebooting the device.
Page 209: Edit The Admin User
Network Video Recorder User Manual Enable Live View Permission Click of non-admin user. Enter Camera Configuration interface. Select Camera Permission as Local Live View. Select cameras to live view. Click OK. Edit the Admin User Purpose: For the admin user account, you can modify your password and unlock pattern. Go to System >...
Page 210 Network Video Recorder User Manual Edit Admin User Edit the admin user information as demand, including the new admin password (strong password is required), and MAC address. Edit the unlock pattern for the admin user account. 1) Check Enable Unlock Pattern to enable the use of unlock pattern when logging in to the device.
Page 211: Edit The Operator/Guest User
Network Video Recorder User Manual Edit the Operator/Guest User Purpose: You can edit the user information, including user name, password, permission level and MAC address. Check the checkbox of Change Password if you want to change the password, and input the new password in the text field of Password and Confirm.
Page 212: Configure Password Security
Network Video Recorder User Manual Configure Password Security Export GUID File Purpose: The GUID file will help you to reset password when you forget your password. Check Export GUID when you are activating the device, or check Export when you are editing the admin user account.
Page 213: Configure Reserved Email
Network Video Recorder User Manual Click OK. Configure Security Questions Configure Reserved Email Purpose: The reserved email will help you to reset password when you forget your password. Check Reserved E-mail when you are activating the device, or click Modify when you are editing the admin user account.
Page 214: Reset Password
Network Video Recorder User Manual Configure Reserved Email Reset Password When you forget the admin password, there are three ways to reset the password, including importing the GUID file, answering security questions, and using your reserved email. Reset Password by GUID Before You Start The GUID file must be exported and saved in the USB flash drive after you have activated the device or edited the admin user account.
Page 215: Reset Password By Security Questions
Network Video Recorder User Manual Import GUID File Select the GUID file from the USB flash drive and click Import to import the file to the device. After the GUID file is successfully imported, enter the reset password interface to set the new admin password.
Page 216: Reset Password By Reserved Email
Network Video Recorder User Manual Verify by Security Question Reset Password by Reserved Email Before You Start Ensure you have configured the reserved email when you are activating the device or editing the admin user account. (Refer to 18.6.3 Configure Reserved Email) On the user login interface, click Forgot Password.
Page 217 1) Insert a USB flash drive to your device. 2) Click Export to export the QR code to USB flash drive. 3) Email the QR code to pw_recovery@hikvision.com as attachment. Verify by Reserved Email Check your reserved email, and you will receive a verification code within 5 minutes.
Page 218: Chapter 19 Appendix
Network Video Recorder User Manual Chapter 19 Appendix List of Applicable Power Adapter Use only power supplies listed in the user instructions. Power Adapter Model Specifications Manufacturer 0000201935 MSA-C1500IC12.0-18P-DE 12 V, 1.5 A MOSO Technology Co., Ltd. 0000200174 CE, 100 to 240 VAC, 12 V, 1.5 A, 18 ADS-25FSG-12 12018GPG Shenzhen Honor Electronic W, Φ5.5 ×...
