https://wiki.teltonika-networks.com/view/QSG_RUT241
QSG RUT241
Main Page
>
RUT Routers
English
日本

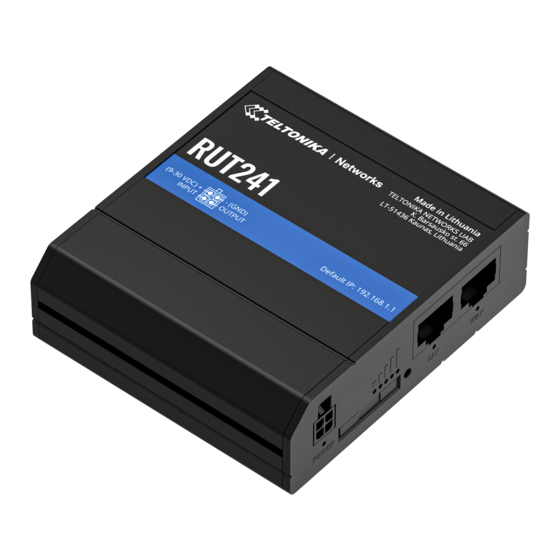

This Wiki page contains the online version of the Quick Start Guide (QSG) for the RUT241 LTE
Router. Here you will find an overview of the various components on the front and back of a
RUT241 device, hardware installation instructions, first login information, device specifications, and
general safety information. It is highly recommended to acquaint yourself with the Quick Start Guide
before using the device. You can also locate a printed version of the Quick Start Guide in the
packaging box of your device.
Contents
•
1 Safety information
-
1.1 General
-
-
-
-
-
•
•
3 Front view
•
•
•
•
•
•
Safety information
Before starting operating the device, please review recommendations and precautions to minimize
the possibility of accidents. Safety precautions presented are supplementary and subject to the local
safety regulations. When various operations are executed on the device, the user must fully follow
the safety instructions and recommendations provided with the device.
General
RF technologies 2G, 3G, 4G, WiFi
Max RF power 33 dBm@GSM, 24 dBm@WCDMA, 23 dBm@LTE, 20 dBm@WiFi
Power adapter Input: 0.45A@100-240 VAC, Output: 9 VDC, 1A, 4-pin plug
>
RUT241
> QSG RUT241
Radio specifications
Bundled accessories specifications*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QSG RUT241 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teltonika QSG RUT241

Summary of Contents for Teltonika QSG RUT241

  • Page 1: Table Of Contents

    > RUT Routers > RUT241 > QSG RUT241 English 日本 This Wiki page contains the online version of the Quick Start Guide (QSG) for the RUT241 LTE Router. Here you will find an overview of the various components on the front and back of a RUT241 device, hardware installation instructions, first login information, device specifications, and general safety information.
  • Page 2 [BG] Bulgarian съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EU Ovim TELTONIKA NETWORKS izjavljuje da je ovaj RUT241 u skladu s bitnim [HR] Croatian zahtjevima i ostalim relevantnim odredbama Direktive 2014/53/EU TELTONIKA NETWORKS tímto prohlašuje, že RUT241 splňuje základní...
  • Page 3 [MT] Maltese mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħra tad Direttiva 2014/53/EU TELTONIKA NETWORKS Erklærer herved at RUT241 er i samsvar med de [NO] Norwegian grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU Niniejszym TELTONIKA NETWORKS deklaruje że RUT241 jest zgodny z [PL] Polish zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy...

  • Page 4: Rf Exposure

    This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste. Hereby, TELTONIKA NETWORKS declares that this RUT241 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://wiki.teltonika-networks.com/view/RUT241_CE/RED...

  • Page 5: Operating Conditions

    result in your RF exposure exceeding the applicable limits. External antennas used with RUT241 must be installed to provide a distance of at least 20 cm from any people and must not be co-located or operated in conjunction with any other antenna or transmitter.

  • Page 6: Electrical Safety

    severe fall, do not use until they have been checked at an authorized service center. Electrical safety Only use approved accessories. Do not connect with incompatible products or accessories. It is recommended to ground devices with grounding terminals before connecting them to power.

  • Page 7: Front View

    POWER SOCKET PINOUT Video Quick Start Guide Need some help setting up your new Teltonika Networks RUT241 Industrial Cellular Router? Watch our quick start guide video and follow the step by step instructions to easily set up your new router for operation.
  • Page 8 1. Ensure the Wireless network connection is Enabled. Go to Start — Control Panel — Network and Internet — Network and Sharing Center. Click on the Change adapter settings in the left panel, then right-click on Wireless Network Adapter, and select Enable.

  • Page 9: Login To Device

    5. Choose the wireless network RUT241 **** from the list and click Connect. Enter the WiFi password located on the device's label. Login to device 1. To enter the router's Web interface (WebUI), type http://192.168.1.1 into the URL field of your Internet browser.

  • Page 10: Sim Card Recommendations

    3. After logging in, you must set a new password for security reasons. You will not be able to interact with the router’s WebUI until the default password is changed. The new password must consist of a minimum of 8 characters.
  • Page 11 reach locations.
