https://wiki.teltonika-networks.com/view/QSG_RUT955
QSG RUT955
Main Page
>
RUT Routers
English
日本

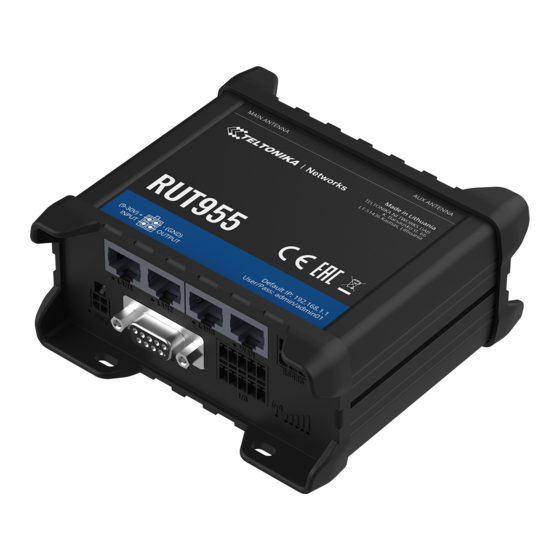

This Wiki page contains the online version of the Quick Start Guide (QSG) for the RUT955 LTE
Router. Here you will find an overview of the various components on the front and back of a
RUT955 device, hardware installation instructions, first login information, device specifications, and
general safety information. It is highly recommended to acquaint yourself with the Quick Start Guide
before using the device. You can also locate a printed version of the Quick Start Guide in the
packaging box of your device.
Contents
•
1 Safety information
-
1.1 General
-
-
-
-
-
•
•
•
•
•
•
•
•
Safety information
Before starting operating the device, please review recommendations and precautions to minimize
the possibility of accidents. Safety precautions presented are supplementary and subject to the local
safety regulations. When various operations are executed on the device, the user must fully follow
the safety instructions and recommendations provided with the device.
General
RF technologies 2G, 3G, 4G, WiFi, GNSS
Max RF power 33 dBm@GSM, 24 dBm@WCDMA, 23 dBm@LTE, 20 dBm@WiFi
Power adapter Input: 0.45A@100-240 VAC, Output: 9 VDC, 1A, 4-pin plug
>
RUT955
> QSG RUT955
Radio specifications
Bundled accessories specifications*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QSG RUT955 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teltonika QSG RUT955

Summary of Contents for Teltonika QSG RUT955

  • Page 1: Table Of Contents

    > RUT Routers > RUT955 > QSG RUT955 English 日本 This Wiki page contains the online version of the Quick Start Guide (QSG) for the RUT955 LTE Router. Here you will find an overview of the various components on the front and back of a RUT955 device, hardware installation instructions, first login information, device specifications, and general safety information.
  • Page 2 [BG] Bulgarian съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EU Ovim TELTONIKA NETWORKS izjavljuje da je ovaj RUT955 u skladu s bitnim [HR] Croatian zahtjevima i ostalim relevantnim odredbama Direktive 2014/53/EU TELTONIKA NETWORKS tímto prohlašuje, že RUT955 splňuje základní...
  • Page 3 [MT] Maltese mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħra tad Direttiva 2014/53/EU TELTONIKA NETWORKS Erklærer herved at RUT955 er i samsvar med de [NO] Norwegian grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU Niniejszym TELTONIKA NETWORKS deklaruje że RUT955 jest zgodny z [PL] Polish zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy...
  • Page 4 Este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. Detailed compliance information is available at the following internet address: wiki.teltonika- networks.com/view/Certificates. This sign means that is necessary to read the User's Manual before you start using the device.

  • Page 5: Rf Exposure

    Hereby, TELTONIKA NETWORKS declares that this RUT955 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://wiki.teltonika-networks.com/view/RUT955_CE/RED. Hereby, TELTONIKA NETWORKS declares that the radio equipment type RUT955 is in compliance with Radio Equipment Regulations 2017.

  • Page 6: Operating Conditions

    Operating conditions Operating temperature: -40° to +75° Celsius Humidity should be in the range of 10% to 90% (non-condensing). Only use the device in dry environments. Out of direct sunlight Away from heat source, corrosive substances, salts, and flammable gases Attention: operation outside the permissible range can considerably shorten the service life of the device.

  • Page 7: Front View

    POWER SOCKET PINOUT Video Quick Start Guide Need some help setting up your new Teltonika Networks RUT955 industrial cellular router? Watch our quick start guide video and follow the step by step instructions to easily set up your new router...

  • Page 8: Hardware Installation

    Hardware installation Configure your computer (Windows) 1. Ensure the Wireless network connection is Enabled. Go to Start — Control Panel — Network and Internet — Network and Sharing Center. Click on the Change adapter settings in the left panel, then right-click on Wireless Network...

  • Page 9: Login To Device

    2. Check if IP and DNS are obtained automatically. Right-click on Wireless Network Adapter and select Properties. Then select Internet Protocol Version 4 and click Properties. 3. If not selected, check to obtain an IP address and obtain DNS server address automatically.
  • Page 10 1. To enter the router's Web interface (WebUI), type http://192.168.1.1 into the URL field of your Internet browser. 2. When prompted for authentication enter the username admin and enter the password located on the device information label/engraving.

  • Page 11: Sim Card Recommendations

    3. After logging in, you must set a new password for security reasons. You will not be able to interact with the router’s WebUI until the default password is changed. The new password must consist of a minimum of 8 characters.
  • Page 12 reach locations.
