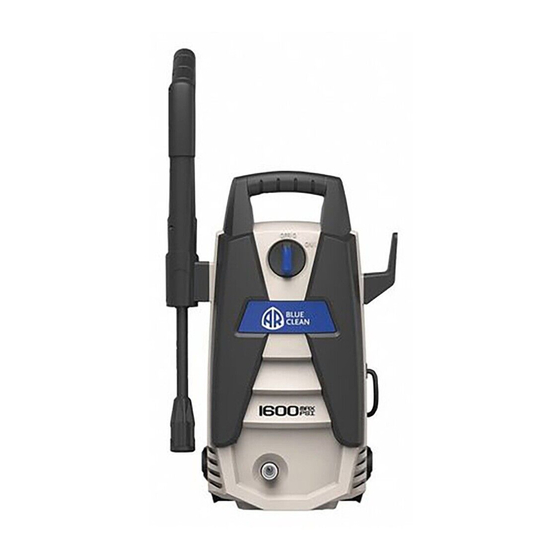

AR Blue Clean AR111S Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
Model AR111S
OFF/O
ON/I
Customer Help Line
1-866-235-5112
WARNING:
To reduce the risk of injury, the user must read and understand the instructions
before using this product.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
www.arblueclean.com
AR111S
1

Advertisement

Table of Contents
loading

Related Manuals for AR Blue Clean AR111S

Summary of Contents for AR Blue Clean AR111S

  • Page 1 Instruction Manual Model AR111S OFF/O ON/I Customer Help Line 1-866-235-5112 WARNING: To reduce the risk of injury, the user must read and understand the instructions before using this product. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE www.arblueclean.com AR111S...

  • Page 2: Quick Start

    uick tart uide ackage ontent 1. Power washer unit 2. Manual 3. Nozzle cleaning wire (may be taped to the manual) 4. Handle 5. Screws (2) OFF/O ON/I 6. Spray gun holder 7. Cord hook 8. Spray gun (8A shows trigger lock button) 9.
  • Page 3 9. When using the detergent bottle fill it with a properly formulated deter- gent or cleaner with a water ratio according to instruc- tions on the contain- er. The detergent bottles comes with a straw which is attached onto the screw-on top.

  • Page 4: Table Of Contents

    Volts Amps Weight (lbs) Model (lbs/sq/in) (gal/per/min) AR111S 1,400 122° F imited arranty This product is under warranty to the original retail consumer against defects in material and workmanship for a period of 1 (one) year and is a complete “bumper to bumper” warranty including the spray gun, the high pressure hose and all accessories from the date of purchase.

  • Page 5: Introduction

    ntroduction Congratulations on the purchase of your BLUE CLEAN POWER WASHER! Your BLUE CLEAN POWER WASHER is a power tool in every sense of the word that may be used outside your house and in. It is one of the finest most powerful home-use power washers in the marketplace today.
  • Page 6 • When you press the power switch to turn off • Never disconnect the high pressure hose the power washer, water pressure may remain from the power washer while the system is in the system. To discharge the pressure, pressurized. point the spray gun in a safe direction and •...

  • Page 7: Package Content

    ackage ontent 1. Power washer unit 2. Manual 3. Nozzle cleaning wire (may be taped to the manual) 4. Handle OFF/O 5. Screws (2) ON/I 6. Spray gun holder 7. Cord hook 8. Spray gun (8A shows trigger lock button) 9.

  • Page 8: Unpacking & Assembly

    & a nPacking SSembLy • After unpacking the BLUE CLEAN POWER WASHER, lay out parts and accessories. Familiarize yourself with the parts in the package by comparing them to those listed on the “PACKAGE CONTENTS” page. • The BLUE CLEAN POWER WASHER requires some minor assembly. You’ll need a Phillips screwdriver to install the handle to the main unit.
  • Page 9 High Pressure Hose Screw the high pressure hose (clockwise) on the front of the unit at the bottom (Fig. 4). Pull back • the collar and insert o-ring post into the water outlet far enough so the collar can thread onto the outlet threads until hand tight.
  • Page 10 Spray Gun • To lock the trigger of the spray gun point the gun away from you and press the lock button forward to the front of the gun, (Fig. 7), after doing so, squeeze or pull the trigger to make sure it is locked and will not move.
  • Page 11 Always test a small area to avoid chance of damaging the surface. (Fig. 9) Fig. 10 Fig. 9 • When using the adjustable spray lance, the spray pattern and intensity can be controlled according to power of water needed for each task by twisting the spray nozzle at the far end of the lance.
  • Page 12 Garden Hose Adapter • Install the garden hose adapter (GHA) and quick connect filter. It is made up of two separate pieces. (1) A clear plastic adapter with a screen filter (about 3 inches long) (Fig. 13) and (2) a blue/ black collar attachment (Fig.

  • Page 13: Operating Instructions

    Perating nStrUctionS *!Turn on the water supply at the faucet.!* (Fig. 17) Fig. 17 Powering Up • Make sure the “ON/OFF” switch is in the “OFF” position. The power switch has international symbols for ‘on’ and ‘off’: On (|) Off (O), (Fig. 18 ). OFF/0 OFF/0 ON/I...

  • Page 14: How To Clean

    • Release the safety lock button on the spray gun by pressing the safety lock button from right to left (Fig. 20). While pointing the spray gun in a safe direction, squeeze the trigger on the spray gun until there is a steady stream of water, letting the water and air out of the hose. Unlock Lock Fig.

  • Page 15: Operating Tips And Maintenance

    • Take off the adjustable lance. Rotate the nozzle on the adjustable lance to the narrow stream settling which opens up the fan blades. (Fig. 22). Fig. 22 Fig. 23 • Using the nozzle tip cleaner provided (or an unfolded paper clip), insert the wire into the nozzle hole and move back and forth until debris is dislodged (Fig.

  • Page 16: Storage

    Detergent / Storage • Use detergents designed for power washers. We offer four (4) power washer detergents, Auto, Motorcycle, Boat and Universal. These can be purchased online at our website www. arblueclean.com. Hardware stores or home centers also have power washer detergents for different cleaning projects.

  • Page 17: Pump Saver

    aver Pump Saver is a product that protects and prolongs the life of the pump. This will keep the internal parts of the pump lubricated and protected from freezing while being stored in ALL climates. It also assists with protection from internal corrosion. The Blue Clean part # is: PW64511 (16oz. bottle). Order online at www.arblueclean.com Pump Saver Instructions Follow the previous storage instructions for your power washer.

  • Page 18: Replacement Parts

    ePLacement artS Pos. Description Part Number Qty. Detergent Bottle PW50954 Hose (QC) 20’ PW4220600 Spray Gun PW4120391 Vari-Spray Lance/Nozzle PW4120410 Extension Lance PW4120400 Turbo nozzle PW50976 Gun Holder PW4220580 Cord Hook PW4220590 Quick Connect Filter (clear plastic) PW3082130 Garden Hose Adapter PW3082731 GFCI Assembly PW3084330...

  • Page 19: Troubleshooting And Faq

    roUbLeSHooting and Unit will not turn on. Make sure the power washer is in the “OFF” position. Plug in the electrical cord to a grounded 120 volt outlet (no electrical extension cord should be used). If the electrical cord will not plug into your outlet, your electrical outlet is not properly grounded and should not be used.
  • Page 20 Model AR111S OFF/O ON/I Cleaning and troubleshooting tips, manuals and other helpful information are available on our website. For parts and accessories for your Blue Clean Washer, visit www.arblueclean.com. Ordering is easy and all major credit cards are accepted. A.R. NORTH AMERICA, INC.
