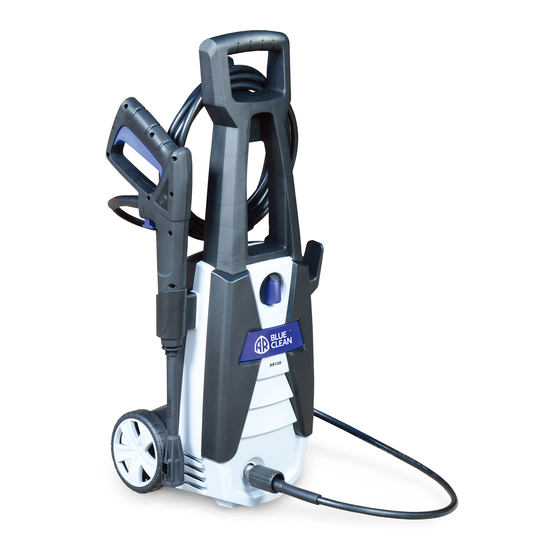

Electric Pressure Washer
MAX
P S I
ASSEMBLY, CARE AND
USE INSTRUCTIONS
Model AR120
READ CAREFULLY
IMPORTANT:
AND
ATTACH RECEIPT TO MANUAL FOR FUTURE
REFERENCE
Questions, problems, missing parts?
Before returning to your retailer, contact our
customer service department,
8:30 am - 5:00 pm, Monday - Friday.
service@austechindustries.com.au
RETAIN THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR120 and is the answer not in the manual?

Questions and answers

Related Manuals for AR Blue Clean AR120

Summary of Contents for AR Blue Clean AR120

  • Page 1 1740 P S I Electric Pressure Washer ASSEMBLY, CARE AND USE INSTRUCTIONS Model AR120 READ CAREFULLY IMPORTANT: RETAIN THESE INSTRUCTIONS ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE Questions, problems, missing parts? Before returning to your retailer, contact our customer service department, 8:30 am - 5:00 pm, Monday - Friday.

  • Page 2: Table Of Contents

    Troubleshooting ....................... 15 Limited Warranty ......................16 INTENDED APPLICATION This pressure washer is intended for: DOMESTIC CLEANING APPLICATIONS PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS SPECIFICATIONS Maximum PSI Max LPM Weight Model (lbs/sq. in.) (Litres/per min) Cold Water Volts Watts (Kg) AR120 1740 1400 ✔...

  • Page 3: Package Contents

    PACKAGE CONTENTS PACKAGE CONTENTS PACKAGE CONTENTS OFF/O ON/I PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Spray Gun Holster Variable Spray Nozzle Lance Handle Extension Lance Pressure Washer Unit Transparent Water Filter Cord Hook Nozzle Cleaning Wire High Pressure Hose Turbo Nozzle Lance Wheel Spray Gun Spray Gun Lock/Unlock...

  • Page 4: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION SAFETY INFORMATION Please read and understand this entire manual before 9. DO NOT use your pressure washer when you are attempting to assemble, operate, or install the product. under the influence of alcohol or drugs. Use this power tool carefully and only when you are alert.
  • Page 5 33. NEVER use lances or other parts that are not will overheat and damage the high pressure pump. compatible for this specific AR Blue Clean unit. 26. NEVER leave the pressure washer unattended while 34. NEVER spray any electrical outlet with your pressure it is powered “ON”.

  • Page 6: Assembly Instructions

    PREPARATION PREPARATION PREPARATION Before beginning assembly of product, make sure all Tools Required for Assembly (not included): Phillips parts are present. Compare parts with package contents screwdriver list and hardware contents list. If any part is missing or damaged, DO NOT attempt to assemble the product. Estimated Assembly Time: 5 minutes ASSEMBLY INSTRUCTIONS Wheels Assembly...
  • Page 7 ASSEMBLY INSTRUCTIONS OFF/O ON/I Slide cord hook holster (D) onto right side, High Pressure Hose Assembly when facing the unit, of pressure washer Screw high pressure hose (E) clockwise onto bottom unit (C) as shown. front of pressure washer unit (C). Pull back collar and insert o-ring post into water outlet far enough so collar Note: This step does not require any screws.
  • Page 8 PREPARATION ASSEMBLY INSTRUCTIONS Unlock Lock Extension Lance installation With spray gun (F) in locked position, attach extension lance (J) directly to spray gun. Insert lance extension into gun, pushing together and turning clockwise simultaneously. Turn the extension collar clockwise Locking Spray Gun (before Lance installation) To lock trigger of spray gun (F), point gun away from you to lock into place.
  • Page 9 ASSEMBLY INSTRUCTIONS Detergent Bottle Installation The detergent bottle comes with a straw which is fitted into screw-on top. If you do not see the straw, look Variable Spray Nozzle Lance and Turbo Nozzle Lance Installation inside the bottle and attach it to the screw-on top. When Insert either variable spray nozzle (I) or turbo nozzle using detergent bottle, fill it with a properly formulated lance (M) into the end of the extension lance by...
  • Page 10 OPERATING INSTRUCTIONS ASSEMBLY INSTRUCTIONS Push the QC garden hose adapter (N) onto the transparent water filtert (K). It will “click” into place. Do not pull the sleeve back while pushing QC garden hose adapter (N) onto the transparent water filter (K).The You will need a quick connect hose adapter (not water is now connected to your power washer.

  • Page 11: Operating Instructions

    OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Unlock • Turn the power switch to the “ON” (|) position. The unit will turn on for 1 - 2 seconds and shut off. This is a normal function of the auto start feature. OFF/0 OFF/0 •...
  • Page 12 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS • Begin pressure washing by squeezing the trigger on Operation Tips the spray gun all the way into the handle. • If you hear the motor run intermittently when the • Release the spray gun trigger to stop the pressure trigger is not being squeezed, that is normal.

  • Page 13: Care And Maintenance

    CARE AND MAINTENANCE Detergents Cleaning Nozzles • Use detergents designed for pressure washers. • A clogged or partially clogged nozzle can cause • This system applies detergent under low pressure. significant reduction of water pressure coming out The cleaning power of the detergents is enhanced of the nozzle and/or cause the unit to pulsate while when applied with low pressure and enough time is spraying.
  • Page 14 CARE AND MAINTENANCE CARE AND MAINTENANCE Storage • When your pressure washing session has been • Remove high pressure hose from spray gun. completed, turn off the power switch located on the • Remove lance from the gun. Place the gun in the front of the pressure washer.

  • Page 15: Troubleshooting

    CARE AND MAINTENANCE TROUBLESHOOTING PROBLEM CORRECTIVE ACTION Unit will not turn on. 1. Check the power cord is plugged directly into an outlet. 2. Do not use an extension cord. 3. Make sure the power switch is turned on. Note: When power switch is turned on, the pressure washer will turn on by itself for 1-2 seconds and shut off.

  • Page 16: Limited Warranty

    CARE AND MAINTENANCE LIMITED WARRANTY This Limited Warranty applies only to new products* distributed by Austech Industries Pty Ltd (“Austech Industries”). It is a condition of this Limited Warranty Policy that the purchaser read the owner’s manual for the product and only use the product to the extent or for the purposes stated therein.
