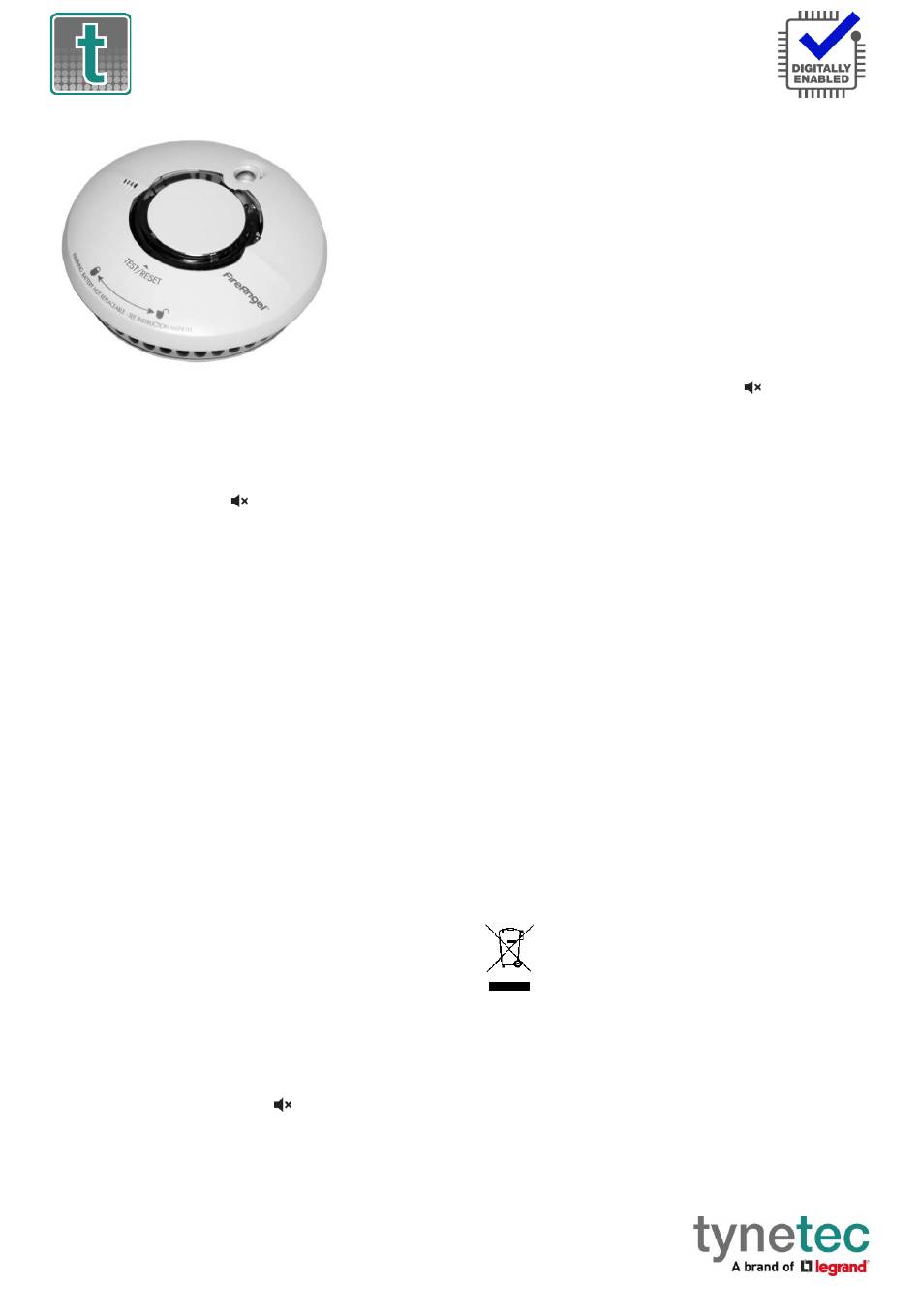

LEGRAND tynetec ZXT810 Quick Start Manual

869MHz
Smoke Alarm
_________________________________________________________________________
•
Compatible with Reach IP, Advent XT2, Carer Response
and Touchsafe Pro V4.01 onward
•
Complies with EN 14604-2005+AC:2008
•
Thermoptek multi-sensor technology
•
10 year sealed for life Lithium battery (typical)
•
Alarm sound level: 85dB @ 3m
•
Large central Test/Silence (
•
Operating Temperature: +4
•
Telecare Transceiver: 869.2125MHz Class 1.5
•
Digital Heartbeat
•
Weight: 210 grams
•
Dimensions: 132mm diameter x 40.5mm depth
•
Product Code: ZXT810
Positioning
Smoke alarms should be sited at least 300mm from light fittings
and walls, ideally as centrally as possible in the room. Smoke
alarms should be positioned no more than 600mm below the
highest point in the room. If positioning on the wall, the top of
the smoke alarm must be between 150mm and 300mm below
the ceiling and at least 300mm from a wall.
Thermoptek smoke alarms are less prone to false alarms from
cooking fumes and are therefore suitable for locating near
kitchens. Like other smoke alarms they can be susceptible to
nuisance alarms from steam and should not be placed near
bathrooms. Refer to the Manufacturer's instruction booklet for
more information on positioning.
Normal Operation
The red light will flash once every 45 seconds to indicate normal
operation.
Alarm Condition
The unit will repeatedly sound 3 loud beeps and the red light will
flash every second. Check if there is a fire hazard and
building immediately.
DANGER: Never ignore any alarm. If you are not certain of the
cause, leave the building immediately.
Alarm Silence
In the event of a known false alarm you can temporarily silence
the smoke alarm by pressing the Test/
automatically return to full sensitivity after 10 minutes.
NOTE: If the level of smoke is very high the alarm silence will be
overridden, and the alarm will continue to sound.
________________________________________________________________
Tynetec, a business unit of Legrand Electric Ltd
Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF.
Tel: +44 (0) 1670 352371 www.tynetec.co.uk
) button
o C to +38 o C
leave the
button. The alarm will
Trusted Technology
Caring for People
Low Battery Condition
If the unit chirps every 45 seconds and the yellow light flashes at
the same time, this indicates the battery is running low. The low
battery condition will also be reported automatically to the Alarm
Receiving Centre (ARC) or the local Manager once a day.
The telecare transceiver module also contains a battery - this is
self-tested once a day, if it's low for 7 consecutive days a low
battery condition will be reported once a week.
The complete smoke alarm should be replaced as soon as
possible within 30 days.
Sleep Easy Feature
Low battery warnings often start when it is inconvenient to
replace the alarm. You can silence the audible low battery chirp
for a period of 8 hours by pressing the Test/
period the audible chirp will start again. This process can be
repeated up to 10 times. The alarm will still detect smoke during
this time, however it must be replaced within 30 days.
Fault Condition
If the unit chirps every 45 seconds and the yellow light flashes
20-25 seconds after, this indicates a fault with the smoke alarm
and it should be replaced immediately.
Out of Range Notification (Reach IP)
The Reach IP can monitor all radio peripheral devices to
determine whether they have been damaged or removed from
an installation. Should the Reach IP be unable to detect a device's
heartbeat it will automatically generate a "radio out of range"
notification. Firstly, investigate if there's a genuine reason for the
alert, if not, arrange for the peripheral device to be replaced
immediately. The "Radio out of range timer" can be set from 30
hours to 99999 hours in Pulse CMP. "Radio supervision" can be
disabled by unchecking the tick box associated with each
peripheral device in Pulse CMP.
Maintenance
Test the smoke alarm once every month.
Clean once every 3 months using a vacuum cleaner fitted with
the soft brush attachment. Do not use solvents or cleaners on the
smoke alarm as they may cause damage to the sensor, the unit
can be wiped with a damp cloth.
Do not paint the smoke alarm as this may block the vents and
prevent smoke from entering the sensor.
Disposal
Waste electrical products should not be disposed of
with normal household waste. The smoke alarm is
ideally suited for disposal within the waste electronic
and electrical equipment (WEEE) recycling scheme.
Please recycle where facilities exist. Check with your local
authority or contact your supplier for recycling/disposal advice.
Warning
The smoke alarm contains a powerful Lithium battery.
If tampered with the battery may be damaged and create a fire
hazard. No attempt should be made to open the case or remove
the battery. Do not incinerate.
button. After this
Doc No. FM0822 V1.07 Page 1
