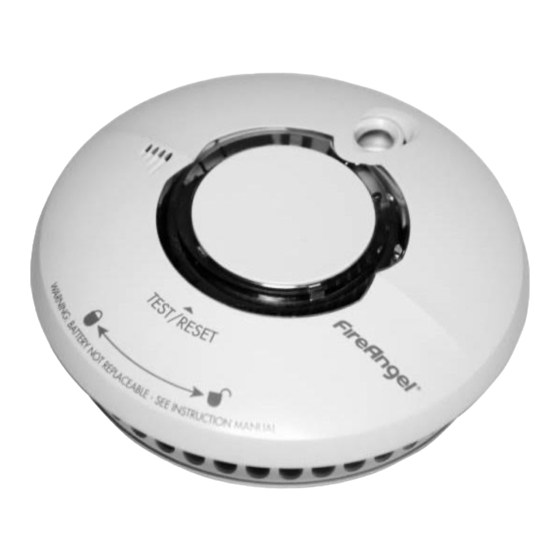

LEGRAND Tynetec FireAngel ZXT810 Quick Start Manual

Smoke Alarm
869MHz
_________________________________________________________________________
Caring for People
•
Compatible with Reach IP and Advent XT2
•
Complies with EN 14604-2005+AC:2008
•
Thermoptek multi-sensor technology
•
10 year sealed for life Lithium battery (typical)
•
Alarm sound level: 85dB @ 3m
•
Large central Test/Silence ( ) button
•
Operating Temperature: +4
•
Telecare Transceiver: 869.2125MHz Class 1.5
•
Weight: 210 grams
•
Dimensions: 132mm diameter x 40.5mm depth
•
Product Code: ZXT810
Positioning
Smoke alarms should be sited at least 300mm from
light fittings and walls, ideally as centrally as possible
in the room. Smoke alarms should be positioned no
more than 600mm below the highest point in the
room. If positioning on the wall, the top of the
smoke alarm must be between 150mm and 300mm
below the ceiling and at least 300mm from a wall.
Thermoptek smoke alarms are less prone to false
alarms from cooking fumes and are therefore
suitable for locating near kitchens. Like other smoke
alarms they can be susceptible to nuisance alarms
from steam and should not be placed near
bathrooms. Refer to the Manufacturer's instruction
booklet for more information on positioning.
Alarm Condition
The unit will repeatedly sound 3 loud beeps and the
red light will flash every second. Check if there is a
fire hazard and leave the building.
DANGER: Never ignore any alarm. If you are not
certain of the cause, leave the building immediately.
________________________________________________________________
Tynetec, a business unit of Legrand Electric Ltd
Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF.
Tel: +44 (0) 1670 352371 www.tynetec.co.uk
o o
C to +38 C
Trusted Technology
Caring for People
Alarm Silence
In the event of a known false alarm you can
temporarily silence the smoke alarm by pressing the
central Test/ button. The alarm will automatically
return to full sensitivity after 10 minutes.
NOTE: If the level of smoke reaching the alarm is
very high the alarm silence will be overridden, and
the alarm will continue to sound.
Normal Operation
The red light will flash once every 45 seconds to
indicate normal operation.
Low Battery Condition
If the unit chirps every 45 seconds and the yellow
light flashes at the same time, this indicates the
battery is running low. The low battery condition will
also be reported automatically to the Alarm Receiving
Centre (ARC) or the local Manager. The complete
smoke alarm should be replaced within 30 days.
Fault Condition
If the unit chirps every 45 seconds and the yellow
light flashes 20-25 seconds after, this indicates a fault
condition. Replace the smoke alarm immediately.
Maintenance
Test the smoke alarm once every week.
Clean once every 3 months using a vacuum cleaner
fitted with the soft brush attachment.
Do not use solvents or cleaners on the smoke alarm
as they may cause damage to the sensor, the unit
can be wiped with a damp cloth.
Do not paint the smoke alarm as this may block the
vents and prevent smoke from entering the sensor.
Disposal
Waste electrical products should not be disposed of
with normal household waste. The smoke alarm is
ideally suited for disposal within the waste electronic
and electrical equipment (WEEE) recycling scheme.
Please recycle where facilities exist. Check with your
local authority or contact your supplier for
recycling/disposal advice.
Warning
The smoke alarm contains a powerful Lithium
battery. If tampered with the battery may be
damaged and create a fire hazard. No attempt should
be made to open the case or remove the battery.
Doc No. FM0822 V1.01 Page 1
