Self-contained smoke
detector/alarm
0 405 17
11
0333
0333-CPR-292050-3
DoP no: 0333-CPR-292050-3
EN14604: 2005 + AC: 2008 - Smoke alarm
Wall or ceiling mounting
Safety instructions
Detector systems must be installed by fully qualified specialist contractors.
Incorrect installation and/or incorrect use may lead to the risk of electric shock
or fire. Read the manual and consider exactly where the product is to be fitted
before carrying out installation. All Legrand products must only be opened
and repaired by trained staff authorised to do so. Any unauthorised opening
or repair voids all liability, replacement rights and warranties. Only use Legrand
brand accessories.
DAAF
DÉTECTEURS AVERTISSEURS
AUTONOMES DE FUMEE
www.marque-nf.com
Advertisement
Table of Contents
Related Manuals for LEGRAND 0 405 17
Summary of Contents for LEGRAND 0 405 17
- Page 1 Read the manual and consider exactly where the product is to be fitted before carrying out installation. All Legrand products must only be opened and repaired by trained staff authorised to do so. Any unauthorised opening or repair voids all liability, replacement rights and warranties. Only use Legrand brand accessories.
-
Page 2: Table Of Contents

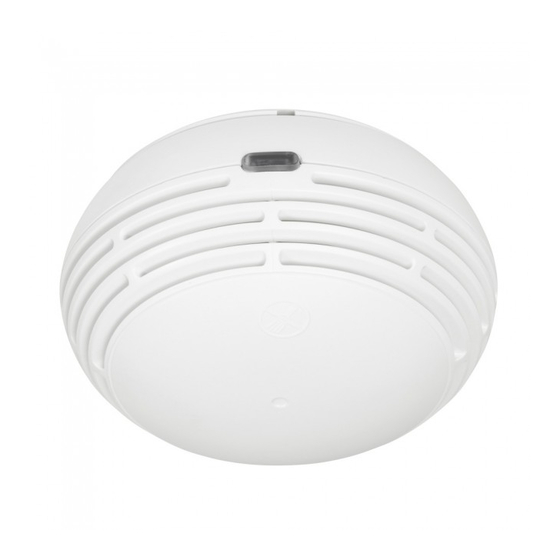

Self-contained smoke detector/alarm Cat. No. 0 405 17 is a smoke alarm designed for private houses. It detects smoke when a fire breaks out and alerts you with a loud audible alarm. Please read the following pages carefully before installing and commissioning self-contained smoke detector/alarm Cat. -
Page 3: Installation Recommendations
Technical characteristics • Dimensions: H 61 mm x Diameter 110 mm • Weight: 162 g • Operating temperature: 0 to 55°C • Interior environment • White ABS Installation recommendations Minimum installation One detector per floor, ideally in corridors and stairwells. NB: Prioritise areas leading to bedrooms because the risks of smoke inhalation are greater when people are asleep. -
Page 4: Installation Method: Ceiling Or Wall
Installation method: ceiling or wall Example of positioning Comply with the distances stated below. Long corridors In corridors longer than 10 metres, install at least 2 self-contained smoke detector/alarms Cat. No. 0 405 17. >10 cm >10 cm >10 cm <30 cm As far as possible, place the detectors at regular intervals, prioritising areas close to bedrooms and stairways. -
Page 5: Installation In The Kitchen
Installation in the kitchen Installing a self-contained smoke detector/alarm in a kitchen is not recommended because of the significant risk of false alarms and dirt quickly clogging up the detector. Self-contained smoke detector/alarms must definitely not be installed in kitchens smaller than 9 m Ensure a minimum distance of 2 metres (for a surface area of 9 m minimum) from any appliance which produces smoke or steam. - Page 6 Anti-theft device The built-in anti-theft device prevents the detector being stolen (in an apartment block for example). After breaking off both lugs (see location below), the detector can be locked in position. If necessary, you can simply use a small screwdriver to turn the mechanical locking lever through the opening in the base (see illustration below).
-
Page 7: Smoke Alarm
Alarm override switch Self-contained smoke detector/alarm Cat. No. 0 405 17 has an alarm override function: • when the source of the smoke has been identified • as a preventive measure before smoke is likely to occur Example: smoke from a toaster, deep fat fryer, cigarette. The override is automatically disabled after 10 min. -
Page 8: Battery Fault Postponement
Battery fault postponement Operation If the battery malfunctions, the smoke alarm beeps approx. every 50 secs. This signal can be postponed temporarily. Battery fault postponement 1 - Battery fault 2 - Press the Test button, 3 - 12 hours later: indicated: 3 short beeps confirm 1 long beep + 1 red... - Page 9 Installing the smoke detector Installation instruction:s Tools required Ø5 mm S6 5*25 ST 3.9*19 screw S6 5*25 bolts and bolt kit supplied When fixing detectors in hollow materials, it is advisable to using expansion bolts suitable for your particular substrate. 1 - Place the base on the ceiling 2 - Turn the Test button to ensure it is visible 3 - Mark the two holes where the bolts will be installed...
- Page 10 Certifications CE marking The CE marking on this product confirms its compliance with European regulations (EU) no. 305/2011 relating to construction products applicable to it, especially its compliance with the harmonised specifications of standard NF EN 14604: 2005 + AC: 2008 NF mark The NF mark applied to the self-contained smoke detector/alarm ensures safety and constant quality that is checked by specialists.
-
Page 11: Test
Test Test button We recommend that you test operation of your self-contained smoke detector/alarm once a week. Press the Test button briefly (less than 2 secs). The Test button flashes red and emits an audible alarm. Use this test to familiarise young children with this audible signal and explain to them what to do if a fire breaks out in your home (see What to do in the event of a fire paragraph). -
Page 12: Recycling
It must be taken to an appropriate collection point for recycling electrical and electronic equipment. This symbol on the product, its packaging, or in its instruction manual, means that LEGRAND contributes to paying for the whole selective waste collection and recycling system.
