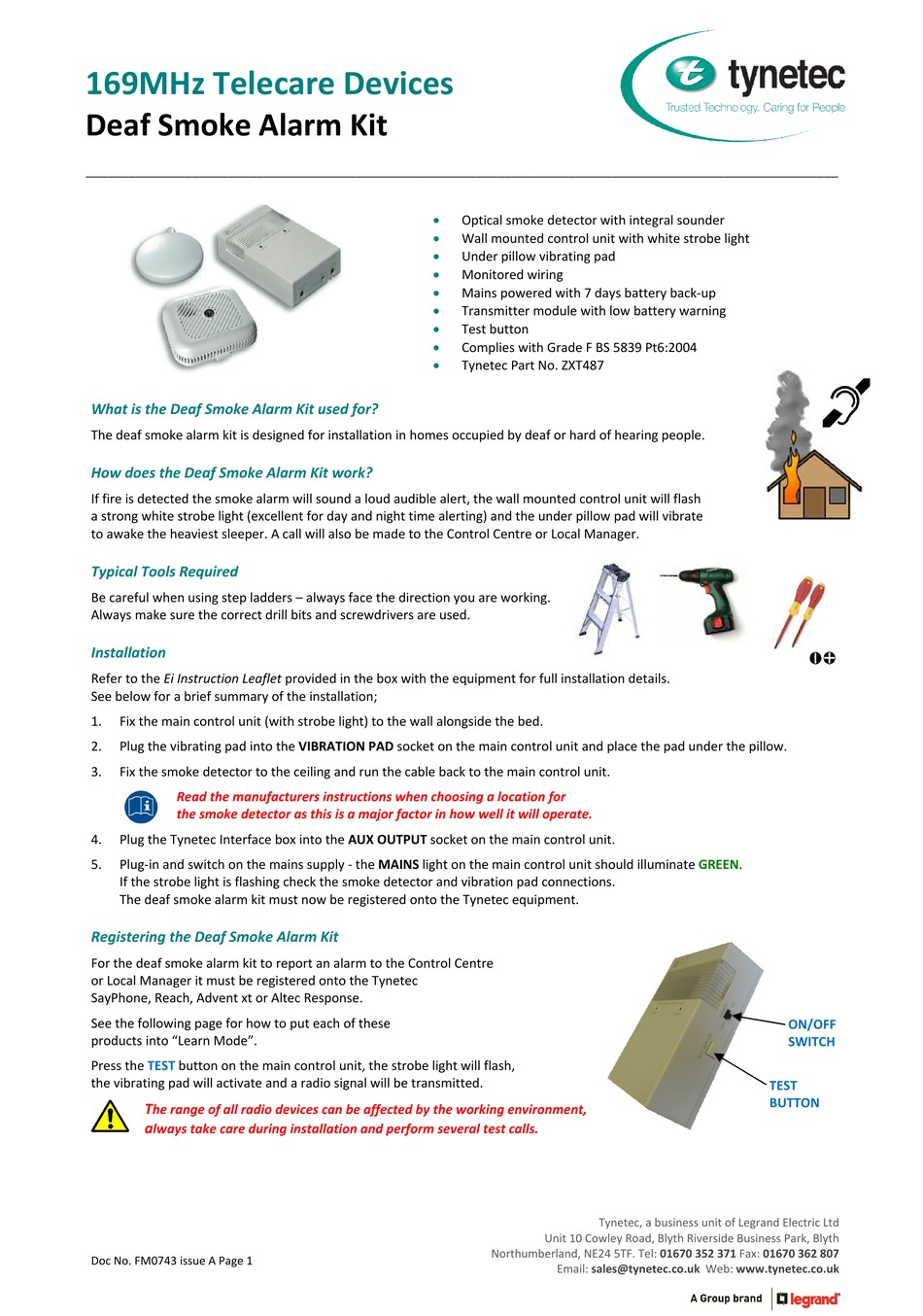

LEGRAND Tynetec Deaf Smoke ZXT487 Quick Start Manual

169MHz Telecare Devices
Deaf Smoke Alarm Kit
__________________________________________________________________________________________________________
What is the Deaf Smoke Alarm Kit used for?
The deaf smoke alarm kit is designed for installation in homes occupied by deaf or hard of hearing people.
How does the Deaf Smoke Alarm Kit work?
If fire is detected the smoke alarm will sound a loud audible alert, the wall mounted control unit will flash
a strong white strobe light (excellent for day and night time alerting) and the under pillow pad will vibrate
to awake the heaviest sleeper. A call will also be made to the Control Centre or Local Manager.
Typical Tools Required
Be careful when using step ladders – always face the direction you are working.
Always make sure the correct drill bits and screwdrivers are used.
Installation
Refer to the Ei Instruction Leaflet provided in the box with the equipment for full installation details.
See below for a brief summary of the installation;
1. Fix the main control unit (with strobe light) to the wall alongside the bed.
2. Plug the vibrating pad into the VIBRATION PAD socket on the main control unit and place the pad under the pillow.
3. Fix the smoke detector to the ceiling and run the cable back to the main control unit.
Read the manufacturers instructions when choosing a location for
the smoke detector as this is a major factor in how well it will operate.
4. Plug the Tynetec Interface box into the AUX OUTPUT socket on the main control unit.
5. Plug‐in and switch on the mains supply ‐ the MAINS light on the main control unit should illuminate GREEN.
If the strobe light is flashing check the smoke detector and vibration pad connections.
The deaf smoke alarm kit must now be registered onto the Tynetec equipment.
Registering the Deaf Smoke Alarm Kit
For the deaf smoke alarm kit to report an alarm to the Control Centre
or Local Manager it must be registered onto the Tynetec
SayPhone, Reach, Advent xt or Altec Response.
See the following page for how to put each of these
products into "Learn Mode".
Press the TEST button on the main control unit, the strobe light will flash,
the vibrating pad will activate and a radio signal will be transmitted.
T
he range of all radio devices can be affected by the working environment,
a
lways take care during installation and perform several test calls.
Doc No. FM0743 issue A Page 1

Optical smoke detector with integral sounder

Wall mounted control unit with white strobe light

Under pillow vibrating pad

Monitored wiring

Mains powered with 7 days battery back‐up

Transmitter module with low battery warning

Test button

Complies with Grade F BS 5839 Pt6:2004

Tynetec Part No. ZXT487
Tynetec, a business unit of Legrand Electric Ltd
Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth
Northumberland, NE24 5TF. Tel: 01670 352 371 Fax: 01670 362 807
Email: sales@tynetec.co.uk Web: www.tynetec.co.uk
ON/OFF
SWITCH
TEST
BUTTON
