Crate GTX65 User Manual

Crate amplifiers user's guide three-channel guitar amplifier with advanced digital signal processing gtx65
Hide thumbs Also See for GTX65:

Advertisement

Table of Contents

See also: Owner's Manual
GTX65
Three-Channel Guitar Amplifier
with Advanced Digital Signal
Processing
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTX65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crate GTX65

Summary of Contents for Crate GTX65

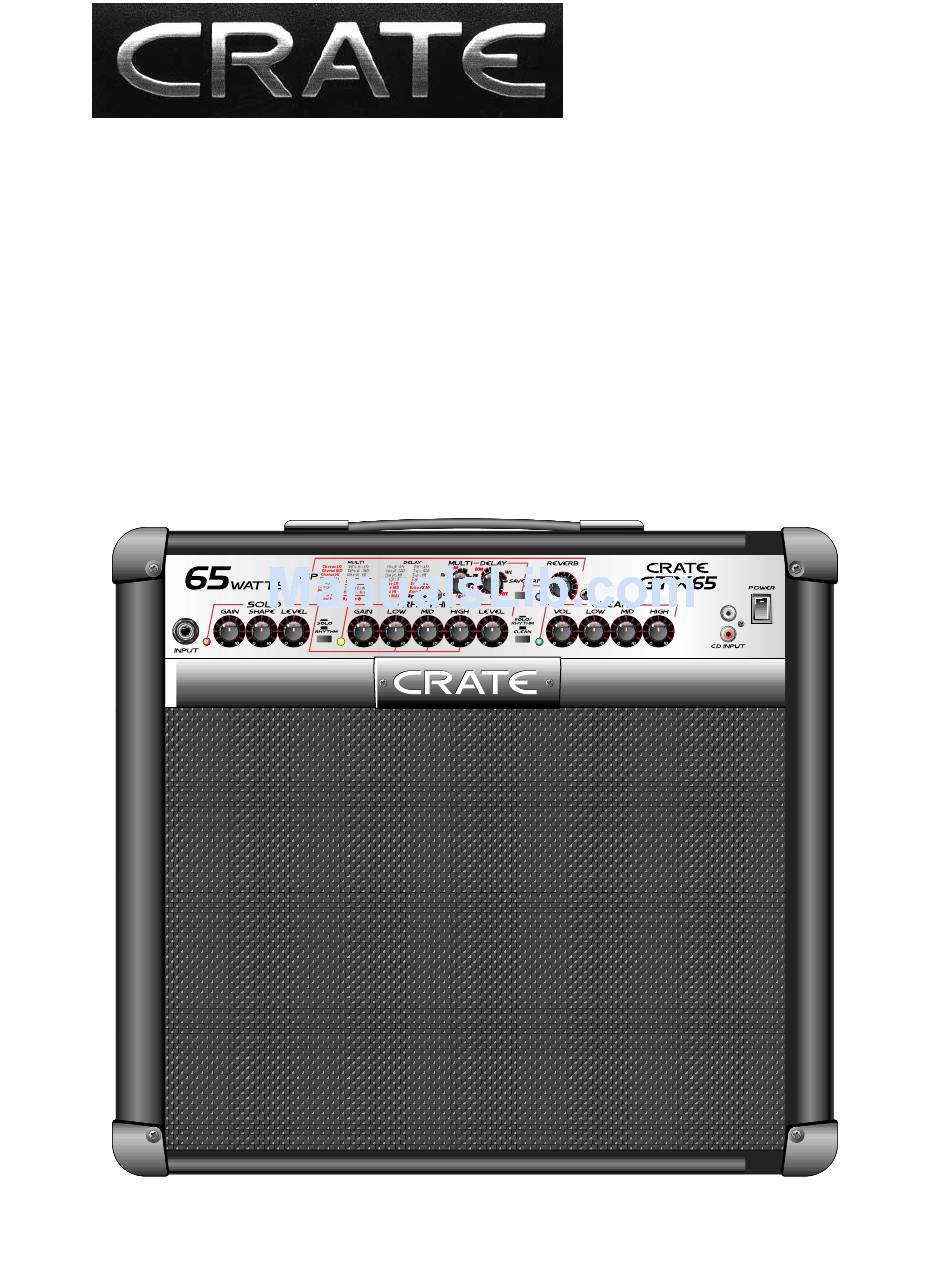

  • Page 1 GTX65 Three-Channel Guitar Amplifier with Advanced Digital Signal Processing User’s Guide...

  • Page 2: Table Of Contents

    GTX65 TABLE OF CONTENTS: Introduction ....... .3 The Front Panel ......4,5 The Rear Panel .

  • Page 3: Introduction

    GTX65 Three-Channel Guitar Amplifier with Advanced DSP Congratulations You are now the proud owner of the Crate GTX65 three-channel guitar amplifier with Advanced Digital Signal Processing. This rugged amplifier combines outstanding features with serious clean and distorted sounds. Dual DSP controls provide 15 “Multi” effects and 15 Delay effects which can be combined for a wide variety of sounds.

  • Page 4: The Front Panel

    GTX65 The Front Panel: 1: INPUT: Use this jack to connect your guitar to the amplifier by means of a shielded instrument cable. SOLO/RHYTHM CHANNELS: High gain channels giving you sounds with serious over- drive. 2: SOLO LED: This LED illuminates when the Solo channel is selected.
  • Page 5 GTX65 Three-Channel Guitar Amplifier with Advanced DSP 13 14 16: LOW: Use this control to adjust the low frequency level of the Clean channel. 17: MID: Use this control to adjust the midrange frequency level of the Clean channel. 18: HIGH: Use this control to adjust the high frequency level of the Clean channel.

  • Page 6: The Rear Panel

    GTX65 The Rear Panel: 100VAC: T2.5A 120VAC: T2A 230/240VAC: T1.25A CAUTION: R E P L AC E F U S E W I T H SAME TYPE AND RATING. ATTENTION: R E C H A N G E D E M E M E TYPE.

  • Page 7: The Dsp Section

    GTX65 The DSP Section: The GTX65 features DSP controls for Multi, Delay and Reverb. Complete information about the Multi and Delay effects is given below. The Multi control selects the “pitch modified” and wah effects. Many of these effects have their speed controlled by the Save/Tap button. The Delay control selects the delay or echo effects.

  • Page 8: Storing Your Own Presets

    GTX65 Storing Your Own Presets: Each channel of the GTX65 has two factory assigned DSP presets, as shown on pages 10 and 11. No matter what the settings of the DSP controls, the preset is recalled when a channel is selected. You may change the DSP settings by rotating the DSP con- trols - these changes will remain active until a different channel is selected, but will not be there for later use unless they are saved.

  • Page 9: Using The Footswitch For More Presets

    GTX65 Using the Footswitch for More Presets: The Crate three-button footswitch supplied with the GTX65 allows access to an addi- tional DSP preset for each channel of the amplifier. When the footswitch is connected to the amplifier as shown below, the “original” DSP presets are active for each channel when the #3 footswitch LED is illuminated.

  • Page 10: Dsp Factory Presets

    GTX65 DSP Factory Presets: The GTX65 Factory Presets for the DSP section are as follows: Factory Preset 1: Clean w/Chorus, Delay,Reverb CHANNEL: SOLO RHYTHM CLEAN BANK: "A" "B" Factory Preset 2: Rhythm w/Slapback Delay CHANNEL: SOLO RHYTHM CLEAN BANK: "A"...
  • Page 11 GTX65 DSP Factory Presets: The GTX65 Factory Presets for the DSP section are as follows: Factory Preset 4: Clean w/Reverb CHANNEL: SOLO RHYTHM CLEAN BANK: "A" "B" Factory Preset 5: Rhythm w/Reverb CHANNEL: SOLO RHYTHM CLEAN BANK: "A" "B" Factory Preset 6: Solo w/Reverb...

  • Page 12: Suggested Settings

    GTX65 Suggested Settings: "Haze Faze" Rhythm with Phase & Reverb "Solo Wah" Solo with Wah, Delay & Reverb "Octanator" Solo with Octave & Reverb Three-Channel Guitar Amplifier with Advanced DSP TAP Tempo MEDIUM TAP Tempo N/A TAP Tempo N/A TAP Tempo N/A...

  • Page 13: Suggested Settings

    GTX65 Suggested Settings: "Haze Faze" Rhythm with Phase & Reverb "Solo Wah" Solo with Wah, Delay & Reverb "Octanator" Solo with Octave & Reverb Three-Channel Guitar Amplifier with Advanced DSP TAP Tempo MEDIUM TAP Tempo N/A TAP Tempo N/A TAP Tempo N/A...

  • Page 14: Dsp "Fill In The Blanks" (For User Presets)

    GTX65 DSP “Fill in the Blanks” (User Settings): Copy this page to fill in your own DSP Presets! User Preset: _________________________________ CHANNEL: SOLO RHYTHM CLEAN BANK: "A" "B" User Preset: _________________________________ CHANNEL: SOLO RHYTHM CLEAN BANK: "A" "B" User Preset: _________________________________...

  • Page 15: System Block Diagram

    GTX65 System Block Diagram: BUFFER INPUT SOLO RTHM RTHM SOLO SOLO RTHM GAIN GAIN MULTI DELAY Three-Channel Guitar Amplifier with Advanced DSP CLEAN CHNL MID HIGH SOLO SWITCHING CIRCUIT RTHM SHAPE HIGH REVERB INPUT DAMPING CIRCUIT SOLO-RTHM/ CLEAN SELECT SOLO...

  • Page 16: Technical Specifications

    Power Requirements Size and Weight The GTX65 is covered with a durable Tolex material: wipe it clean with a lint-free cloth. Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish. Crate continually develops new products, as well as improves existing ones. For this reason, the specifications and information in this manual are subject to change without notice.
