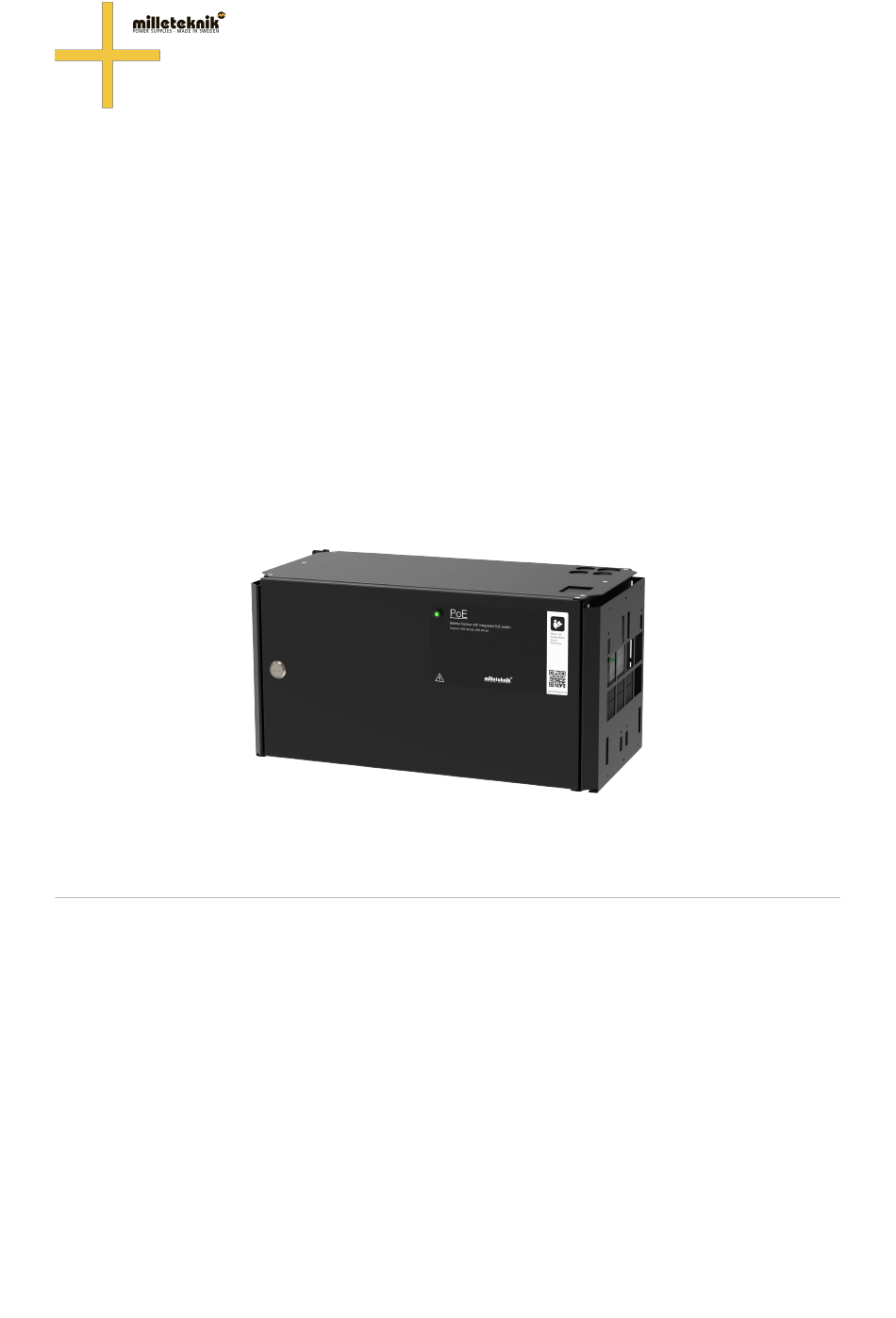

- Page 1 PoE Switch 4p FLX M PoE switch with battery backup...
- Page 2 350-091 Publication date 2023-11-09...
-
Page 3: Table Of Contents
12.1. battery change ......................31 13. Product data sheet ......................... 32 13.1. PoE ..........................32 13.1.1. Technical specifications ..................32 13.1.2. Name, article number and e-number ..............32 13.1.3. About PoE from Milleteknik ................32 PoE switch 4p FLX M+ ..................33... - Page 4 Questions about product performance? ..............37 13.8.3. Country of manufacture ..................37 13.8.4. Designed and produced by: Milleteknik AB ............38 13.9. Batteries - recommended, not included ................. 38 13.9.1. Batteries are not included they are sold separately ..........38 13.9.2.
-
Page 5: Before You Begin
Instruction manual in Swedish in original 1.1.1. Support Phone: +46 31-340 02 30 You will find answers to many questions at: www.milleteknik.se/support Telephone: +46 31- 340 02 30, e-mail: support@milleteknik.se. Support is open: Monday-Thursday 08:00-16:00, Fridays 08:00-15:00. Closed 11:30-13:15. 1.1.2. Link to the latest information Products and software are subject to updates, you will always find the latest information on our website. -
Page 6: Help Us Make Better Products
PoE device can continue to be powered in the event of a power failure. PoE switch 4p M, PoE switch 4p FLX S and PoE switch 4p FLX M are for security systems where a, reliable power supply with battery backup and PoE function is needed. Our PoE have something we call "controlled charging", which is a safety function that means that batteries are not charged with more... -
Page 7: Component Overview Poe Flx M
4. COMPONENT OVERVIEW POE FLX M Table 1. Component overview Symbol Explanation Brackets, reversible. Casing in powder-coated sheet metal. Power supply, (placed under the motherboard). Motherboard. Three places for PoE switches. One PoE switch is installed from the factory. Four PoE ports are on the left and two LAN ports are on the right. Room for batteries. -
Page 8: Console For Flx M And Flx L
Figure 1. FLX M - mount brackets Left bracket facing the front for mounting in a 19 "rack. Right bracket facing the back for wall mounting. IMPORTANT Leave 100 mm free around the air vents. 5.1. Console for FLX M and FLX L Bracket is reversible and can be mounted in two ways. -
Page 9: Motherboard - Description
• If possible, disconnect mains voltage when replacing the battery. Figure 2. Wiring diagram for batteries in battery backup Connect the terminals correctly so that you do not damage the equipment. 7. MOTHERBOARD - DESCRIPTION See technical data for more information. -
Page 10: Connect The Mains To The Motherboard (Pcb)
Figure 3. CEO The motherboard controls the device and distributes power. See technical data for more information. Table 2. Circuit board overview, explanation On the circuit board Explanation Connection for control of power supply. LED 1. connection external LED. LED 2. Control of alarm threshold. -
Page 11: Connect Load
Figure 4. Connect the mains to the motherboard Connect the mains cable to the terminal before it is put back on the motherboard. Secure F and N with cable ties for electrical safety. Table 3. Electrical network connections Letter Explanation Phase Neutral Protective earth... -
Page 12: Short Description For Poe Switch 4P
Alarm limit at low battery voltage 12 V 24 V *The unit is delivered with jumper on JU2 8. SHORT DESCRIPTION FOR POE SWITCH 4P Terminal no Explanation 2 pcs RJ-45 ports for data, not PoE, (powered). 4 pcs RJ-45 powered ports for connecting PoE devices. Power supply 48 V. -
Page 13: How The Poe Switch Software Is Accessed
9. HOW THE POE SWITCH SOFTWARE IS ACCESSED 9.1. How the software is accessed in the PoE Switch This section shows how to log in to the switch's configuration web page. In order to configure the software in the switch, access to the switch requires the correct IP address to be set on the computer. - Page 14 Ethernet status window appears. click the button Characteristics as shown in the figure below. Double-click Internet Protocol Version 4 (TCP / IPv4). Set the computer's IP address and subnet mask as shown in the figure below. By default, the product's IP address be 192.168.2.1. You can set any IP address as long as it is not the same as your switch's IP address and is in the same network segment as your switch's IP address.
-
Page 15: Log In To The Poe Switch
Connect an RJ-45 cable and connect to the PoE switch. 9.2. Log in to the PoE switch NOTE IP address of the switch (factory setting): 192.168.2.1 Password (factory setting): admin Start the browser on your computer. Login to PoE switch. - Page 16 Number Explanation IP address of the PoE switch: 192.168.2.1 Password: admin Apply = Ok Menu in the PoE switch...
-
Page 17: Configuration
9.3. Configuration 9.3.1. System, configuration Letter, number Explanation PoE switch system configuration page Tick here if you are going to use DHCP, see warning below. Changes the factory default password, (admin). If you have made any changes, you need to click "Apply" to save the changes. -
Page 18: Ports, Configuration
WARNING The settings on this page normally do not need to be changed. Only change the settings if you absolutely know what you are doing. Factory reset the PoE device if it does not behave as expected after adjusting settings on this page. -
Page 19: Aggregation, Configuration
Configuration of Virtual LAN. 9.3.4. Aggregation, configuration WARNING The settings on this page normally do not need to be changed. Only change the settings if you absolutely know what you are doing. Factory reset the PoE device if it does not behave as expected after adjusting settings on this page. -
Page 20: Mirroring, Configuration
9.3.6. Mirroring, configuration WARNING The settings on this page normally do not need to be changed. Only change the settings if you absolutely know what you are doing. Factory reset the PoE device if it does not behave as expected after adjusting settings on this page. - Page 21 Letter, num- Explanation QoS gives different network traffic different priority depending on its importance and requirements, helping to ensure that important services are delivered with sufficient bandwidth and minimal delay even when the network is under load. Sets whether QoS is active.
-
Page 22: Poe, Configuration
9.3.9. PoE, configuration WARNING The settings on this page normally do not need to be changed. Only change the settings if you absolutely know what you are doing. Factory reset the PoE device if it does not behave as expected after adjusting settings on this page. -
Page 23: Igmp Status
9.4.3. IGMP status L: Status of IGMP 9.4.4. LLDP statistics M: LLDP statistics... -
Page 24: Lldp Table
9.4.5. LLDP table N: LLDP overview. -
Page 25: Ping
9.4.6. Ping Letter, number Explanation Ping Input address to test the connection and response time. 9.5. Maintenance... -
Page 26: Reboot
9.5.1. Reboot WARNING Restart is done by PoE switch, battery backup is not restarted. Upon reboot, connected devices will lose connection. Alarm can be set to battery backup, but it disappears when the PoE switch is back on. Letter, number Explanation Rebooting the PoE switch. -
Page 27: Factory Reset
9.5.2. Factory reset WARNING Factory reset is done by PoE switch. Battery backup is not restored. On reset, connec- ted devices will lose connection. Alarm can be set to battery backup, but it disappears when the PoE switch is back on. Letter, number Explanation Factory reset the PoE switch. -
Page 28: Upload New Software
9.5.3. Upload new software WARNING Only use software you received from Milleteknik's support. Milleteknik assumes no re- sponsibility for software or consequences such as damage to the device or peripherals or other damage that may arise from uploading unapproved software. -
Page 29: Load And Save Configuration File
9.5.4. Load and save configuration file Letter, number Explanation Upload or download the switch's configuration. Select new configuration file. Upload new configuration file. Download configuration file to computer Newer Windows computers do not allow *.cfg files to be downloaded without additional approval in the browser when download- ing. -
Page 30: Log Out
9.5.5. Log out T: Log out of the switch. This does not affect the operation of the switch. 10. COMMISSIONING - HOW TO START THE UNIT The unit works normally when the indicator LED on the outside of the cabinet door lights up with a solid green light. -
Page 31: Maintenance
Solid yellow glow: Low battery voltage. Solid red light: Low battery when the load output fuse is blown. 12. MAINTENANCE The system with the exception of batteries is maintenance-free when installed in an indoor environment. 12.1. battery change • If possible, disconnect mains (voltage) when replacing the battery. •... -
Page 32: Product Data Sheet
PoE device can continue to be powered in the event of a power failure. PoE switch 4p M, PoE switch 4p FLX S and PoE switch 4p FLX M are for security systems where a, reliable power supply with battery backup and PoE function is needed. Our PoE have something we call "controlled charging", which is a safety function that means that batteries are not charged with more... -
Page 33: Poe Switch 4P Flx M
POE SWITCH 4P FLX M+ Power supply with backup power to power PoE devices such as surveillance cameras and other PoE powered devices. The power supply has batteries that keep powering on when the power grid goes down. Long life, energy efficient and support is available if something goes wrong, now or in 10 years. -
Page 34: Regulations And Certifications
13.2. Regulations and certifications 13.2.1. Requirements that the product meets EMC: EMC Directive 2014 / 30EU Electricity: Low voltage directive: 2014/35 / EU PoE: IEEE 802.3af, IEEE 802.3at/30.8 W Note that 802.3at type2 is not supported, as the PoE card lacks a handshake function for type 2. -
Page 35: Technical Data: Poe Card
Info Explanation Alarm via Triggered load securing, potential-free shifting. Conclusion CO / NO. PRO1: Via alarm terminal J13 (NC- CO). PRO2: Via alarm terminal J13 (NC-CO). PRO2 v3: Via J11 and J12 to motherboard on to the parent system. PRO 3: Via J11 and J12 to motherboard on to the parent system. Protection against: Deep discharge, short circuit, overload and overvoltage. -
Page 36: Power Supply
Product Num- PoE, Ether- Net- Interface Func- Type, injec- ber of power con- net type work tions tor and PoE / tinu- ports switch port ports power 30,8 @ 320 W Fast 10 / 1000Base-T Auto-ne- Unman- Switch 54,6 V Ethernet RJ-45 gotiation,... -
Page 37: Link To The Latest Information
Contacted support for questions about spare parts. SUPPORT AFTER THE WARRANTY PERIOD Milleteknik provides support during the life of the product, but no longer than 10 years after the date of purchase. Replacement for an equivalent product may occur if the manufacturer deems that repair is not possible. -
Page 38: Designed And Produced By: Milleteknik Ab
13.8.4. Designed and produced by: Milleteknik AB Designed and produced by Milleteknik AB 13.9. Batteries - recommended, not included 13.9.1. Batteries are not included they are sold separately Batteries are sold separately. 13.9.2. 14 Ah, 12 V AGM battery Fits in... - Page 39 Ögärdesvägen 8 B S-433 30 Partille Sweden +46 31 340 02 30 info@milleteknik.se www.milleteknik.com...
- Page 40 This page is intentionally left blank.
