Summary of Contents for milleteknik 4p M

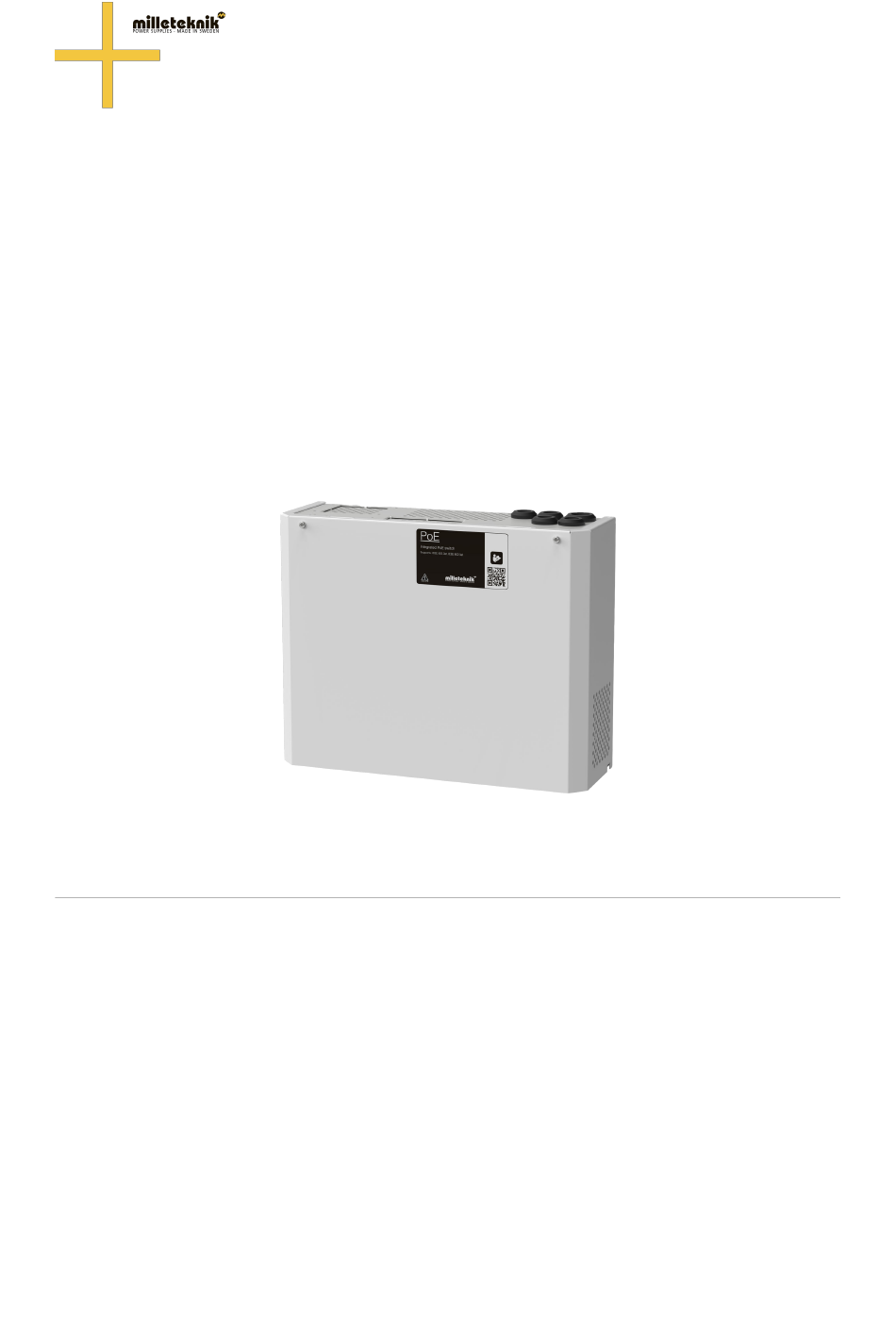

- Page 1 PoE Switch 4p M PoE switch with battery backup...
- Page 2 350-205 Publication date 2022-11-09...
-
Page 3: Table Of Contents
10.8.1. Warranty ....................13 10.8.2. Support ....................13 10.8.3. Country of manufacture ................13 10.8.4. Designed and produced by: Milleteknik AB ..........13 10.9. Batteries - recommended, not included ..............14 10.9.1. Batteries are not included they are sold separately ........14 10.9.2. - Page 4 This page is intentionally left blank.
-
Page 5: About Poe From Milleteknik
PoE device can continue to be powered in the event of a power failure. PoE switch 4p M, PoE switch 4p FLX S+ and PoE switch 4p FLX M+ are for security systems where a, reliable power supply with battery backup and PoE function is needed. Our PoE have something we call "controlled charging", which is a safety function that means that batteries are not charged with more... -
Page 6: Component Overview Poe M
3. COMPONENT OVERVIEW POE M Table 1. Component overview Symbol Explanation Casing in powder-coated sheet metal. Space for batteries. PoE switch. Power supply unit. Motherboard. Cable entries. 4. WALL MOUNTING Use four screws suitable for the wall to set up the cabinet. The distance between the screw head and the wall should be 1.5–2 mm. -
Page 7: Connection Of Batteries
5. CONNECTION OF BATTERIES Battery wiring is mounted on the circuit board upon delivery. Pictures below only show how to connect wiring. Place the batteries in the cabinet with the battery terminals facing outwards, against the cabinet door. Connect the battery cable. Red cable on plus and black cable on minus. •... -
Page 8: Commissioning - How To Start The Unit
6. COMMISSIONING - HOW TO START THE UNIT The unit works normally when the indicator LED on the outside of the cabinet door lights up with a solid green light. See front panel for other status indications. It may take up to 72 hours before the batteries are fully charged. 7. -
Page 9: Faq - Poe
PoE device can continue to be powered in the event of a power failure. PoE switch 4p M, PoE switch 4p FLX S+ and PoE switch 4p FLX M+ are for security systems where a, reliable power supply with battery backup and PoE function is needed. Our PoE have something we call "controlled charging", which is a safety function that means that batteries are not charged with more... -
Page 10: Areas Of Use
10.1.4. Areas of use • Power supply for camera surveillance. • Security applications powered by PoE that need backup power in the event of a power outage. 10.1.5. Fixed installation The product is intended for fixed installation. The battery backup must be installed by a qualified installer. -
Page 11: Circuit Boards - Technical Data
10.4. Circuit boards - Technical data 10.4.1. Technical data: CEO 3 Table 2. CEO3 V 2.5 Info Explanation Article title CEO3 Product description CEO 3 is the next generation circuit board for simpler battery backups. Advanced functions that were not previously possible in simpler battery backups are now available as standard. -
Page 12: Technical Data: Poe Card
30,8 @ 125 W Fast 10 / 1000Base-T Auto-ne- Unman- switch 54,6 V Ethernet RJ-45 gotiation, aged. There 4p M Mbit PoE+ Auto-up- is no soft- link (auto ware inter- switch MDI/MDI- face to con- trol the switch. 10.5. Power supply 10.5.1. -
Page 13: Link To The Latest Information
10 years after the date of purchase. Switching to an equivalent product may occur if Milleteknik deems that repair is not possible. Support costs may (at Milleteknik's discretion) occour after the warranty period has expired. -
Page 14: Batteries - Recommended, Not Included
10.9.1. Batteries are not included they are sold separately Batteries are sold separately. 10.9.2. 7.2 Ah, 12 V AGM battery Fits in Number of batteries PoE switch 4p M Battery type Maintenance-free AGM, lead-acid battery. 12 V 7.2 Ah Table 6. 10+ Design life * battery... - Page 15 This page is intentionally left blank.
- Page 16 This page is intentionally left blank.
