Summary of Contents for SUTO S530

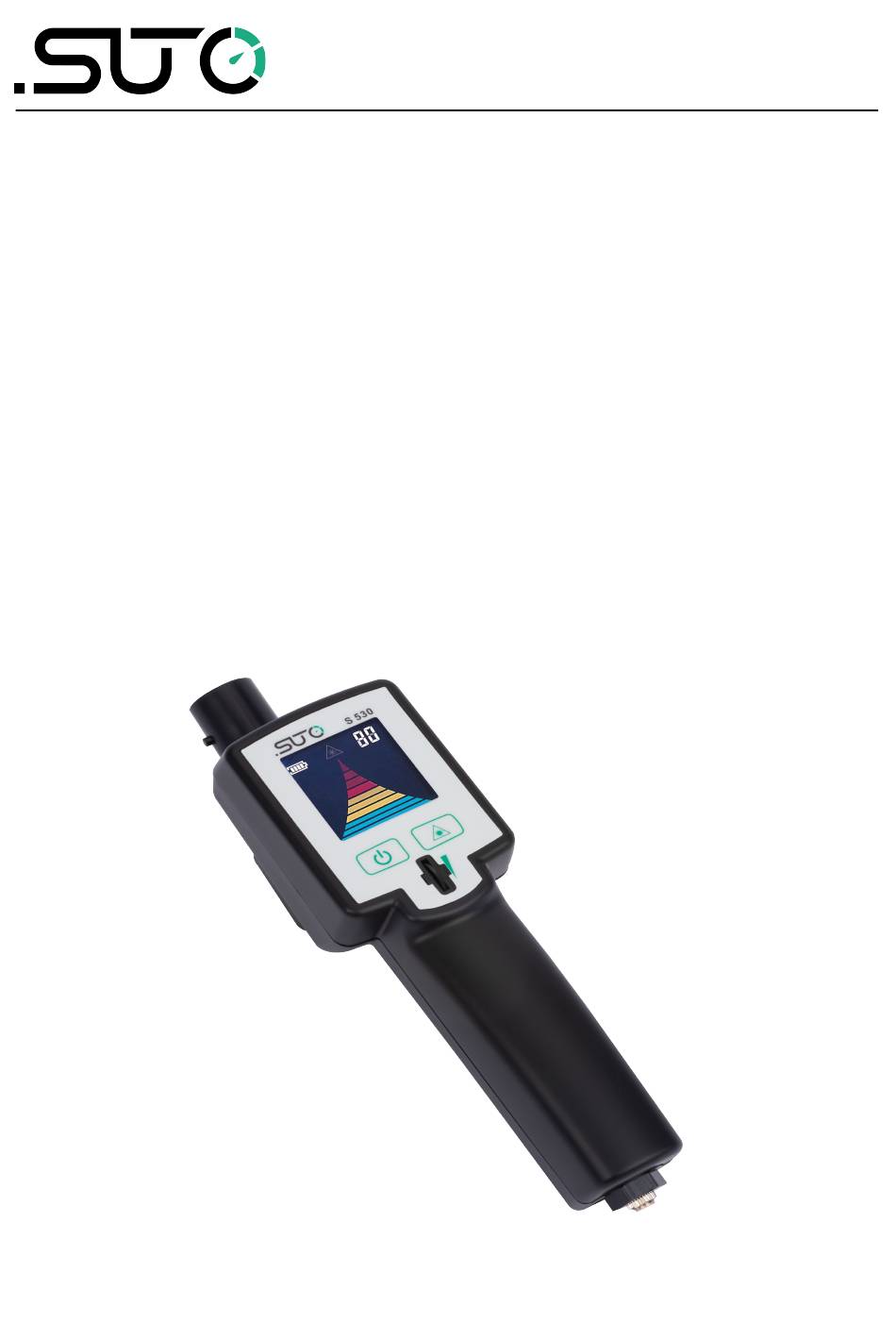

- Page 1 English Instruction and operation manual S530 Ultrasonic Leak Detector (Eco Version)
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
6 Technical data................9 6.1 General data.................9 6.2 Electrical data...............9 6.3 Performance chart..............9 7 Dimensional drawing..............10 8 Operating.................11 8.1 Operating Principle..............12 8.2 Operating Procedure............12 8.3 Electrical connection ............13 9 Optional extra accessories............14 9.1 Ultrasonic tone generator.............14 10 Maintenance................15 11 Disposal or waste..............15 S530... -
Page 4: Safety Instructions
• Never point the laser at smooth and reflective surfaces. This can lead to a reflection of the laser. WARNING! Voltage used for supply! Any contact with energized parts of the product, may lead to a electrical shock which can lead to serious injuries or even death! S530... - Page 5 • For transportation it is recommended to use the packaging which comes with the leak detector. • Please make sure that the storage temperature of the sensor is between -10°C ... 50°C. • Avoid direct UV and solar radiation during storage. S530...
-
Page 6: Registered Trademarks
1 Safety instructions • For the storage the humidity has to be <90%, no condensation. 2 Registered trademarks SUTO ® Registered trademark of SUTO iTEC MODBUS ® Registered trademark of the Modbus Organization, Hopkinton, USA PROFIBUS Registered trademark of the PROFIBUS User ®... -
Page 7: Rf Exposure Information And Statement
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. • This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. S530... -
Page 8: Application
The integrated laser pointer helps to spot the leak from a distance. The S530 leak detector is not developed to be used in explosive areas. For the use in explosive areas please contact the manufacturer. -
Page 9: Technical Data
Internal NiMH rechargeable battery 6.3 Performance chart The table shows the detection distance of varicose hole diameters at different pressures (lab environment). Pressure / diameter 0.1 mm 0.2 mm 0.5 mm 0.5 bar 10 m 5.0 bar 14 m 18 m S530... -
Page 10: Dimensional Drawing
7 Dimensional drawing 7 Dimensional drawing S530... -
Page 11: Operating
8 Operating 8 Operating Please make sure that all components listed below are included in your package. Description Order No. S530 Ultrasonic Leak Detector P560 0102 Sensor unit S605 0001 Noise isolated head set A554 0102 Focus tube and focus tip... -
Page 12: Operating Principle
8.2 Operating Procedure The following steps explain the procedure of an appropriate use. 1. Press the Power button. 2. The Display of the S530 look like the picture on the left side. • The laser pointer is off. • the Display will show you: ◦... -
Page 13: Electrical Connection
6. Scan with the focus tip the rough location till the exact location is found. 8.3 Electrical connection Either the headphone or the charger can be connected to S530 at a time. Remark ： If the instrument has not been used for more than 2 months, the battery might be over discharged. -
Page 14: Optional Extra Accessories
The Ultrasonic tone generator is an optional extra accessory for the S530. It generate an ultrasonic tone which can be detected by the S530. Thats why a leak detection in a system without overpressure is possible. Specification Frequency: 40 kHz ± 10% •... -
Page 15: Maintenance
The detector, the accessories and its packings must be disposed according to your local statutory requirements. The dispose can also be carried by the manufacturer of the product, for this please contact the manufacturer. S530... - Page 16 SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Grißheimer Weg 21 Room 10, 6/F, Block B, Cambridge Plaza D-79423 Heitersheim 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7634 50488 00 Tel: +852 2328 9782 Email: sales@suto-itec.com...
