  • Page 1 English Instruction and operation manual S531 Ultrasonic Leak Detector...
  • Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.

  • Page 3: Table Of Contents

    12 Maintenance................21 12.1 Self-test.................21 12.2 Updating firmware..............21 12.3 Resetting the device..............23 12.4 Reusing a survey ID..............23 12.5 Cleaning the sensor..............24 13 Optional accessories..............24 14 Disposal or waste..............25 15 Warranty................25 16 Appendix: Headset overview.............26 16.1 Description................26 16.2 Care and maintenance..............27 S531...

  • Page 4: Safety Instructions

    • Never point the laser at smooth and reflective surfaces. This can lead to a reflection of the laser. WARNING! Voltage used for supply! Any contact with energized parts of the product, may lead to a electrical shock which can lead to serious injuries or even death! S531...
  • Page 5 • Please ensure that the storage temperature of the sensor is between -10 ... +50°C. • Avoid direct UV and solar radiation during storage. • For the storage the humidity must be <90%, no condensation. S531...

  • Page 6: Application

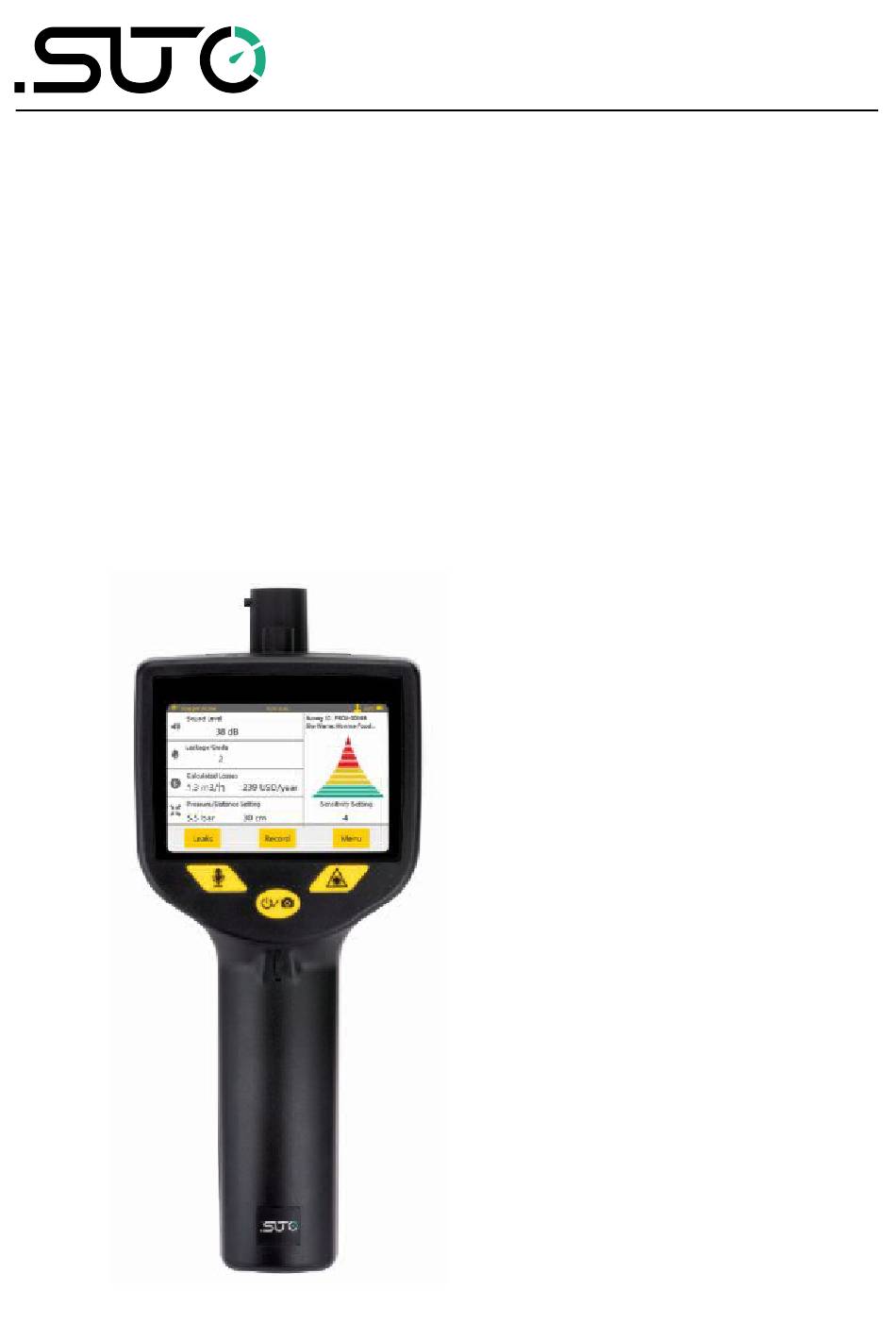

    2 Application 2 Application S531 is a hand-held ultrasonic leak detector that helps you quickly find and record leakages in compressed air or any gas systems. When gases leak through tubes and tanks, an ultrasonic sound is produced. S531 can detect these sound from several-meter away, and transform these inaudible signals into a frequency that can be easily heard by ears.

  • Page 7: Technical Data

    The table shows the detection distance of various hole diameters at different pressures in the lab environment and with the trumpet on. Pressure / diameter 0.1 mm 0.2 mm 0.5 mm 0.5 bar 0.5 m 1.7 m 5.0 bar 3.6 m 11.5 m 18 m S531...

  • Page 8: Scope Of Delivery

    5 Scope of delivery 5 Scope of delivery The S531 layout in the transportation case is shown as below. Please make sure that all components listed below are included in your package. Qty Description Item No. S531 leak detector P560 0104 Noise isolated/canceling wireless headset.

  • Page 9: Learning About The Device

    6.1 Components Part Function Power button. Long press to turn S531 on or off. It also works as a shortcut button for taking photos in leak detection. Shortcut button for voice recording in leak detection. Laser button. Press to turn laser on or off.

  • Page 10: Touchscreen Display

    Leakage is calculated based on the sound level detected as well as the pressure and distance settings. Pressure/Distance Shows the latest settings for the pressure in the Settings detected object and the distance between the S531 sensor and the leak point. S531...

  • Page 11: Dimension And Electrical Ports

    As shown in the following figure, S531 contains two electrical connectors ： • USB-C port on the right-hand side: Used to charge the S531 and connect to a PC for data transfer. • Headset jack at the bottom: Reserved for the wireless headset in case that the headset has low battery.

  • Page 12: Before You Start For The First Time

    7 Before you start for the first time 7 Before you start for the first time Before you use a new S531 to detect leaks for the first time, charge the device and perform the initial device setup. 7.1 Charging the device S531 is a battery-powered device and shipped with a partially charged battery.

  • Page 13: Configuring And Starting A Leak Survey

    7. Click Pressure setting, and Configure the pressure of the to-be- detected media. 8. Click Flow Unit Setting, and select from m3/h, l/min and cfm (default: l/min). 9. Click Pressure Unit Setting, and select from bar, psi, MPa (default: bar). S531...

  • Page 14: Starting A Survey

    To change unit settings, you must create a survey with a new survey ID. In case you want to use the previous survey ID in the newly created survey, delete data of the previous survey and then reset the S531. For detailed steps, see Reusing a survey ID on page 23.

  • Page 15: Detecting Leaks

    9 Detecting leaks 9 Detecting leaks After you create and start a survey, you can use the S531 to detect and record leaks for the survey. The following steps describe a recommended procedure of detecting a leak. 1. After a survey is started, the home screen is shown as the left-hand side.
  • Page 16 4. Mount the trumpet on the sensor and locate the rough leak range. 5. When you are close to the leak point, mount the focus tube and focus tip onto the sensor, and scan with the focus tip until the exact location is found. S531...

  • Page 17: Recording Leaks

    This record is assigned with a unique leak tag (for example, 0001) and has the leak loss calculated. 5. Point the S531 towards the leak point, and click the Camera icon on the leak record screen or press the push button...
  • Page 18 10. Fill out the paper leak tag, and then tie it near the leak point. Note: To view leak data in a recorded leak, click the Leaks button on the home screen. For more information, see Chapter 11 Managing leak records. S531...

  • Page 19: Managing Leak Records

    S531 to a PC. 11.1 Viewing and deleting a leak record You can view a leak record in the S531, and if you are not satisfied with the leakage data, you can delete the leak record and record again.

  • Page 20: Downloading Leak Records To A Pc

    11 Managing leak records 11.2 Downloading leak records to a PC The S531 enables you to download the leak records to a PC for further analysis. To download leak records to a PC, do the following: 1. Connect the S531 to a PC using the supplied USB cable.

  • Page 21: Maintenance

    Access Menu > Self Test, and perform self-test on a peripheral as needed. 12.2 Updating firmware When a new release of the device firmware is launched, the S531 enables you to update the firmware on your own. Preparation: Copy the new firmware to a Type-C USB disk.
  • Page 22 5. Click the Next > button on the top right corner to proceed. 6. Insert the prepared USB disk to the S531. 7. On the screen that appears, the folders stored in the USB disk are shown. Navigate to the firmware file and single click to select it.

  • Page 23: Resetting The Device

    Detailed steps are as follows: 1. Connect the S531 to a PC. 2. On the PC, back up the survey folder from the S531 to a local folder. 3. Delete the survey folder from the S531.

  • Page 24: Cleaning The Sensor

    Do not use isopropyl alcohol to clean the sensor and its accessories! 13 Optional accessories Ultrasonic tone generator is an optional accessory that is used in pressure-less systems. The generator emits ultrasonic waves that can be detected by S531. Specification Frequency: 40 kHz ± 10% • Automatically shut-down after •...

  • Page 25: Disposal Or Waste

    To protect your rights, please report any findings immediately and within the warranty time. If faults occur during the warranty time, SUTO will repair or replace the defective unit without charge for labour and material costs, but there is a charge for other service such as transport and packing costs.

  • Page 26: Appendix: Headset Overview

    - Flashing blue and red alternately: Power on & paring mode - Flashing red: Low battery. - Solid red: Charge in process. - Solid blue: Fully charged. - Flashing blue slowly: Paired Volume up button Power button: - To power on, press and hold on for five seconds. S531...

  • Page 27: Care And Maintenance

    • This device contains magnets. Keep magnetic field sensitive products such as credit cards and video screen away from this device to avoid damage. ATTENTION! The maximum charging voltage is 5V. Inappropriate charging may cause severe damage, fire or electrocution hazard. S531...
  • Page 28 SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Werkstr. 2 Room 10, 6/F, Block B, Cambridge Plaza 79426 Buggingen 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7631 936889-0 Tel: +852 2328 9782 Fax: +49 (0) 7631 936889-19...
