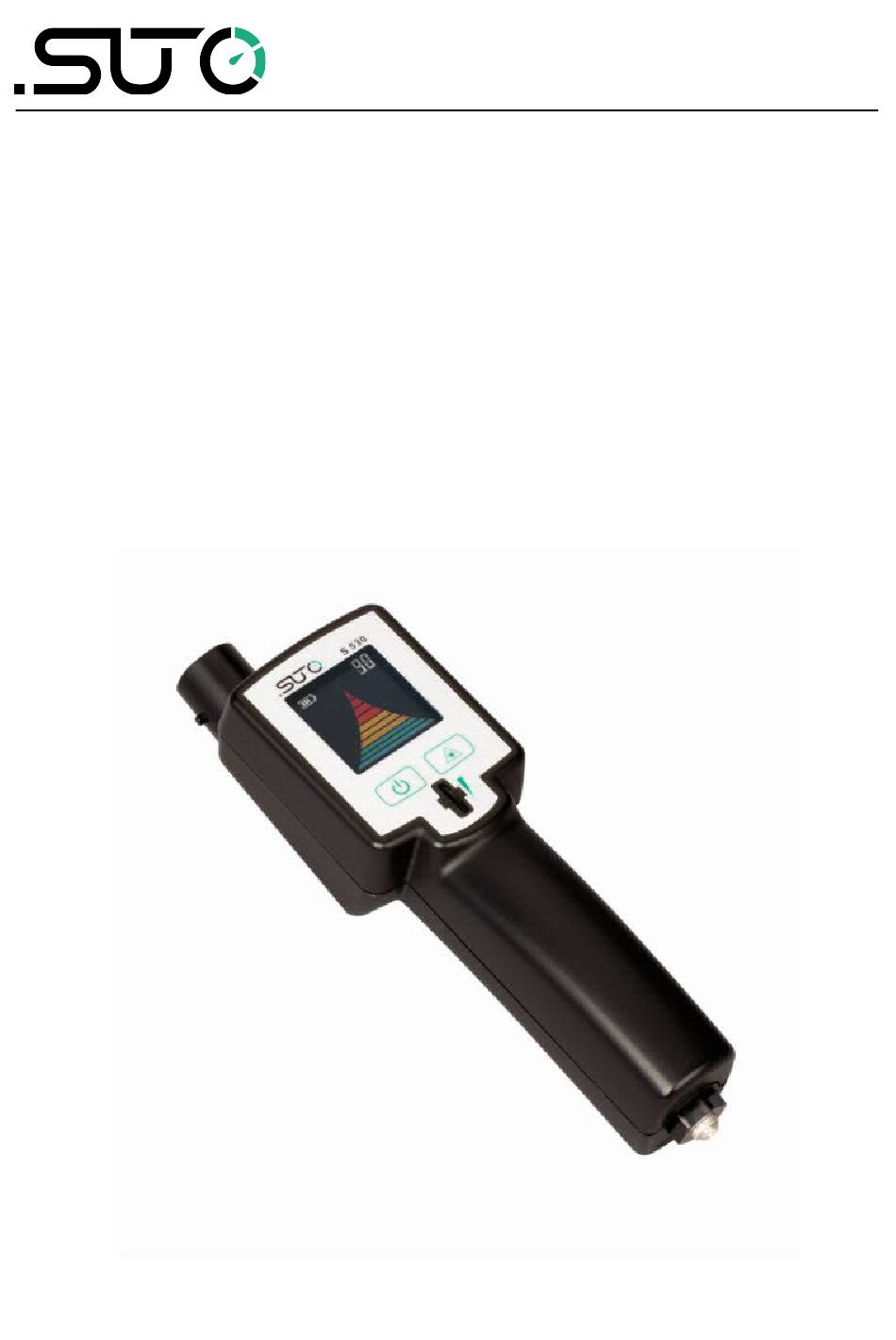

- Page 1 English Instruction and operation manual S 530 Leak detector for pneumatic systems...
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
4.1 General.................8 4.2 Electrical Data................8 4.3 Performance chart..............8 5. Dimensional drawing..............9 6. Operating.................10 6.1 Operating Principle..............11 6.2 Operating Procedure.............12 6.3 Electrical connection ............13 7. Optional extra accessories............14 7.1 Ultrasonic tone generator............14 8. Maintenance................15 9. Disposal or waste..............15 10. Warranty................15 S 530... -
Page 4: Safety Instructions
• Never point the laser at smooth and reflective surfaces. This can lead to a reflection of the laser. WARNING! Voltage used for supply! Any contact with energized parts of the product, may lead to a electrical shock which can lead to serious injuries or even death! S 530... - Page 5 • For transportation it is recommended to use the packaging which comes with the leak detector. • Please make sure that the storage temperature of the sensor is between -10°C ... 50°C. • Avoid direct UV and solar radiation during storage. S 530...
- Page 6 1. Safety instructions • For the storage the humidity has to be <90%, no condensation. S 530...
-
Page 7: Application
The integrated laser pointer helps to spot the leak from a distance. The S 530 leak detector is not developed to be used in explosive areas. For the use in explosive areas please contact the manufacturer. -
Page 8: Technical Data
4.2 Electrical data Power supply Internal NiMH rechargeable battery 4.3 Performance chart The table shows the detection distance of varicose hole diameters at different pressures (lab environment). Pressure / diameter 0.1 mm 0.2 mm 0.5 mm 0.5 bar 5.0 bar S 530... -
Page 9: Dimensional Drawing
5. Dimensional drawing 5. Dimensional drawing S 530... -
Page 10: Operating
6. Operating 6. Operating Please make sure that all components listed below are included in your package. Description Order No. S 530 leak detector P560 0102 Sensor unit S605 0001 Noise isolated head set A554 0102 Focus tube and focus tip A530 0101... -
Page 11: Operating Principle
That is why the leak detector operates at a centre frequency of 40 kHz which compromises an optimum between energy and distance. Frequencies below and above are cut in order to minimize the noise level. S 530... -
Page 12: Operating Procedure
6.2 Operating Procedure The following steps explain the procedure of an appropriate use. 1. Press the Power button. 2. The Display of the S 530 look like the picture on the left side. • The laser pointer is off. • the Display will show you: ◦... -
Page 13: Electrical Connection
6.3 Electrical connection Either the headphone or the charger can be connected to S 530 at a time. Remark If the instrument has not been used for more than 2 months, the battery might be over discharged. -
Page 14: Optional Extra Accessories
6LR61 9 V For example Leak test at a tank: If an US tone generator is inside of a tank the ultrasonic which is produced by the generator can flow through leaks and detected by the S 530. S 530... -
Page 15: Maintenance
10. Warranty SUTO provides a warranty for this product of 24 months covering the material and workmanship under the stated operating conditions from the date of delivery. Please report any findings immediately and within the warranty time. - Page 16 • If the serial number has been changed, damaged or removed. Other claims, especially those for damage occurring outside the instrument are not included unless responsibility is legally binding. Warranty repairs do not extend the period of warranty. ATTENTION! Batteries have a reduced warranty time of 12 month. S 530...
- Page 17 S 530...
- Page 18 S 530...
- Page 19 S 530...
- Page 20 SUTO iTEC GmbH SUTO iTEC (ASIA) Co., Ltd. Werkstr. 2 Room 10, 6/F, Block B, Cambridge Plaza 79426 Buggingen 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7631 936889-0 Tel: +852 2328 9782 Fax: +49 (0) 7631 936889-19...
