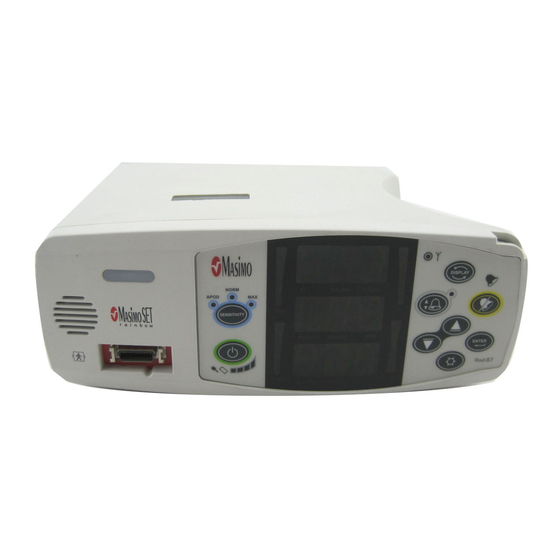

Masimo Rad-87 Operator's Manual

Pulse co-oximeter oxyhemoglobin, carboxyhemoglobin, methemoglobin, pulse rate parameters and perfusion index, pleth variability index measurements
Hide thumbs Also See for Rad-87:
Table of Contents

Advertisement

Quick Links

Download this manual

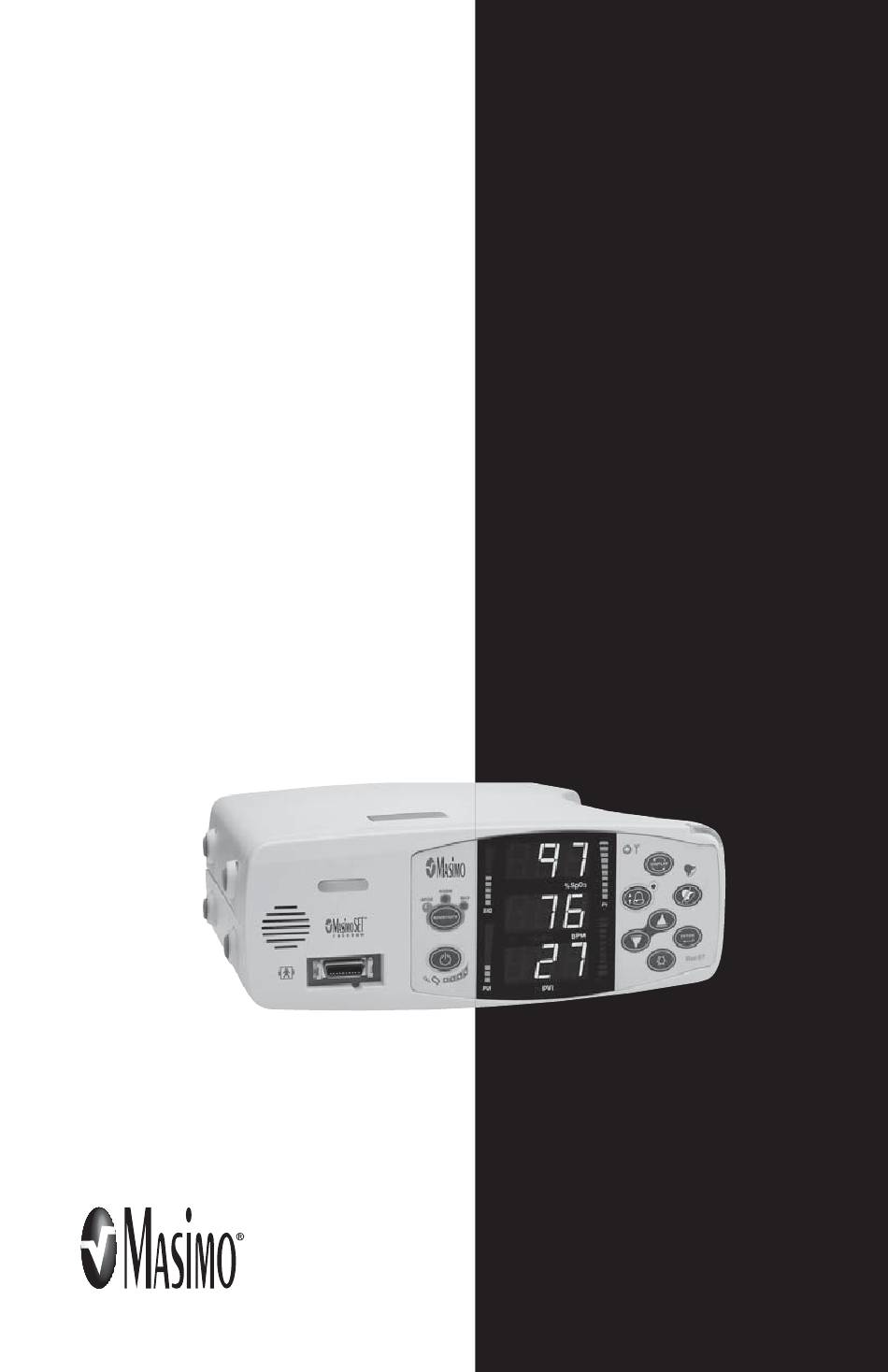

Rad-87
™
Pulse CO-Oximeter
O P E R AT O R ' S
M A N U A L
Oxyhemoglobin
Carboxyhemoglobin
Methemoglobin
Pulse Rate
parameters
and
Perfusion Index
Pleth Variability Index
measurements

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rad-87 and is the answer not in the manual?

Questions and answers

Related Manuals for Masimo Rad-87

Summary of Contents for Masimo Rad-87

  • Page 1 Rad-87 ™ Pulse CO-Oximeter O P E R AT O R ’ S M A N U A L Oxyhemoglobin Carboxyhemoglobin Methemoglobin Pulse Rate parameters Perfusion Index Pleth Variability Index measurements...
  • Page 2 Rad-87 ™ Pulse CO-Oximeter OPERATOR’S MANUAL...
  • Page 3 Rad-87 device. General knowledge of pulse CO-Oximetry and an understanding of the features and functions of the Rad-87 are a prerequisite for its proper use. Do not operate the Rad-87 without completely reading and understanding the instructions in this manual.
  • Page 4 ■ Do not place the Rad-87 or accessories in any position that might cause it to fall on the patient. Do not lift the Rad-87 by the power cord or any other cable. ■...
  • Page 5 Do not place the Rad-87 where the controls can be changed by the patient. ■ Do not place the Rad-87's face against a surface. This will cause the alarm to be muffl ed. ■ Do not place the Rad-87 on electrical equipment that may affect the Pulse CO-Oximeter, preventing it from working properly.
  • Page 6 Consult the manufacturer for help. ■ In order to connect wirelessly to a compatible interface system like Patient SafetyNet, the Rad-87 should be placed in an environment free from RF shielding, which could hinder wireless reception. ■ To minimize radio interference, other electrical equipment that emits RF transmis- sions should not be in close proximity to the RAD-87.

  • Page 7: Table Of Contents

    SpMet and SpCO Measurements During Patient Motion ....1-7 Masimo Rainbow SET Parallel Engines ....... . 1-8 ®...
  • Page 8 Patient SafetyNet Setup ......... . . 4-32 Rad-87 Pulse CO-Oximeter Operator’s Manual...
  • Page 9 Selecting a Masimo SET Sensor ........
  • Page 10 Masimo Rainbow Sensors ........

  • Page 11: About This Manual

    A b o u t T h i s M a n u a l This manual explains how to set up and use the Rad-87 Pulse CO-Oximeter containing Masimo Rainbow SET technology. Important safety information relating to general use of the Rad-87 appears before this introduction.

  • Page 12: Warnings, Cautions And Notes

    Sample of Caution: CAUTION: THIS IS A SAMPLE OF A CAUTION STATEMENT. A NOTE is provided when extra general information is applicable. Sample of Note: NOTE: This is a sample of a Note. Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 13: Product Description

    *Optional features: SpCO, SpMet, FEATURES These features are common to Rad-87 monitors: ■ Masimo SET is clinically proven to be the highest sensitivity and specifi city pulse oxime- ter technology in the world. ■ Rainbow technology continuously and noninvasively measures arterial oxygen satura- tion (SpO 2 ) and pulse rate (BPM), as well as providing a reliable probe-off detection.

  • Page 14: Indications For Use

    INDICATIONS FOR USE The Rad-87 Pulse CO-Oximeter and accessories are indicated for the continuous, noninvasive monitoring of functional oxygen saturation of arterial hemoglobin (SpO carboxyhemoglobin and methemoglobin concentration expressed in percentage (SpCO and SpMet) and pulse rate (measured by an SpO sensor).

  • Page 15: Principle Of Operation

    This information may be useful to clinicians. The maximum radiant power of the strongest light is rated at ≤ 25mW. The detector receives the light, converts it into an electronic signal and sends it to the Rad-87 for calculation. 1. Light Emitting Diodes (LEDs) ( 7+ wavelengths ) 2.

  • Page 16: Functional Saturation

    CO-Oximetry measurements may differ from the SpO 2 , SpCO, and SpMet measurements of the Rad-87 Pulse CO-Oximeter. In the case of SpO 2 , different results are usually obtained from the arterial blood gas sample if the calculated measurement...

  • Page 17: Spmet And Spco Measurements During Patient Motion

    When the Rad-87 is set to FastSat “On”, the averaging algorithm evaluates all the saturation values providing an averaged saturation value that is a better representation of the patient’s current oxygenation status.

  • Page 18: Masimo Rainbow Set Parallel Engines

    MASIMO RAINBOW SET PARALLEL ENGINES This fi gure is for conceptual purposes only. MASIMO SET DST Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 19: Introduction

    All user input is handled by control buttons on the front panel. The sensor cable connections are located on the left side of the front panel for the Rad-87 horizontal device and the bottom of the front panel for the Rad-87 vertical device.
  • Page 20 RAD-87 PULSE CO-OXIMETER - HORIZONTAL 9 10 11 DISPLAY DISPLAY NORM NORM NORM NORM NORM NORM APOD APOD APOD APOD APOD APOD SENSITIVITY...
  • Page 21 DESCRIPTION Off: No connection to Masimo Patient SafetyNet or other compatible interface system. Wireless Flashing Green: Rad-87 attempts to connect to Patient Indicator SafetyNet or other compatible interface system. Solid Green: Rad-87 is connected to the Patient SafetyNet or other compatible interface system.
  • Page 22 A low battery status is indicated by a low audible beep and the first battery bar to the left flashing green. AC Power The AC Power Indicator is illuminated when the Rad-87 Indicator is connected to AC power and during battery charging.
  • Page 23 RAD-87 PULSE CO-OXIMETER - VERTICAL 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8...
  • Page 24 Nurse Call Connector must be IEC-60950 compliant. Use the Serial Output Connector to connect a serial device, including a serial printer, RadNet Interface Module, Patient SafetyNet or PC, to the Rad-87. SERIAL OUTPUT See Section 7, Output Interface Specifications. All CONNECTOR external device connections to the Serial Output Connector must be IEC-60950 compliant.

  • Page 25: Symbols

    SYMBOLS The following symbols are found on the Rad-87 or packaging and are defined below: RS-232 Equipotential Ground Terminal Consult accompanying documents Nurse Call Interface...

  • Page 26: Lcd Display

    The LCD Display shows radio communication information when radio communication is active (wireless radio model only). It also shows system information. All Rad-87 models are equipped with a LCD display which is located on the top panel of a horizontal model, or on the left side panel of a vertical model.

  • Page 27: Introduction

    Verify the AC power voltage and frequency before use. Verify that the power source can provide adequate power rating as indicated on the rear panel of the Rad-87. The Rad-87 is designed to operate on 100 to 240VAC, 47-83 Hz. The device is rated at 15 VA max.

  • Page 28: Initial Battery Charging

    4 hours of battery life. INITIAL INSTALLATION Place the Rad-87 on a stable hard flat surface near the patient. Always place the Rad- on a dry surface. Maintain a minimum of 1 inch (2.54 cm) free space around the device.

  • Page 29: Introduction

    Refer to the Directions for Use of the sensor before attaching the sensor to the patient. Attach the sensor to the Patient. With a Masimo Pulse CO-Oximetry sensor, connect the sensor to the patient cable with the logos lining up; make sure it is a firm connec- tion.
  • Page 30 The display shows "NO SEN" message. NOTE: "NO SEN" or "SEN OFF" conditions will only generate a high priority alarm if the Rad-87 is actively monitoring a patient when the sensor or cable is discon- nected. Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 31: Default Settings

    17. After monitoring is complete, remove the sensor from the patient and store or dispose of the sensor according to local laws. See the Directions for Use of the sensor. 18. Press and hold the Power Button for 2 seconds to turn the Rad-87 off [3 seconds in the Home Mode]. DEFAULT SETTINGS The Rad-87 Pulse CO-Oximeter stores two types of default values that the device auto- matically retains after a power cycle.

  • Page 32: Factory Default And User Configurable Settings

    NOTE: Defaults to Off after a power cycle. Light blue (Default), purple, dark purple, Device Profile settings Light blue teal, pink or light pink English (Default) French, German, LCD Language English Italian, Spanish, Swedish, Dutch, Danish, Portuguese PVI Bar On/Off Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 33: Successful Monitoring

    MASIMO PULSE CO-OXIMETRY SENSORS Before use, carefully read the Masimo sensor Directions for Use. Use only Masimo sensors for pulse oximetry or pulse CO-Oximetry measurements. Tissue damage can be caused by incorrect application or use of a sensor, for example by wrapping the sensor too tightly.

  • Page 34: Numeric Display - Pulse Rate

    NUMERIC DISPLAY - PULSE RATE The Pulse Rate displayed on the Rad-87 Pulse CO-Oximeter may differ slightly from the heart rate displayed on ECG monitors due to differences in averaging times. There may also be a discrepancy between cardiac electrical activity and peripheral arterial pulsation.

  • Page 35: Pleth Variability Index - (Pvi)

    SpO 2 values are not based on adequate signal quality. The signal quality indicator displayed on the Rad-87 is called the Signal IQ. The Signal IQ can be used to identify the occurrence of a patient’s pulse and the associated signal quality of the measurement.

  • Page 36: Sensor Placement

    PULSE CO-OXIMETER FOR PROPER FUNCTIONING. SENSITIVITY The Rad-87 Pulse CO-Oximeter is equipped with 3 different sensitivity modes. Each mode allows the clinician to change the sensitivity settings of the device to meet the increased demands of the patient’s physiological condition or enable it to work during periods of low perfusion and/or motion.

  • Page 37: Low Battery Audible Alarm

    When a low battery condition occurs, immediately discontinue patient monitoring and plug the Rad- into AC power. The AC Power Indicator on the Rad-87 illuminates and remains illuminated while the battery is charging, however, the Battery Charge Level Indicator does not illuminate. Once the battery is fully charged all Battery Charge Level Indicators illuminate green when unplugged.

  • Page 38: Normal Patient Monitoring

    2 when the Display Button is pressed; Screen 3 will not show. By pressing the Display Button again, the display will move from Screen 2 to Screen 1. Display Screens When SpMet, SpCO and PVI Are Not Installed No Screen Screen Screen Home display 4-10 4-10 Rad-87 Pulse CO-Oximeter Operator’s Manual...
  • Page 39 Display Screens With PVI Installed and SpMet and SpCO Not Installed No Screen Screen Screen Home display screen Display Screens When SpMet, SpCO and PVI are Not Installed 1.60 %SpCO Screen Screen Screen Home display screen Rad-87 Pulse CO-Oximeter Operator’s Manual 4-11 4-11...

  • Page 40: Parameter/Measurement Selection

    Screen 3, Screen 3 will not show. The display screens only move between Screen 1 and Screen 2. Display Screens Showing PVI on Screen 1, 2 and 3 1.60 %SpCO Screen Screen Screen Home display screen 4-12 Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 41: Setup Menu

    SETUP MENU This section gives an overview of the Rad-87 menu selections available. To access the menu levels and navigate through the menu selections, use the front panel buttons, Enter Button and Up/Down Buttons as indicated in the following sections. Sub-sections describe each menu item in more detail.
  • Page 42 Press 5x press the Display Button to PVI LO exit at any time and return to Screen 1. Press 6x PVI HI NOTE: User default settings can be changed for specific patient environments. 4-14 4-14 Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 43: Setup Menu Level 1

    Button will return the device to Screen 2. press the Display Button to exit at any time and return to Screen 2. NOTE: User default settings can be changed for specific patient environments. Rad-87 Pulse CO-Oximeter Operator’s Manual 4-15 4-15...

  • Page 44: Led Brightness

    Enter options. Button to accept the Press 3x setting and return Level 4 to the home display screen. Press 4x Level 1 NOTE: User default settings can be changed for specific patient environments. 4-16 Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 45: Sensitivity

    Press 2x between menu options. options and the NORM Enter Button to accept the set- ting and return to Press 3x the home display screen. (The MAX Indicator flashes in this mode.) Rad-87 Pulse CO-Oximeter Operator’s Manual 4-17...

  • Page 46: Alarm Volume

    90 seconds move to the next menu screen. next menu. press the Display Button to exit 60 seconds without saving the new setting and to return to the home display screen. 30 seconds 4-18 4-18 Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 47: Alarm Delay

    10 seconds CLEAR TREND The Rad-87 only stores data in the trend memory while the device is turned on. Trend data saves to the memory until the memory is full or cleared by the user. NOTE: It is recommended that you clear the trend prior to performing a new patient data collection procedure.

  • Page 48: Button Volume

    When the Rad-87 is set to FastSat “On”, the averaging algorithm evaluates all the saturation values providing an averaged saturation value that is a better representation of the patient’s current oxygenation status.

  • Page 49: Trend Setup And Use

    (Additional parameters/measurements may affect trending capacity). The trend data can then be transferred to a PC for evaluation. A serial cable is required to connect the Rad-87 to a PC. Patient monitoring is not possible while trend memory is being transferred to a PC.

  • Page 50: Trend Data Format

    200 = reserved 400 = Low Signal IQ 800 = Masimo SET. This flag means the algorithm is running in full SET mode. It requires a SET sensor and needs to acquire some clean data for this flag to be set SAMPLE TREND OUTPUT 07/21/08 09:56:08 SpO2=000 PR=000 PI=00.00 EXC=820:OffPat,SET...
  • Page 51 14 seconds press the Display Button to exit without saving the new setting and to return to the home display screen. 12 seconds 10 seconds (The cycling function for the menu options is not available.) Rad-87 Pulse CO-Oximeter Operator’s Manual 4-23...

  • Page 52: Setup Menu Level 3

    When Alarm On/Off is set to "Off rE", the audible alarm "beeps" twice every two minutes to remind the user that the Rad-87 is currently in alarm status but the audible alarm is muted. Visual alarms are active in this mode. If an alarm limit is violated, the associated...

  • Page 53: Factory Default

    *Set the Factory Default to this setting when confi guring a Device Profi le and selecting a color for the Device Profi le LED. Refer to the Device Profi le Setup and Use section of this chapter for additional information and instructions. Rad-87 Pulse CO-Oximeter Operator’s Manual 4-25...

  • Page 54: Device Profile Setup And Use

    Device Profile has been set on the Rad-87. If changes are made to the device settings after the Device Profile feature has been enabled, the Device Profile LED will turn off, indicating a change from the Device Profile settings.

  • Page 55: Pvi Bar On/Off

    Enter Button to accept the menu. setting and move to the next menu. press the Display Button to exit without saving the new setting and to return to (Smart Tone) the home display screen. Rad-87 Pulse CO-Oximeter Operator’s Manual 4-27...

  • Page 56: Year

    Use Up or press the Display Button to exit without Down Button saving the new setting and to return to to adjust the the home display screen. setting. 4-28 Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 57: Day

    Use Up or press the Display Button to exit Down Button without saving the new setting and to to adjust the return to the home display screen. setting. Rad-87 Pulse CO-Oximeter Operator’s Manual 4-29...

  • Page 58: Minute

    SOFTWARE VERSION BUTTONS SETTING Press the Enter Button again to move to the next menu Displays software version 4-30 Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 59: Serial Output

    When Rad-87 is interfaced to another system and the Interface Alarms are set to "Off", SpO 2 and BPM audible alarms are muted at the Rad-87 and active at the interfaced system. This prevents both systems from producing SpO 2 and BPM audible alarms at the same time.

  • Page 60: System Interfaces

    Philips/Agilent monitor. Please see the Philips/Agilent Operator’s manual for complete instructions. The Rad-87 Pulse CO-Oximeter can be set up to audibly indicate all patient alarms while communicating with the Philips/ VueLink module. Use the Interface Alarms setting in the Output menu to enable and disable audible alarms on the Rad-87.

  • Page 61: Nurse Call

    Inverse press the Display Button to exit without saving the new setting and to return to the home display screen. *Refer to Section 7, Nurse call specifi cations for additional information. Rad-87 Pulse CO-Oximeter Operator’s Manual 4-33...

  • Page 62: Line Frequency

    Enter Button to accept the the next menu setting and move to the next menu option. option. press the Display Button to exit without saving the new setting and to return to the home display screen. 4-34 Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 63: Parameter/Measurement Select - Screen 1

    (no parameter/ measurement press the Display Button to exit displayed) without saving the new setting and to return to the home display screen. Rad-87 Pulse CO-Oximeter Operator’s Manual 4-35...

  • Page 64: Lcd Language

    Scrolls through available press the Display Button to exit languages without saving the new setting and to displayed on return to the home display screen. the LCD 4-36 Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 65: Set Mode

    Enter Button to accept the seconds. Sleep Mode setting. press the Display Button to exit Home Mode without saving the new setting and to return to the home display screen. *CAUTION: ALARMS ARE DISABLED IN THIS MODE. Rad-87 Pulse CO-Oximeter Operator’s Manual 4-37...

  • Page 66: Home Mode Operation

    SLEEP MODE OPERATION The Rad-87 can be placed into the Sleep Mode to allow the device to capture normal and abnormal patient data without triggering the alarms. This mode will blank out the LED and the LCD Displays with the exception of the AC Power Indicator, the System Status Light, and the Battery Level Indicator and disables the alarms even after a power cycle.

  • Page 67: Enable/Disable Radio

    When the Radio feature is enabled (set to "On") and configured with the required network information, the LCD Display shows the following information for 20 seconds: ■ SSID ■ IP address ■ Subnet ■ Gateway ■ MAC Address Rad-87 Pulse CO-Oximeter Operator’s Manual 4-39...

  • Page 69: Alarm Identification

    A l a r m i d e n t i f i c a t i o n The Rad-87 visually and audibly indicates alarm conditions that the system detects. Audible alarms may be silenced, without affecting the operation of visual alarms.

  • Page 70: Alarm Indication

    “NO SEN” message will show on the display. NOTE: An audible alarm will accompany the visual indicators unless the Rad-87 has been set to Interface Alarms "Off" (only SpO 2 and BPM alarms muted) or to Sleep Mode (all alarms muted).
  • Page 71 NOTE: If there is a loss of power for any length of time, the Alarm settings will be set back to the User set defaults. If the user has not utilized this option, then all parameters/measurements will be set back to the factory defaults. Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 72: Multi-Parameter/Measurement Alarms

    When Screen 2 contains the compet- ing parameter/measurement alarms, Screen 2 will take priority and show on the display. Screen 3 has the lowest priority. Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 73: Alarm Silence

    Audible alarms may be silenced, while visual alarms remain active. The alarm silence function is controlled by pressing the Alarm Silence Button. The Alarm Bell and the System Status Light provide visual feedback when the Rad-87 audible alarms are silenced.

  • Page 74: System Status Light

    ALARM MUTE When the Rad-87 is set to Interface Alarms "Off" (muting the SpO 2 and BPM audible alarms at the device) and SpO 2 or BPM alarms occur, the Alarm Bell flashes red and the System Status Light is solid yellow for low priority alarms, flashes yellow for medium priority alarms or flashes red for high priority alarms.

  • Page 75: Messages

    M e s s a g e s The Rad-87 Pulse CO-Oximeter will indicate other data or system errors. Message condi- tions for the Rad-87 follow:...
  • Page 76 2. Verify proper sensor placement. SINGLE BATTERY Connect device to AC Power to charge LEVEL INDICATOR Battery level too low FLASHES (WITH the battery. AUDIBLE ALARM) No Cable Connected Connect appropriate cable to unit. Defective cable Replace cable Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 77: Troubleshooting

    T r o u b l e s h o o t i n g The following chart describes what to do if the Rad-87 system does not operate properly or fails.
  • Page 78 SpO 2 , SpCO, OR parison. SpMet READING Inappropriate sensor size Verify proper sensor for patient size. or sensor measurement Verify proper sensor site. location. * Elevated methemoglobin levels may cause falsely elevated carboxyhemoglobin values. Rad-87 Pulse CO-Oximeter Operator’s Manual...
  • Page 79 CO-Oximetry test. READING Connect the AC Power Cord to the Low battery/ not plugged Rad-87 and to an AC outlet. Make into AC power supply. sure that the AC Power Indicator light is on. Verify/set 50/60hz menu setting.

  • Page 81: Rad-87 Specifications

    100 - 240 VAC, 47-83 Hz Power consumption: 15 VA max. Batteries Type: Sealed lead acid up to 4 hours 6 Capacity (battery life): Charging time: 8 hours * Only Rainbow sensors provide ± 2% for neonates Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 82: Environmental

    Device Profile LED Light blue LED (Default) Type: Display update rate: 1 second Output Interface Serial RS-232 Wireless Radio (if installed) 802.11 a/b/g Nurse Call Philips VueLink, RadNet, Patient SafetyNet Rad-87 Pulse CO-Oximeter Operator’s Manual...
  • Page 83 Plus or minus one standard deviation encompasses 68% of the population. 5 Masimo sensors have been validated for pulse rate accuracy for the range of 25-240 bpm in bench top testing against a Biotek Index 2 simulator.

  • Page 84: Serial Interface Specifications

    Output menu. To interface with the Rad-87 and receive serial text data, simply connect a serial interface cable with a serial output connector located on the back of the Rad-87.

  • Page 85: Serial Printer Setup

    NURSE CALL The nurse call feature on the Rad-87 Pulse CO-Oximeter is based on the relay closing or opening depending on alarm, Low Signal IQ events or both. In addition the nurse call polarity can be inverted to accommodate various nurse call stations requirements.
  • Page 86 Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 87: Introduction

    & p a t i e n t c a b l e s I n t r o d u c t i o n This section covers the use and cleaning of Masimo sensors and patient cables. Before use of any sensor, carefully read the sensor’s Directions for Use. Use only Masimo sensors and cables with the Rad-87 Pulse CO-Oximeter.

  • Page 88: Masimo Rainbow Sensors

    M a s i m o R a i n b o w S e n s o r s Masimo Rainbow sensors must be used for the Rad-87 Pulse CO-Oximeter parameters to enable measurement of oxyhemoglobin (SpO 2 ), carboxyhemoglobin (SpCO), and meth- emoglobin (SpMet).

  • Page 89: Masimo Spo 2 Sensors

    Select the appropriate patient cable to attach the LNOP or LNCS sensor to the device. RED REUSABLE SENSORS Masimo Red sensors can be used with the Rad-87 to enable measurement of SpO pulse rate only. Red sensors will only function with oximeter devices equipped with Masimo Rainbow SET technology.

  • Page 90: Lnop ® Adhesive Sensors

    ± 3 bpm ± 4% 70 - 100% ± LNOP Blue 2.5 - 30 kg ± 3 bpm ± 3% ± 3 bpm 3.3% 80 - 100% ± 3 bpm ± 3% ± 3 bpm ± 3% Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 91: Lncs ® Reusable Sensors

    ± 3% ± 3% ± 3 bpm ± 5 bpm ± 3% ± 3 bpm Neonatal LNCS Trauma > 30 kg ± 2% ± 3% ± 3 bpm ± 5 bpm ± 2% ± 3 bpm Rad-87 Pulse CO-Oximeter Operator’s Manual...

  • Page 92: Sensor Accuracy

    Complete accuracy specifications are located in the sensor Directions For Use (DFU) and are specific for the type of Masimo sensor used. CLEANING AND REUSE OF MASIMO REUSABLE SENSORS AND CABLES Reusable sensors and patient cables can be cleaned per the following procedure: Remove the sensor from the patient.

  • Page 93: Introduction

    C l e a n i n g The outer surface of the Rad-87 Pulse CO-Oximeter can be cleaned with a soft cloth dampened with a mild detergent and warm water solution. Do not allow liquids to enter the interior of the instrument. The outer surface of the instrument can also be wiped down using the following solvents: Cidex Plus (3.4% Glutaraldehyde), 10% Bleach, and 70%...
  • Page 94 To test the performance of the Rad-87 after repairs or during routine maintenance, follow the procedure outlined in this section. If the Rad-87 fails any of the described tests, discon- tinue its use and correct the problem before returning the device back to the user.
  • Page 95 TESTING THE RAD-87 WITH MASIMO SET TESTER (OPTIONAL) Turn the Rad-87 off and then on again. Connect the Masimo SET Tester to the Pulse CO-Oximeter Patient Cable Connector. Verify that within 20 seconds all available pulse bars display. Verify that the SpO measurement is between 79% and 84%.

  • Page 96: Service And Repair

    Section 9, Cleaning. Make sure the equipment is fully dry before packing. To return the Rad-87 Pulse CO-Oximeter for service, please follow the Return Procedure. RETURN PROCEDURE Please clean contaminated/dirty equipment before returning and make sure it is fully dry before packing the equipment.

  • Page 97: Sales And End-User License Agreement

    MASIMO FOR A FULL REFUND. Warranty Masimo warrants to the initial Purchaser for a period of one (1) year from the date of pur- chase that: (i) each new Product and the Software media as delivered are free from defects in workmanship or materials, and (ii) the Product and Software will perform substantially as labeled in the directions for use.

  • Page 98: End-User License

    Ownership of Software: The Software is licensed not sold; all rights and interests in the Software and all copies thereof remain at all times vested in Masimo, and do not pass to Purchaser. Any references in this Agreement to the purchase or sale of the Software shall be deemed the purchase or sale of a Software License as set forth herein.
  • Page 99 License, in whole or in part, by operation of law or otherwise without Masimo's prior written consent; except that the Software and all of Purchaser’s rights hereunder shall transfer automatically to any party that legally acquires title to the Product with which this Software is included.

  • Page 100: Part Numbers

    Rad-87 Operator's Manual, Dutch 32776 Rad-87 Operator's Manual, Portuguese 32777 Rad-87 Operator's Manual, Danish 32778 Rad-87 Operator's Manual, Swedish 32779 Rad-87 Operator's Manual, Chinese Please visit our website, www.masimo.com, for updated information about Masimo products. Rad-87 Pulse CO-Oximeter Operator’s Manual 10-1 10-1...
  • Page 101 Masimo Corporation. Rainbow and SpCO are federally registered trademarks of Masimo Laboratories. Rad-87, Pleth Variability Index, PVI, Patient SafetyNet, RadNet, LNOPv, and APOD are trademarks of Masimo Corporation. Rainbow SET, SpMet, Pulse CO-Oximeter and Signal Extraction Pulse CO-Oximeter are...
