Summary of Contents for Vax RAPID POWER 2

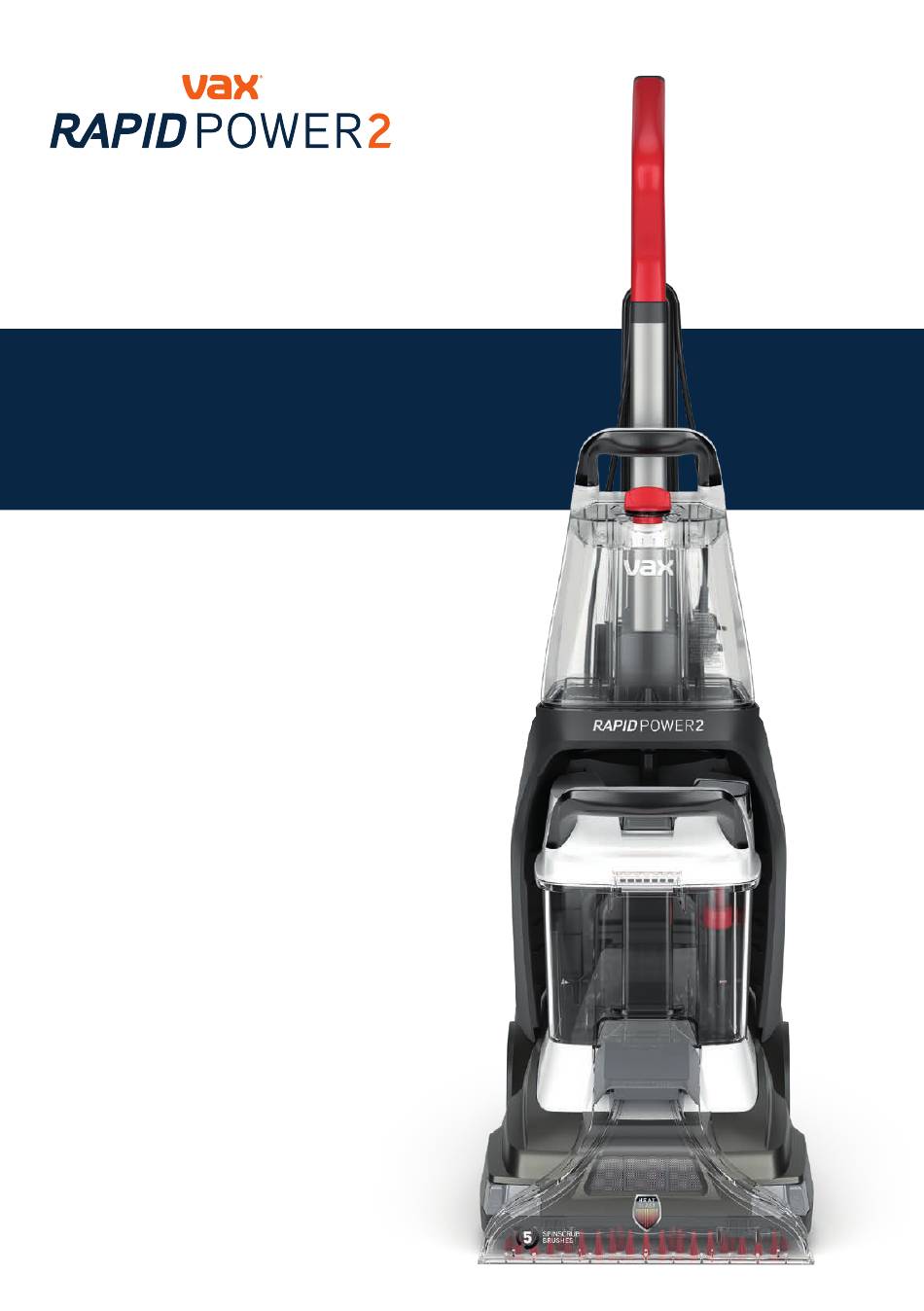

- Page 1 DEEP CLEANING RESULTS WITH 5 SPINSCRUB BRUSHES LET’S GET STARTED. CDCW-RPXL CDCW-RPXLR...
-
Page 2: Safety Guide
Children shall not use, clean or play with this appliance, which when not in use should be secured out of their reach. • Only VAX recommended tools and solution should be used with this machine. Using other solutions may invalidate the guarantee. - Page 3 • Don’t attempt to remove blockages with sharp objects as this may cause damage to the machine. Remove blockages only as instructed in this guide. • Don’t use the machine with incorrect voltage as this may result in damage or injury to the user.
-
Page 4: Warranty & Technical
WARRANTY & TECHNICAL WARRANTY If a VAX machine is used in the way it is intended and it breaks down within the guarantee period, it’s our responsibility to repair or replace it. Here’s what isn’t covered: • Functional parts, tools and accessories after 12 months that may suffer premature failure due to every day wear and tear. -
Page 5: Table Of Contents
Standard tools included with your machine All standard tools, plus SpinScrub Crevice Tool Upholstery 2.5m Hose hand tool wash tool Rapid Power 2 Reach All standard tools, plus Accessory Bag x1 250ml Nozzle cleaning tool Platinum Antibacterial 3.5m Hose Pet tool... -
Page 6: Getting In Touch
Maintaining your carpets will ensure they keep their appearance for longer and smell fresh and clean. You’ve chosen carpets for your home for a reason and VAX will help you take good care of them. -

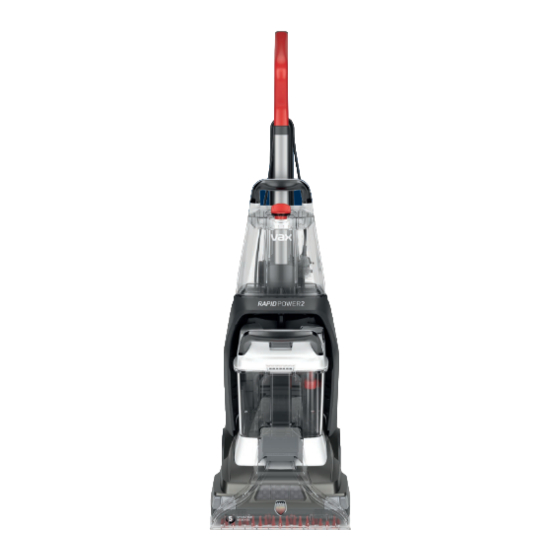

Page 7: Getting To Know Your Machine
Solution tank Cord hook Quick/Deep clean mode dial Carry handle On/Off pedal Recline handle release pedal TECHNICAL SPECIFICATION Name VAX Rapid Power 2 VAX Rapid Power 2 Reach Code CDCW-RPXL CDCW-RPXLR Cord length 8m Weight 8.94kg 9.08kg Wattage: See rating label on machine for details. -
Page 8: Getting Started
• Only use VAX carpet solution. Using other solutions may cause excess foaming and will invalidate the guarantee. • For heavily soiled areas, it may be necessary to repeat the cleaning process. Make criss-crossing strokes across the original pattern and overlap with each pass. -
Page 9: Using Your Machine
Twist the solution tank cap Fill the solution tank with the Twist the solution tank cap and lift to remove. anti clockwise and remove. Vax carpet cleaning solution. clockwise until tight. To replace, slide and push the solution tank firmly into the machine. - Page 10 USING YOUR MACHINE Operation CAUTION: The brushbars constantly spin when switched on and the machine is reclined. Never use on one spot for an extended period of time as the brushbars may damage the floor surface. IMPORTANT: Carpets should be dry vacuumed thoroughly before washing. For heavily soiled areas, it may be necessary to repeat the cleaning process.
- Page 11 USING YOUR MACHINE Rinsing the carpet IMPORTANT: Optional step. To extract any remaining solution from your carpet, rinse your carpets with water only. Do not over saturate your carpet. 40°C To rinse, pull up the Pull and lift to remove the Twist the clean water Fill the clean water tank solution tank and lift to...
- Page 12 USING YOUR MACHINE Using the hose and tools IMPORTANT: The machine should be in the upright position when using the hose and tools; this will de-activate the brushes. Do not over saturate the carpet/surface. Always finish with dry strokes (trigger released) and continue using dry strokes (trigger released) until little water is visibly passing through the tool/nozzle.
- Page 13 USING YOUR MACHINE Removing the hose and tools To remove the SpinScrub tool or To remove the Pet tool or Upholstery tool, Crevice tool, lift the clear plastic clip up press the button on the top of the tool and over the button on the end of the hose.
-
Page 14: Maintenance & Cleaning
MAINTENANCE & CLEANING CAUTION: Always switch off and unplug the machine before performing any maintenance/troubleshooting checks. The dirty water tank is fitted with a float. When the dirty water tank is full or the floorhead is not in contact with the carpet, the float will activate by shutting off the suction on the machine. - Page 15 MAINTENANCE & CLEANING Removing and cleaning the nozzle IMPORTANT: Carpets should be dry vacuumed thoroughly before washing. This will prevent excessive build up of dirt/debris in the nozzle. If the nozzle is fitted incorrectly, this will cause poor dirty water pick up. 40°C Remove both tanks and tilt Pull to release the nozzle...
- Page 16 MAINTENANCE & CLEANING Removing and cleaning the brushes 40°C Remove both tanks and tilt Push the two brushbar Pull the brushbar to Clear of any debris/threads the machine back. release buttons backwards remove. or hair and rinse under to unlock the brushbar. water to remove debris.
-
Page 17: Accessories
ACCESSORIES Don’t forget your solution! Order at: www.vax.co.uk/spares-and-solutions Platinum Antibacterial (1.5l) 1-9-142404 Platinum Antibacterial (4l) 1-9-142405 Platinum Antibacterial Carpet Cleaning Solution deep cleans carpets, removes stubborn stains and kills 99.99% of bacteria. Safe to use on wool carpets - Woolsafe approved. -
Page 18: What To Do If It Goes Wrong
WHAT TO DO IF IT GOES WRONG IMPORTANT: Always unplug the machine before performing any maintenance/troubleshooting checks. There is an accessory missing • Check the contents on the box to make sure the part is definitely included with your machine. Why won't the machine turn on? •... - Page 20 GET IN TOUCH info@vax.co.uk vax.co.uk...
