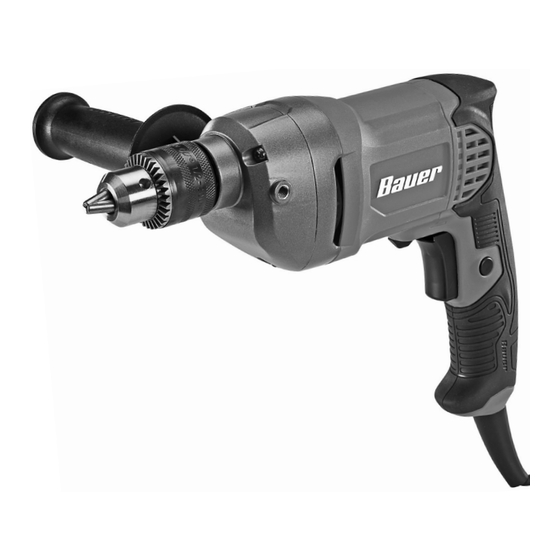

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and
the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
22j
Advertisement
Related Manuals for Bauer 2391E-B
Summary of Contents for Bauer 2391E-B
- Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
-
Page 2: Table Of Contents
table of contents Safety ................2 Operation ..............8 Specifications ............7 Maintenance .............10 Setup .................7 Warranty ..............12 WarninG SyMBOLS anD DEFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. -
Page 3: Safety
2. Electrical safety f. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing a. power tool plugs must match the outlet. and gloves away from moving parts. never modify the plug in any way. Do not use Loose clothes, jewelry or long hair any adapter plugs with earthed (grounded) can be caught in moving parts. - Page 4 4. power tool use and care 6. Safety instructions for all operations a. Do not force the power tool. use the correct a. use the auxiliary handle(s). Loss of power tool for your application. The correct control can cause personal injury. power tool will do the job better and safer b.
- Page 5 b. Do not smoke during use. Nicotine reduces e. Include vibration-free periods each day of work. the blood supply to the hands and fingers, f. Grip tool as lightly as possible (while still keeping increasing the risk of vibration-related injury. safe control of it).
- Page 6 Extension cords 1. Grounded tools require a three wire extension cord. 7. Make sure the extension cord is properly wired Double Insulated tools can use either and in good electrical condition. Always replace a two or three wire extension cord. a damaged extension cord or have it repaired by a qualified electrician before using it.
-
Page 7: Specifications
Specifications Electrical Rating 120 V AC / 60 H z / 6.3 A No Load Speed : 0 - 1200 / m in Chuck Size 1/16″–1/2″ (1.5 – 13 m m) Wood Capacity 1″ (25 m m) Steel Capacity 1/2″... -
Page 8: Operation
Operating instructions read the EntirE iMpOrtant SaFEty inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Setting and testing tO prEVEnt SEriOuS inJury FrOM acciDEntaL OpEratiOn: Make sure that the trigger is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section. - Page 9 General instructions for use 1. Make sure that the Trigger is in the 6. To prevent drill bit from binding after bit cuts through off-position, then plug in the tool. workpiece, remove it while Drill is still running. Release Trigger, or press and release Trigger if 2.
-
Page 10: Maintenance
Maintenance and Servicing instructions procedures not specifically explained in this manual must be performed only by a qualified technician. tO prEVEnt SEriOuS inJury FrOM acciDEntaL OpEratiOn: Make sure that the trigger is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section. - Page 11 troubleshooting problem possible causes Likely Solutions Tool will not start. 1. Cord not connected. 1. Check that cord is plugged in. 2. No power at outlet. 2. Check power at outlet. If outlet is unpowered, turn off tool and check circuit breaker. If breaker is tripped, make sure circuit is right capacity for tool and circuit has no other loads.
-
Page 12: Warranty
Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
