Basic Components - Krendl 5200-3E Owner's Manual

This is a view of the basic components of your Model #5200-3E machine. It shows the location of
each item and gives the function of each. Use this as a guide throughout the manual.

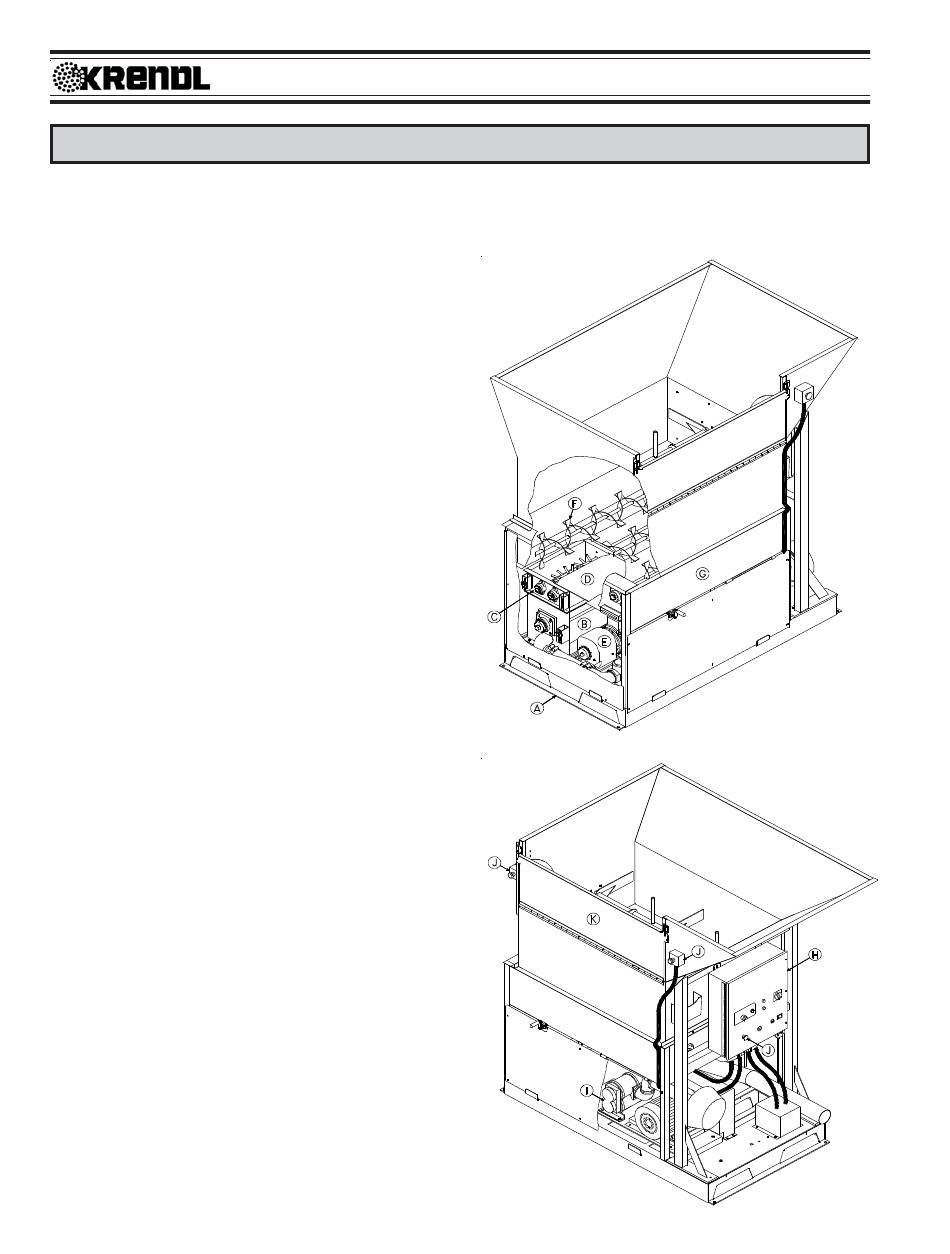

(Illustration 1)
A) Base Unit - Lower frame unit supporting blower
box, speed reducer, motor, airlock and hopper.
B) Airlock - Traps air and insulation while providing
a metered flow.
C) Shredder System - Increases production and
coverage on all insulation products while reduc-
ing clumps that may exist in various insulations.
D) Slidegate - Meters the amount of insulation
dropping into the airlock by controlling size of
airlock opening.
E) Speed Reducer - Increases output power while
decreasing speed of agitator/airlock drive motor.
F) Agitator - Conditions insulation in the hopper.
G) Hopper - Upper unit of machine holding insulation.
(Illustration 2)
H) Main Control Panel - Connects with main
power, allowing operation of unit at machine or
Remote Cord.
I) Blower - Provides the air necessary to move
insulation from the airlock.
J) Kill Switch - Safety device for immediate stop-
ping of machine.
K) Hopper Extension - Increases overall hopper
capacity.
