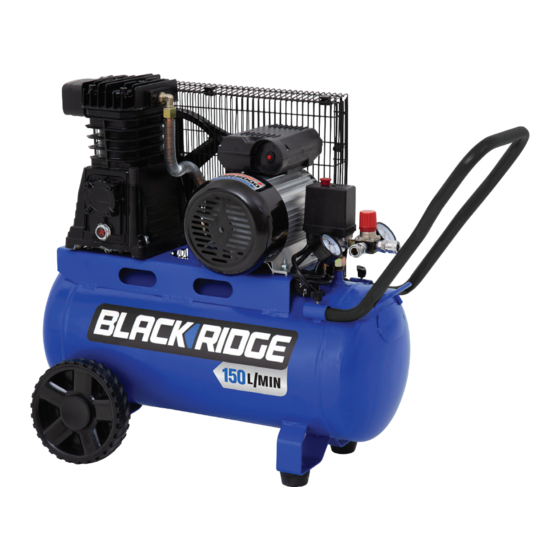

INSTRUCTION MANUAL
2.5HP Belt-drive motor
40 Litre tank size
Includes Nitto style fitting
Perfect for most medium duty air tools
40
L
TANK CAPACITY
115
PSI
8 BAR PRESSURE
All manuals and user guides at all-guides.com
150
L/MIN
FREE AIR DELIVERY
12
MTH
WARRANTY
2.5HP AIR
COMPRESSOR
BELT-DRIVE
MODEL NO. BR5000 - PLU: 590973

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BR5000 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Ridge BR5000

Summary of Contents for Black Ridge BR5000

  • Page 1 All manuals and user guides at all-guides.com INSTRUCTION MANUAL 2.5HP AIR COMPRESSOR BELT-DRIVE MODEL NO. BR5000 - PLU: 590973 2.5HP Belt-drive motor 40 Litre tank size Includes Nitto style fitting Perfect for most medium duty air tools L/MIN TANK CAPACITY...

  • Page 2: Technical Information

    However, in the unlikely event that you should experience a problem, or if you require any assistance please do not hesitate VOLTAGE to contact us on the number below: MODEL NO. BR5000 240V AC ~ 50 Hz If you have a problem, call customer service on the number below.

  • Page 3: Pre Setup Checks

    All manuals and user guides at all-guides.com Operating Instructions 1. PRE SETUP CHECKS Before using air compressor it should be carefully checked to determine that it will Handle PIC. 3 PIC. 3 PIC. 3 PIC. 4 PIC. 4 PIC. 4 WARNING! ENSURE operate properly and perform its intended function.

  • Page 4: You're In Control

    All manuals and user guides at all-guides.com 3. YOU’RE IN CONTROL To turn your air compressor ON Positioning your new air compressor PIC. 8 PIC. 9 PIC. 10 Lift up the red ON / OFF button on top of Always position air compressor on level ground. Increase the pressure switch.

  • Page 5: Maintenance

    All manuals and user guides at all-guides.com 5. MAINTENANCE Daily: before use After use Every 50 hours Air fitting outlet PIC. 13 PIC. 13 PIC. 13 This air compressor is fitted with a ‘Nitto style’ (female) socket. 1. Check the oil level. 1.
  • Page 6 All manuals and user guides at all-guides.com Safety valve PIC. 17 PIC. 16 PIC. 16 PIC. 16 NOTE: When checking the safety valve ALWAYS wear safety Twist Locks glasses. To check the operation of the safety valve the air tank will need to be full.
  • Page 7 All manuals and user guides at all-guides.com Belt tension TROUBLESHOOTING PIC. 18 Correct belt tension is paramount to a safe and reliable air If your air compressor does not start compressor. Too tight a belt can cause damage to bearings and Check that you have plugged the power lead into a 10 - 15mm premature motor failure.

  • Page 8: Specific Safety Instructions

    All manuals and user guides at all-guides.com SPECIFIC SAFETY COMPLETE WARRANTY INSTRUCTIONS STATEMENT Important As soon as you have purchased the air compressor, we Damage caused by third party accessories is not covered under Never run this air compressor without the wheels and/or rubber stopper(s) being correctly fitted.
  • Page 9 All manuals and user guides at all-guides.com GENERAL SAFETY INSTRUCTIONS Lubrication of air compressor Work environment Extension cords and reels Avoid unintentional starting Check the oil level to ensure the level is to the top of the red Do not expose your air compressor to rain, or use in damp or This air compressor MUST be plugged directly into a 240V AC Ensure that the ON/OFF botton is in the ‘OFF’...

  • Page 10: Personal Safety

    All manuals and user guides at all-guides.com PERSONAL SAFETY PARTS DIAGRAM Clothing Do not wear loose clothing, jewellery or anything that could get caught in moving machinery. Hair Long hair should be tied back or contained in a protective covering. Eye Protection The use of safety goggles is highly recommended (normal glasses are not sufficient for eye protection) when using an air...
  • Page 11 All manuals and user guides at all-guides.com 2.5HP AIR COMPRESSOR BELT-DRIVE MODEL NO. BR5000 - PLU: 590973 For service, spare parts or product information, please contact: SMART MARKETING GROUP PTY. LTD. AUSTRALIA: 1300 660 457 NEW ZEALAND: 0800 474 876...
