Summary of Contents for Black Ridge BR140D

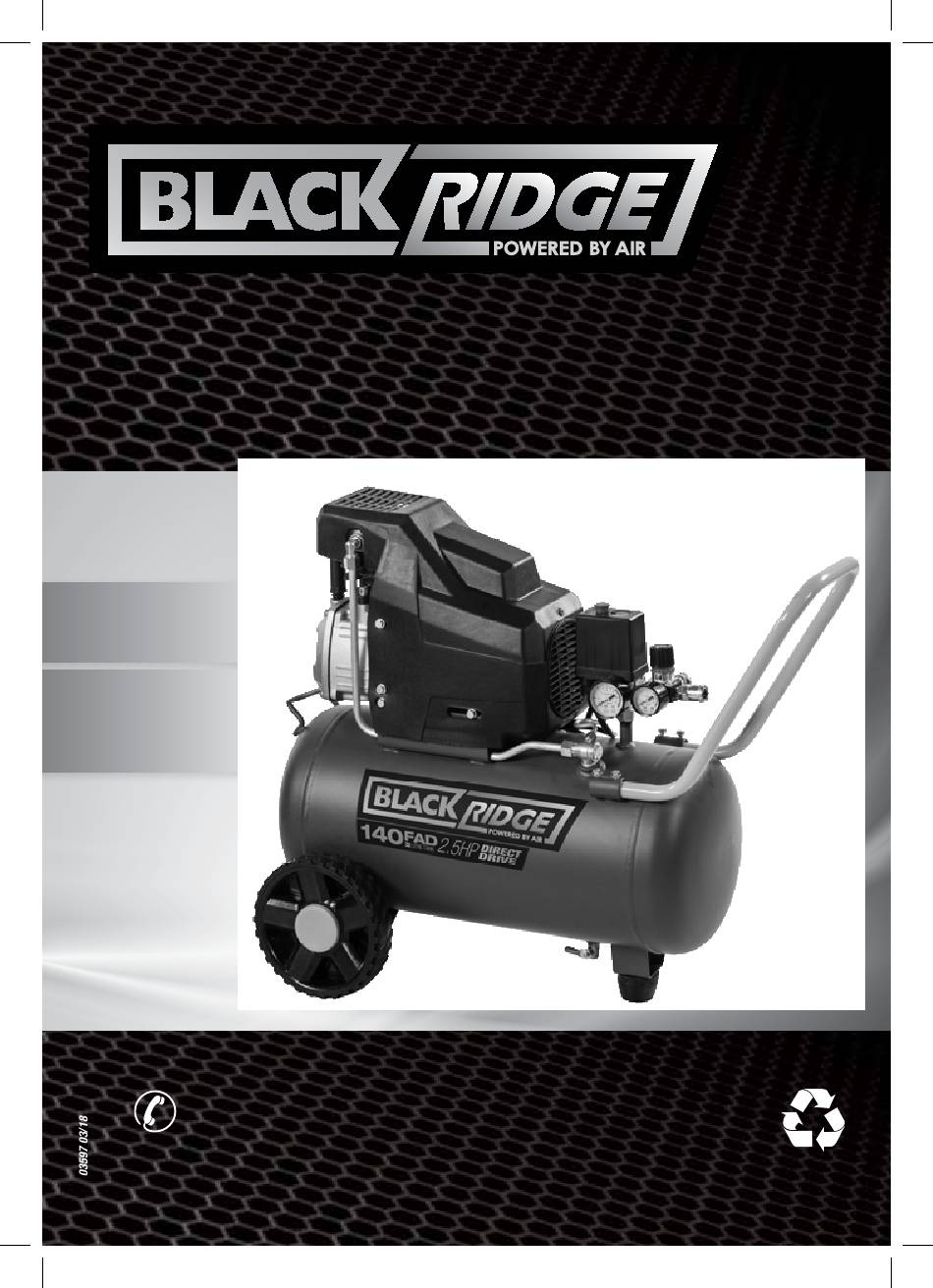

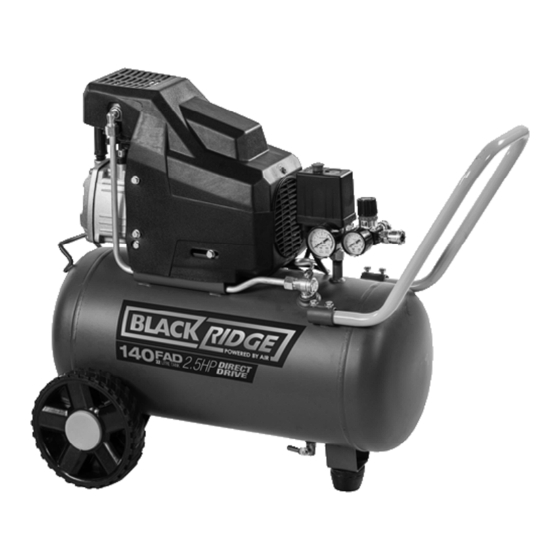

- Page 1 AIR COMPRESSOR MANUAL Portable compressor for medium duty DIY task around the home MODEL NO. BR140D For service, spare parts or product information, please contact Smart Marketing Group Pty. Ltd. AUST. 1300 660 457 N.Z. 0800 474 876 Recyclable Cardboard...
-
Page 2: Table Of Contents
The listed air tools and accessories above are not included with Trouble Shooting this air compressor. Parts Diagram Specifications Notes Air Compressor BR140D Contact Information Voltage 240V AC ~ 50Hz Motor Electric 2.5 HP Wattage 1875W... -
Page 3: Introduction
INTRODUCTION What is covered. Dear Customer, • Manufacturing fault or defect. Thank you for purchasing this compressor which has passed through our extensive quality assurance processes. Every How to claim under this warranty. care has been taken to ensure that it reaches you in perfect •... - Page 4 COMPLETE WARRANTY STATEMENT – COMPRESSOR As soon as you have purchased the compressor, Damage caused to attached equipment or third we recommend that you check to make sure it is party accessories will not be covered under this intact and that you read the operating instructions warranty.
-
Page 5: General Safety Instructions
LUBRICATION OF COMPRESSOR compressor is not designed for use by young children or infirm persons without supervision. The air compressor Before attempting to operate this air compressor the and tools should be kept out of reach of children, transport plug must be removed, thrown out and replaced preferably stored or locked in a secure cabinet or room with the oil breather. - Page 6 DO NOT ABUSE THE POWER CORD REMOVE ADJUSTING KEYS AND WRENCHES Never yank or pull on the power cord to disconnect it from the mains supply socket. Never carry or pull your air Form the habit of always checking to see that any adjusting compressor by its power cord.
- Page 7 CHECK DAMAGED PARTS PERSONAL SAFETY Clothing Before using the air compressor it should be carefully checked to determine that it will operate properly and Do not wear loose clothing, jewellery or anything that could perform its intended function. get caught in moving machinery. Check for the correct alignment of moving parts ensuring Hair that they do not bind.
-
Page 8: Electrical Information
ELECTRICAL DATA IMPORTANT This air compressor is fitted with a sealed electrical connection plug that is compatible with the mains power supply for Australia / New Zealand and meets the requirements of Australian Standards. This air compressor must be connected to a supply voltage that is equal to that stated on the rating label. -
Page 9: Components And Controls
PIC. 1 COMPONENTS AND CONTROLS Pic. 1 1. Oil fill and breather 2. Oil sight glass 3. Oil drain bolt 4. Rear handle 5. Tank 6. Wheels 7. Tank drain tap 8. Twin rubber stoppers 9. Tank pressure gauge - large 10. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS PIC. 2 Unpacking Carefully unpack your air compressor. This air compressor is bulky and heavy, two (2) person lift required. Dispose of all Screw in oil packing material in an environmentally responsible manner. breather Assembly Your air compressor requires minor assembly before initial operation. - Page 11 RUBBER STOPPER PIC. 5 To attach the rubber stoppers to the bracket located on the bottom of the tank; 1. Undo the nut and remove the washers. 2. Push through the bracket and replace the washer. 3. Tighten the nut, Pic. 5. WHEELS PIC.
- Page 12 AIR FILTER PIC. 8 The supplied air filter must be used. Failure to do so may result in irreparable damage and will void the warranty, Pic. 8 To install: 1. Carefully screw supplied air filter into the threaded hole on the top of the pump head. This only needs to be done up by hand.
- Page 13 RUNNING IN YOUR NEW AIR COMPRESSOR USING THE AIR COMPRESSOR Before running in ensure that the following has been Before starting run through this simple list: completed: 1. Transport plug removed and discarded, see Pic. 2, page 1. The transport plug has been removed and discarded, see pic.
- Page 14 PIC. 10 Above accessories and tools Not supplied, purchased separately. The configuration of tools and accessories can be varied to suit your particular requirements. A basic recommended set up is shown in Pic. 10. When you have finished using your air compressor follow these simple steps: 1.
- Page 15 ADJUSTING THE PRESSURE Outlet PIC. 11 Pressure To adjust the outlet air pressure, use the Regulator red coloured regulator knob and check the pressure on the outlet Outlet nitto pressure gauge, Pic. 11. style socket Tank pressure (female) If the pressure needs to be lower, gauge turn anti clockwise.
- Page 16 AIR OUTLET PIC. 13 Pic. 13 This air compressor is fitted with a ‘Nitto style’ (female) socket. Outlet nitto style socket 1. Slide the outer collar down. Tank pressure (Air Outlet) gauge 2. Push in the ‘Nitto style’ male plug (not included). 3.
-
Page 17: Maintenance
MAINTENANCE PIC. 15 Daily Before use 1. Seal the tank drain tap, see page 16, Pic.14. Remove oil drain 2. Check the oil level, see page 10, Pic. 4. bolt and drain 3. Check safety valve operation, see page 15, Pic. 12. used oil into After use funnel. -
Page 18: Parts Diagram
PARTS DIAGRAM Part Description SMG Part No. Part Description SMG Part No. Cylinder Head 95 BRC95CH Pressure Gauge Small 95 BRC95OPG Oil Breather 95 BRC95OB One Way Valve 95 BRC95OWV Sight Glass Seal 95 BRC95OLSG Handle 95 BRC120TH Sight Glass 95 BRC95OLSG Drain Tap 95 BRC95DT... -
Page 19: Notes
NOTES:... -
Page 20: Contact Information
Specifications Air Compressor BR140D Voltage 240V AC ~ 50Hz Motor Electric 2.5 HP Wattage 1875W No Load Speed 2800 RPM FAD (Free Air Delivery) 135L per minute* Tank Size Duty Cycle Max Tank Pressure 115PSI (8BAR) Outlet Pressure 1PSI - 115PSI Adjustable...
