Summary of Contents for Black Ridge BR185B

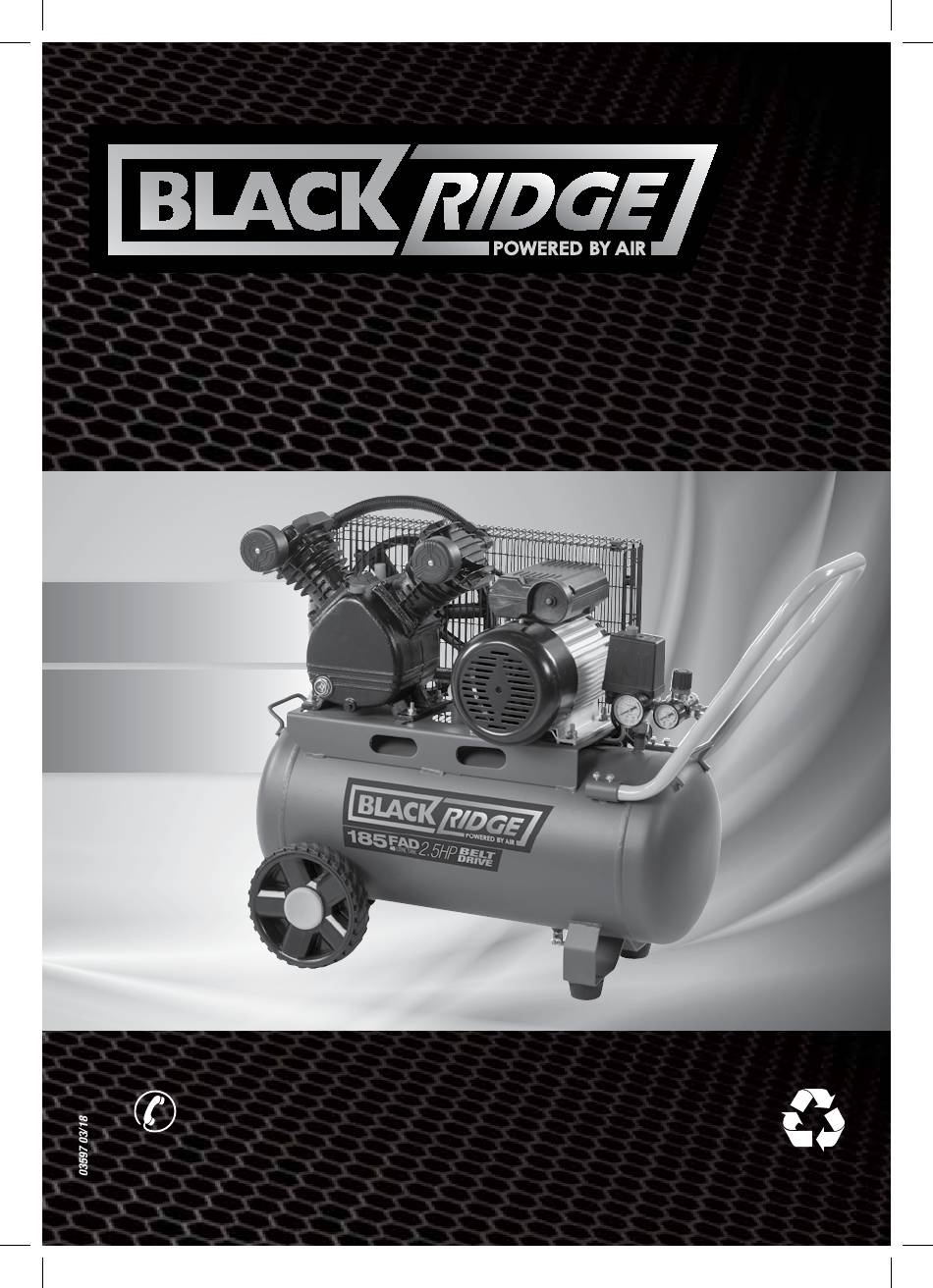

- Page 1 BELT DRIVE AIR COMPRESSOR Portable compressor for medium duty DIY tasks around the home MODEL NO. BR185B For service, spare parts or product information, please contact Smart Marketing Group Pty. Ltd. AUST. 1300 660 457 N.Z. 0800 474 876 Recyclable...
-
Page 2: Table Of Contents
CONTENTS Specifications Section Page Air Compressor BR185B Contents Voltage 240V AC ~ 50Hz Suggested Applications Motor Electric 2.5 HP Introduction Wattage 1975W Guarantee 3 – 4 No Load Speed 850 RPM General Safety Instructions 5 – 7 FAD (Free Air Delivery) -
Page 3: Introduction
INTRODUCTION Products presented for repair may be replaced by refurbished products of the same type rather than being repaired. Dear Customer, Refurbished parts may be used to repair the products. Thank you for purchasing this compressor which has passed What is covered. through our extensive quality assurance processes. - Page 4 COMPLETE WARRANTY STATEMENT – COMPRESSOR As soon as you have purchased the compressor, we Blockages caused by spider webs, insects, dirt, accumulated recommend that you check to make sure it is intact and that dust, incorrect fuel or incorrectly mixed 2-stroke fuel are you read the operating instructions carefully before using not covered by warranty.
-
Page 5: General Safety Instructions
LUBRICATION OF COMPRESSOR Children should not be allowed to touch or operate the air compressor, tools or extension cords. This air Before attempting to operate this air compressor the compressor is not designed for use by young children or transport plug must be removed, thrown out and replaced infirm persons without supervision. - Page 6 DO NOT ABUSE THE POWER CORD REMOVE ADJUSTING KEYS AND WRENCHES Never yank or pull on the power cord to disconnect it from the mains supply socket. Form the habit of always checking to see that any adjusting Never carry or pull your air compressor by its power cord. keys or wrenches have been removed from the air Keep the power cord away from heat, oil, solvents and sharp compressor or attached air tools before operating.
- Page 7 CHECK DAMAGED PARTS PERSONAL SAFETY Before using the air compressor it should be carefully Clothing checked to determine that it will operate properly and Do not wear loose clothing, jewellery or anything that could perform its intended function. get caught in moving machinery. Check for the correct alignment of moving parts ensuring Hair that they do not bind.
-
Page 8: Electrical Information
ELECTRICAL DATA IMPORTANT This air compressor is fitted with a sealed electrical connection plug that is compatible with the mains power supply for Australia / New Zealand and meets the requirements of Australian Standards. This air compressor must be connected to a supply voltage that is equal to that stated on the rating label. -
Page 9: Components And Controls
PIC. 1 15 16 COMPONENTS AND CONTROLS Pic. 1 1. Pressure Switch 2. On/Off Button (Red Button) 3. Belt guard 4. Motor reset button 5. Belt (Not shown) 6. Air Filter 7. Oil Breather 8. Oil Fill Cap 9. Oil Sight Glass 10. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS PIC. 2 Unpacking Oil breather Carefully unpack your air compressor. This air compressor is Oil fill cap bulky and heavy, two (2) person lift required. Dispose of all packing material in an environmentally responsible manner. Assembly Oil sight glass Your air compressor requires minor assembly before initial operation. - Page 11 RUBBER STOPPER PIC. 5 To attach the rubber stoppers to the bracket located on the bottom of the tank; 1. Undo the nut and remove the washers. 2. Push through the bracket and replace the washer. 3. Tighten the nut, Pic. 5. WHEELS PIC.
- Page 12 AIR FILTER PIC. 8 The supplied air filter must be used. Failure to do so may result in irreparable damage and will void the warranty, Pic. 8 To install: 1. Carefully screw supplied air filter into the threaded hole on the top of the pump head. This only needs to be done up by hand.
- Page 13 RUNNING IN YOUR NEW AIR COMPRESSOR USING THE AIR COMPRESSOR Before running in ensure that the following has been Before starting run through this simple list: completed: 1. Oil level – CORRECT (top of red dot). 1. Oil level is correct, see page 10. Please refer to diagram, Pic.
- Page 14 PIC. 10 Above accessories and tools Not supplied, purchased separately. The configuration of tools and accessories can be varied to suit your particular requirements. A basic recommended set up is shown in Pic.10 When you have finished using your air compressor follow these simple steps: 1.
- Page 15 ADJUSTING THE PRESSURE PIC. 11 Outlet To adjust the outlet air pressure, use the outlet pressure Pressure Regulator regulator knob and check the pressure on the outlet pressure gauge, Pic. 11. If the pressure needs to be lower, turn anti clockwise. If the pressure needs to be higher, turn clockwise.
-
Page 16: Belt Tension
DRAIN TAP PIC. 14 Pic. 14 Drain Tap Sealed After use open the drain tap to drain excess air and any moisture. The excess air will also help purge the moisture. Leave the drain tap open when air compressor is not in use, so any moisture can continue to drain To close and seal push lever up Right or left To open the drain tap pull the lever down... -
Page 17: Belt Straightening
BELT STRAIGHTNESS PIC. 16 Pic. 16 Belt straightness is paramount to a safe and reliable air compressor. The belt should always run in a straight line between the two (2) pulleys. If the belt is on an angle this could cause excessive strain and wear on components. This will not be covered by warranty. -
Page 18: Maintenance
MAINTENANCE PIC. 18 Daily Before use 1. Seal the tank drain tap, see Pic.14. 2. Check the oil level, see page 10, Pic. 4. 3. Check safety valve operation, see page 15, Pic. 12. 4. Check the belt tension, Pic 15, Page 16. Movement Remove oil drain should be 10-15mm. -
Page 19: Parts Diagram
PARTS DIAGRAM Image may not match exactly. For reference only. Part Description SMG Part No. Part Description SMG Part No. Safety Valve 95 BRC95SPV Air Filter 95 BRI60AF Tank Handle 95 BRC180TH Drain Tap 95 BRC95DT Exhaust Tube 95 BRC155ET Pressure Gauge Large 95 BRC95TPG Oil Breather... -
Page 20: Contact Information
Specifications TECHNICAL INFORMATION Air Compressor BR185B Voltage 240V AC ~ 50Hz Motor Electric 2.5 HP Wattage 1975W No Load Speed 850 RPM FAD (Free Air Delivery) 190L per minute* Tank Size Duty Cycle Max Tank Pressure 115PSI (8BAR) Outlet Pressure...
