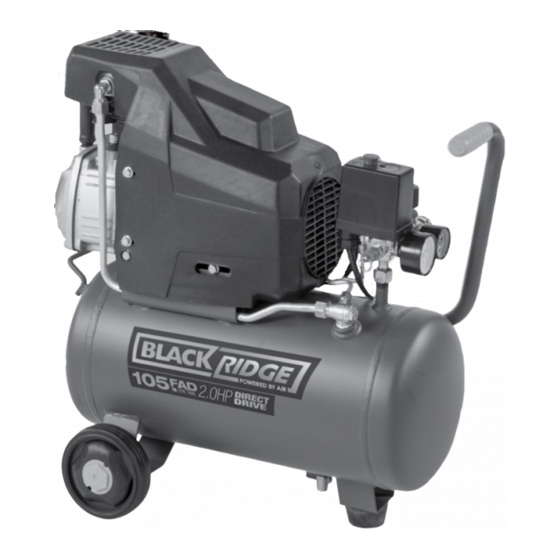

- Page 1 AIR COMPRESSOR MANUAL Portable compressor for general light duty task around the home MODEL NO. BR105D For service, spare parts or product information, please contact Smart Marketing Group Pty. Ltd. AUST. 1300 660 457 N.Z. 0800 474 876 Recyclable Cardboard...
-
Page 2: Table Of Contents
The listed air tools and accessories above are not included with this air compressor. Trouble Shooting Parts Diagram Specifications Notes Air Compressor BR105D Contact Information Voltage 240V AC ~ 50Hz Motor Electric 2HP Wattage... -
Page 3: Introduction
INTRODUCTION What is covered. Dear Customer, • Manufacturing fault or defect. Thank you for purchasing this compressor which has passed through our extensive quality assurance processes. Every How to claim under this warranty. care has been taken to ensure that it reaches you in perfect •... - Page 4 COMPLETE WARRANTY STATEMENT – COMPRESSOR As soon as you have purchased the compressor, we Blockages caused by spider webs, insects, dirt, accumulated recommend that you check to make sure it is intact and that dust, incorrect fuel or incorrectly mixed 2-stroke fuel are you read the operating instructions carefully before using not covered by warranty.
-
Page 5: General Safety Instructions
LUBRICATION OF COMPRESSOR WORK AREA Before attempting to operate this air compressor the Work areas and benches should be kept tidy. Cluttered transport plug must be removed, thrown out and replaced benches and work areas can cause accidents. Floors should with the oil breather. - Page 6 DO NOT ABUSE DISCONNECT AIR COMPRESSOR THE POWER CORD Ensure that the air compressor is disconnected from the mains supply when not in use, before servicing, lubricating, Never yank or pull on the power cord to disconnect it making adjustments or when changing any accessories. from the mains supply socket.
- Page 7 CHECK DAMAGED PARTS PERSONAL SAFETY Before using the air compressor it should be carefully Clothing checked to determine that it will operate properly and Do not wear loose clothing, jewellery or anything that could perform its intended function. get caught in moving machinery. Check for the correct alignment of moving parts ensuring Hair that they do not bind.
-
Page 8: Electrical Information
ELECTRICAL DATA IMPORTANT This air compressor is fitted with a sealed electrical connection plug that is compatible with the mains power supply for Australia / New Zealand and meets the requirements of international standards. This air compressor must be connected to a supply voltage that is equal to that stated on the rating label. -
Page 9: Components And Controls
PIC. 1 COMPONENTS AND CONTROLS Pic. 1 1.Oil fill and breather 2. Oil sight glass 3. Oil drain bolt 4. Rear handle 5. Tank 6. Wheels 7. Tank drain tap 8. Rubber stopper 9. Safety Valve 10. Tank pressure gauge - large 11. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Unpacking PIC. 2 Carefully unpack your air compressor. This air compressor is bulky and heavy, two (2) person lift required. Dispose of all packing material in an environmentally responsible manner. Screw in oil Assembly breather Your air compressor requires minor assembly before initial operation. - Page 11 RUBBER STOPPER PIC. 5 To attach the rubber stopper to the bracket located on the bottom of the tank; 1. Undo the nut and remove the washer. 2. Push through the bracket and replace the washer. 3. Tighten the nut, Pic. 5 WHEELS PIC.
- Page 12 AIR FILTER PIC. 7 The supplied air filter must be used. Failure to do so may result in irreparable damage and will void the warranty, Pic. 7 To install; 1. Carefully screw supplied air filter into the threaded hole on the top of the pump head. This only needs to be done up by hand.
- Page 13 RUNNING IN YOUR NEW AIR COMPRESSOR USING THE AIR COMPRESSOR Before starting run through this simple list; Before running in ensure that the following has been completed; 1. Transport plug removed and discarded, see Pic. 2, page 1. The transport plug has been removed and discarded, see pic.
- Page 14 PIC. 9 Above accessories and tools Not supplied, purchased separately. The configuration of tools and accessories can be varied to suit your particular requirements. A basic recommended set up is shown in Pic. 9. When you have finished using your air compressor follow these simple steps;...
- Page 15 ADJUSTING THE PRESSURE PIC. 10 To adjust the outlet air pressure, use the outlet pressure Outlet regulator knob and check the pressure on the outlet Pressure pressure gauge, Pic. 10. Regulator If the pressure needs to be lower, turn anti clockwise. If the pressure needs to be higher, turn clockwise.
- Page 16 AIR OUTLET PIC. 12 Pic. 12 Tank This air compressor is fitted with a ‘Nitto style’ (female) pressure socket. gauge 1. Slide the outer collar down. Outlet 2. Push in the ‘Nitto style’ male plug (not included). pressure 3. Release the collar. gauge 4.
-
Page 17: Maintenance
MAINTENANCE PIC. 14 Daily: Before use 1. Seal the tank drain tap, see Pic.13. 2. Check the oil level, see page 10, Pic. 4. Remove oil drain 3. Check safety valve operation, see page 16, Pic.12 bolt and drain After use used oil into funnel. -
Page 18: Parts Diagram
PARTS DIAGRAM Part Description SMG Part No. Part Description SMG Part No. Cylinder Head 95 BRC95CH Screw 95 BRC95RS Oil Breather 95 BRC95OB Unloading Tube Nut 95 BRC95UT Sight Glass Seal 95 BRC95OLSG Unloading Tube 95 BRC95UT Sight Glass 95 BRC95OLSG Safety Valve 95 BRC95SPV Exhaust Elbow... -
Page 19: Notes
NOTES:... -
Page 20: Contact Information
Specifications Air Compressor BR105D Voltage 240V AC ~ 50Hz Motor Electric 2 HP Wattage 1500W No Load Speed 2800 RPM FAD (Free Air Delivery) 105L per minute Tank Size Duty Cycle Max Tank Pressure 115PSI (8BAR) Outlet Pressure 1PSI - 115PSI Adjustable...
