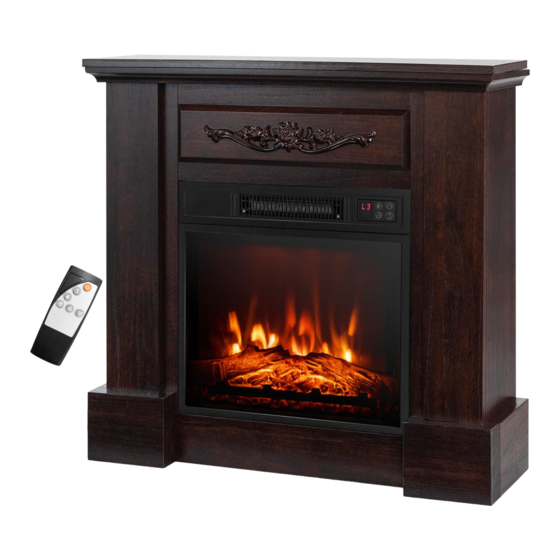

Costway FP10103 User Manual

Insert fireplace heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S MANUAL
INSERT FIREPLACE HEATER
FP10103
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP10103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Costway FP10103

Summary of Contents for Costway FP10103

  • Page 1 USER’S MANUAL INSERT FIREPLACE HEATER FP10103 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

  • Page 2: Before You Start

    Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.

  • Page 4: Part Identification

    PART IDENTIFICATION: CODE Description TOP Panel Front Up Panel Front Base Panel Back Base Panel Left Side Panel Right Side Panel Left Front Panel Right Front Panel Left Trim Panel Right Trim Panel Left Foot Panel Right Foot Panel Bottom Support Panel...

  • Page 5: Hardware Parts List

    Hardware Parts List： CODE PICTURE DESCRIPTION Bolt Plastic Connector Metal Dowel Metal Cam Wood Dowel Screw Metal Connector Plastic Cap Fall Prevention Hareware Assembly Tools Required Hand Drill Hex Key (Included in the package)
  • Page 12 FIREPLACE INSTALLATION if you decide to install the fireplace into the mantel, carefully set the unit from the back of the mantel and center it in the opening. Check the alignment and attach the unit to the mantel by inserting screws through the drilled holes on the trim to the mantel.
  • Page 13 Prevent Toppling Secure the fireplace to the wall with the attached hardware to prevent it from toppling.
  • Page 14 18” Insert Fireplace Heater...
  • Page 15 When using electrical appliances, basic safety precautions should always be followed including the following: READ ALL INSTRUCTIONS BEFORE USE 1. Read all instructions before using this heater. 2. Do not use this heater outdoors. 3. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations.
  • Page 16 WARNING: There is no user serviceable parts inside fireplace/heater. If the unit appears to malfunction, turn the unit off and unplug from the wall immediateky and contact Customer Service. WARNING: This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.

  • Page 17: Technical Specification

    TECHNICAL SPECIFICATION FP10103 Model Number Dimensions (W x D x H) 18” x 5.04 ” x 17.1” Power Rating 1400 W Voltage 120 V Frequency 60 Hz PACKAGE CONTENT TopTrim SideTrim (L/R) Fireplace Unit Screw x18 Remote Control...

  • Page 18: Assembly Instruction

    ASSEMBLY INSTRUCTION Estimated Time for Assembly 20:00mins STEP 1 Take out the unit from the box and layout all the spare parts for easy assembly. Make sure all small items are not left in packaging materials. CAUTION This unit has a glass front panel. Use extreme caution when handling glass to prevent personal injury or damage.
  • Page 19 STEP 2 Attach the top trim to the top of the unit and secure it by tightening 2 screws. Make sure the right angle side faces toward the front of the unit. Align and attach two side trims to the sides of the fireplace unit. Identify the right and the left and make sure that the right angle side faces toward the front of the unit.

  • Page 20: User Instruction

    USER INSTRUCTION Before use Check that the air intake and exhaust is not covered or obstructed in anyway. Keep combustible objects at least 3ft away from the unit. Plug the unit to a grounded power socket. Grounding This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.
  • Page 21 USER INSTRUCTION (CONTROL PANEL) Power Button Flame Control Heater Control Control Panel The control panel is located on the top right corner of the unit. Power ON / OFF Press the power button to turn on the unit.Press again to turn off the unit. NOTE: There is a thermostat limiter inside the unit.
  • Page 22 USER INSTRUCTION (REMOTE CONTROL) Power Button Flame Control Heater Control Remote Control The operation of the remote control buttons work the same as the button on the control panel. The remote control has an effevtive range up to 13ft. Install / Replace Battery The remote control is provided with a CR2025 battery.

  • Page 23: Care And Maintenance

    CARE AND MAINTENANCE Cleaning the unit: Always turn off and unplug the unit from power outlet before cleaning. Allow the unit to cool down completely before performing any maintenance or cleaning. Use a vacuum cleaner or duster to regularly remove any accumulated dust on the unit.
  • Page 24 Contact our friendly customer service department for help first. Replacements for missing or damaged parts will be shipped ASAP ! US office: Fontana UK office: Ipswich AU office: Truganina Contact Us ! Do NOT return this item. US:cs.us@costway.com UK:cs.uk@costway.com AU:cs.au@costway.com...
