OVIS 32211 Manual

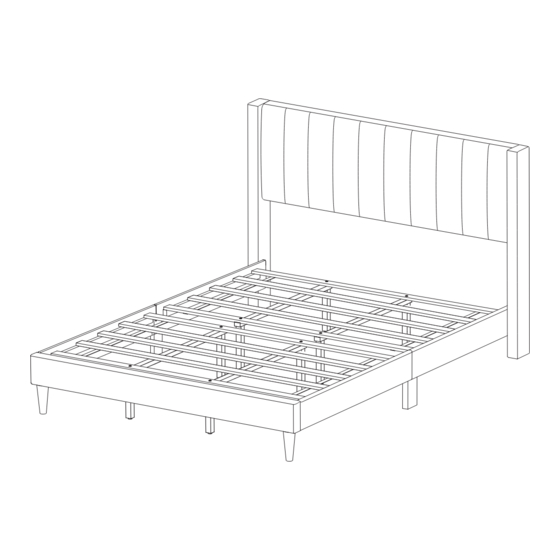

King bed
Hide thumbs

Advertisement

Quick Links

Download this manual
32211 King Bed
REV 01

Advertisement

loading
Need help?

Need help?

Do you have a question about the 32211 and is the answer not in the manual?

Questions and answers

Related Manuals for OVIS 32211

Summary of Contents for OVIS 32211

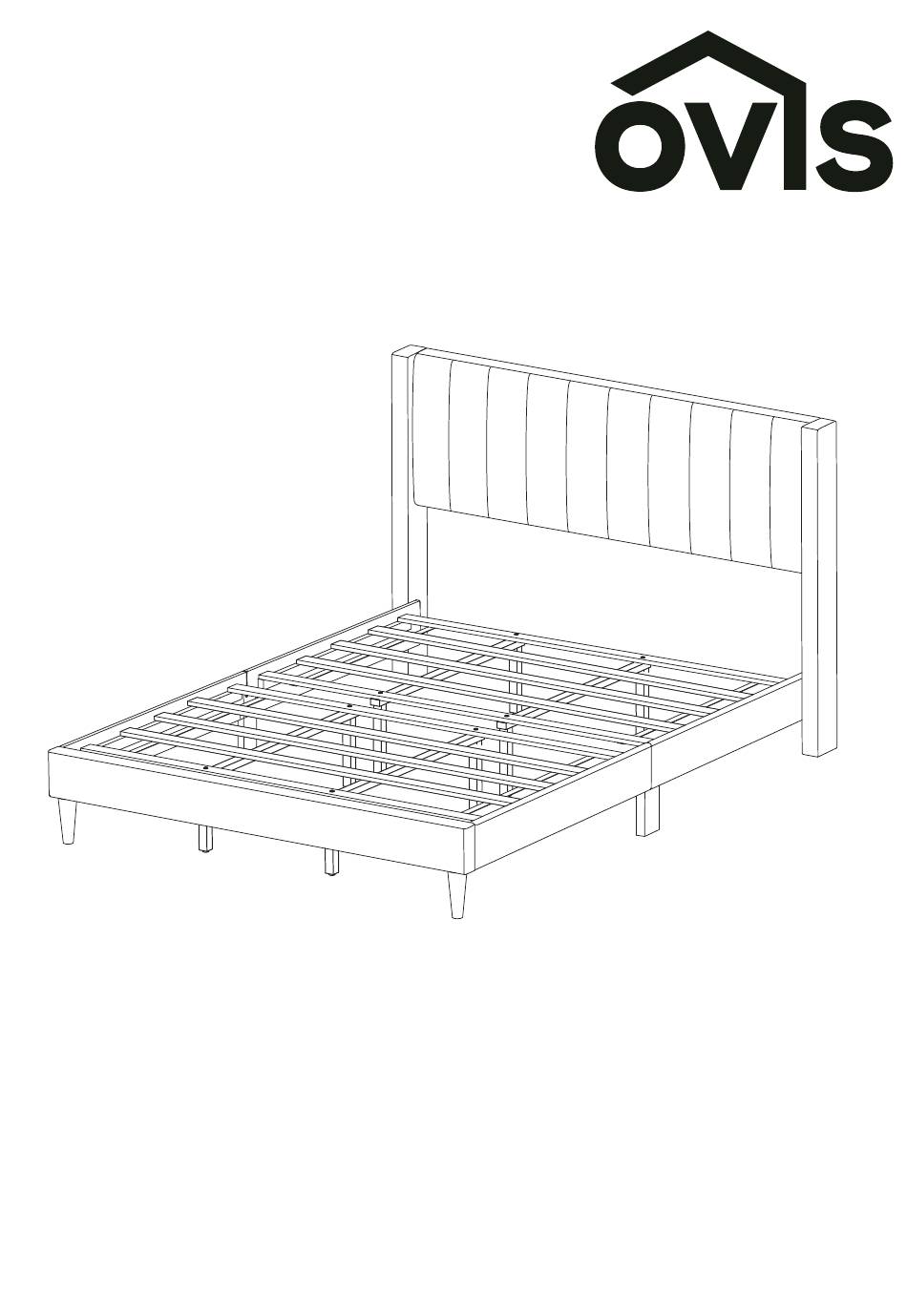

  • Page 1 32211 King Bed REV 01...
  • Page 2 PLEASE CONTACT US FOR QUESTIONS Email our support team: help@ovis.co CAUTION: Do not a empt to slide the bed once it is fully assembled. To avoid structural damage while moving your assembled bed, any ma ress and bedding should be removed from the bedframe.
  • Page 3 Estimated Time for Assembly 25:00 - 35:00 Weight Limitation 600 lbs Additional Tools Needed – Phillips Screwdrive.
  • Page 4 PLEASE CONTACT US FOR QUESTIONS Email our support team: help@ovis.co Re m ove p a r t s f ro m h e a d b o a rd c o m p a r t m e n t...

  • Page 5: Package Content

    PACKAGE CONTENT CAUTION: DO NOT SLIDE BED AFTER ( L ) ASSEMBLY. LIFT THE BED FRAME INTO ITS FINAL POSITION. ( R ) Team Assembly Recommended King Bed Components Hardware 1 pc 1 pc 2 pcs M8X20 M6X30 M6X50 M6X60 M4X32 4 pcs 8 pcs...
  • Page 6 M6X50 4 pcs A ach (P) and (O) washers to (L) bolts. Use the (L) bolts to connect the wing (W) to the ends of the headboard (A). Tighten the (L) bolts with Allen key (Q). ( L ) ( R )
  • Page 7 Thread footboard legs (F) to bo om of footboard panel (C).
  • Page 8 M8X20 4 pcs Thread (J) bolts into the holes in the footboard. Do not ghten. These will be ghtened in later steps.
  • Page 9 8 pcs M6X30 A ach (O) washers to (K) bolts. Connect the top and bo om of each side rail with a (D) side leg. Use the bolts to a ach. Tighten the bolts (K) with Allen key (Q). This end will a ach to wing (W).
  • Page 10 Hang the hooks at the ends of the side rails onto the (J) bolts in the footboard. Tighten the (J) bolts with Allen key (R). ( L ) ( R )
  • Page 11 M6X50 6 pcs ( R ) ( L ) A ach (P) and (O) washers to (L) bolts. Use the (L) bolts to connect the ends of the side rails to the wings (W). Tighten the (L) bolts with Allen key (Q). NOTE: Do not a empt to slide the bed once it is fully assembled.
  • Page 12 8 pcs M6X60 Assemble the slat system by a aching the slats (G) to the (I) supports and (H) legs. First, extend the slats. Then, line up the holes in the slats with the holes in the (I) supports and the holes in the tops of the (H) legs.

  • Page 13: Need Additional Help

    Sliding the bed with weight upon it can compromise the integrity of the center support legs. Use screwdriver to install (N) screws into side rail cleats to a ach slats. NEED ADDITIONAL HELP? Email our support team: help@ovis.co...
