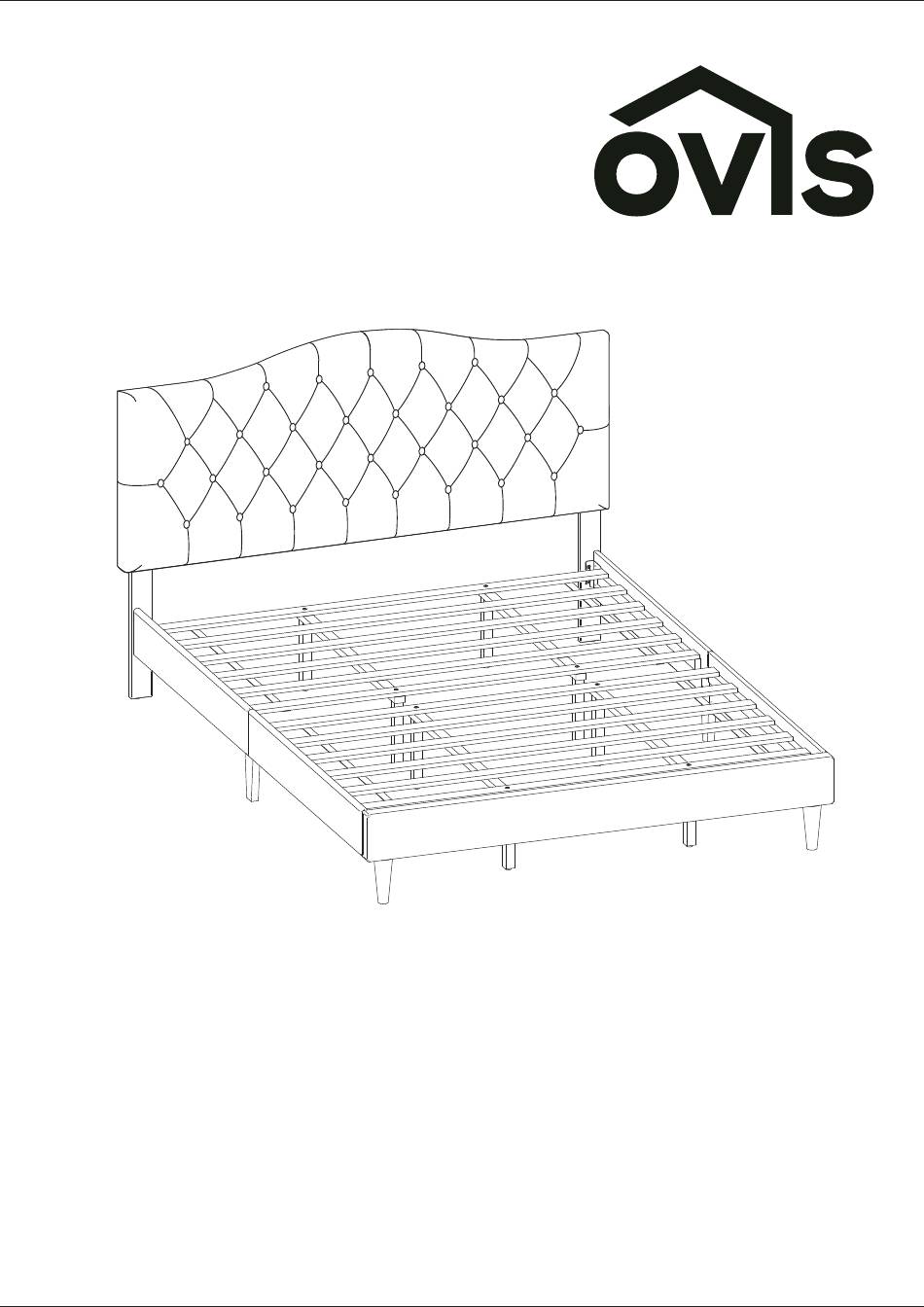

- Page 1 REV 02 33531B King Bed...
- Page 2 PLEASE CONTACT US FOR QUESTIONS Email our support team: help@ovis.co CAUTION: Do not a empt to slide the bed once it is fully assembled. To avoid structural damage while moving your assembled bed, any ma ress and bedding should be removed from the bedframe. Then the bedframe should be li ed and carried (not slid) to your desired loca on.
- Page 3 Estimated Time for Assembly 25:00 - 35:00 Weight Limitation 600 lbs Additional Tools Needed – Phillips Screwdrive.
- Page 4 PLEASE CONTACT US FOR QUESTIONS Email our support team: help@ovis.co Re m ove p a r t s f ro m h e a d b o a rd c o m p a r t m e n t...
-
Page 5: Package Content
PACKAGE CONTENT CAUTION: DO NOT SLIDE BED AFTER ASSEMBLY. LIFT THE BED FRAME INTO ITS FINAL POSITION. ( L ) ( R ) KING BED Components Hardware 1 pc ( L ) 1 set ( R ) 1 pc M8X20 M6X35 M6X50 M6X60... - Page 6 M6X50 6 pcs A ach “P” washers to “L” bolt. Connect the leg “B” to back of headboard “A”. Use the bolts to a ach. ( L ) ( R )
- Page 8 8 pcs M8X20 ( R ) ( L ) Thread “J” bolts into the holes in the headboard and footboard. Do not ghten. These will be ghtened in later steps.
- Page 9 M6X35 8 pcs A ach “O” washers to “K” bolt. Connect the top and bo om of each side rail with a “D” side leg. Use the bolts to a ach. Repeat steps to assemble right side rail.
- Page 10 Hang the hooks at the ends of the side rails onto the “J” bolts in the headboard leg and the footboard. Do not fully ghten the “J” bolts. The bolts will be ghtened in a later step. ( L ) ( R ) NOTE: Do not a empt to slide the bed once it is fully...
- Page 11 8 pcs M6X60 Assemble the slat system by a aching the slats “G” to the “I” supports and “H” legs. First, extend the slats. Then, line up the holes in the slats with the holes in the “I” supports and the holes in the tops of the “H”...
-
Page 12: Need Additional Help
Sliding the bed with Floor Glide weight upon it can compromise the integrity of the center support legs. Then, use screwdriver to install“N” screws into side rail cleat Finally, ghten all “J” bolts. NEED ADDITIONAL HELP? Email our support team: help@ovis.co...
