Series 2600 Pinch Valve / Series 2633 Inline Check Valve

Installation, Operation and Maintenance Manual

IMPORTANT

Please take a moment to review this manual. Before performing any maintenance on the valve be sure

that the pipeline has been depressurized. The improper installation or use of this product may result in

personal injury, product failure, or reduced product life. Red Valve Company can accept NO liability resulting

from the improper use or installation of this product. If you have any questions or problems, please call the

customer service hotline at (412) 279-0044. We appreciate your comments. Thank you for choosing Red Valve.

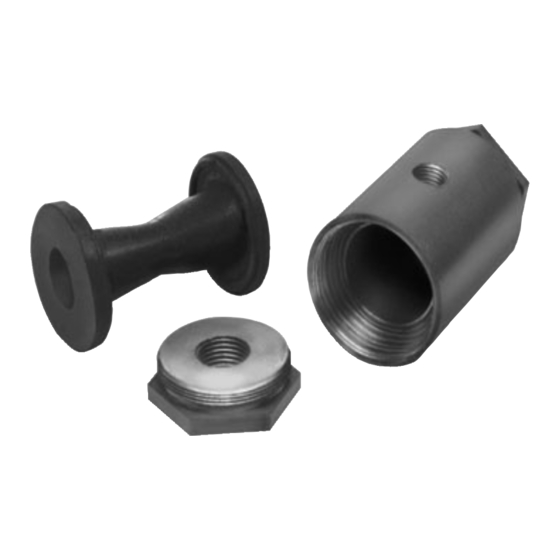

Red Valve's Series 2600 pinch valve and Series

2633 small diameter inline check valve are

the simplest valves available to industry. They

have only four parts and require little or no

maintenance. These valves are designed with

threaded end connections for easy installation

and removal on small lines up to 3" in diameter. A

spare replacement sleeve should be ordered when

the valve is placed in service.

NOTE: 2" and 3" PVC Series 2600's may have

hose clamps on the body of the valve. These

clamps must be loosened when removing the

sleeve.

IOM RV02.02-1

February 2023

Need help?

Do you have a question about the 2600 Series and is the answer not in the manual?

Page 1 The improper installation or use of this product may result in personal injury, product failure, or reduced product life. Red Valve Company can accept NO liability resulting from the improper use or installation of this product. If you have any questions or problems, please call the...
Page 2 INSPECTION OF PRODUCT Before installing, be sure the pipe threads are clean. A sealing material such as pipe dope can be used. Direction of flow is indicated on the 2633. Be sure that it is in the proper orientation before installing. INSTALLATION AIR CLOSING PRESSURE 1.
Page 3 Carefully pull the flange through the opposite seat. Do not use sharp tools or screwdrivers. Red Valve • 750 Holiday Drive, Suite 400, Pittsburgh, PA 15220 • 412-279-0044 • support@redvalve.com • RedValve.com © 2023 Red Valve Company...
Page 4 Limited Warranty Red Valve Company (“Seller”) manufactured products, auxiliaries and parts thereof that we manufacture for a period of twenty-four (24) months from date of shipment from Seller’s factory, are warranted to the original purchaser only against defective workmanship and material, but only if properly stored, installed, operated, and serviced in accordance with Seller’s recommendations and instructions.
