Installation, Operation and Maintenance Manual
IMPORTANT
Please take a moment to review this manual. Before performing any maintenance on the valve be sure that the pipeline has been depressurized. The improper
installation or use of this product may result in personal injury, product failure, or reduced product life. Tideflex
use or installation of this product. If you have any questions or problems, please call the customer service hotline at (412) 279-0044. We appreciate your comments.
Thank you for choosing Tideflex
®

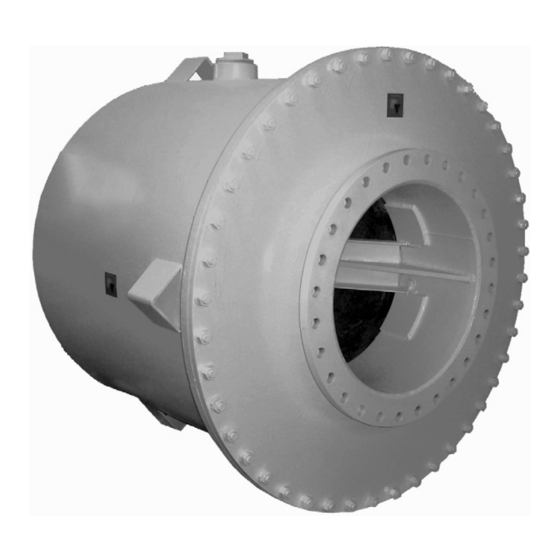

Series 39F Inline Check Valve
.
The revolutionary design of the Tideflex
Check Valve provides superior backflow prevention. This
unique "duck bill" design eliminates costly backflow from
oceans, rivers and streams and is the ideal valve for pump
stations.
The Series 39F uses proven Tideflex
technology that provides low cracking pressures, low
headloss and the ability to operate in the harshest of
conditions. The flexible rubber check valve resists
clogging and buildup of debris and it is available in several
different elastomers. The Series 39F will not slam, thereby
minimizing noise and vibration.
The Series 39F is more economical than other large-
diameter check valve designs because there are no moving
parts that require routing maintenance.
• Simple Design
• Cost Effective
• Low Maintenance
• No Seats
• No Hinges
can accept NO liability resulting from the improper
®
IOM RV09.02-7
February 2023
Series 39F Inline
®
Check Valve
®
Advertisement
Related Manuals for Red Valve Tideflex Series
Summary of Contents for Red Valve Tideflex Series
- Page 1 IOM RV09.02-7 February 2023 Series 39F Inline Check Valve Installation, Operation and Maintenance Manual The revolutionary design of the Tideflex Series 39F Inline ® Check Valve provides superior backflow prevention. This unique “duck bill” design eliminates costly backflow from oceans, rivers and streams and is the ideal valve for pump stations.
- Page 2 INSTALLATION Upstream Body Tideflex ® 1. INSPECTION OF VALVE: Body Clamps Flange Inspect the body and mating flanges for signs of damage. Check all inspection and drain plugs to ensure that they are securely in place. The mating upstream and downstream pipes should be plumb and square to the 39F.
- Page 3 M.The valve is now ready to be reinstalled into the pipeline. Drain Plugs Red Valve • 750 Holiday Drive, Suite 400, Pittsburgh, PA 15220 • 412-279-0044 • support@redvalve.com • RedValve.com © 2023 Red Valve Company...
- Page 4 Limited Warranty Red Valve Company (“Seller”) manufactured products, auxiliaries and parts thereof that we manufacture for a period of twenty-four (24) months from date of shipment from Seller’s factory, are warranted to the original purchaser only against defective workmanship and material, but only if properly stored, installed, operated, and serviced in accordance with Seller’s recommendations and instructions.
