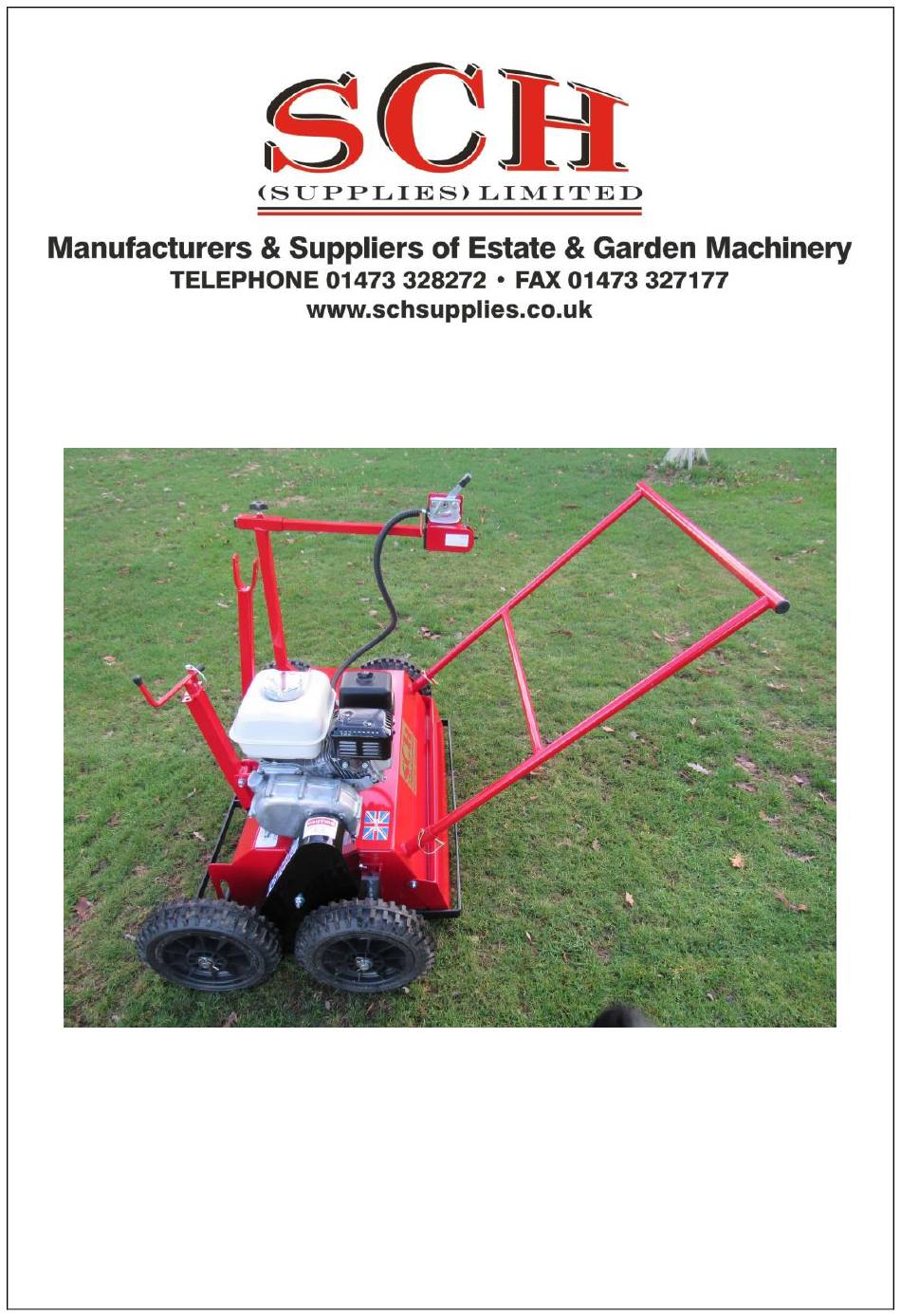

- Page 1 OPERATING INSTRUCTIONS ROTARY RAKER Ref: RR3...
- Page 2 The SCH Rotary Raker’s powerful 5.5Hp Honda petrol engine with twin 'v' belt drive rotates four rows of free floating scarifying blades, which carry out the vital dethatching process.
- Page 3 SAFETY INSTRUCTIONS Do not place any part of your body under the canopy whilst the engine is running. All guards must be in position when the engine is running. No adjustments or maintenance may be carried out with the engine running.
- Page 4 TO START THE UNIT Refer to starting instructions as printed in the engine manual. The operating lever must be in the starting position. Make sure the throttle switch is in the ‘ON’ position. In the towing mode, the unit must be securely attached to the unit. In the pedestrian mode make sure the unit is ‘choked,’...
- Page 5 INITIAL HEIGHT ADJUSTMENT Ensure that the engine is switched off. Initial adjustment is carried out on the front adjuster screw. By turning the jack leg clockwise, the blades will raise. By turning the jack leg anti-clockwise, the blades will lower. HEIGHT ADJUSTMENT When the correct adjustment cannot be obtained from the front screw adjuster, slacken the four bolts holding the rear wheels to the unit.
- Page 6 WALK BEHIND SETUP Ensure the RR3 is turned off prior to conversion. To convert the RR3 to walk behind: Remove the front towing hitch. Insert the two manual handle ends into the corresponding points on the rear of the unit.
- Page 7 PARTS LIST FOR THE RR3 For Engine spares, please refer to the engine manual. Description Quantity Belts Belt tensioner Blades 16 per shaft Shaft Spacer springs 15 per shaft Exchange rotor (blades, springs and shaft) including bearings Wheels Please contact us for help with spare parts.
- Page 8 If you are missing your free brochure, contact us on 01473 328272, email sales@schsupplies.co.uk, or visit our website www.schsupplies.co.uk...
