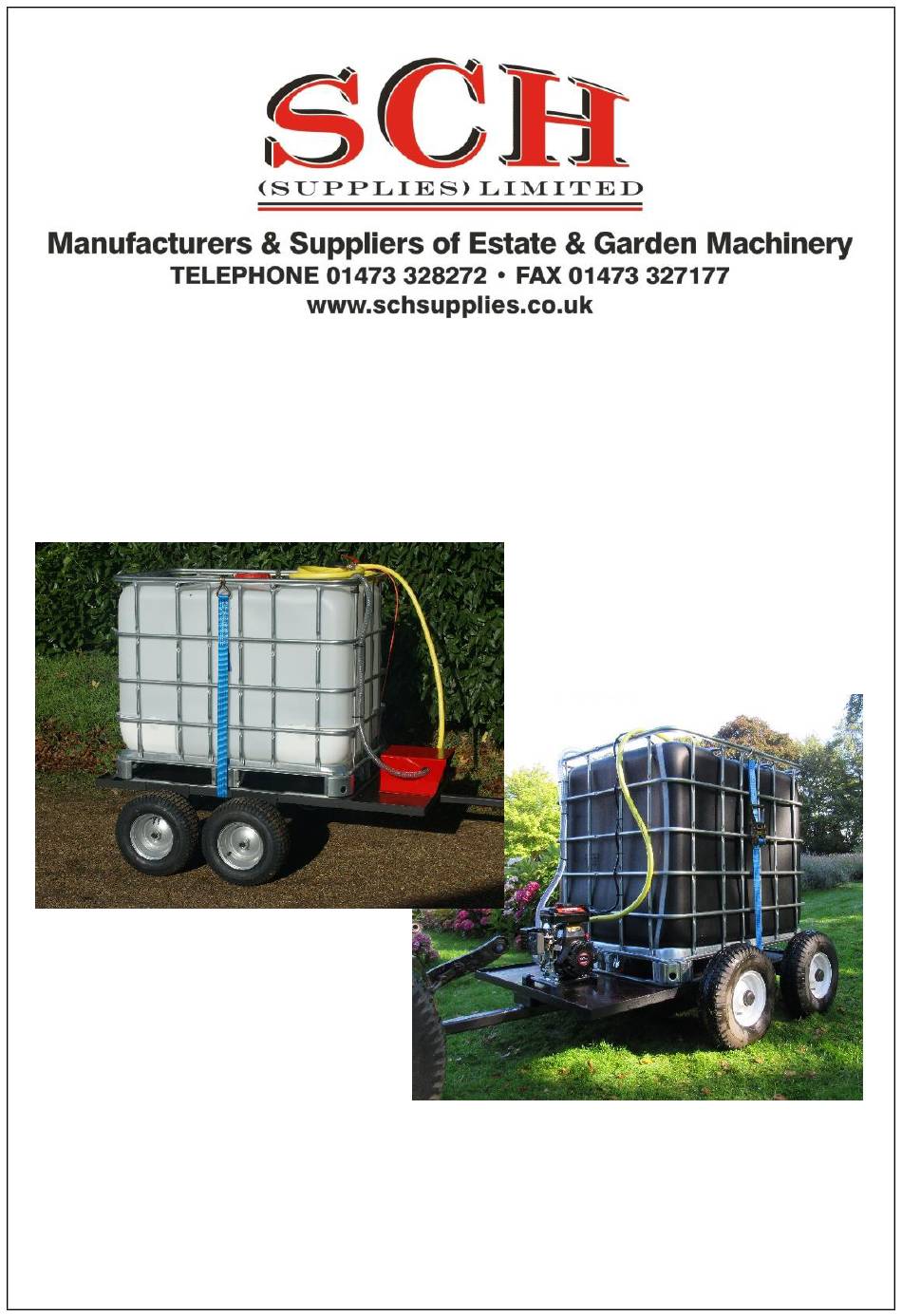

- Page 1 OPERATING INSTRUCTIONS MUST BE READ PRIOR TO OPERATING THIS MACHINE 4 Wheel Towed Water Trailers Ref: WC(E)(P) & EWC(E)(P)
- Page 2 DESCRIPTION The WC(P) & WC(E) are suitable for tractors and ATVs of 24hp and above, and have a 600L capacity. The EWC(P) & EWC(E) are suitable for tractors and ATVs of 30hp and above, and have 900L capacity. The caged tanks are secured to a flatbed trolley with the pump unit mounted separately on the front of the unit.
- Page 3 SPECIFICATIONS – EWC(P) & EWC(E) EWC(P) – 1” centrifugal pump Petrol Pump EWC(E) – 12-volt electric, powered from the towing Electric Pump vehicle or a rechargeable battery. Tank capacity 900 Litres Flow Rate - 150 Litres (33 Gallons) per minute – adjustable Petrol Flow Rate - 12 Litres per minute...
- Page 4 Do not point the lance at other persons Make sure the unit is chocked securely before operation Always keep the unit in a safe place If in doubt, please call the SCH customer help line at 01473 328272.
- Page 5 OPERATING INSTRUCTIONS – ELECTRIC PUMP Fix clips on the orange lead to the battery to be used Make sure the filter on the tank end of the inlet pipe is clean Open the red lever top on discharge hose (lever running parallel with the hose) ...
- Page 8 WARRANTY Your unit is guaranteed for 12 months from date of purchase. This guarantee covers faults which may occur from defective parts or manufacture. This warranty only covers the unit for products that may be diluted with water. Tar based products are not recommended. If you are missing your free brochure contact us on 01473 328272, email sales@schsupplies.co.uk, or visit our website...
