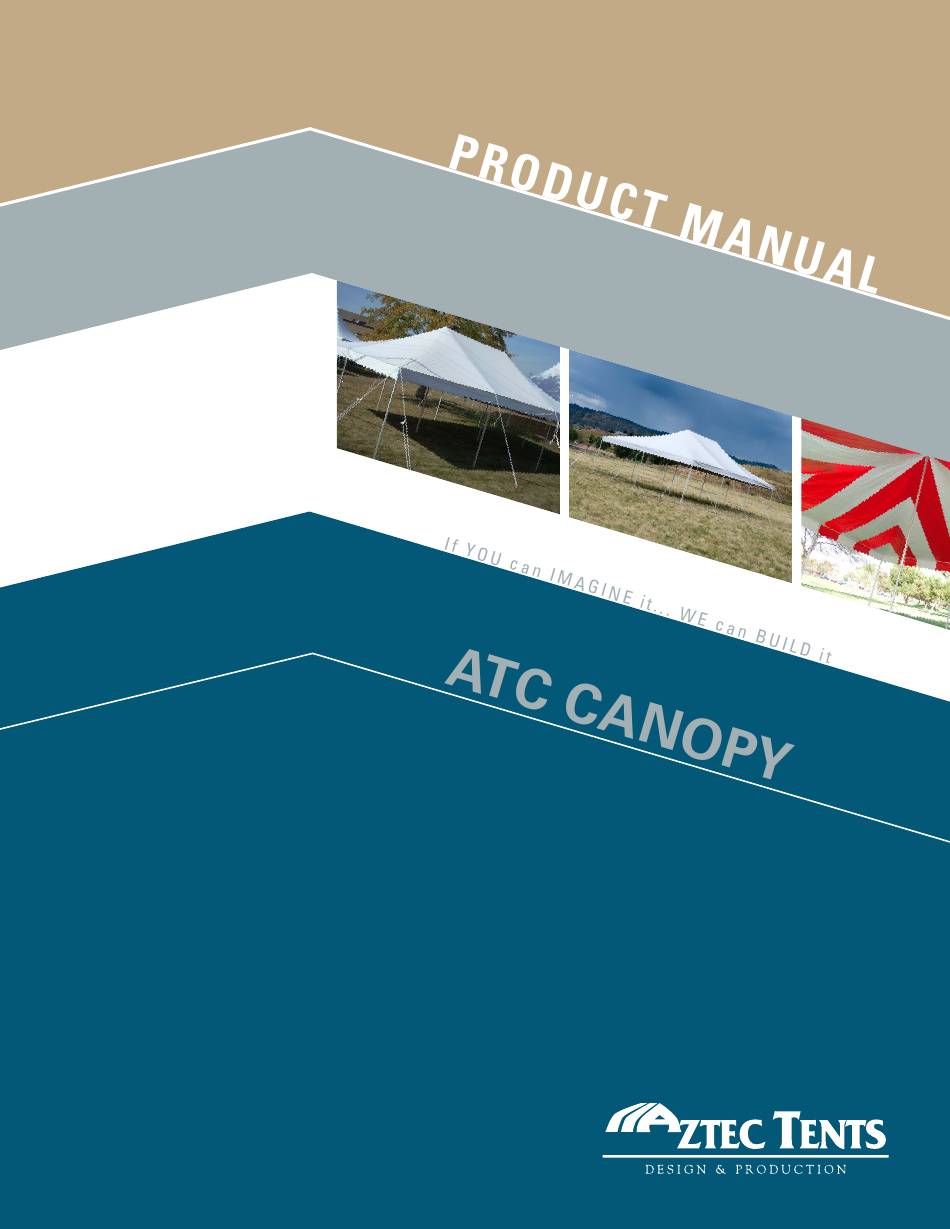

Aztec Tents ATC Product Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aztec Tents ATC

Summary of Contents for Aztec Tents ATC

  • Page 2 (or is forecasted) or any condition arises items using certified personnel. Aztec Tents shall be concerning the safe use of this product. indemnified and held harmless from any such use or injury resulting from its use.

  • Page 3: Table Of Contents

    Thank you for your recent purchase from Aztec Tents. The following procedures will help you through your installation. If you ever run into problems with the installation of your Aztec Tent give one of our sales/service professionals a call. Other product specific information, contact information, diagrams, and other operational support is available on our web site at www.aztectent.com.

  • Page 4: General Fabric Care & Maintenance

    General Fabric Care & Maintenance The vinyl fabric developed for this tent system requires specific attention during installation, cleaning, and storage to maintain its maximum life span. Please follow the following care and maintenance guidelines provided for this product. GROUND CLOTHS: The usage of ground covering material under the tent during installation and dismantle will protect the tent fabric from soiling and from minor surface abrasions.

  • Page 5: General Hardware Care & Maintenance

    Every section of fabric produced by Aztec Tents contains a label identifying its flame resistance characteristics and date produced. This label matches a hard copy of the flame certificate that is mailed to you after receipt of your goods.

  • Page 6: Pre-Installation Guidelines

    Anchoring Tie Downs Although we use high quality thread and webbing for all of our sewn tie-down components, ultraviolet light from the sun will slowly breakdown these fibers over time. Chemicals, cleaners, or other products should not be used on webbing tie-down components as its use might accelerate this aging process.

  • Page 7: Post Installation Guidelines- Maintenance

    Post Installation Guidelines / Maintenance Each component of the tent should be inspected at the end of installation for visual signs of damage by the installer. Additionally, an inspection should be performed after any severe weather/wind events that might have affected the overall integrity of the design. All damaged materials should be repaired or replaced immediately.

  • Page 8: Special Care For Unsupported Clear Fabric

    Special Care For Unsupported Clear Fabric The clear fabric used in window style sidewalls, clear sidewalls, and clear tent tops needs to be managed differently than standard tent fabric. Polyester scrim is what gives standard tent fabric its strength, stability and durability. Laminated tent fabric enjoys the benefit of encasing this woven layer of rip-stop polyester between the layers of colored vinyl film.

  • Page 9: Installation Procedure 10X/15X/20X

    Installation Procedure: 10’x/15’x/20’x Step 1: Mark anchor locations with chalk or paint on the ground. Diagonal Dimensions: 10’x10’= 14’ 1 -11/16” 10’x20’= 22’ 4 -5/16” 15’x15’= 21’ 2 -9/16” 20’x20’= 28’ 3 -7/16” 20’x30’= 36’ 0 -11/16” 20’x40’= 44’ 8 -11/16” Step 2: Drive stakes, approximately six feet out from the perimeter of the tent with the hooks facing away from the tent.
  • Page 10 Step 4: Assemble the two piece side poles with the tip (pin) at the top end of the pole. Insert the side poles into the grommets and reinforcement rings around the perimeter of the tent top. Erect side poles and leave just short of vertical.
  • Page 11 Step7: Straighten the side poles around the tent so that they are vertical and plumb. Use the rope tensioners to pull the tent top tight. Be careful that you do not over tension one side of the tent as it will pull the opposite side out of vertical.

  • Page 12: Diagrams

    10x ATC Canopy Drawings www.aztectent.com...
  • Page 13 15x ATC Canopy Drawings www.aztectent.com...
  • Page 14 20x ATC Canopy Drawings www.aztectent.com...
  • Page 15 20x ATC Canopy Drawings www.aztectent.com...
  • Page 16 Pole Drawings www.aztectent.com...
  • Page 17 Pole Details www.aztectent.com...

  • Page 18: Parts Images

    1.75” Alum CP Section “I” 1.75” Alum CP Section “J” 1.75” OD Pole End Cap (Black) 1.75” OD Pole Pin- Plastic 3/8” Rope Slider- White ATC Canopy Pole Bag 24” Steel Stake w/Hook Liquid Vinyl Patch H-66 Vinyl Glue Vinyl Repair & Cleaning Supplies...

  • Page 19: Engineering Information

    ATC Canopy Engineering Specifications Design Criteria: ATC Canopy Pole Tent System Code: ASCE 7-10, CBC 2016 Wind Speed: 56MPH 3-Second Gust Exposure “C” Mean Recurrence Interval (MRI): 7.5 Years Notes: External guys to be installed at a position 1’ less than the height of side pole.

  • Page 20: Component Listing

    1.75” 4pc Alum CP x 12’5” (G,H,I,J) Z3921.750TX1206 1.375” Alum SP Section “E” Z3971.375TXE 1.375” Alum SP Section “F” Z3971.375TXF 1.75” Alum CP Section “A” ATC Z3971.750TXA 1.75” Alum CP Section “B” ATC Z3971.750TXB 1.75” Alum CP Section “C” ATC Z3971.750TXC 1.75”...
