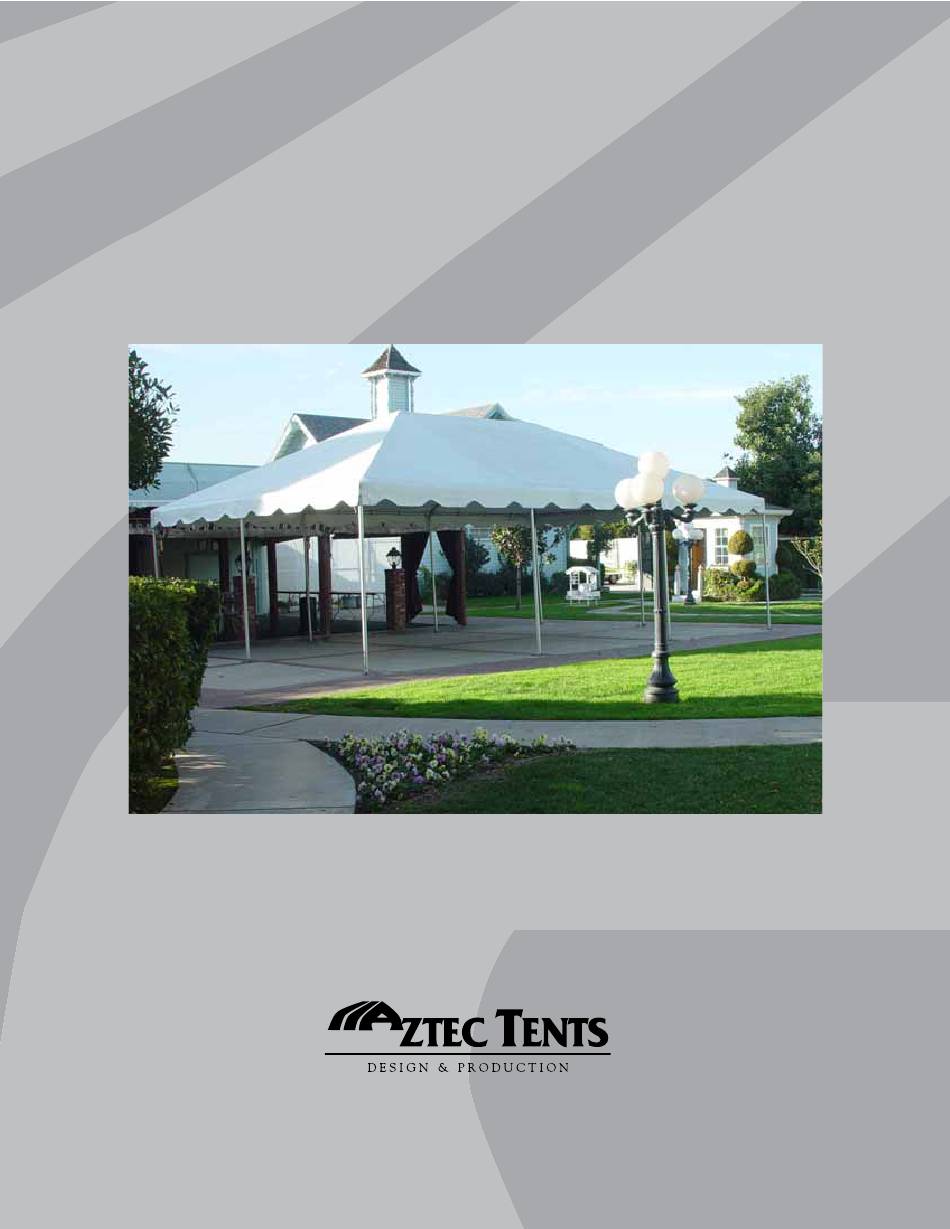

- Page 1 Install Instructions Traditional Frame Tent 490 Alaska Avenue Torrance, California 90503, USA (800) 228-3687 (310) 347-3010 F(310) 381-0722 www.aztectents.com/main...
- Page 2 Contents 10’x Install Instructions 10’x Standard Diagrams 15’x Install Instructions 15’x Standard Diagrams 10-12 20’x Install Instructions 13-15 20’x Standard Diagrams 16-18 30’x Install Instructions 19-22 30’x Standard Diagrams 23-26 40’x Install Instructions 27-29 40’x Standard Diagrams 30-32 Qwik Top Option Instructions 33-34 Replacement Parts Thank you for your recent purchase of an Aztec Frame Tent.
- Page 3 Installation Instructions: 10x Frame Tent Step 1: Lay out four (4) corner fittings and four (4-White 9' 4") (A) spreader pipe to form perimeter frame. Layout (4) hip rafters (Yellow 6’10”) “B” on the ground and place the 4pt Crown in the center of the tent. Step 2: Start assembling the frame by inserting and pinning the four hip rafter poles to the 4pt Crown.
- Page 4 Questions pertaining to the proper procedure for the installation of this and any tent product manufactured by Aztec Tents & Events should be directed to our design staff at (800) 228-3687.
- Page 8 Installation Instructions: 15x Frame Tent Step 1: Lay out four (4) corner fittings and four (4- 14' 4") spreader pipe to form perimeter frame. Layout (4) hip rafters (10’6”) on the ground and place the 4pt Crown in the center of the tent. Step 2: Start assembling the frame by inserting and pinning the four hip rafter poles to the 4pt Crown.
- Page 9 Questions pertaining to the proper procedure for the installation of this and any tent product manufactured by Aztec Tents & Events should be directed to our design staff at (800) 228-3687.
- Page 13 Installation Instructions: 20x Frame Tent Step 1: Lay out four (4) corner fittings and eight (8- 9' 4") spreader pipe to form perimeter frame. Lay out (4) hip rafters (14’4”) on the ground and place the 8pt Crown in the center of the tent. Step 2: Start assembling the frame by inserting and pinning the four hip rafter poles to the 8pt Crown.
- Page 14 Step 5: Continue by connecting and pinning the perimeter pipe to this corner and work your way around the tent connecting all of the perimeter pipes, side tees, and corner fittings until all of the upper framing is connected and pinned. Step 6: Carefully layout the tent top over the frame and use the buckles on the under- side of the top to attach to the frame.
- Page 15 Questions pertaining to the proper procedure for the installation of this and any tent product manufactured by Aztec Tents & Events should be directed to our design staff at (800) 228-3687.
- Page 19 Installation Instructions: 30x Frame Tent Step 1: Lay out the perimeter pipes, rafter poles, and hip rafter poles on the ground using the included diagram. Lay out the corner fittings, special side tee fittings, and crown fitting on the ground. Step 2: Connect and pin the four (4) 21’10”...
- Page 20 Step 5: Connect and pin the eight (8) 10’6” hip brace pipes to the “30x Slide hip Fitting”. Step 6: Now connect and pin the Special Side Tee fitting to the rafter pipe and the hip brace pipes Step 7: Install the 30’...
- Page 21 Step 10: For 1pc Tops skip to step 12. For expandable tops the multiple sections of the tent top fabric are joined with either a clasp or lace system and a velcro storm flap. The photo to the right shows the clasp style connection before the storm flap has been secured.
- Page 22 Questions pertaining to the proper procedure for the installation of this and any tent product manufactured by Aztec Tents & Events should be directed to our design staff at (800) 228-3687.
- Page 26 30'-0" OUTSIDE OF POLE TO OUTSIDE OF POLE...
- Page 27 Installation Instructions: 40x Frame Tent Step 1: Layout the perimeter pipes, rafter poles, and hip rafter poles and brace poles on the ground using the included color diagram. The entire included framework is color coded by length. Step 2: Start building the frame by connecting and pinning the four (4) 21’10” rafter pipes to the 8pt Crown fitting.
- Page 28 Step 5: Connect and pin the eight (8) 10’6” Braces to the 40x Hip Intermediate Fitting. Step 6: Start at one corner of the tent and begin to connect and pin the perimeter pipes. Install the corner fitting on the end of the 14’4” hip rafter and slide on the perimeter pipe.
- Page 29 Questions pertaining to the proper procedure for the installation of this and any tent product manufactured by Aztec Tents & Events should be directed to our design staff at (800) 228-3687.
- Page 33 Installation Instructions: Qwiktop Option Step 1: The Qwiktop Frame Tent is installed in a very similar manner as the standard expandable tops. Build your frame as shown in the previous instructions. The tent tops themselves do not have perimeter buckles to secure to the frame, but rather use valance tensioning to hold the fabric to the frame.
- Page 35 Parts Listing Item Item No. Weight lbs Item Item No. Weight lbs Z299P10610 6' 10" - 1" Pipe Z29900120 20x Std. Frame Assembly Cable Z299P10704 7' 4" - 1" Pipe Z29900130 30x Std. Frame Assembly Cable Z299P10708 7' 8" - 1" Pipe Z29900140 40x Std.
- Page 36 490 Alaska Avenue Torrance, California 90503, USA (800) 228-3687 (310) 347-3010 F(310) 381-0722 www.aztectents.com/main...
