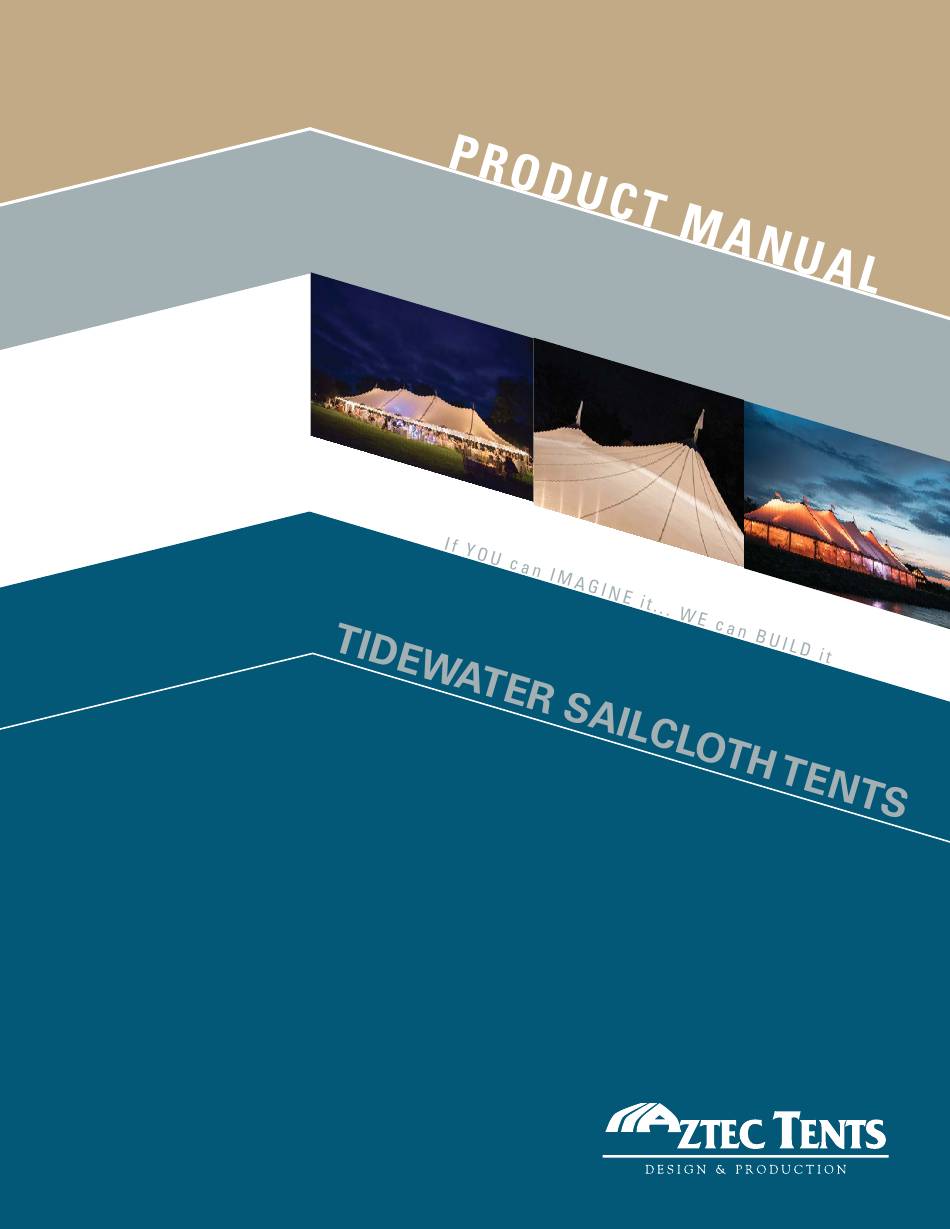

Aztec Tents TIDEWATER SAILCLOTH TENTS Product Manual

Hide thumbs Also See for TIDEWATER SAILCLOTH TENTS:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIDEWATER SAILCLOTH TENTS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aztec Tents TIDEWATER SAILCLOTH TENTS

Summary of Contents for Aztec Tents TIDEWATER SAILCLOTH TENTS

  • Page 2 (or is forecasted) or any condition arises items using certifi ed personnel. Aztec Tents shall be concerning the safe use of this product. indemnifi ed and held harmless from any such use or injury resulting from its use.

  • Page 3: Table Of Contents

    Thank you for your recent purchase from Aztec Tents. The following procedures will help you through your installation. If you ever run into problems with the installation of your Aztec Tent give one of our sales/service professionals a call. Other product specifi...

  • Page 4: General Fabric Care & Maintenance

    General Fabric Care & Maintenance The vinyl fabric developed for this tent system requires specifi c attention during installation, cleaning, and storage to maintain its maximum life span. Please follow the following care and maintenance guidelines provided for this product. GROUND CLOTHS: The usage of ground covering material under the tent during installation and dismantle will protect the tent fabric from soiling and from minor surface abrasions.

  • Page 5: General Hardware Care & Maintenance

    fl ame retardant, and thus will never require additional applications of fl ame retardant chemicals. Every section of fabric produced by Aztec Tents contains a label identifying its fl ame resistance characteristics and date produced. This label matches a hard copy of the fl...

  • Page 6: Pre-Installation Guidelines

    Pre-Installation Guidelines Correct fi eld installation of this tent system requires diligence and considerable skill and expertise which can be obtained only through the proper fi eld training and experience of a professional rental tent supervised installation crew. This is instrumental to obtaining the optimal structural behavior of the tent.

  • Page 7: Safety & Evacuation Planning

    Safety & Evacuation Planning It is the responsibility of the Owner and/or the Installer to warn the User and or Occupants of the tent system that this product is not intended to be used as a shelter from severe weather. Aztec assumes no liability for such use. An evacuation and communication plan for the area covered within this tented space is imperative and shall be thoroughly communicated to all users and potential occupants of the tent.

  • Page 8: Other Resources

    Other Resources American Rental Association- www.ararental.org Tent Rental Division of The Industrial Fabric Association International- www.tentexperts.org Tools Required for Installation 100’ Tape Measure (1 ea) 300’ Tape Measure (1 ea) Marking Paint/Chalk Used to mark anchoring locations and tent boundaries Squaring Jig (Optional but Recommended) Tidewater Install Straps...

  • Page 9: Installation Procedure

    Installation Procedure: Step 1: Layout and mark the terminating points for the legs, center poles and anchoring. Anchoring points shall be placed at a distance equal to twelve (12”) inches less than the leg height and in line of pull that falls directly in line with the corresponding center pole and corresponding leg.
  • Page 10 Step 4: Hold the Center Pole ring in place and move the squaring jig so that the Side Pole Marker 3 ring is positioned over the mark at SP-B. With the Center Pole Ring and Side Pole Marker 3 ring fi rmly secured, pull on the Side Pole Marker 2 ring to triangulate the next side pole position.
  • Page 11 Step 7: When opening the sections, make sure the lace line tags match up Q to Q or K to K. Step 8: With tent top on ground cover, attach the hook at the side pole and pull the center pole rings together. All work should be done from between the sections and not on top of them to avoid damage to the top.
  • Page 12 Step 10: Attach the Tidewater Flag. Unwrap the fl ag from the pole. Step 11: Insert the fi rst lace up through the fi rst grommet. On the twin pole tents, the center section laces from one pole to the other one.
  • Page 13 Step 13: Pull the second lace through the fi rst lace. Step 14: Pull down toward the third grommet. Step 15: Repeat inserting the lace up through the grommets then through the previous lace, pulling the sections together. Hint: Since the fabric panels are not fl at, there will be gaps between the 2 sections.
  • Page 14 Step 16: When you reach the side pole, the second to last, long lace goes through the last lace. Step 17: Tie the long lace to itself using a half hitch. Step 18: Using shoe covers or stocking feet, walk back to the top of the tent. Lay the section fl...
  • Page 15 Step 19: Distribute the side poles, stakes and tie downs around the tent near the marked locations. Center poles should be place with the top near the edge of the tent in the directions installer determines is the best angle. Best angle to install the fi...
  • Page 16 Step 22: Continue installing the side poles around the rest of the tent, using the second Tidewater Install Strap on opposite end of the tent if necessary. Step 23: Assemble and erect the center pole(s). From underneath the tent insert the tip (pin) of the centerpole through the ring at the peak and push the fabric toward the sky until the centerpole is vertical and the bottom of the pole is positioned on the mark made in Step 4.
  • Page 17 Step 25: Tie off the jumper ropes. Connected to each reinforcement fi tting at the leg pole position and peak positions is a 1/4” Polypropylene rope that should be tied to the poles to prevent the top from lifting off the poles during windy conditions. Note: This may need to be done in Step 22 if the wind threathens to lift the top off the side poles before the center poles are installed.

  • Page 18: Marking Using Tape Measures

    Tidewater Squaring: Tape Measure Version Step 1: The Squaring Diagram (Example 44’x83’) Step 2: With 2 tape measures, establish the interior box, square with diagonal measurement establishing the four corner side pole positions. For this example we’ll designate the two corner side poles on the left side of the drawing as SP-A and SP-B Step 3: Mark the center pole locations.
  • Page 19 Step 4: Triangulate the “round end” side pole locations. The distance from the center pole to each side pole on the “round end” is constant. (On the 44x83 example shown, the distance is 22’ 5 5/8”) Anchor the end of one tape measure at “CP”...

  • Page 20: King-Queen Layout Diagrams

    www.aztectent.com...

  • Page 21: 20' Layout And Squaring Diagrams

    www.aztectent.com...
  • Page 22 www.aztectent.com...

  • Page 23: 32' Layout And Squaring Diagrams

    www.aztectent.com...
  • Page 24 www.aztectent.com...

  • Page 25: 44' Layout And Squaring Diagrams

    www.aztectent.com...
  • Page 26 www.aztectent.com...

  • Page 27: 51' Layout And Squaring Diagrams

    www.aztectent.com...
  • Page 28 www.aztectent.com...

  • Page 29: 57' Layout And Squaring Diagrams

    www.aztectent.com...
  • Page 30 www.aztectent.com...

  • Page 31: 59' Layout And Squaring Diagrams

    www.aztectent.com...
  • Page 32 www.aztectent.com...

  • Page 33: 81' Layout And Squaring Diagrams

    www.aztectent.com...
  • Page 34 www.aztectent.com...

  • Page 35: Replacement Parts

    Parts Listing Components Item Number Weight Tidewater Flag White (18”x54”) Z335ZFLAG Tidewater Flag White (18”x120”) Z335ZFLAG10 Tidewater Flagpole Z335ZFLAGPOLELG 7x10 Tidewater Solid Wall-Wht Z338071001 7x10 Tidewater Panorama(P1) Z338071002 7x10 Tidewater French(F1) Wall Z338071003 7x10 Tidewater Clear Wall-Wht Z338071004 8x10 Tidewater Solid Wall-Wht Z338081001 8x10 Tidewater Panorama(P1) Z338081002...

  • Page 36: Parts Images

    ® Tidewater Parts Images Tidewater Flag-54” Tidewater Flag-120” Tidewater Flagpole Tidewater Install Strap Tidewater Cord Cover 2.5” 1pc Alum SP 3x3 Wood Sidepole Wood Grain Powder coated SP Wood Grain Powder coated CP Aluminum Center Pole 2” In-Line Ratchet 1” In-Line Ratchet 1”x42”...

  • Page 37: Engineering Specifi Cations

    ® Tidewater Engineering Specifi cations Design Criteria: Code: ASCE 7-10 Wind Speed: Varies according to specifi cations below Exposure: Category C (Open Terrain) Mean Recurrence Interval (MRI): 2Years Building Category: II Notes: The following loading for suspended equipment has been included within the calculations. Maximum hanging load per leg is 50lbs, and maximum hanging load per centerpole is 200lbs.
  • Page 38 ® Tidewater Load Summary- 32’ Width LD Pole Design- HD Pole Design- 115mph wind speed reduced to 78mph effective wind speed 140mph wind speed reduced to 95mph effective wind speed Sidepole- 2.5”OD x 0.083” wall 6061-T6 Aluminum Sidepole- 2.0”SCH40 6061-T6 Aluminum Center pole- 4.0”...
  • Page 39 ® Tidewater Load Summary- 57’ Width LD Pole Design- HD Pole Design- 115mph wind speed reduced to 78mph effective wind speed 140mph wind speed reduced to 95mph effective wind speed Sidepole- 2.5”OD x 0.083” wall 6061-T6 Aluminum Sidepole- 2.0”SCH40 6061-T6 Aluminum Center pole- 4.0”...
