X-Range
Barbecues
Assembly Instructions
Photograph is not to scale. Specifications may differ slightly from the images shown.
Assembly refers to the X450 model. The same assembly steps apply for the X250, X350 and
X475 models.
X250 Model
X350 Model
Product Features
Ignition Type: Electronic Ignition (main burners), Piezo Ignition (side burner)
Grill Type: Sahara® Grill Insert System
Side Burner: Yes
Side Cart: Yes (for X475 Model)
Warming Rack Type: Extendable
Drinks Holder: Yes
Viewing Window: Yes
Rotisserie Compatible: Yes
Manufactured by
Universal Innovations
Before you begin

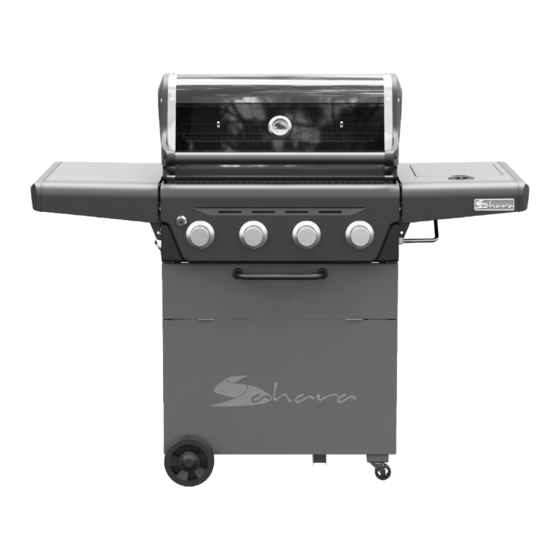

X450 Model
DOWNLOAD THE FREE APP
682A/683A/684A
X475 Model
Advertisement
Related Manuals for Universal Innovations Sahara X Series
Summary of Contents for Universal Innovations Sahara X Series
- Page 1 Ignition Type: Electronic Ignition (main burners), Piezo Ignition (side burner) Grill Type: Sahara® Grill Insert System Side Burner: Yes Side Cart: Yes (for X475 Model) Warming Rack Type: Extendable Drinks Holder: Yes Viewing Window: Yes Rotisserie Compatible: Yes Manufactured by Universal Innovations 682A/683A/684A...
-
Page 2: Parts Supplied
Parts Supplied Description Illustration Description Illustration Grease Tray Base Grease Cup Left + Right Bracket Side Wall Grease Cabinet Brace Plate Grease Cup Cap Left Cabinet Side Shelf* Front Panel Gas Hose + Axle Regulator Assembly Parts 20 - 27 only apply to the X475 Model. Castor Castor Assembly... -
Page 3: Tools Required For Assembly
Main Burner Heat Input (X450): 3.9kW (main burner) x 4 =15.6kW 0359DL05646 Global Headquarters Main Burner Heat Input (X475): 3.9kW (main burner) x 4 =15.6kW Universal Innovations Kilcoole Industrial Estate Main Burner Heat Input (X250): 3.9kW (main burner) x 2 =7.8kW Kilcoole Co. Wicklow... -
Page 4: Assembly Step
Assembly Step 1 Left + Right Side Wall Base M6x12 Bolt (Ref A) Fit left and right side walls to base as shown below using 8 of the M6x12 bolts (Ref A). Finger-tighten only at this stage. This is a view from the back. M6x12 Bolts (Ref A) Ensure flat surface is facing upwards. - Page 5 Assembly Step 2 Cabinet Brace Plate M6x12 Bolt (Ref A) Fit the two cabinet brace plates to the base and side wall assembly using 8 of the M6x12 bolts (Ref A) as shown below. Finger-tighten only at this stage. M6x12 Bolts (Ref A)
- Page 6 Assembly Step 3 Cabinet Front Panel M6x12 Bolt (Ref A) Note: Flip cabinet assembly over so that the left side wall is on the ground. Fit cabinet front panel to base and side wall assembly as shown below using 6 of the M6x12 bolts (Ref A). Finger-tighten only at this stage.
- Page 7 Assembly Step 4 Secure chain to cabinet front panel using the pre-fitted M6x12 bolt and washer. Tighten all bolts at this stage.
- Page 8 Assembly Step 5 Axle Assembly Castor Assembly M6x12 Bolt (Ref A) Turn the barbecue cabinet over and fit axle assembly and two castor assemblies to the barbecue cabinet base using 16 of the M6x12 bolts (Ref A). Note: Axle side with cut-out goes to back side of cabinet.
- Page 9 Assembly Step 6 Cylinder Supports M6x12 Bolt (Ref A) Turn the barbecue cabinet over and fit the two cylinder supports using 5 of the M6x12 bolts (Ref A). Note: Once barbecue is assembled and rolled into position, press castor levers down to lock castors in place.
- Page 10 Assembly Step 7 M6x12 Bolt (Ref A) Thermometer Sink + Hood Assembly Position sink + hood assembly onto cabinet. Open hood and use 4 M6x12 bolts (Ref A) to secure sink + hood assembly to cabinet. Be sure that the edges of the sink and hood assembly are even with the edges of the barbecue cabinet before tightening bolts.
- Page 11 Assembly Step 8 Note: The Right Side Shelf is equipped with a side burner as shown in the figure to the left. Use the burner for heating sauces or liquids in a small pan, or for various other food preparations. Note: There is a protective plastic cap fitted to the end of the gas pipe.
- Page 12 Assembly Step 9 Warming Rack Cooking Grill Vaporising Bars (x4) 1. Fit vaporising bars (x4) into position as shown. 2. Fit cooking grill into position as shown. 3. Fit warming rack into position as shown. Note: As a convenience feature, there is a bottle opener on the left side of the barbecue sink + hood assembly.
- Page 13 Assembly Step 10 Grease Tray Grease Cup Bracket Grease Cup Grease Cup Cap Attach grease cup bracket and grease cup cap to grease tray using the pre-fitted wing bolt and then slide grease cup into the grease cup bracket. Slide grease tray into the back of the barbecue as shown below.
- Page 14 Assembly Step 11 Note: If your BBQ has a side cart, skip this step. If your BBQ has no side cart, the next step is the last step. Left Side Shelf Use 2 x M6 step bolts (pre-fitted) to secure the left side shelf. Note: side tray can be folded down for easy storage.
- Page 15 Assembly Step 12 IMPORTANT: If your barbecue has been pre-assembled, please check the hose connection to ensure it is tight. LED Control Dials If your barbecue has LED Control Dials: 1. Place 4 x AA batteries into the battery box. 2.
- Page 16 Assembly Step 13 Trolley Frame x 2 Castor Wheel (x4) Fit the 4 castor wheels to the trolley frames as shown below. The castor wheels screw into the bottom of the trolley frame legs and need to be tightened with a 13mm spanner. Tighten here...
- Page 17 Assembly Step 14 Trolley Frames M6x12 Bolt (Ref A) Trolley Shelf (x2) Lie one of the trolley frames down and attach the middle trolley shelf first using 2 of the M6x12 bolts (Ref A). Then attach the bottom trolley shelf using 3 of the M6x12 bolts (Ref A). Then attach the other trolley frame using 5 of the M6x12 bolts (Ref A).
- Page 18 Assembly Step 15 Trolley Rail (x2) Handle Assembly M6x45 Bolt (Ref B) M6x12 Bolt (Ref A) Fit two trolley rails to trolley frame as shown using 8 of the M6x45 bolts (Ref B). Fit handle assembly to side trolley using 2 of the M6x12 bolts (Ref A).
- Page 19 Assembly Step 16 Tabletop Chopping Board M6x12 Bolt (Ref A) Utility Bin Attach tabletop to trolley frame using 5 of the M6x12 bolts (Ref A). Place utility bin and chopping board into tabletop as shown.
- Page 20 Assembly Step 17 To fit the trolley to the barbecue body, push the trolley and barbecue body together and apply the trolley wheel brakes.
