Cobalt Digital Inc Blue Box BBG-EMDE-AES75 Manual

BBG-EMDE-AES75
3G/HD/SD AES Audio Embedder / De-Embedder
(AES-3id BNC)

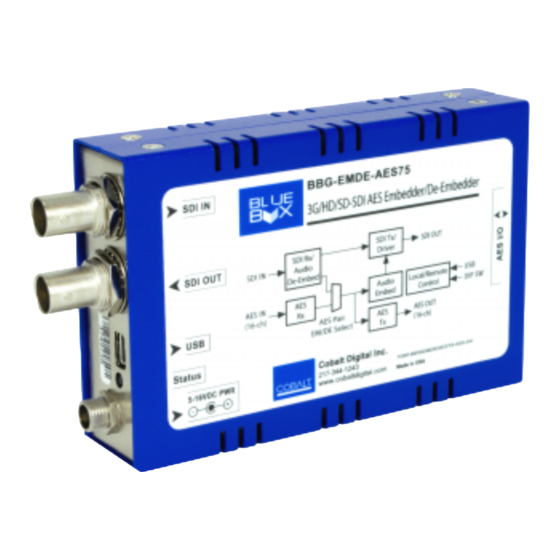

The BlueBox™ BBG-EMDE-AES75 3G/HD/SD AES Audio Embedder / De-Embedder
(hereinafter "BBG-EMDE-AES75") provides embedding and de-embedding between 16 AES
and embedded audio channels. Each AES pair can be set as input (embed) or output (receive
de-embedded). BBG-EMDE-AES75 provides eight BNC pairs (via a HD-15 connector or by
accessory BNC male breakout adapter cable, PN BBG-CA-75-BNCM).
Embed/de-embed select can be performed using a DIP switch on the bottom of BBG-EMDE-
AES75, or via a free remote control application that can be downloaded from
www.cobaltdigital.com > Support. This application then allows GUI control of BBG-EMDE-
AES75 via a USB connection. Refer to the "Installing and Using BBGConfig" sheet
provided with this unit if USB remote control is desired.
SDI Rx/
Audio
3G/HD/SD-SDI IN
De-Embed
AES Rx
AES IN
SRC
(16-ch)
Connecting BBG-EMDE-AES75
1 Connect the supplied AC adapter to BBG-EMDE-AES75 DC power input 5-16VDC PWR.
2. Connect SDI input and output. (If BBG-EMDE-AES75 is being used purely as a de-
embedder with no SDI pass-thru to downstream device(s), the SDI OUT connector does
not require termination if unused.)
3. Connect AES connections as follows:
• If using accessory breakout cable BBG-CA-75-BNCM, connect this cable between the
AES I/O HD-15 connector on BBG-EMDE-AES75. AES breakout is as listed below.
• If it is desired to connect to your own AES audio HD-15 cable , make certain pinouts
comform to those shown below (view shows "looking into" BBG-EMDE-AES75 connector).
1
6
11
SDI Tx/
3G/HD/SD-SDI OUT
Driver
USB
Local/Remote
Audio
Control
DIP SW
Embed
AES OUT
AES Tx
(16-ch)
AES Pair Cable Connector Cable Color HD-15 Pin
1 (1/2) A1 BLK
2 (3/4) A2 RED
3 (5/6) A3 GRY
4 (7/8) A4 WHT
5 (9/10) B1 BLU
6 (11/12) B2 GRN
7 (13/14) B3 VIO
8 (15/16) B4 YEL
All GND connections are common to connector shell.
1
Embed Select Using DIP Switch Bank
BBG-EMDE-AES75 can be used in a local control mode using DIP switches to configure
embedding/de-embedding, or via USB remote control. Refer to diagram on rear page or unit
label for switch positions.
• If using DIP switch control, make certain switch SW1 is set to ON. USB remote control
is locked out in this mode.
• If using USB remote control, make certain switch SW1 is set to OFF. DIP switch local
control is locked out in this mode.
AES Receive SRC
BBG-EMDE-AES75 is equipped with audio embed adaptive SRC that allows asynchronous
48 kHz AES audio to automatically sync with the device 48 kHz timing for glitch-free
embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is
detected on an AES input pair.
Status Indicator
BBG-EMDE-AES75 has a Status LED on the side of the unit which functions as follows:
• Solid ON – Input lock OK
• Slow Flash – Unlocked to input video; input video not present
Specifications
Item
Standards supported:
Inputs/Outputs:
Outputs:
Audio conversion format:
Power source:
Dimensions (WxHxD):
EMC Compliance
11
7
15
14
10
9
13
12
Description/Specification
SMPTE 259M, 292M, 424M
(1) 3G/HD/SD-SDI In (75Ω BNC)
(1) DC Power (+5-16 VDC)
(1) 8-channel AES-3id 75Ω I/O via HD-15 connector (accessible as eight BNC
male connectors using accessory breakout cable BBG-CA-75-BNCM (not
included))
(1) USB remote control connector (Mini-USB)
(1) 3G/HD/SD-SDI, 75Ω BNC with selectable AES pair 1-8 embedding
48 kHz sampling, 24-bit with adaptive SRC. Auto SRC bypass for Dolby®
embedding.
5-16 VDC, <5 W. Powered using corded AC adapter (included).
5.5" x 3" x 1" (including connector projections) (139 x 77 x 26 mm)
FCC "Code of Federal Regulations" Title 47 Part 15, Subpart B, Class A
ICES-003
CISPR 24:2010
IEC 61000-4-2:2008
IEC 61000-4-3:2006 with A1:2007 and A2:2010
IEC 61000-4-4:2004
IEC 61000-4-6:2008
CISPR 22:2008
2
