5. Device overview

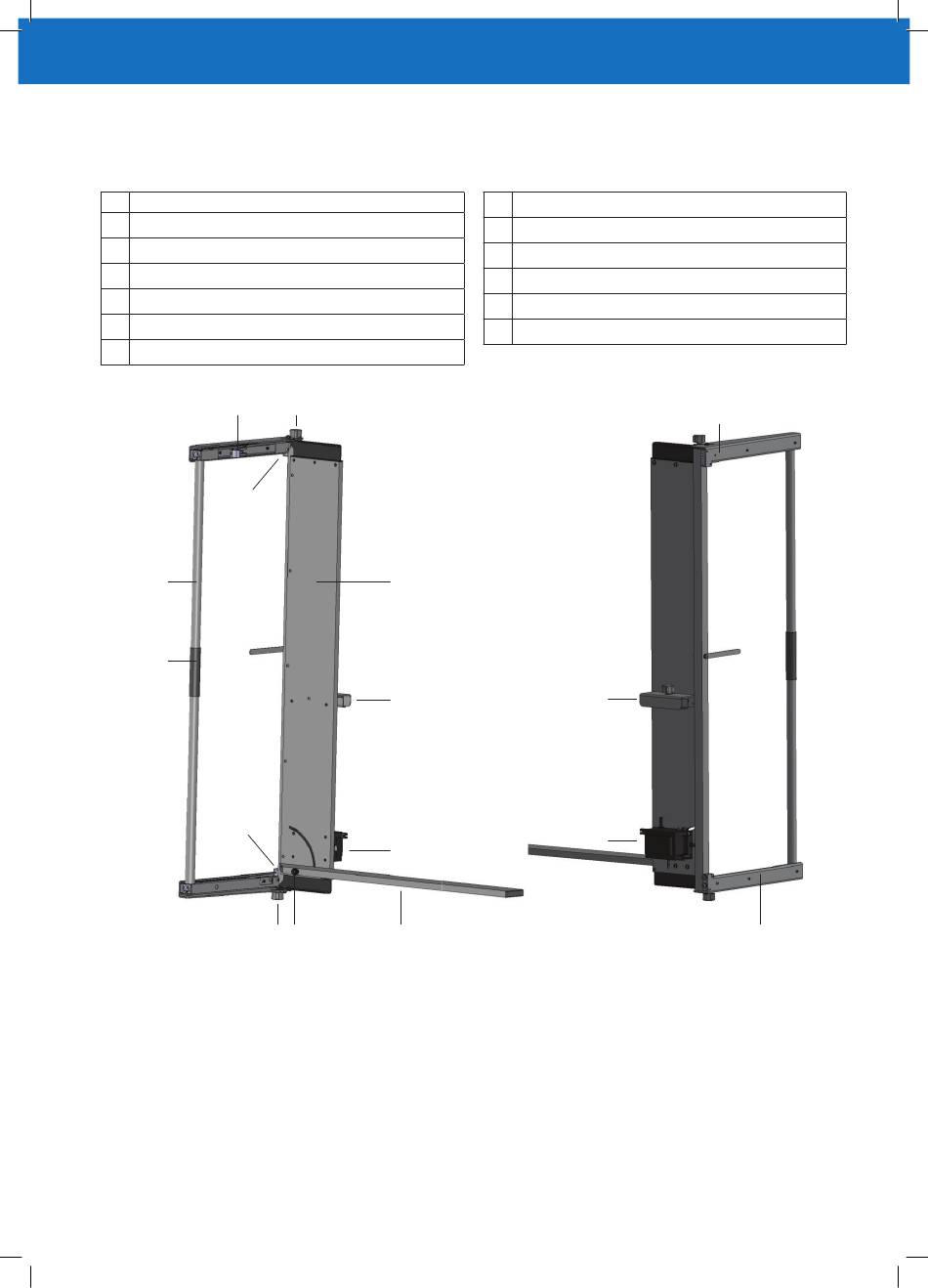

5.1 Overview
1 Base plate
2 Cutting bow
3 Bearing rail
4 Transformer with on/off switch and fuse
5 Device holder for frame and support leg
6 Mitre aid
7 Locking screw for cutting bow
8
13
2
9
13
62
7
1
5
4
7 10 3
8 Wire tightener
9 Cutting bow handle profile
10 Fastening screw for bearing rail
11 Ball bearing slide, upper
12 Ball bearing slide, bottom
13 Wire guiding roller, upper and bottom
5
4
Translation of the original instruction
11
12
