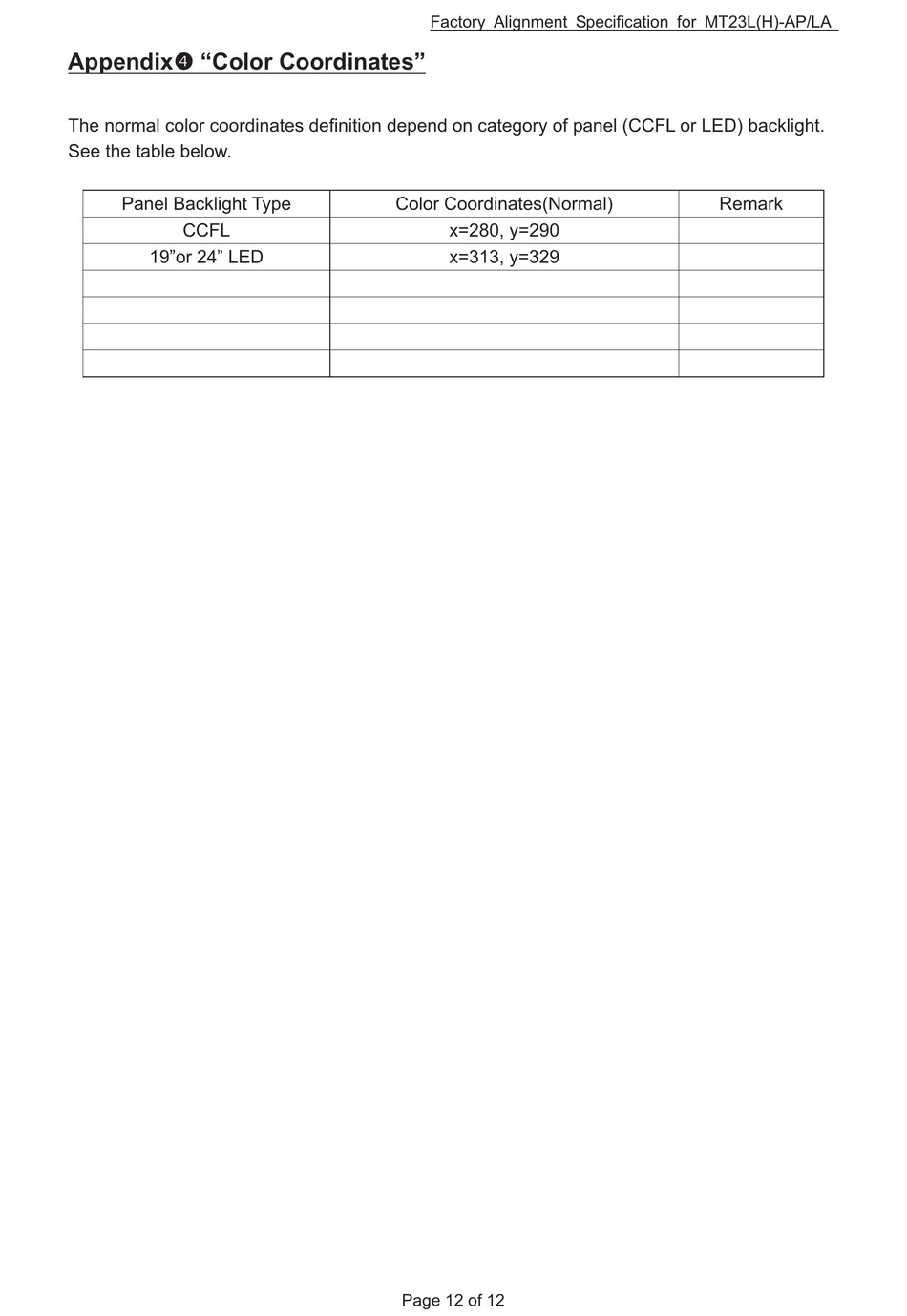

Appendixq "Color Coordinates"
The normal color coordinates definition depend on category of panel (CCFL or LED) backlight.
See the table below.
Panel Backlight Type
CCFL
19"or 24" LED
Factory Alignment Specification for MT23L(H)-AP/LA
Color Coordinates(Normal)
x=280, y=290
x=313, y=329
Page 12 of 12
Remark
