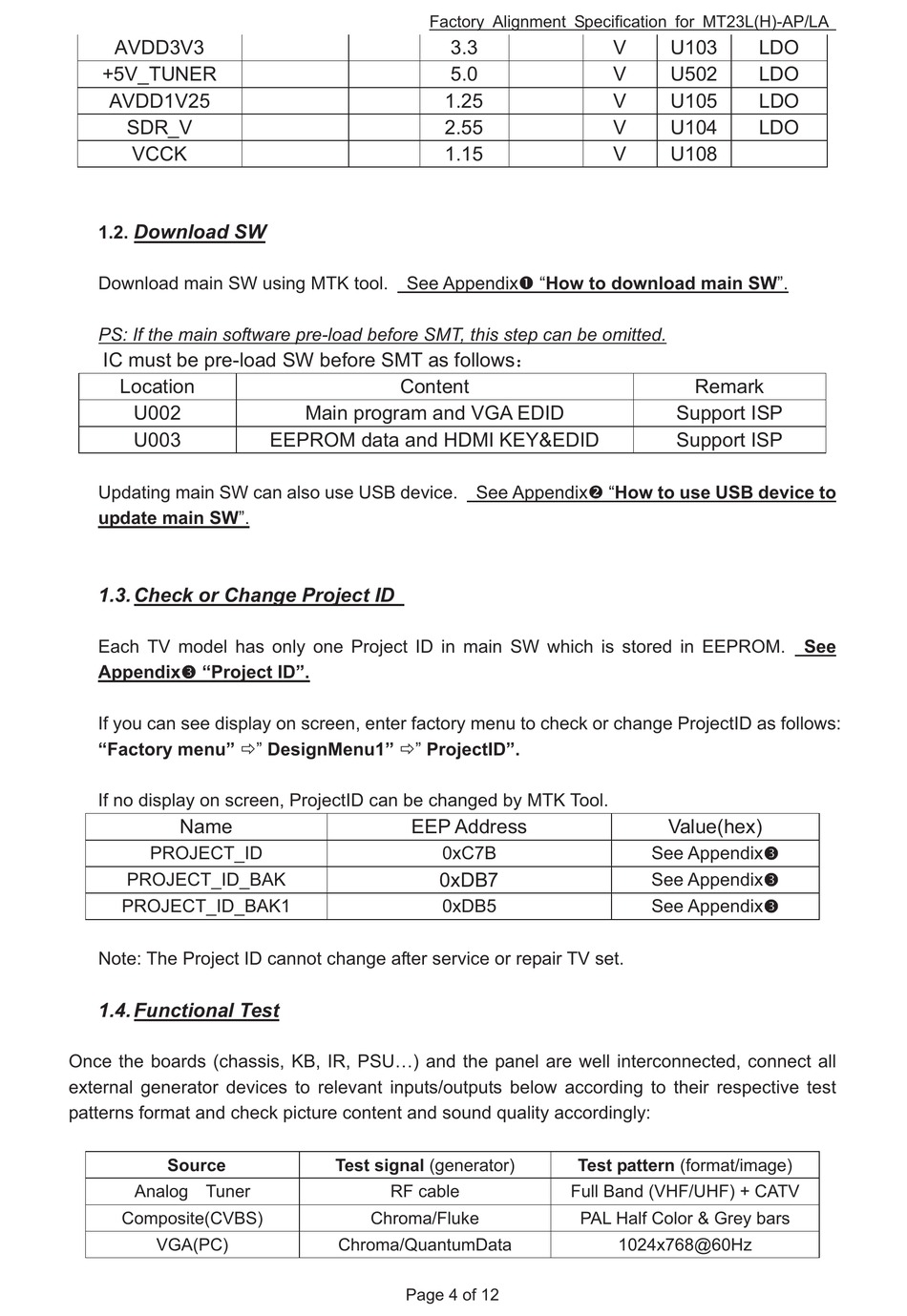

TCL 32E320 Service Manual page 10

AVDD3V3
+5V_TUNER
AVDD1V25
SDR_V
VCCK
Download SW
1.2.
Download main SW using MTK tool. See Appendixn "How to download main SW".
PS: If the main software pre-load before SMT, this step can be omitted.
IC must be pre-load SW before SMT as follows
Location
U002
U003
Updating main SW can also use USB device. See Appendixo "How to use USB device to
update main SW".
1.3. Check or Change Project ID
Each TV model has only one Project ID in main SW which is stored in EEPROM. See
Appendixp "Project ID".
If you can see display on screen, enter factory menu to check or change ProjectID as follows:
"Factory menu" Ö" DesignMenu1" Ö" ProjectID".
If no display on screen, ProjectID can be changed by MTK Tool.
Name
PROJECT_ID
PROJECT_ID_BAK
PROJECT_ID_BAK1
Note: The Project ID cannot change after service or repair TV set.
1.4. Functional Test
Once the boards (chassis, KB, IR, PSU...) and the panel are well interconnected, connect all
external generator devices to relevant inputs/outputs below according to their respective test
patterns format and check picture content and sound quality accordingly:
Source
Analog Tuner
Composite(CVBS)
VGA(PC)
Factory Alignment Specification for MT23L(H)-AP/LA
Content
Main program and VGA EDID
EEPROM data and HDMI KEY&EDID
EEP Address
0xDB7
Test signal (generator)
RF cable
Chroma/Fluke
Chroma/QuantumData
Page 4 of 12
3.3
5.0
1.25
2.55
1.15
0xC7B
0xDB5
Test pattern (format/image)
Full Band (VHF/UHF) + CATV
PAL Half Color & Grey bars
V U103 LDO
V U502 LDO
V U105 LDO
V U104 LDO
V U108
Remark
Support ISP
Support ISP
Value(hex)
See Appendixp
See Appendixp
See Appendixp
1024x768@60Hz
