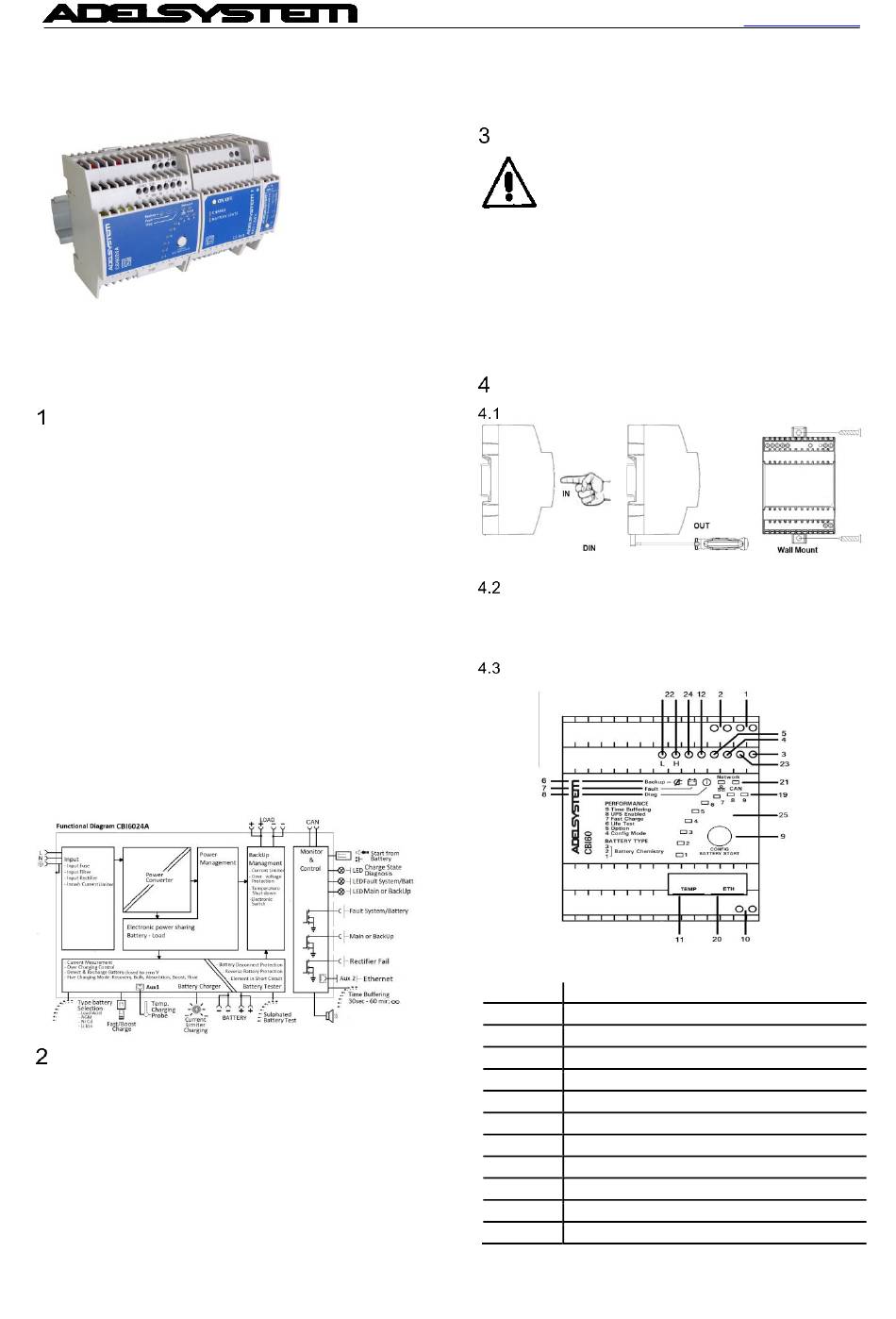

ADELSYSTEM CBI60 Instruction Manual

DC Ups CBI60 "All in One"
CBI6012A and CBI6024A
Instruction Manual
Thank you for having chosen one of our products for your work.
We are certain that it will give the utmost satisfaction and be a notable
help on your job and application.
Product Description
New revolutionary product, with Ethernet on Board provided with protocol
connections: HTTPS, SNMPv3, ModBus TCP. The device also features
the ADELBus protocol for connecting other ADELSystem devices.
Thanks to "All In One" CBI series of DC-UPS, it will be possible to
optimize the power management of your system with one single,
extremely compact and cost-effective device, connected directly to the
mains. The available power is automatically distributed between load and
battery giving priority to the load. Battery can supply the load even with
mains so the output power to the load can be twice the nominal power if
required (Power Boost). When mains failure occurs, the load continues
to be supplied by the battery in backup mode. It is also possible to switch
on the device with no mains directly from battery. The "Battery Care"
algorithm performs rapid and automatic charging, continuous battery
charge optimization, flat batteries recovery and real time diagnosis during
installation and operation. Temperature compensation is possible by
connecting the temperature sensor probe. The real time auto-diagnostic
system monitors battery faults such as sulphated battery, shorted cells,
accidental reverse polarity connection or disconnection of the battery.
Each fault is signaled by a blink code of Diagnosis Led or via Modbus in
order to be easily detected and removed during the installation and after
sales. The continuous monitoring of battery efficiency reduces the risk of
battery damage and allows a safe operation in a permanent connection.
Predefined curves can be selected on the front panel to optimize the
charge of different battery types: Open Lead Acid, AGM and Gel Lead
Acid; Ni-Cd, Li-Ion are rechargeable using the same device. Charging
curves can be customized via Modbus. Output contacts are used to
signal both backup and fault conditions. A rugged casing with bracket for
DIN rail or Wall mounting.
Main Characteristics
•
Universal input voltage: single-phase 100–277 Vac
•
Load output:24 Vdc 2.5 A; 12 Vdc 5 A
•
Battery output:24 Vdc 2.5 A; 12 Vdc 5 A
•
"All In One" solution: power supply + battery charger + backup
module in one single device connected directly to the mains
•
Suited for different battery types: Open Lead Acid, Sealed
Lead Acid, AGM and Gel Lead Acid; Ni-Cd and Li-ion. 5-stage IUoU
(Recovery, Bulk, Absorption, Float, Refresh Battery) plus Recovery
stage for deeply discharged batteries
•
Automatic diagnosis of battery status and battery Life Test
function (Battery Care)
•
Switching technology with high efficiency
•
Protected against short circuit, overload and inverted polarity
Via Luigi Barchi 9/B – Reggio Emilia 42124 – Italy
Tel. +39 0522 345518 – Fax +39 0522 345551 –
•
Solid state output contact for signaling Low Battery or Battery
Replacement and Fault system.
•
IP20 protection degree
•
Space saving on DIN rail
Safety and warning notes
To safely operate this Device please read and follow all
instructions carefully before attempting to unpack, install,
or operate.
WARNING – Explosion Hazard: do not disconnect
equipment unless power has been switched off or the area
is known to be non-hazardous.
WARNING – Explosion Hazard. Replacement of components may impair
suitability for class I, Division 2.
WARNING – Switch off the system before connecting the module. Never
work on the machine when it is live. The device must be installed
according to EN61010 or EN62368-1. The device must have a suitable
isolating facility outside the power supply unit, via which it can be
switched to idle. Danger of fatal injury!
WARNING – The device is equipped whit an internal fuse. If the internal
fuse blows up (fails opens), it is most probable that there is a fault in the
device. If this failure occurs, the device must be returned to the factory.
How to Install
Mounting
Fig. 1 – Mounting of the CBI60
Din Rail or Panel Mounting
Fig. 1 shows how to install the CBI60. It is possible to mount the device
on DIN rail or on a panel and fix it by 4 screws 2.9x8-16. There is no limit
for the panel thickness.
Device Connection (Fig.2)
Fig. 2 –Connection terminal
Reference Description
1 Battery
2 Load
System fault – Rectifier alarm
4
Mains – Backup
5
Mains – Backup LED
6
Battery fault – System fault LED
7
8 Diagnosis LED
Configuration – Start from Battery
9
10 Input Vac
Aux1: RJtemp – DPY353
11
12 Start from Battery: (close to negative load)
