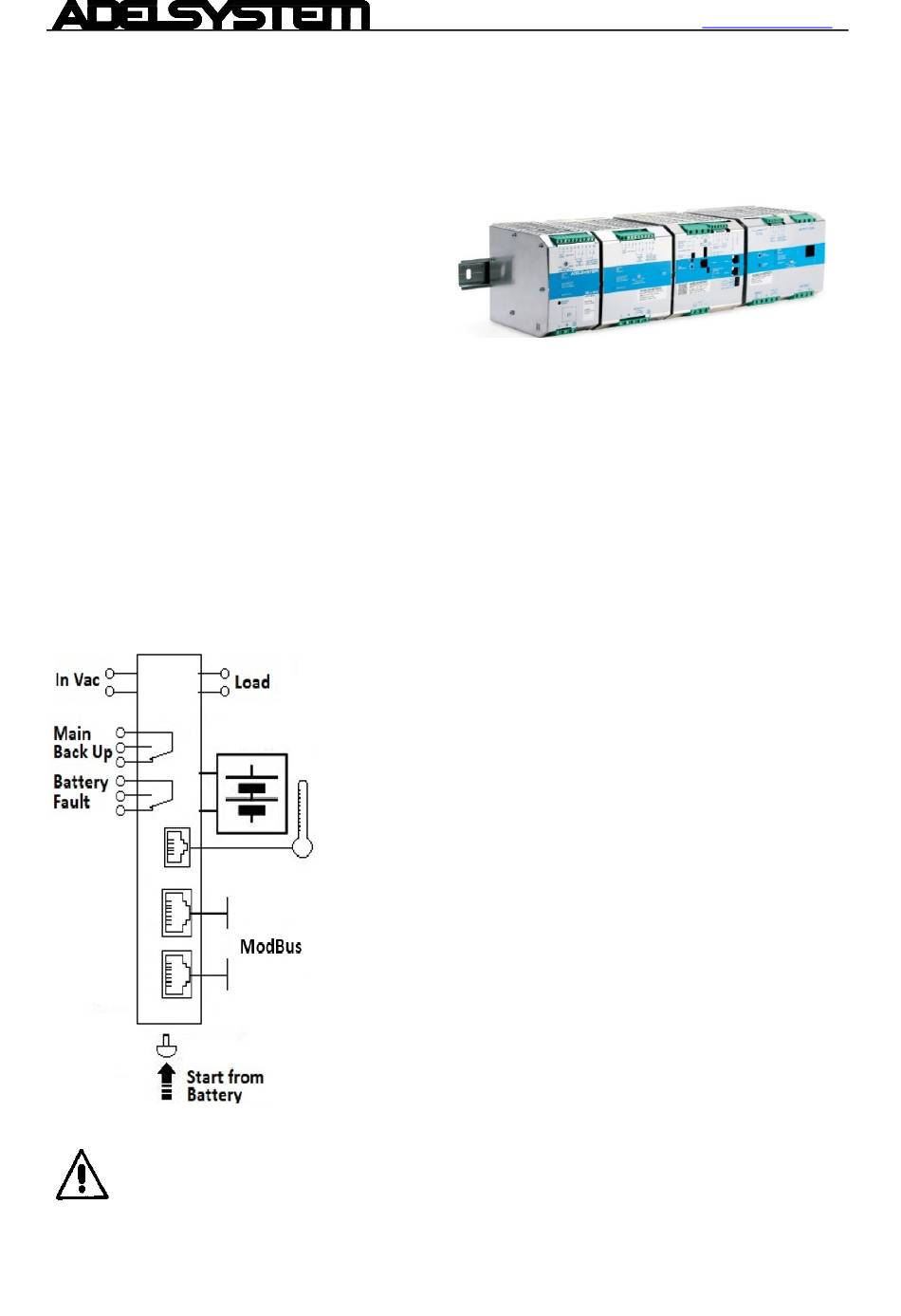

ADELSYSTEM ALL IN ONE CBI Series Operator's Manual

Operator manual: ADELSystem reserves the right to change the contents of this document without prior
notice.
1 "ALL IN ONE" DC UPS SERIES
Thank you for having chosen one of our products for your work.
We are certain that it will give the utmost satisfaction and be a notable help on the job.
2 GENERAL DESCRIPTION

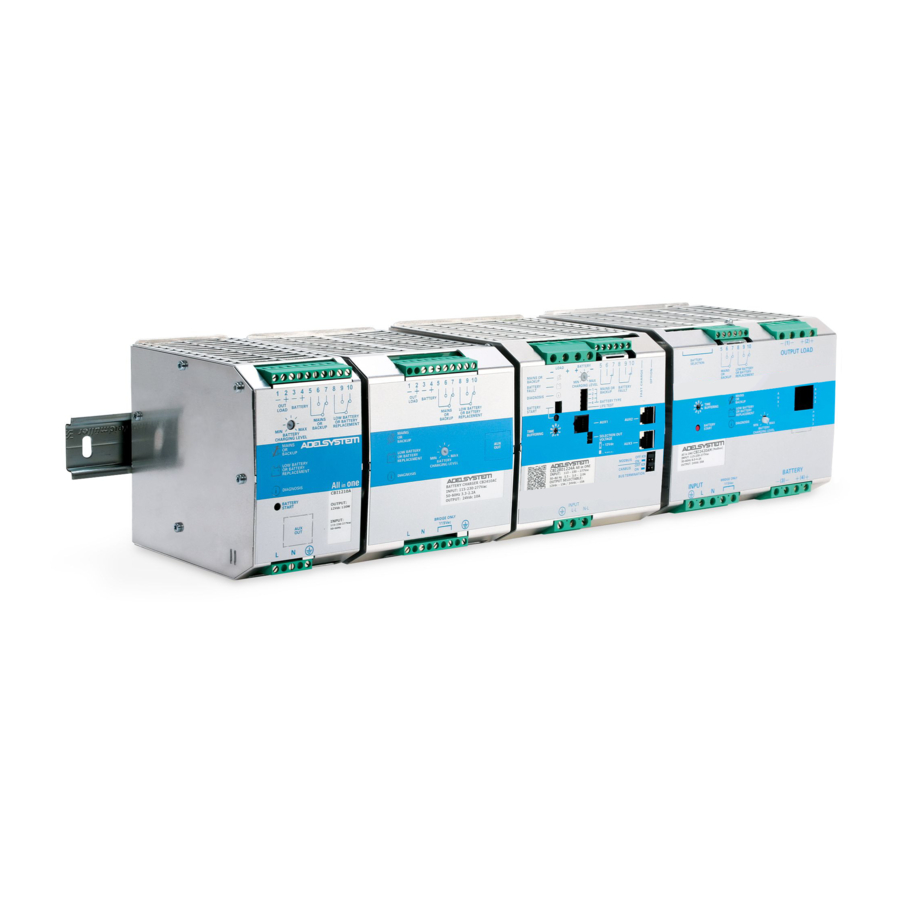

Thanks to "All In One" CBI series of DC-UPS, it will
be possible to optimize the power management of
your system with one single, extremely compact and
cost-effective device, connected directly to the
mains. The available
distributed between load and battery giving priority
to the load. Battery can supply the load even with
mains so the output power to the load can be twice
the nominal power if it is required (Power Boost). When mains failure occurs, the load continues to be
supplied by the battery in backup mode. It is also possible to switch on the device with no mains directly
from battery. The "Battery Care" algorithm performs rapid and automatic charging, battery charge
optimization during time, flat batteries recovery and real time diagnosis during installation and operation.
Temperature compensation is possible by connecting the temperature sensor probe. The real time auto-
diagnostic system monitors battery faults such as sulphated battery, shorted cells, accidental reverse
polarity connection or disconnection of the battery. Every fault is signaled by a blink code of Diagnosis
Led or via Modbus (only in some models) in order to be easily detected and removed during the
installation and after sales. The continuous monitoring of battery efficiency reduces risk of battery
damage and allows a safe operation in permanent connection. Predefined curves can be selected by
jumpers or DIP switch to optimize the charge of different battery types: Open Lead Acid, AGM and Gel
Lead Acid; Ni-Cd are rechargeable using the same device. Charging curves can be customized via
Modbus (only in some models). Output dry contacts are used to signal both backup and fault conditions.
A rugged casing with bracket for DIN rail mounting provides IP20 protection degree.
3 MAIN CHARACTERISTICS
4 SAFETY AND WARNING NOTES
• WARNING – Explosion Hazard. Do not disconnect Equipment unless power has
been switched off or the area is known to be non-hazardous.
• WARNING – Explosion Hazard. Substitution of components may impair suitability for
class I, Division 2.
• WARNING – Switch off the system before connecting the module. Never work on the machine when it
is live. The device must be installed in according with UL508 or UL60950. The device must have a
Tel. +39 0522 345518 – Fax +39 0522 345551 –
power is automatically
• Universal input voltage: single-phase 115–230-277 Vac
• Load output:24 Vdc 3,5,10,20A; 12 Vdc 3,6,10,15,35A 48
Vdc 5,10A
• Battery output:24 Vdc 3,5,10,20A; 12 Vdc 3,6,10,15,35A; 48
Vdc 5,10A
• "All In One" solution: power supply + battery charger +
backup module in one single device connected directly to the
mains
• Suited for different battery types: Open Lead Acid, Sealed
Lead Acid, AGM and Gel Lead Acid; Ni-Cd and Li-ion are
available as options. Four stage charging curve for Lead Acid
batteries: 5-stage IUoU (Recovery, Bulk, Absorption, Float,
Refresh Battery) plus Recovery stage for deeply discharged
batteries
• Automatic diagnosis of battery status and battery Life Test
function (Battery Care)
• Switching technology with high efficiency
• Protected against short circuit, overload and inverted polarity
• Output dry contact for signaling Low Battery or Battery
Replacement and Fault system
• Output dry contact for signaling Mains or Backup
• IP20 protection degree
• Space saving on DIN rail
Via Luigi Barchi 9/B – Reggio Emilia 42124 – Italy
Instruction Manual All In One R47_1pag1-12_A24.AAA.006A41.doc
