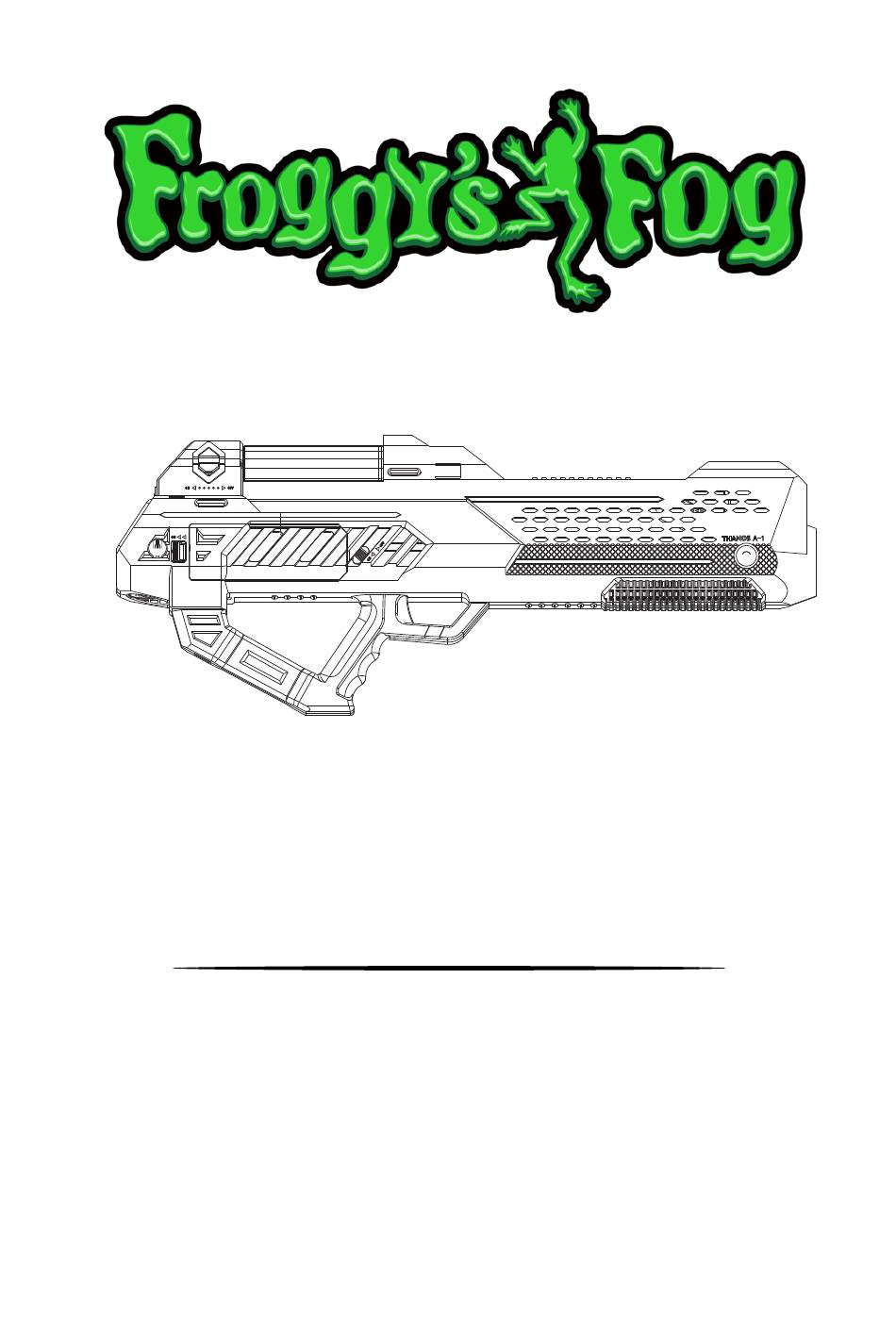

- Page 1 THANOS Thanos A-1 Fog Blaster USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents BEFORE YOU BEGIN ..........................3 What Is Included ..........................3 Unpacking Instruc8ons ........................3 Symbols ............................3 Disclaimer ............................3 Safety Notes ........................... 3 1.5.1 Personal Safety ........................... 3 1.5.2 Moun5ng and Rigging ........................3 1.5.3 Power and Wiring ..........................4 1.5.4 Opera5on ............................ -
Page 3: Before You Begin
FFM-THANOS-A1-120V User Manual V 1.0 1 BEFORE YOU BEGIN 1.1 What Is Included Fluid Container x 2 A-1 Fog Blaster × 1 BaNery × 2 Charging Base × 1 Strap× 1 Power cord × 1 Flight Case × 1 Unpacking Instruc7ons Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condiQon. -
Page 4: Power And Wiring
Descrip7on Froggy’s Fog Thanos A-1 is the world's first rechargeable high-speed Fog Blaster. It is very easy to use by consuming fog fluid instead of connecQng to gas cylinder to create awesome effects. Different from the tradiQonal CO2 devices used in entertainment venues, consuming carbon dioxide, inconvenient and costly to use, the A-1 fog blaster is fully electric provides a full conQnuous burst for 30 sec. -
Page 5: Product Dimensions
FFM-THANOS-A1-120V User Manual V 1.0 Product Dimensions 3 TECHNICAL SPECIFICATIONS AC Power Input Voltage & Rate AC 220-240 V, 50/60 Hz Current Limiter Type Breaker Current Limiter SpecificaQons 15A, 250V Total Power ConsumpQon 1,200 W HeaQng Heat Up Time Appr. 10 min Nozzle LED：RGBW Blaster Body LED：... -
Page 6: Setup
FFM-THANOS-A1-120V User Manual V 1.0 Hang Upside Down × Rigging & Trussing √ Control On-device Manual Control Wireless Control × Wired Control × DMX512 × Consumable Consumable Froggy’s Fog Bog Fog Machine Fluid Weight & Net Weight 13.75 kg Dimensions Gross Weight 20.1 kg Blaster Body Dimension... -
Page 7: Bamery Installa8On And Removal
FFM-THANOS-A1-120V User Manual V 1.0 Figure 1 Figure 2 BaLery Installa7on and Removal As shown in below figures, insert the baNery into the cabinet unQl it is locked firmly by quick Lock# A and B. As show in the below figure 1, push up Lock B and pull back Lock A together to unlock the baNery. Ater the baNery pops up, Lock A and Lock B will reset automaQcally as shown in the below figure 2. -
Page 8: How To Heat The Fog Blaster
FFM-THANOS-A1-120V User Manual V 1.0 How to Heat the Fog Blaster Place the A-1 fog blaster on the Power Base, ensure it is correctly engaged. Power on the Charging Base to heat the fog blaster. During heaQng, the LCD display shows “HeaQng up”, the LEDs at the Nozzle Trigger BuNons will blink. When the heaQng is finished, the LEDs turn blue and LCD display shows the fog duraQon. -
Page 9: Control Mode & Operafon
Decreases the numeric value of current funcQon <ENTER> Save seyngs Menu Map Display DescripQon OpQons Thanos A-1 Welcome Fog Gun Start Up Page Page HeaQng Up The unit is heaQng up and the current baNery level is BaNery：100% Status Page... -
Page 10: Technical Information
FFM-THANOS-A1-120V User Manual V 1.0 Gun Body Color SCROLL WHITE PINK PURPLE Press ▲ or ▼ to select the color of the LEDs of the SKY BLUE blaster body and fluid tank ORANGE YELLOW BLUE GREEN Press ▲ or ▼ to select the trigger opQon. Trigger 1: Trigger press outputs fog 2: Trigger press plus pressing either of illuminated... -
Page 11: Troubleshoo8Ng
FFM-THANOS-A1-120V User Manual V 1.0 Troubleshoo7ng Errors Symptom PotenQal Cause SoluQon Refer to “MENU MAP” chapter to for more No Fluid in the Refill the fluid informaQon Tank No Fluid Pump Problem Contact Dealer for Service Refer to “MENU MAP” chapter to for more HeaQng Heater Issue Contact Dealer for Service...
