Summary of Contents for Opus Technologies OP-6505H

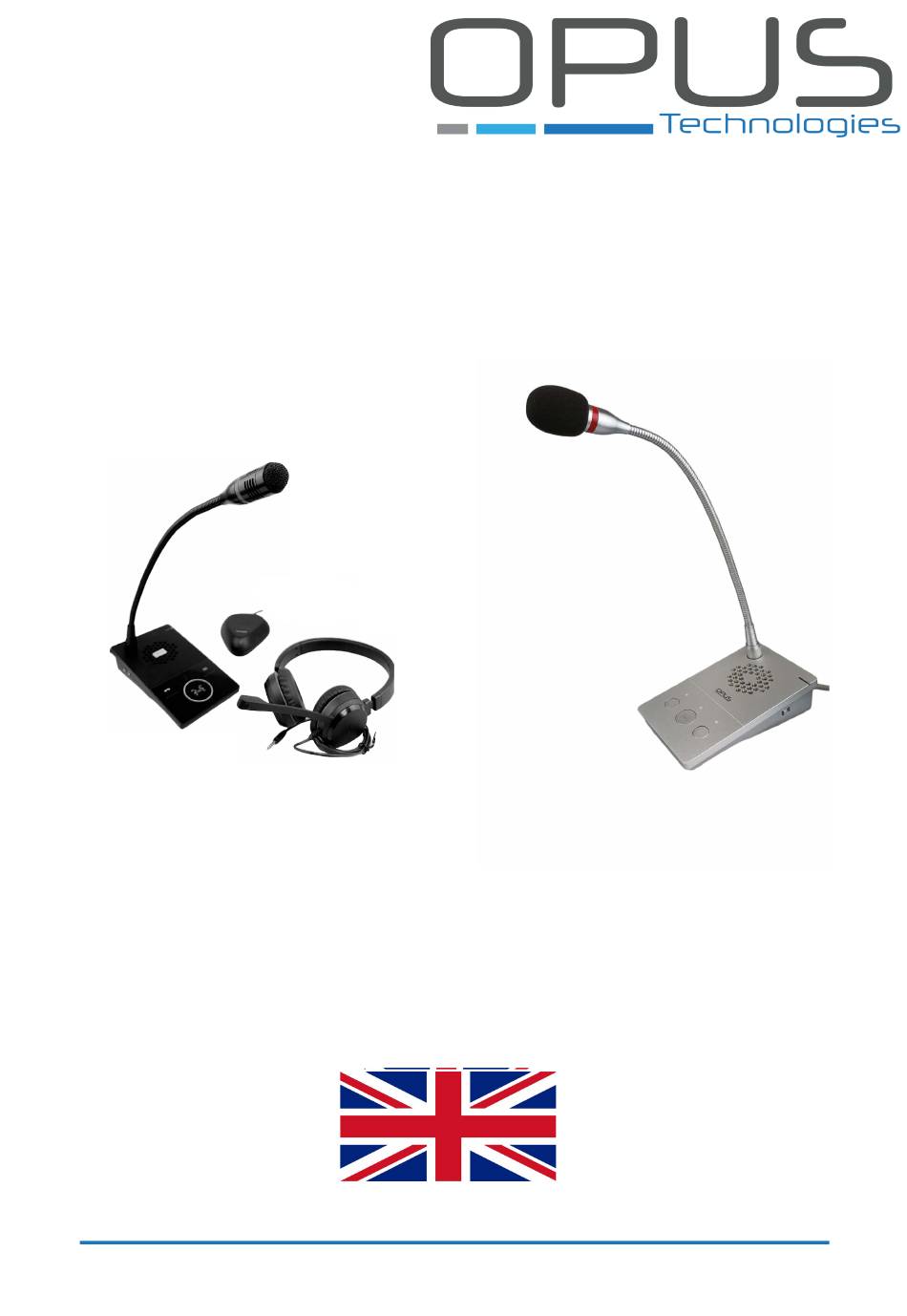

- Page 1 Window intercom OP-6505H OP-6510 Installation and user manual...
-
Page 2: Table Of Contents
1 Presentation ............1 1.1 Introduction . -
Page 3: Presentation
• Audio output to connect third-party recording storage such as DVR systems. • LED showing if device is on communication. • Mic headset fonction to allow agents to isolate themselves of background noise (only available on OP-6505H). • Rainproof and IP-65 compliant client microphone/speaker. -
Page 4: Technical Caracteristics
1.2 Technical caracteristics 1.3 Package content Following elements are included : • central unit agent + microphone (X1 set) • Gooseneck microphone (X1) • Power adapter 12V (X1) • Wiring clips 3 x 100 mm (X3) • Cable clamp HC-100 (X3) •... -
Page 5: Op-6505Hb And Op-6510B
2) 6-pin connector to central unit agent. OP-6505H microphone/speaker client OP-6510 microphone/speaker clientz 1.5.2 Central unit agent scheme Front view of OP-6505H : 1) Red light : Device working indication 2) Loudspeaker : Audio from client microphone amplifier. -
Page 6: Connection Wiring
• Mode 1 : Noisy environnement. • Mode 2 : Normal environnement. • Mode 3 : Quiet environnement. 2) Headset jack 3.5 mm socket : Only available on OP-6505H. 1.5.3 Connection wiring 1) Power supply : Connect to a 12VA/2A plug. -
Page 7: Safety
1.6 Safety 1.6.1 Safety indications The icons used in combination with Caution and Warning indicate the type of risk. See the following examples: • This symbol is used to alert the user to important operating or maintenance instruction. • This lightening bolt triangle is used to alert the user to the risk of electric shock. •... -
Page 8: Safety Instructions
1.6.2 Safety instructions Safety : • Do not scratch, cut or twist the power cord. • If the device is under maintenance or is unused for 10 days or more, shut down the device and pull out the plug. • Do not put any heavy, or metallic object on the device. •... -
Page 9: Installation
Notes : • DVR connection possible with 2 male connector audio output. • DVR system must have a button. • A RJ45 Ethernet socket is only available on OP-6505H. 2.2 Loop installation 2.2.1 Presentation of DCL20-65 kit The DCL20-65 is a part of Opus Technologie serie of induction loop amplifier. It covers rooms from 50m² to 2000m². -
Page 10: Loop Connection
2.2.2 Loop connection A magnetic induction loop is composed of 3 elements : • A loop cable • A loop adapter • A connecting cable The loop is delivered "ready to use" but it is possible to disassemble it to adapt it to the reception desk shape. Follow the steps to operate it : •... -
Page 11: Loop Installation In The Reception Desk
2.2.3 Loop installation in the reception desk There are different ways to install the magnetic loop with the central unit agent. We recommend the first installation described below. 1) Loop installation inside the reception desk : • Place the loop on vertical and horizontal portion as shown in the figure 3, astride the corner of the reception desk. - Page 12 3) Loop installation in the floor (for metallic reception desk) : • According to your environnement situation, place the loop in the slab (over the wire mesh) or under a coating (parquet, carpet, etc.) using a copper tape or glued under a carpet as shown on figure 5. The wire supplied in the DCL20-65 kit produces a magnetic field radiating on a perimeter of 1.2 m which allows a people to receive the signal comfortably.
-
Page 13: Use
3 Use 3.1 Local intercom duplex conversation • Push the main button of the central unit agent to begin a duplex conversation. The red LED around the central unit agent microphone light on to confirm the system is working properly. •... -
Page 14: Warranty Certificate
4 Warranty certificate Our window intercom devices complies with following CE directives : • EN-5503:2015 • EN-55035:2017 • EN-61000-3-2:2014 • EN-61000-3-3 • ROHS directive... - Page 15 Pour consulter la liste de nos partenaires de services, contactez-nous ou rendez-vous sur notre site internet : To see our service partners, please contact us or visit our website : Opus Technologies 4 Allée Pierre-Gilles de Gennes Technopôle Montesquieu 3650 MARTILLAC Tel : (+33) 06 58 29 53 15 Mail : sales@opus-technologies.fr...
