- Page 1 Window Intercom System OP-6510 User Guide 2021...
-
Page 3: Table Of Contents
EN |Contents Summary…………………………………………………………..…………….……. Safety precautions……………………………………….………………..………… Product introduction……………………………………………………….………. Main features……………………………………………………………….…….…… Hardware interface introduction……………………………………..….…… Introduction……………………………………………………….………………… Packing list…………………………………………………………….…….………….. Wiring……………………………………………………….………………..…………... Basic functions…….……………………………………………………………..… Local intercom………………………………………………………….……….….…. Warm prompt………………………………………………………….………….…… Recording…………………….………………………….……………………………..…... -
Page 4: Safety Precautions
•Should the following irregularity be found during use, immediately disconnect the power supply plug from the AC outlet and contact your nearest OPUS Technologies dealer. Make no further attempt to operate the unit in this condition as this may cause fire or electric shock. - Page 5 Safety precautions Caution While using the unit •Never plug in nor remove the power supply plug with wet hands, as doing so may cause electric shock. •When unplugging the power supply cord, be sure to grasp the power supply plug; never pull on the cord itself.
-
Page 6: Product Introduction

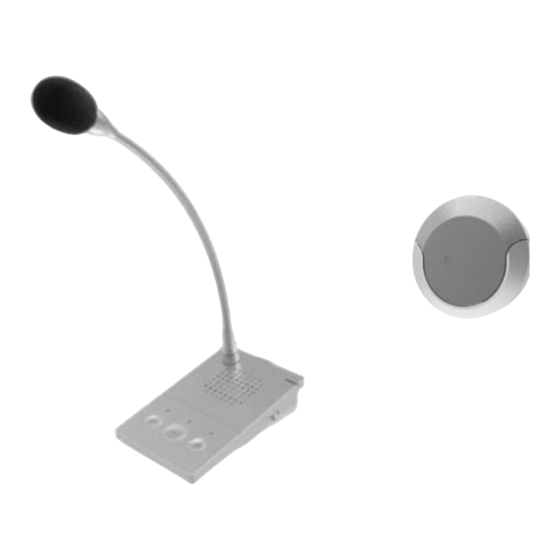

Product introduction Internal window intercom Internal window intercom Main Features • The intercom integrates a Digital Signal Processing (DSP) avoiding squeaking and providing real digital full-duplex . • Using physical button (press button pad). • Auto recognition of sound source, control of environment noises and automatic volume adjustment for a pristine reproduction of original sound. -
Page 7: Hardware Interface Introduction
Hardware interface instruction Internal window intercom 【Front view】 ①Working indication light: red light indicates offiline status, green : online status ② Microphone pole socket: insert the microphone pole and collect the local intercom audio ③Loudspeaker: amplify the audio from the external window intercom. ④... -
Page 8: Introduction
【connection wiring】 ①Power interface: connect with DC12/1,5A power. ② Network Interface: Only for OP-6502IP intercom ③Analog audio output interface: output analog audio, connect with DVR, IP camera or DCL20. ④External window intercom speaker. 【External window intercom】 ①Loudspeaker/MIC： Loudspeaker：amplify the local intercom audio； MIC：pick up the local intercom audio； ②Internal window intercom interface Introduction Packing list... - Page 9 External speaker 1 set （2） Gooseneck microphone (IM-300BY) （3） Power adapter 1 pcs （2） Wire binder （3*100mm）3 pcs （3） Self adhesive clamp 3 pcs （4） Wiring connector (3.81-2P) 1 pcs （5） Quick installation manual 1 pcs （6）...
-
Page 10: Wiring
Wiring Connect the power adapter connector to the power interface of central unit （1） (red colored connector). Connect the speaker customer side with the intercom central unit （2） Basic function Local intercom After connecting the internal and external window intercom modules, turn on the power. Press the intercom button of internal window intercom. -
Page 11: Recording
Recording Analog recording The internal window intercom can output analog audio and be connected to a DVR to automatically record on the hard disk of the recorder. - Page 12 Tél : 09.81.24.00.06 Mail: contact@opus-technologies.fr Opus Technologies — 4 Allée Pierre Gilles de Gennes— 33650 MARTILLAC...
