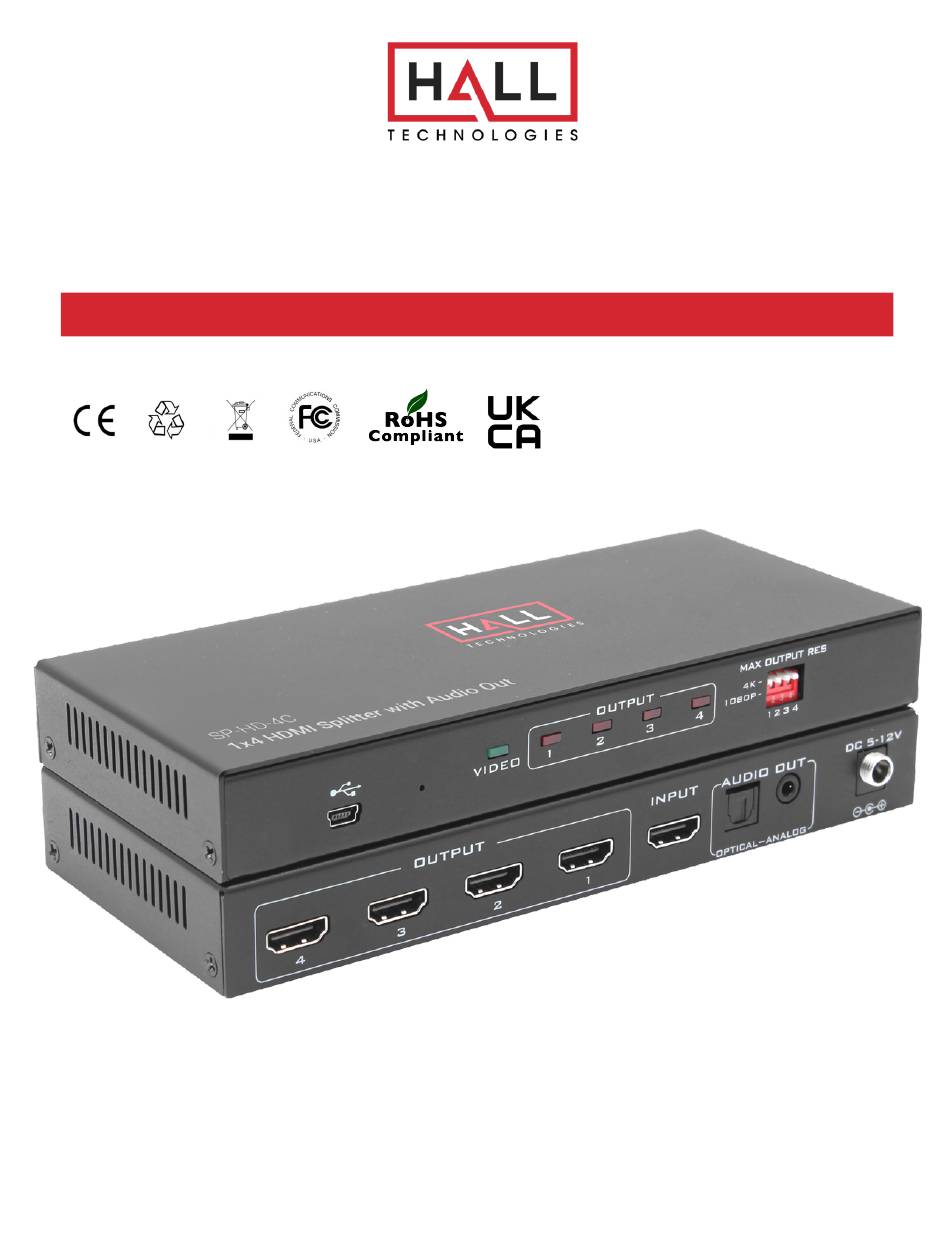

- Page 1 Hall Technologies • 1234 Lakeshore Dr Suite #150 Coppell, TX 75019 • halltechav.com SP-HD-4C Suports 4K UHD @ 60 Hz 4:4:4. HDCP 2.2 and HDR De-embedded Analog and Digital Audio Outputs USER MANUAL July 18, 2023 Hall Technologies June 18, 2023...
- Page 2 8. Protect the power cord from being walked on or pinched particularly at plugs. 9. Only use attachments / accessories specified by the manufacturer. Refer all servicing to qualified service personnel. Hall Technologies June 18, 2023 Page 2 of 10...
-
Page 3: Table Of Contents
Features ............................4 Package Contents ............................4 Connectors and Indicators ......................... 5 Installation ..............................6 Smart EDID Management ........................... 7 Per Output Downscaling from 4K to 1080p ....................8 Specifications ............................. 9 Hall Technologies June 18, 2023 Page 3 of 10... -
Page 4: Introduction
Introduction OVERVIEW Thank you for purchasing the SP-HD-4C, a 4-channel HDMI Splitter from Hall Technologies. This Splitter can distribute an HDMI audio/video source to up to 4 displays simultaneously without any loss. It is compliant to HDCP 2.2 and supports 4K UHD resolutions up to 4K @ 60Hz (4:4:4), HDR and 3D. -
Page 5: Connectors And Indicators
Connectors & Indicators SP-HD-4C Front Name Description USB MINI-B • Used for firmware updated HDMI VIDEO • LED lights when receiving HDMI video HDMI OUTOUT 1-4 LEDs light when HDMI display is connected • Controls HDMI output down sampling to 1080p When set to 4K (default), the output resolution is the same as input resolution. -
Page 6: Installation
Installation Connection Block Diagram Preform the following steps to install the SP-HD-4C. 1. Make sure your HDMI Sources and Displays that you are intending to connect are powered off and disconnected from power sources. 2. Using Hi-speed HDMI cables, connect each display to the Outputs ports of the splitter. -
Page 7: Smart Edid Management
Once an external EDID is found, it is retained until power is cycled, even if the output display is exchanged for another. The SP-HD-4C maintains the audio extraction feature even if there are no active displays connected to the outputs. -
Page 8: Per Output Downscaling From 4K To 1080P
Make sure to connect your 4K TV to output #1 (so the EDID for video source uses 4K native), then for each of the TVs that do not support 4K, set the Dip Switch to 1080p max. Hall Technologies June 18, 2023... -
Page 9: Specifications
