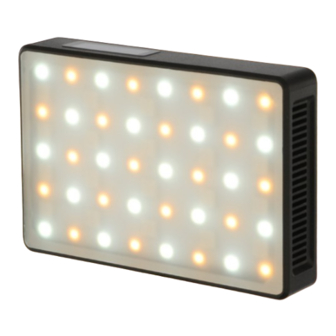

Genaray RGB Series User Manual

Pocket on-camera rgb led
Hide thumbs Also See for RGB Series:
Table of Contents

Advertisement

Quick Links

Download this manual
RGB SERIES
RGB-CP425
POCKET ON-CAMERA RGB LED
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Genaray RGB Series

Summary of Contents for Genaray RGB Series

  • Page 1 RGB SERIES RGB-CP425 POCKET ON-CAMERA RGB LED USER MANUAL...
  • Page 2 The RGB-CP425 is controlled by a simple and intuitive on-unit interface. Bluetooth support pairs with Genaray’s RGB Series mobile app, which provides access to even more powerful features. Use the app to create a universe of RGB-series lights that can be controlled from a smartphone or tablet from up to 33 feet away.
  • Page 3 PRECAUTIONS CONTENTS INCLUDE · Light · Diffuser · Cable · Please read and follow these instructions. · Shoemount adapter · Tabletop Tripod · Keep this product away from water and flammable gases or liquids. · Carry pouch · Use only the correct, recommended voltage.
  • Page 4 Power switch PRODUCT OVERVIEW Selection rocker USB-C charging port 1/4-20 socket RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL...
  • Page 5 OLED screen Heat sinks Mounting magnets RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL...

  • Page 6: Mounting The Light

    MOUNTING THE LIGHT MOUNTING TO A TRIPOD OR LIGHT STAND Screw the light onto a light stand’s 1/4-20 stud, and tighten until secure. MAGNETIC MOUNTING Use the built-in lightweight magnets to attach the light to a metal surface. MOUNTING TO A CAMERA 1.

  • Page 7: Wireless Charging

    POWERING THE LIGHT CHARGING THE LIGHT Turn on the light by moving the power WIRED CHARGING switch upwards to the ON position. Use the USB-C cable to charge the light The OLED screen continuously calculates from a powered computer port or use a plug the remaining battery time with the adapter like the Xcellon Mighty Mini 130 30W changing light functions, effects, and...

  • Page 8: User Interface

    USER INTERFACE MODE SELECTION OLED SCREEN Press and hold the selection rocker to access the mode selector. Turn the rocker up or down to scroll through the available operation modes. Once the 3.4h mode is highlighted, press the rocker or wait approximately three seconds to activate.

  • Page 9: Hsi Mode

    CCT MODE HSI MODE 3.4h 3.4h 2950 180° CCT: Adjusts the color temperature from Hue: Adjusts the hue from 0° to 359° of the 2800 to 8000 K. color wheel. Intensity: Adjusts the brightness from 0% to Saturation: Controls the saturation of the 100% in 1% increments.
  • Page 10 GEL MODE LIST OF GELS 3.4h 1. Blue 15. 1/8 Straw BLUE 2. 3/4 Blue 16. 15 Blue 3. 1/2 Blue 17. 30 Blue 4. 1/3 Blue 18. 60 Blue Gel: Select one of 48 industry-standard colored gels. 5. 1/4 Blue 19.
  • Page 11 The RGB-CP425 is preset with 10 animated lighting effects that can be accessed from 33. 15 Red 43. 60 Pink the light’s side panel and via the Genaray 34. 30 Red 44. 90 Pink RGB Series app. 35. 60 Red 45.
  • Page 12 3. Press the selection rocker to highlight Pulsing: A steady pulse of white light that the intensity, and turn the rocker to fades on and off. adjust the brightness. Explosion: Simulates the light from explosions with bursts of light that flash on EFFECTS and fade off.

  • Page 13: Settings Mode

    SETTINGS MODE > M/S: Controls the Master/Slave function. 3.4h M: The Master light will control the settings of all RGB-series lights set to the same group and number. S: The Slave light's settings will be controlled by the Master light when set to Press the selection rocker to select the desired settings menu.
  • Page 14 GENARAY RGB APP The Genaray RGB app can control the Dimmer: Sets the brightness of all RGB- Genaray RGB-series lights from up to 33 series lights that are set to the same group feet away. The RGB app expands the RGB- and channel or for a light that’s set to its...
  • Page 15 RECYCLING LITHIUM-ION BATTERIES Lithium-ion batteries are recyclable. You can help preserve the environment by returning your used rechargeable batteries to a collection and recycling location near you. For information about recycling rechargeable batteries, call the Call2Recycle helpline at 1-877-2-RECYCLE, or visit www. call2recycle.org.

  • Page 16: Product Specifications

    PRODUCT SPECIFICATIONS LIGHT FIXTURE Included Filters: Integrated diffuser LED Chip Type: RGBAW Housing Material: ABS Plastic Beam Angle: 120° Light Intensity @3 ft.: 150 lx (5600 K) Color Temperature: 2800 to 8000 K Number of LEDs: 60 (40 AW, 20 RGB) Color Accuracy Standard: CRI: 96.1 (5600 K) Expected Lamp Life: 50,000 Hours TLCI: 98 (5600 K)

  • Page 17: Remote Operation

    Battery Charging: USB-C to USB-A Remote Control Type: Bluetooth charging cable Mobile App Compatible: Yes: iOS and Android App Name: Genaray RGB Series Wireless Range : 33 ft. (10 m) Wireless Channels/Groups: 99 channels, 99 groups RGB-CP425 Pocket On-Camera RGB LED - USER MANUAL...
  • Page 18 ONE-YEAR LIMITED WARRANTY This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of...
  • Page 19 To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Genaray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
