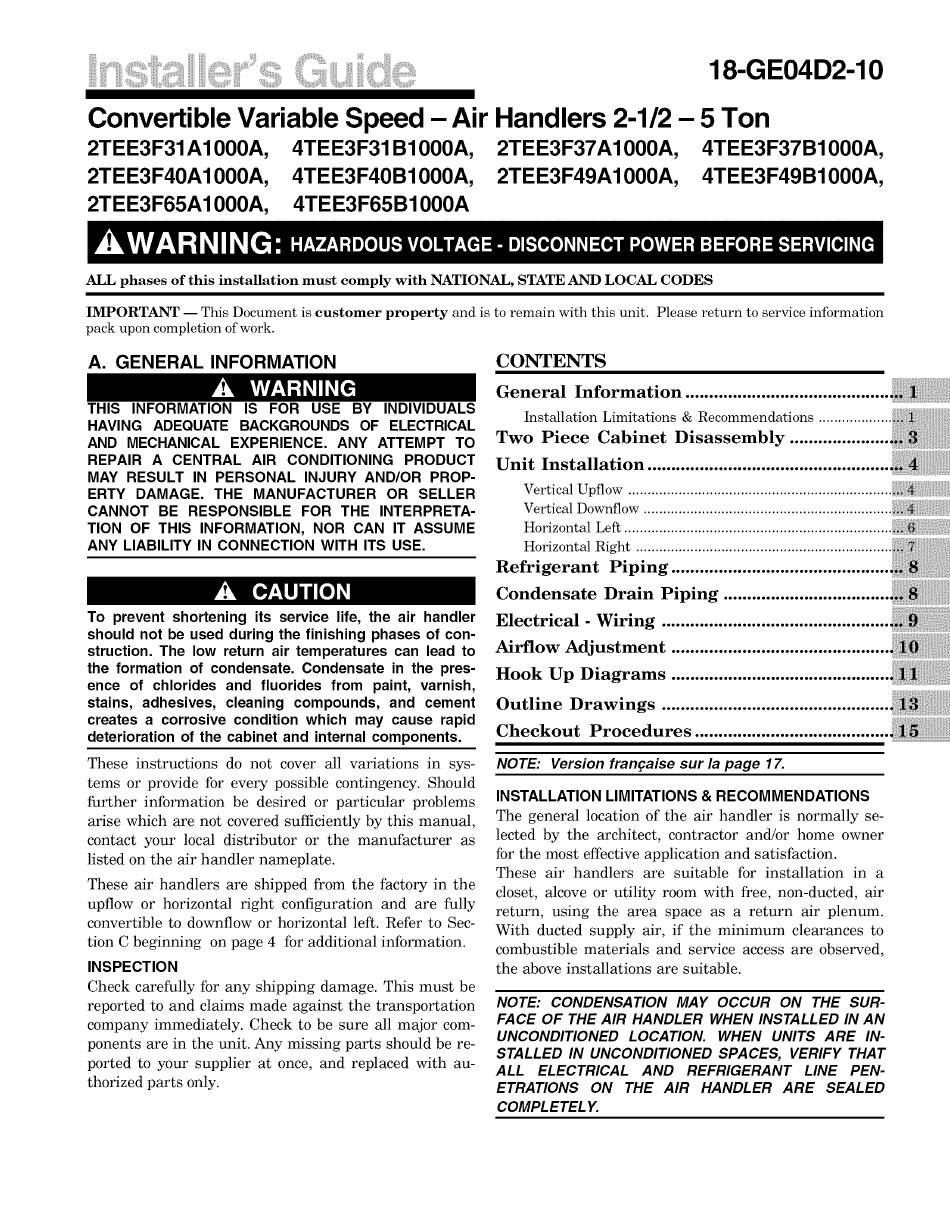

Trane 2TEE3F31A1000A Installer's Manual

18-GE04D2-10
Convertible Variable Speed - Air Handlers 2-1/2 - 5 Ton
2TEE3F31A1000A, 4TEE3F31B1000A, 2TEE3F37A1000A, 4TEE3F37B1000A,
2TEE3F40A1000A, 4TEE3F40B1000A, 2TEE3F49A1000A, 4TEE3F49B1000A,
2TEE3F65A1000A, 4TEE3F65B1000A
ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
IMPORTANT -- This Document is customer property and is to remain with this unit. Please return to service information
pack upon completion of work.
A. GENERAL INFORMATION
THIS INFORMATION IS FOR USE BY INDIVIDUALS
HAVING ADEQUATE BACKGROUNDS OF ELECTRICAL
AND MECHANICAL EXPERIENCE. ANY ATTEMPT TO
REPAIR A CENTRAL AIR CONDITIONING PRODUCT
MAY RESULT IN PERSONAL INJURY AND/OR PROP-
ERTY DAMAGE. THE MANUFACTURER OR SELLER
CANNOT BE RESPONSIBLE FOR THE INTERPRETA-
TION OF THIS INFORMATION, NOR CAN IT ASSUME
ANY LIABILITY IN CONNECTION WITH ITS USE.
To prevent shortening its service life, the air handler
should not be used during the finishing phases of con-
struction. The low return air temperatures can lead to
the formation of condensate. Condensate in the pres-
ence of chlorides and fluorides from paint, varnish,
stains, adhesives, cleaning compounds, and cement
creates a corrosive condition which may cause rapid
deterioration of the cabinet and internal components.
These instructions do not cover all variations in sys-
tems or provide for every possible contingency. Should
further information be desired or particular problems
arise which are not covered sufficiently by this manual,
contact your local distributor or the manufacturer as
listed on the air handler nameplate.
These air handlers are shipped from the factory in the
upflow or horizontal right configuration and are fully
convertible to downflow or horizontal left. Refer to Sec-
tion C beginning on page 4 for additional information.
INSPECTION
Check carefully for any shipping damage. This must be
reported to and claims made against the transportation
company immediately. Check to be sure all major com-
ponents are in the unit. Any missing parts should be re-
ported to your supplier at once, and replaced with au-
thorized parts only.
CONTENTS
i_iiiiiiiiiiiii/iiiiii_iiiiiiii!ii
General Information ...........................................
Installation Limitations & Recommendations
Two Piece Cabinet Disassembly
Unit Installation ...................................................
Vertical Upflow ....................................................................
Vertical Downflow ................................................................ _
Horizontal Left ..................................................................... ..
Horizontal Right
Refrigerant Piping
[
Condensate Drain Piping ...................................
Electrical - Wiring ................................................
Airflow Adjustment ..............................................
Hook Up Diagrams ..............................................
Outline Drawings ................................................
Checkout Procedures .........................................
NOTE: Version fran_aise sur la page 17.
INSTALLATION LIMITATIONS & RECOMMENDATIONS
The general location of the air handler is normally se-
lected by the architect, contractor and/or home owner
for the most effective application and satisfaction.
These air handlers are suitable for installation in a
closet, alcove or utility room with free, non-ducted, air
return, using the area space as a return air plenum.
With ducted supply air, if the minimum clearances to
combustible materials and service access are observed,
the above installations are suitable.
NOTE: CONDENSATION MAY OCCUR ON THE SUR-
FACE OF THE AIR HANDLER WHEN INSTALLED IN AN
UNCONDITIONED LOCATION. WHEN UNITS ARE IN-
STALLED IN UNCONDITIONED SPACES, VERIFY THAT
ALL ELECTRICAL AND REFRIGERANT LINE PEN-
ETRATIONS ON THE AIR HANDLER ARE SEALED
COMPLETELY.
