Summary of Contents for Bryston BP-19

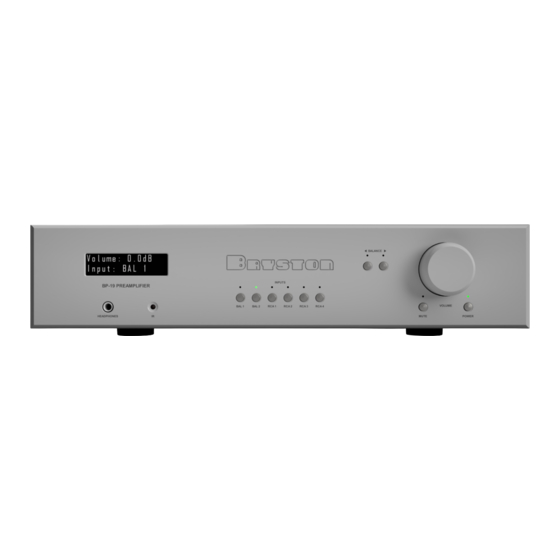

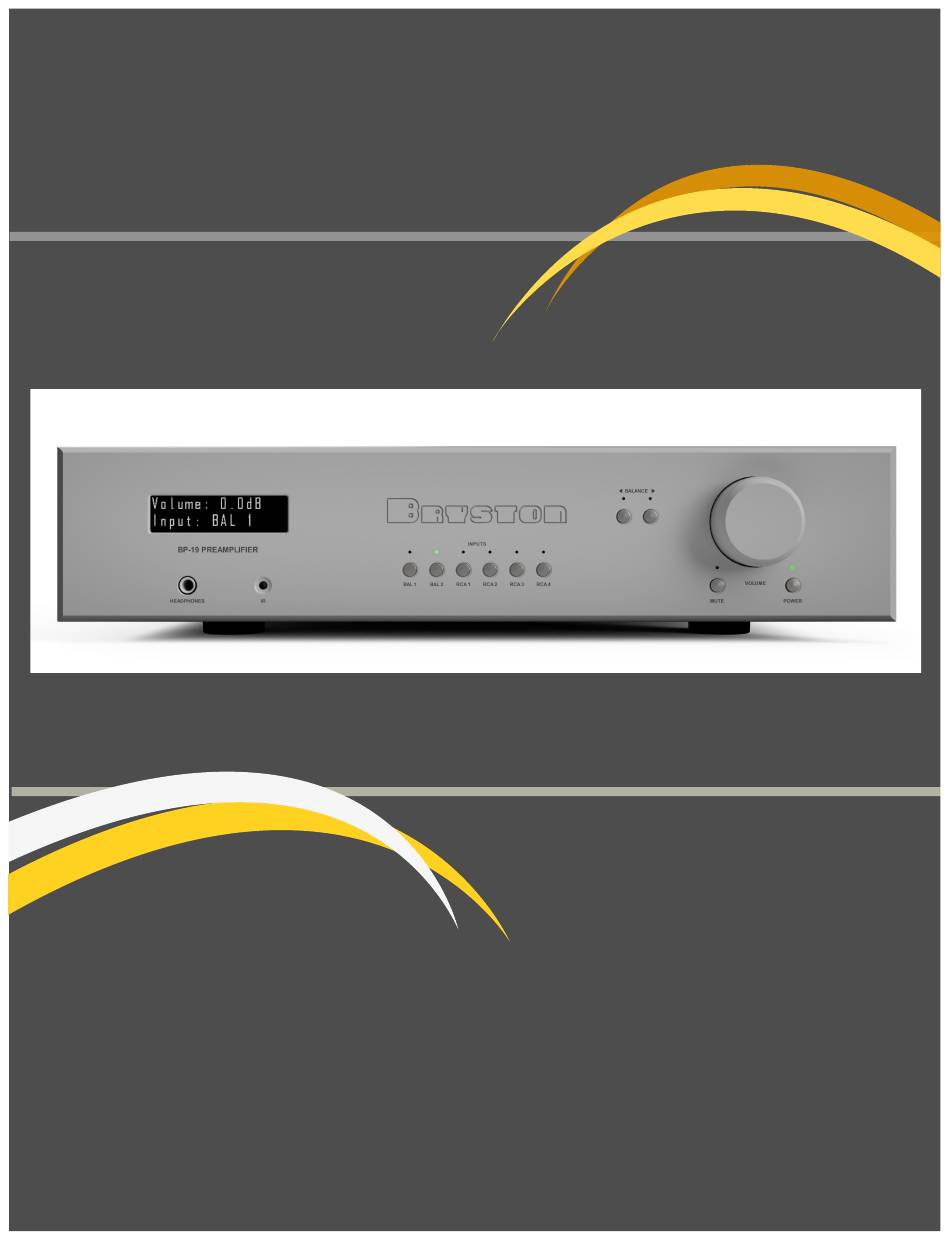

- Page 1 BRYSTON OWNERS MANUAL BRYSTON BP-19 ANALOG STEREO PREAMPLIFIER MUSIC WITH EMOTION...
-
Page 2: Important Safety Instructions
CONNECTING YOUR BUSINESS TO THE TECHNOLOGY RESOURCES IMPORTANT SAFETY INSTRUCTIONS YOU NEED The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 3 The XLR and RCA outputs labeled ‘MAIN’ Left and Right are ‘VARIABLE’ outputs so they are controlled by the WARNING: volume control on the BP-19 front panel or the hand held The XLR and RCA outputs labeled Remote. ‘FIXED Left and Right’ are ‘FIXED’ so The XLR and RCA outputs labeled ‘FIXED’...
-
Page 4: General Specifications
(Number 1 Variable - 2 Fixed) 4 pair RCA inputs (Input 1 Option Phono BP-19P & BP-19MC only) ADDITIONAL SPECIFICATIONS FOR BP-19 Phono MM/MC Stages Options: Moving Magnet: is a 41dB @1kHz gain preamp with RIAA playback Standard Silver or Black Faceplates equalization for moving magnet cartridges. - Page 5 Auto Turn Off FULLY DISCRETE FULLY BALANCED CLASS ‘A’ ANALOG CIRCUITS: The BP-19 analog preamplifier is a byproduct of years of R&D that resulted in the development of an optimized fully discrete opamp buffer amplifier capable of delivering a staggeringly low THD+N measurement at or below 0.0006%. The...
-
Page 6: Headphone Output
CONNECTING YOUR BUSINESS TO THE TECHNOLOGY RESOURCES YOU NEED The Bryston BP-19 preamp also features two pairs of balanced XLR input jacks. Many signal sources, including CD-players and separate D/A converters are now available with Balanced outputs for minimum noise pickup on the cables. -
Page 7: Balanced Outputs
Input impedance is 180 ohms and sensitivity is 350uV VISUAL INDICATORS: The LED on the front panel of the BP-19 lights GREEN when power is on. RED in standby. Display is white. MUSIC WITH EMOTION PAGE 7... -
Page 8: Volume Control
RS232 or SVC Ethernet ports. TRIGGER INPUT: The BP-19 can be remotely turned on or placed into standby when receiving DC voltage into this port. TRIGGER OUT: These outputs can be connected to DC trigger inputs of other equipment to mod- ulate the power state of connected equipment. - Page 9 GENERAL SPECIFICATIONS FRONT PANEL CONTROLS: ADDITIONAL MENUS You can access additional controls by ‘Pushing In’ the front panel Volume control and releasing. Then turn the volume control ‘Counter Clockwise’ to enter a menu . Push the Volume knob a second time and the menu will open.
- Page 10 Personalized Faceplates Bryston is pleased to introduce the availabil- ity of personalized faceplate colours, availa- ble now for Bryston amplifiers, preamplifiers, CD players, digital players, phono stages and DAC’s. Our new colour choices, plus the option to create custom colours, enable Bryston elec- tronics to blend seamlessly or contrast ele- gantly within any décor or equipment rack.
