Bryston BP25 Schematic Diagram

MPS1
Revision 5
August 2002
REVISION HISTORY
Rev 1.5e 17 Aug 2000 WP Rev 1.8 2004-04-08
Updated PSU schematic and corrected
IR receiver replaced with updated part
phono input adding 220pF cap.
RPM6938 (Rohm)
Rev 1.6 09 Aug 2001 ST
HEADPHONE MUTE WIRING SHOWN
Rev 1.61 26 Sept 01 WP
20N cap in RC reveiver (45027) repalced
with 22n and the 49K9 in parallel with it
is chg'd to 45K3. Two 1000u/50v caps on
output of 8v regulator replaced with
single 2200u/35v cap.
Rev 1.6A 15 APRIL O2 ST
ADD 1MEG TO + BUFFER INPUT
Rev 1.7 1 Aug 03 WP
Corrected dwg error to gnd'ng at selector
switch inputs

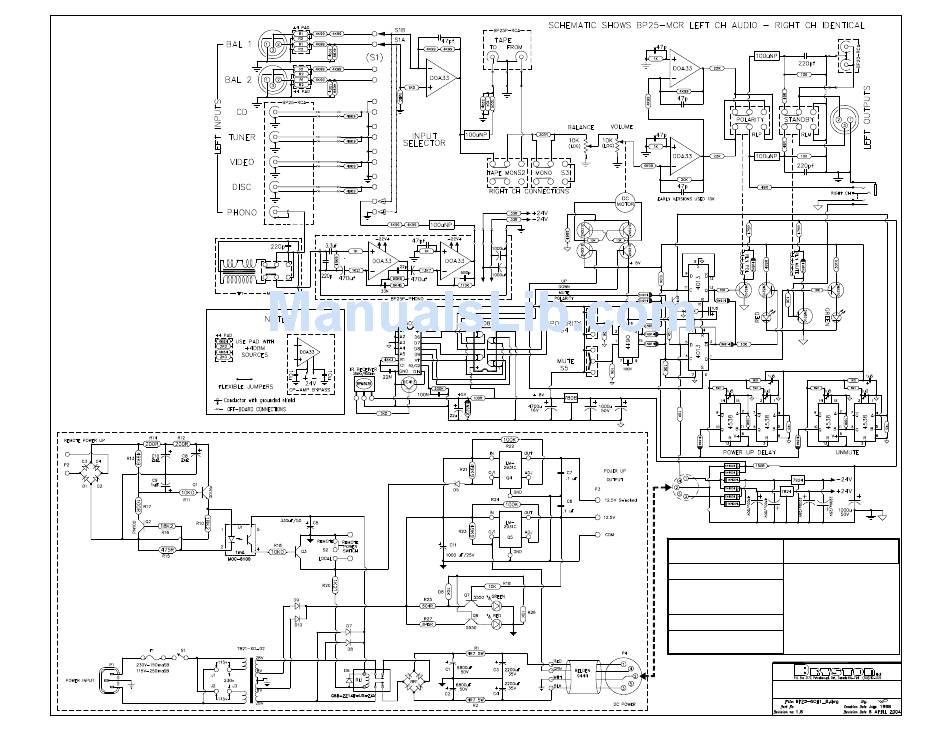

BP25 PREAMP
MAIN SCHEMATIC
WP
