Summary of Contents for Bryston BP-19

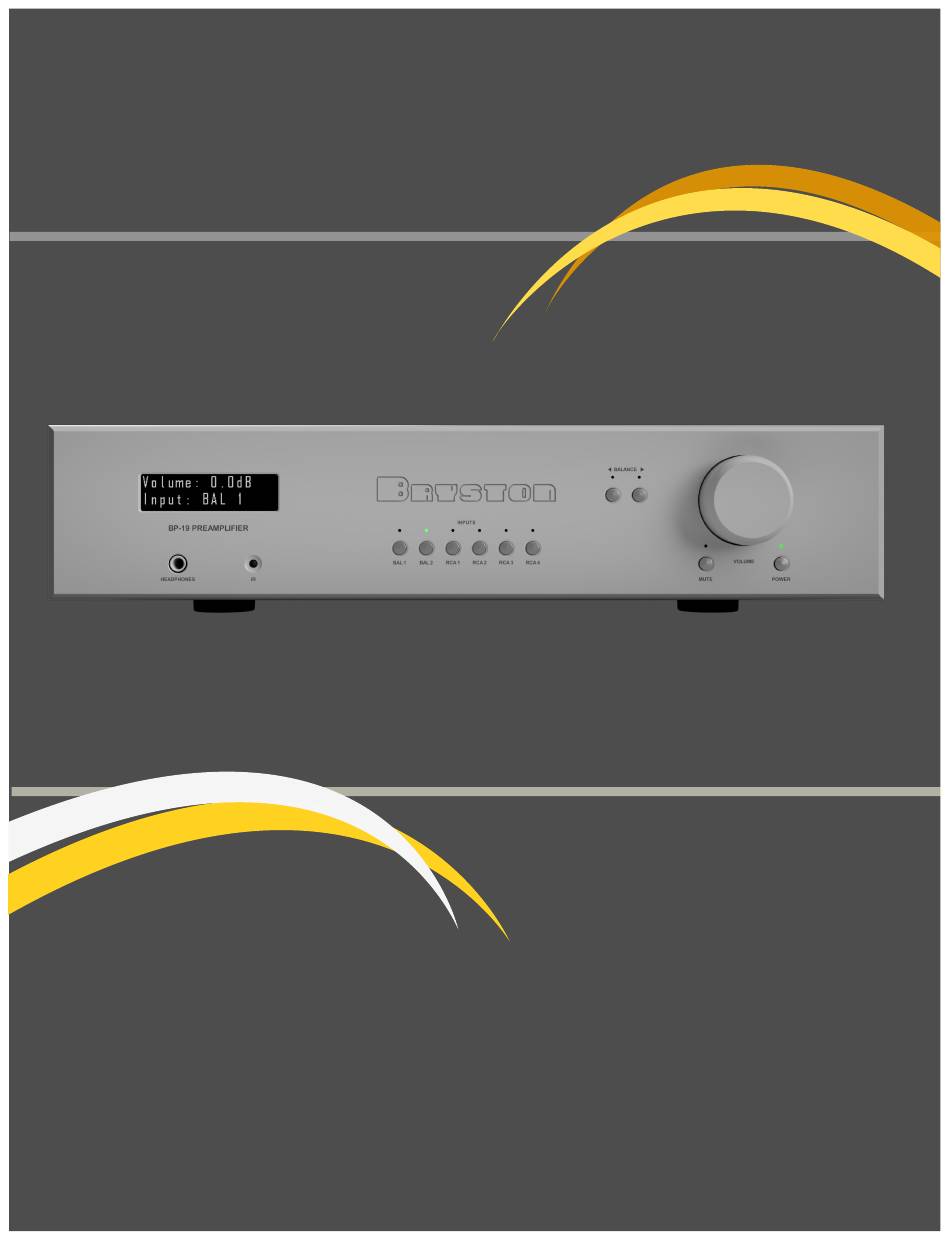

- Page 1 BRYSTON OWNERS MANUAL BRYSTON BP-19 ANALOG STEREO PREAMPLIFIER MUSIC WITH EMOTION...
-
Page 2: Important Safety Instructions
CONNECTING YOUR BUSINESS TO THE TECHNOLOGY RESOURCES IMPORTANT SAFETY INSTRUCTIONS YOU NEED The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulat- ed “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 3 Balanced XLR. The factory setting for both the VAR/FIX output and MAIN output is ‘VARIABLE’ so both are con- trolled by the volume control on the BP-19 front panel or the hand held Remote. If you change in the MENU the set labelled ’VAR/FIX’ to ‘FIXED’...
- Page 4 Auto Turn Off FULLY DISCRETE FULLY BALANCED CLASS ‘A’ ANALOG CIRCUITS: The BP-19 analog preamplifier is a byproduct of years of R&D that resulted in the development of an optimized fully discrete opamp buffer amplifier capable of delivering a staggeringly low THD+N measurement at or below 0.0006%. The...
- Page 5 Bryston’s version of the RIAA curve is a one of a kind and has been proven to be one of the most accurate available. MUSIC WITH EMOTION...
- Page 6 20/26dB and the high frequencies boosted, and on playback, the opposite occurs. Bryston’s version of the RIAA curve is a one of a kind and has been proven to be one of the most accurate available. A step-up Moving-Coil transformer is designed to accept the lower voltage out- put from the MC cartridge and increase the voltage to a point which is accepta- ble to the input stage of the standard MM phono section.
- Page 7 The internal Bryston Moving-Coil step-up transformer in the BP-19 preamplifier is available in two versions...with a 20dB or a 26dB gain option. Your choice on which unit is most appropriate will be determined by the voltage output of your chosen cartridge.
- Page 8 Features: 2 pair balanced female XLR inputs 2 pair balanced male XLR outputs 2 pair single ended outputs BP-19 ANALOG PREAMPLIFIER PHONO INFORMATION 4 pair RCA inputs (Input 1 Option • BP-19 MOVING MAGNET STAGE Phono BP-19P & BP-19MC only) •...
- Page 9 Features: Moving magnet cartridges perform best when presented with a capaci- tive load. The BP-19 MM/ MC offers four settings for capacitive loading which can be set internally with jumpers. The desired loading for your 2 pair balanced female XLR inputs cartridge may be found in the documentation included with the car- tridge.
- Page 10 CARTRIDGE LOADING MOVING-COIL No loading options are available or necessary for moving coil cartridges. 20 DB GAIN 26 DB GAIN MUSIC WITH EMOTION PAGE 10...
-
Page 11: Headphone Output
Balanced outputs, using 3 pin male XLR jacks. ANALOG AUDIO INPUTS: BP-19 preamplifiers are equipped with four pairs of RCA input connectors: two pairs of balanced XLR input connectors. Balanced inputs use 3 pin XLR female connectors with pin 1 being ground, pin 2 as positive signal, and pin 3 as nega- tive signal. -
Page 12: Visual Indicators
They are capable of driving 12 volts into any load of 1K ohms or greater. VISUAL INDICATORS: The LED on the front panel of the BP-19 lights GREEN when power is on. RED in standby. Display is white. BRYSTON BR-4 REMOTE: You may control many functions of the BP-19 with Bryston’s included Remote... -
Page 13: Control Section
The BP-19 preamplifier can be controlled by remotely using RS232 or IP when connected through the RS232 or SVC Ethernet ports. TRIGGER INPUT: The BP-19 can be remotely turned on or placed into standby when receiving DC voltage into this port. MUSIC WITH EMOTION... - Page 14 GENERAL SPECIFICATIONS FRONT PANEL CONTROLS: ADDITIONAL MENUS You can access additional controls by ‘Pushing In’ the front panel Volume con- trol and releasing. Then turn the volume control ‘Counter Clockwise’ to enter a menu . Push the Volume knob a second time and the menu will open.
- Page 15 GENERAL SPECIFICATIONS GENERAL SPECIFICATIONS BP-19 MUSIC WITH EMOTION PAGE 15...
- Page 16 Personalized Faceplates Bryston is pleased to introduce the availabil- ity of personalized faceplate colours, availa- ble now for Bryston amplifiers, preamplifiers, CD players, digital players, phono stages and DAC’s. Our new colour choices, plus the option to create custom colours, enable Bryston elec- tronics to blend seamlessly or contrast ele- gantly within any décor or equipment rack.
